Compact LED warning light with multiple mounting options and flash patterns.

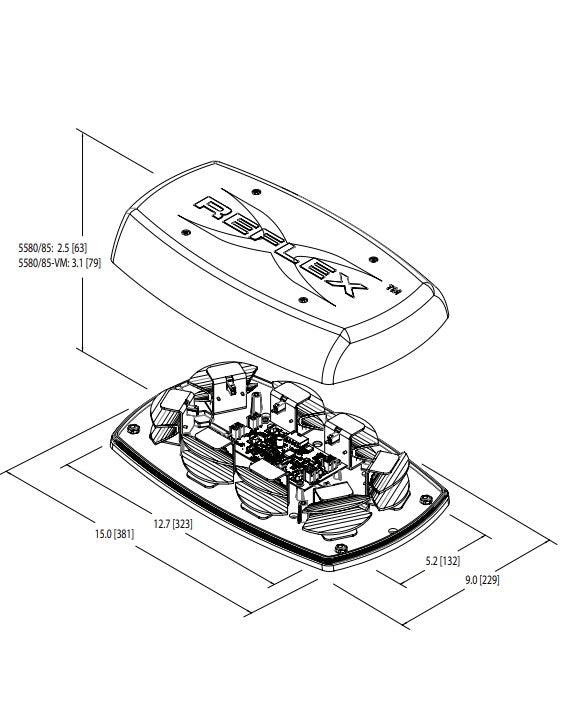

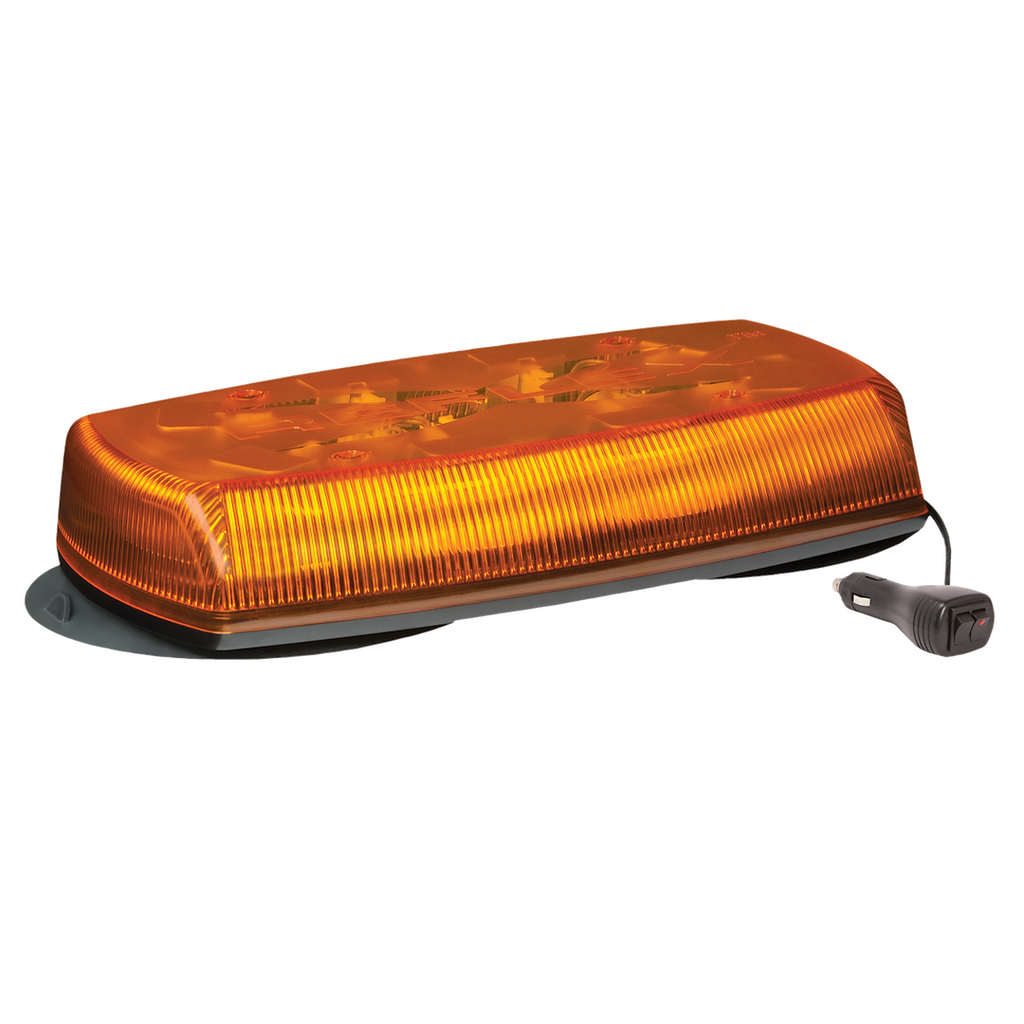

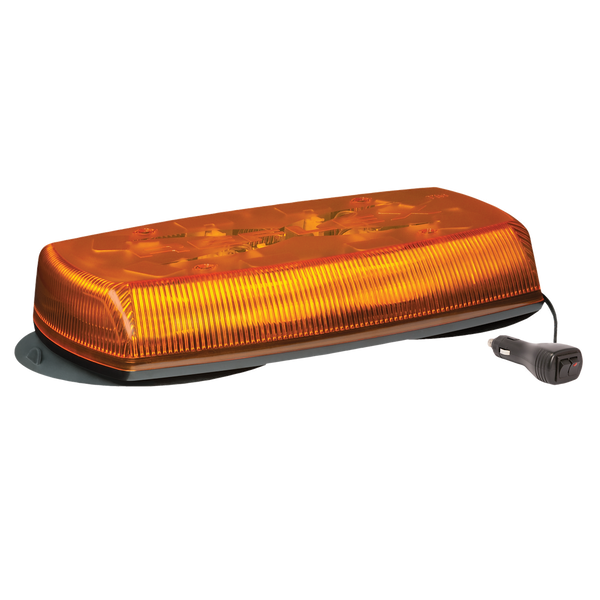

The Ecco Electronic Mini Bar Warning Light is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 3.1 inches in height, this mini bar features eight LED reflector modules, each containing three high-intensity LEDs that maximize light output. It operates on a voltage range of 12 to 24 volts DC, making it versatile for various applications.
This warning light offers the flexibility of either permanent or vacuum-magnet mounting, catering to different installation needs. Users can choose from 18 distinct flash patterns, which can be activated via a trigger wire for permanent mount models or through a cigarette plug switch for magnetic models. Additionally, the permanent mount versions can be synchronized to operate multiple units either alternately or simultaneously, enhancing visibility in critical situations.
Built to withstand a wide temperature range from -22 degrees Fahrenheit to +122 degrees Fahrenheit, the Ecco Mini Bar is suitable for diverse environmental conditions. Its amber lens color ensures high visibility, making it an effective choice for emergency and warning applications.
Features
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Choice Of 18 Flash Patterns
- Cigarette Plug With On And Off And Flash Pattern Selection Switch (Vacuum-Magnet And Magnet Only)
- Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit (-30 Degree Celsius To +50 Degree Celsius)
- Synchronization Capable (Permanent Mount Only)
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5585A-VM
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 3.1 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Vacuum Mount
- Lens Color: Amber
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- With Cigarette Lighter Plug: No
- Includes Gaskets: No
