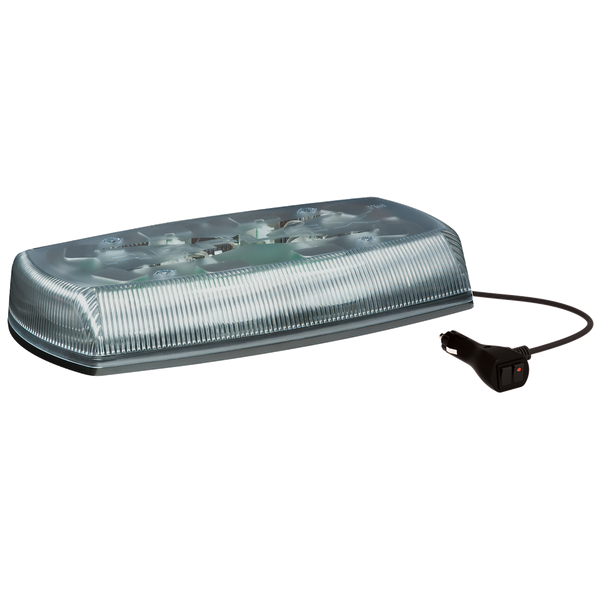

Ecco Electronic LED Mini Bar (MPN: 5580CA-MG)

Compact warning light with high intensity LEDs and multiple flash patterns.

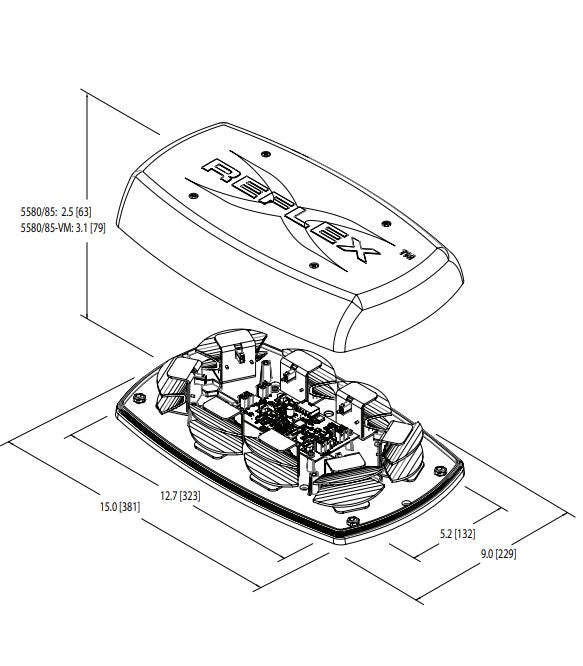

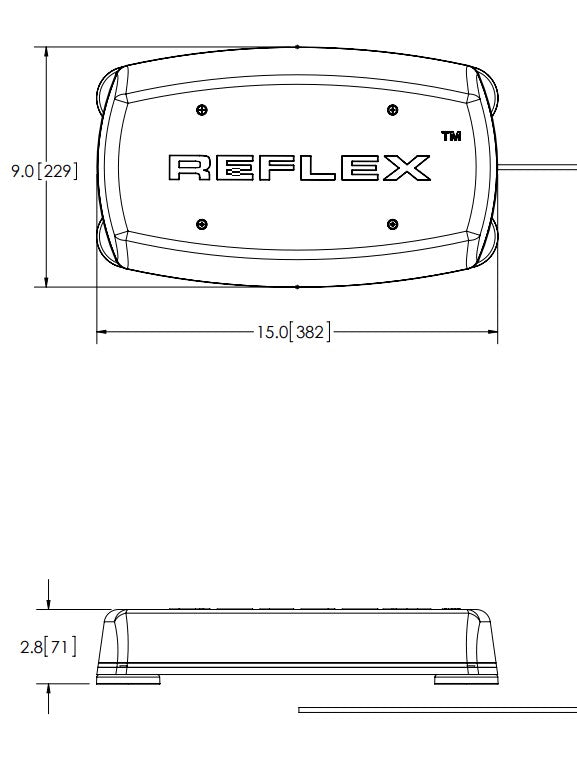

The Ecco Electronic LED Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this mini bar features a magnet mount for easy installation and flexibility in use. It operates on a voltage range of 12 to 24 volts DC, making it suitable for various applications.

Equipped with eight LED reflector modules, each containing three high-intensity LEDs, the mini bar maximizes light output for enhanced visibility. Users can choose from 18 different flash patterns, allowing for customization based on specific needs. The polycarbonate base and low-profile lens ensure durability and resistance to environmental factors, with a temperature range from -22 degrees Fahrenheit to +122 degrees Fahrenheit.

This LED mini bar is an effective solution for those requiring a reliable warning light that combines performance with versatility. Its clear lens and amber LED configuration provide a clear visual signal, making it suitable for emergency vehicles, construction sites, and other applications where visibility is critical.

Features

• Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
• Choice Of 18 Flash Patterns
• Polycarbonate Base And Low Profile Lens
• Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit (-30 Degree Celsius To +50 Degree Celsius)

Specifications

• Manufacturer: Ecco Electronic
• Manufacturer Part Number: 5580CA-MG
• Shape: Rectangular
• Length (IN): 15 Inch
• Width (IN): 9 Inch
• Height (IN): 2-1/2 Inch
• Diameter (IN): Not Applicable
• Style: Mini Bar
• Type: LED
• Mount Type: Magnet Mount
• Lens Color: Clear
• Light Pattern: 18 Flash Pattern
• Power Supply: 12 To 24 Volt
• With Cigarette Lighter Plug: No
• Includes Gaskets: No

Technical Documents

• 920-0149-00.pdf
• 5580_ECCO_8.5X11.pdf
• 5580CA-MG.pdf
