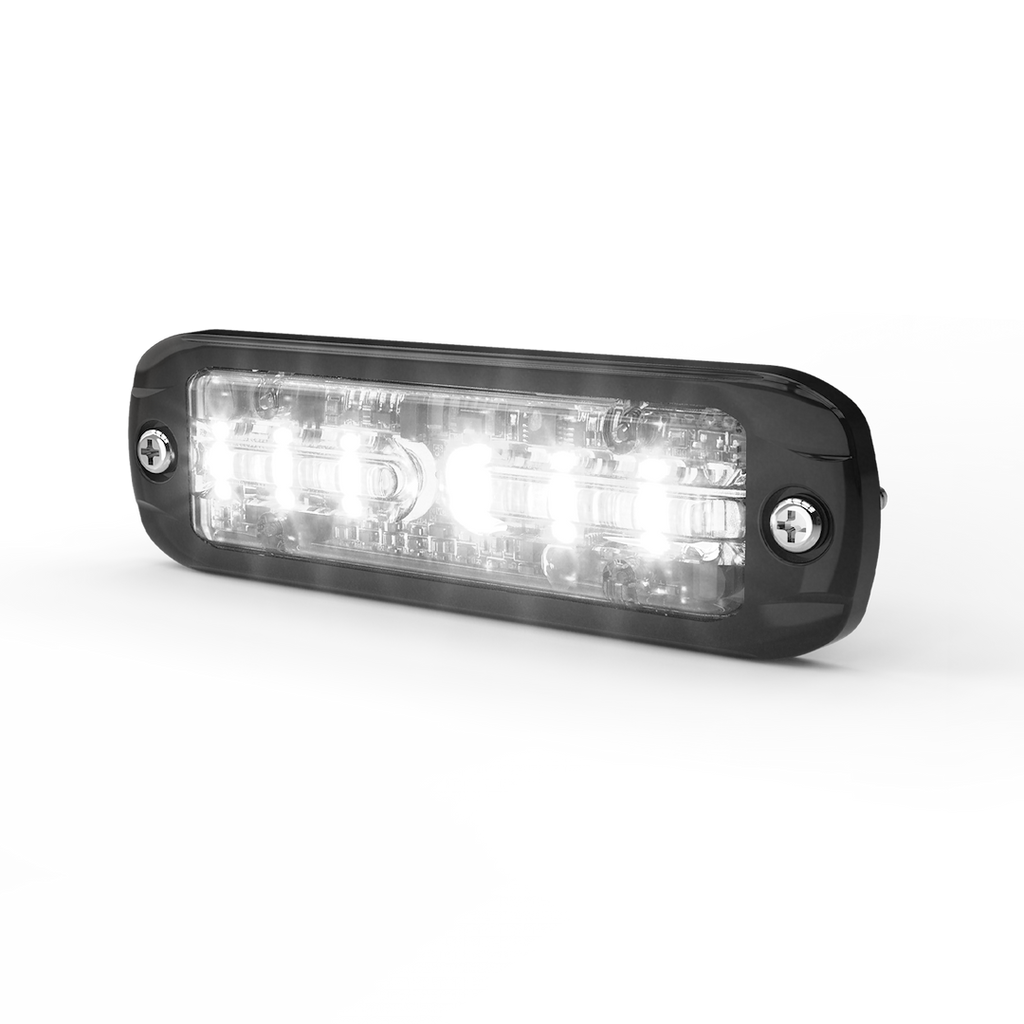

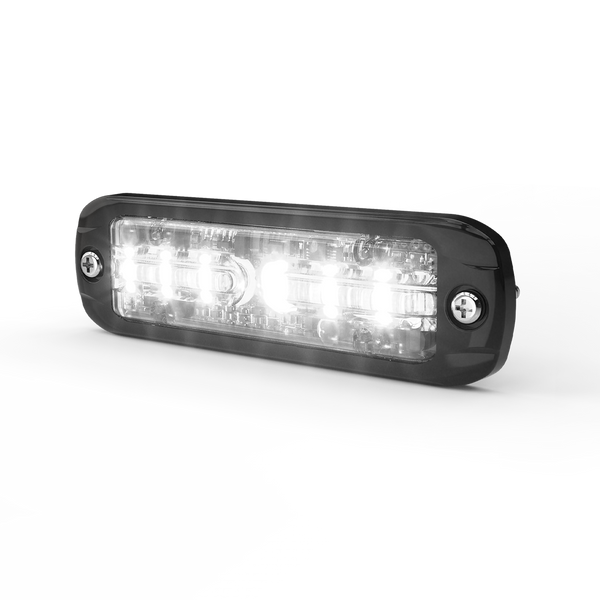

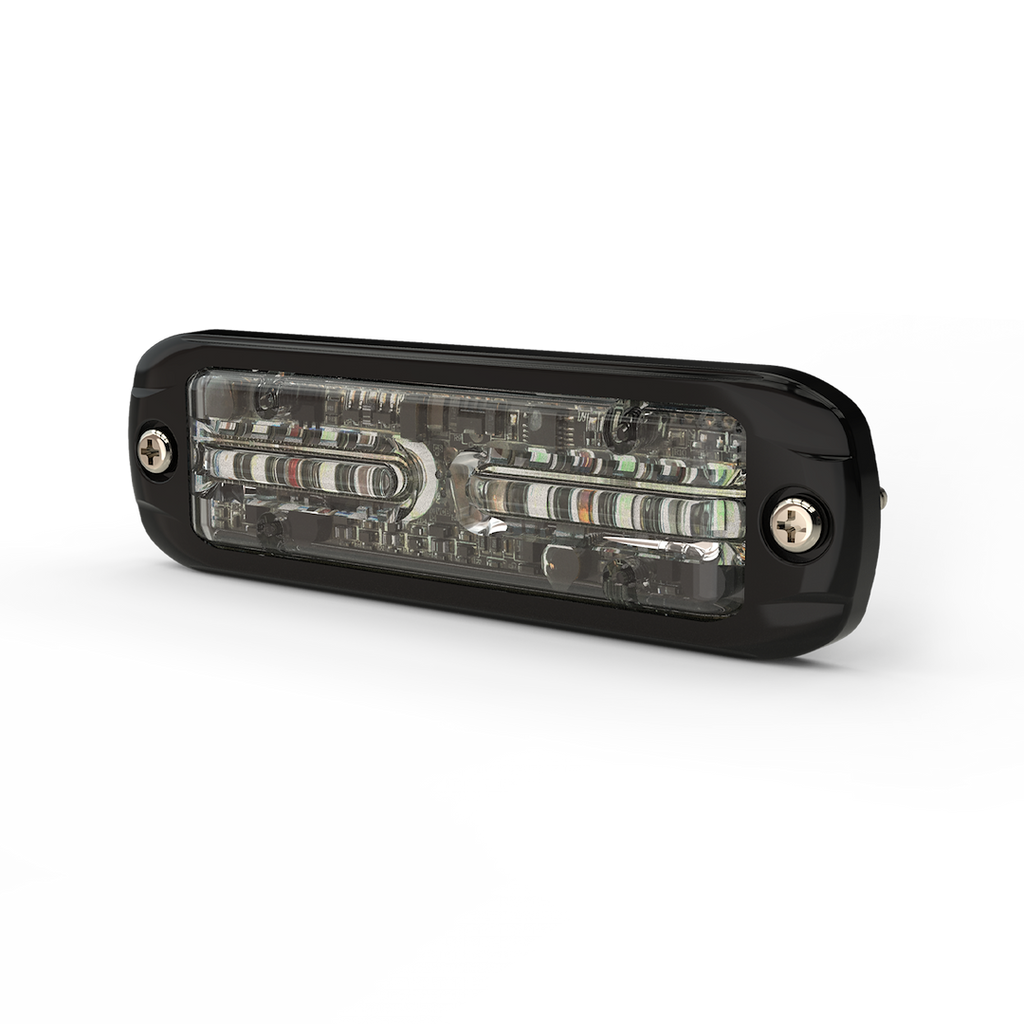

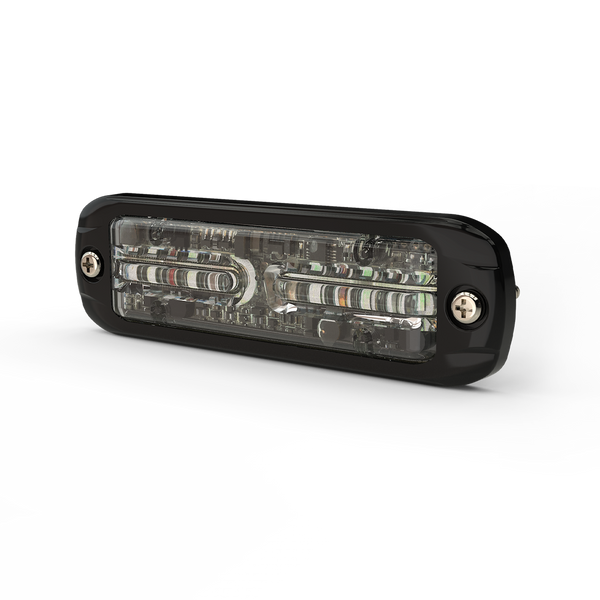

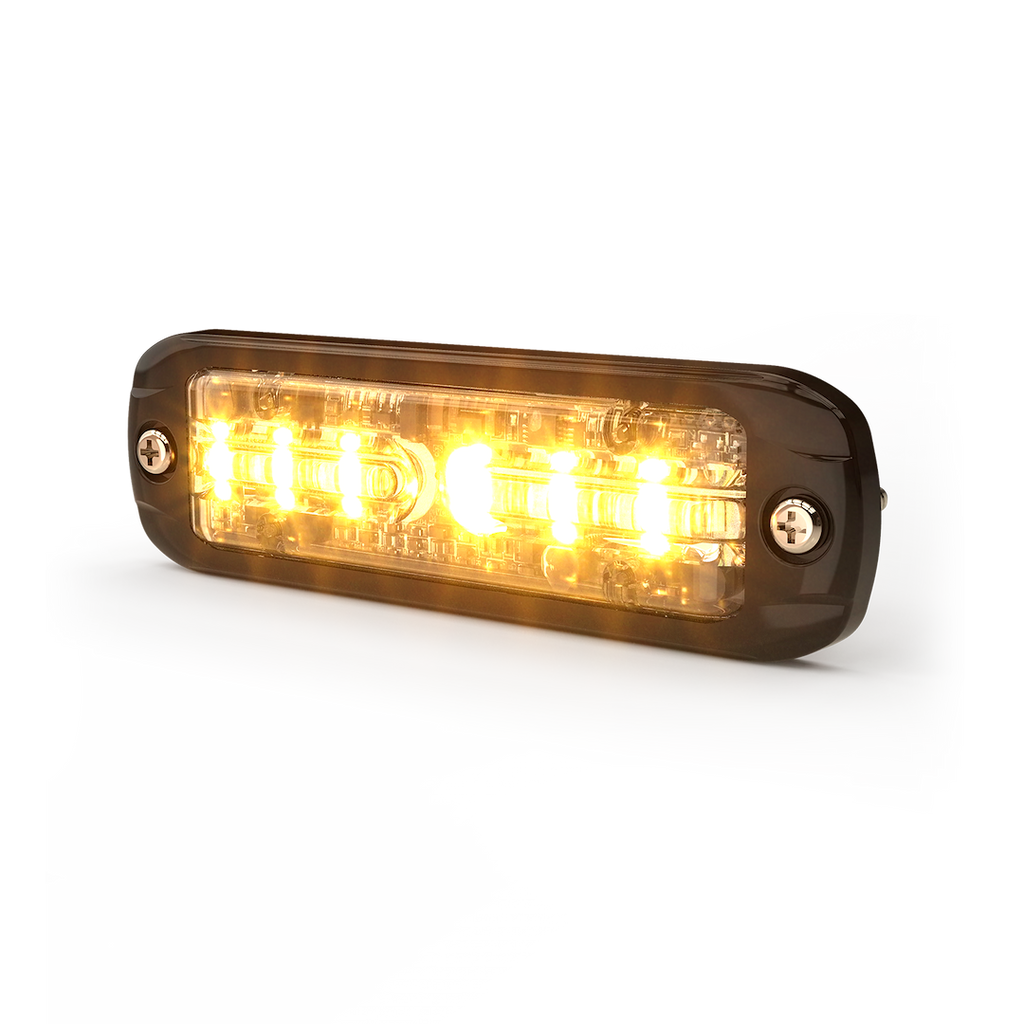

Versatile and Bright Directional LED Warning Light for Vehicles
The Ecco Electronic ED Series Warning Light is designed for a wide range of applications, providing exceptional visibility and safety. With a compact size of 4-3/4 inches in length and a thickness that is 25 percent thinner than previous models, this ultra-low-profile light can be easily mounted on various vehicle surfaces. It features high-intensity LEDs that deliver bright warning signals, ensuring that the light is effective in alerting others to your presence.
This directional LED light offers 69 different flash patterns, allowing for customizable operation. The synchronization capability with other units enables simultaneous or alternating flashing, enhancing visibility in emergency situations. Each LED color can be controlled independently, providing flexibility in signaling.
Constructed with a durable die-cast base and a polycarbonate lens, the ED Series Warning Light is built to withstand harsh conditions. It operates on a 12 to 24 volt DC power supply and is designed to function effectively in a temperature range from -22 degrees Fahrenheit to +122 degrees Fahrenheit. This makes it suitable for various environments and applications.
Features
- Ultra Low-Profile Surface Mount
- Synchronizable
- Die-Cast Base With Polycarbonate Lens
- High-Intensity LEDs Provide Exceptional Warning
- 25 Percent Thinner Than Previous Models
- 12 To 24 Volt DC
- Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: ED3802AW
- Shape: Rectangular
- Length (IN): 4-3/4 Inch
- Width (IN): 0.37 Inch
- Height (IN): 1.4 Inch
- Diameter (IN): Not Applicable
- Style: Directional
- Type: LED
- Mount Type: Surface Mount
- Lens Color: Amber/ White
- Light Pattern: 69 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Base Material: Die-Cast
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: 69
- Includes Control Panel: No
- Mounting Strap Material: No Mounting Straps
- Includes Gaskets: No
