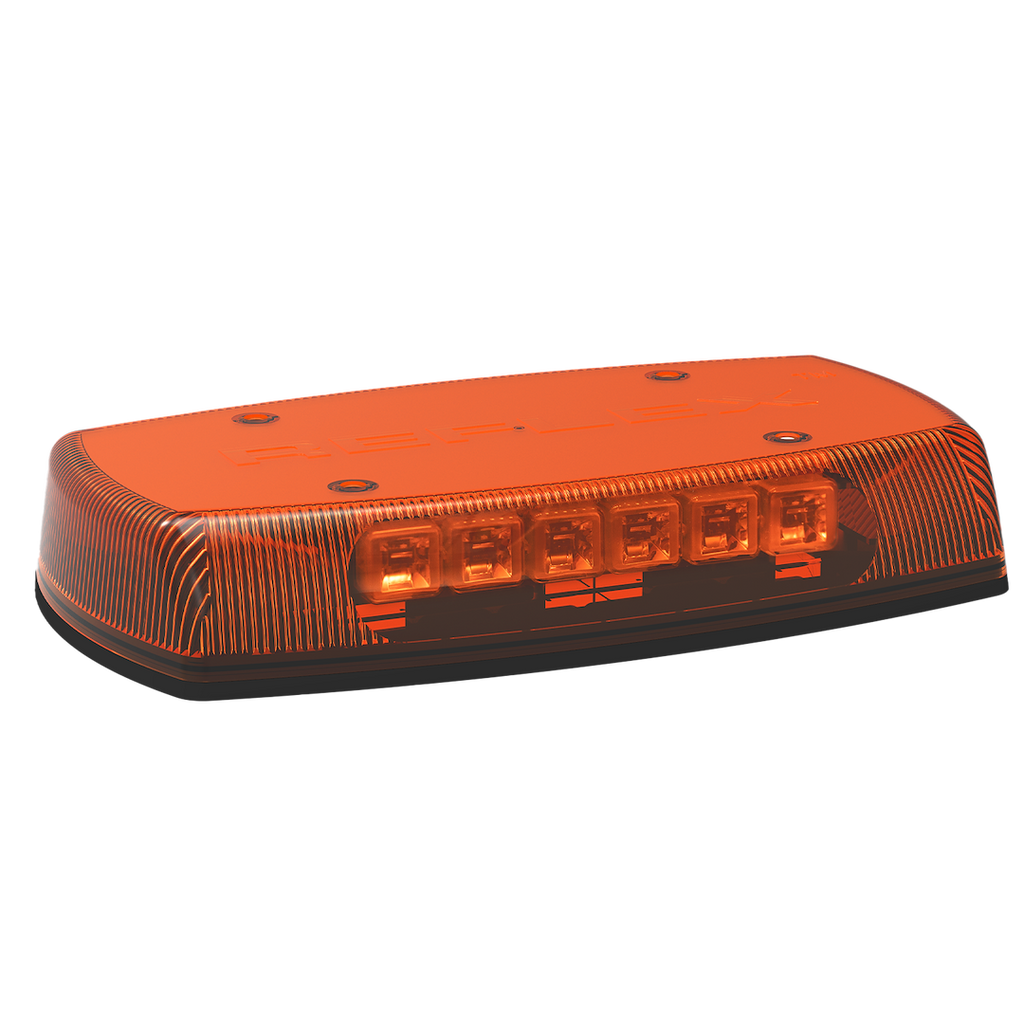

Compact and powerful warning solution with advanced LED technology.
The Ecco Electronic 5590 Series LED Minibar is designed to provide superior warning capabilities with its innovative combination of Reflective and TIR Optic LED modules. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this compact unit delivers 360-degree visibility, ensuring that both the front and rear of the vehicle are effectively illuminated. The TIR Optic modules generate a focused beam for long-distance visibility, while the Reflective modules enhance side and corner coverage, making it suitable for various applications.
This minibar operates on a 12 to 24 volt DC power supply and features 18 user-selectable flash patterns, allowing for customization based on user preference. The permanent mount design ensures stability and reliability during operation, and multiple units can be synchronized to flash alternately or simultaneously, enhancing overall visibility in emergency situations. The unit is compliant with SAE J845 Class I, California Title 13, CE, R10, and has an IP65 rating for durability.
The Ecco Electronic 5590 Series is an effective solution for those requiring a powerful warning light in a compact form factor. Its advanced LED technology maximizes light output while maintaining energy efficiency, making it a practical choice for emergency vehicles, service trucks, and other applications where visibility is critical.
Features
- Reflex LED Minibars Provide A Compact Yet Powerful Warning Solution That Features 12-24 Volt DC Operation
- Uses High Intensity Reflective And TIR Optic LED Modules To Maximize Light Output And Allows The User To Select From A Choice Of 18 User Selectable Flash Patterns
- Permanent Mount Models Are Synchronizable With Each Other
- Cigarette Plug With On/Off And Flash Pattern Selection Switch
- SAE J845 Class I, California Title 13, CE, R10, IP65 (Permanent Mount Only)
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5590A
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Permanent Mount
- Lens Color: Clear
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: No Flashing Marker Lights
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
