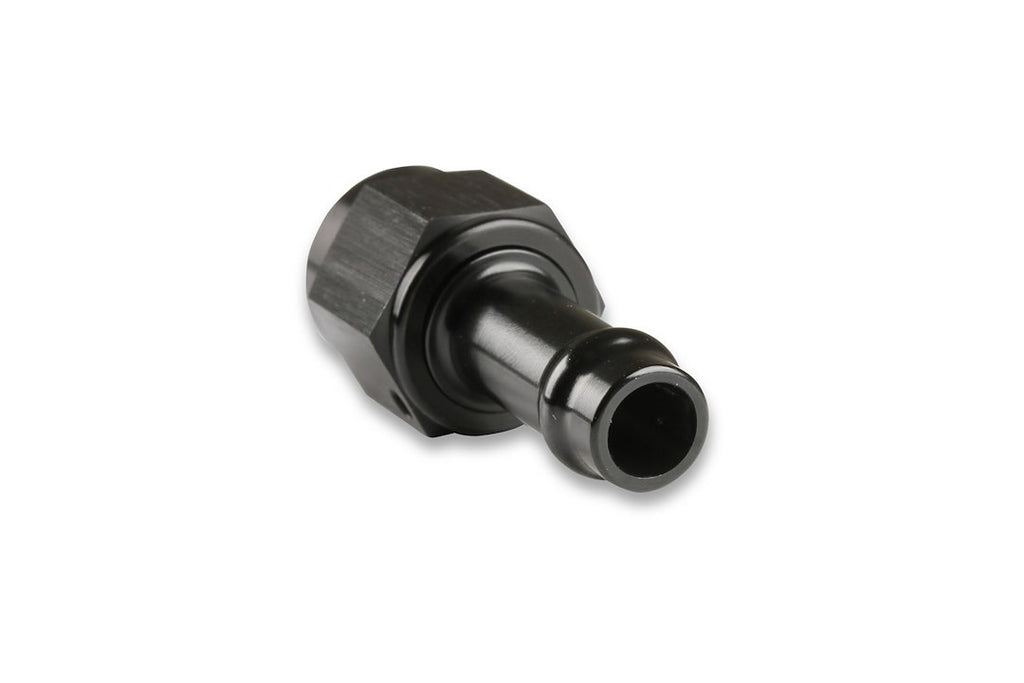

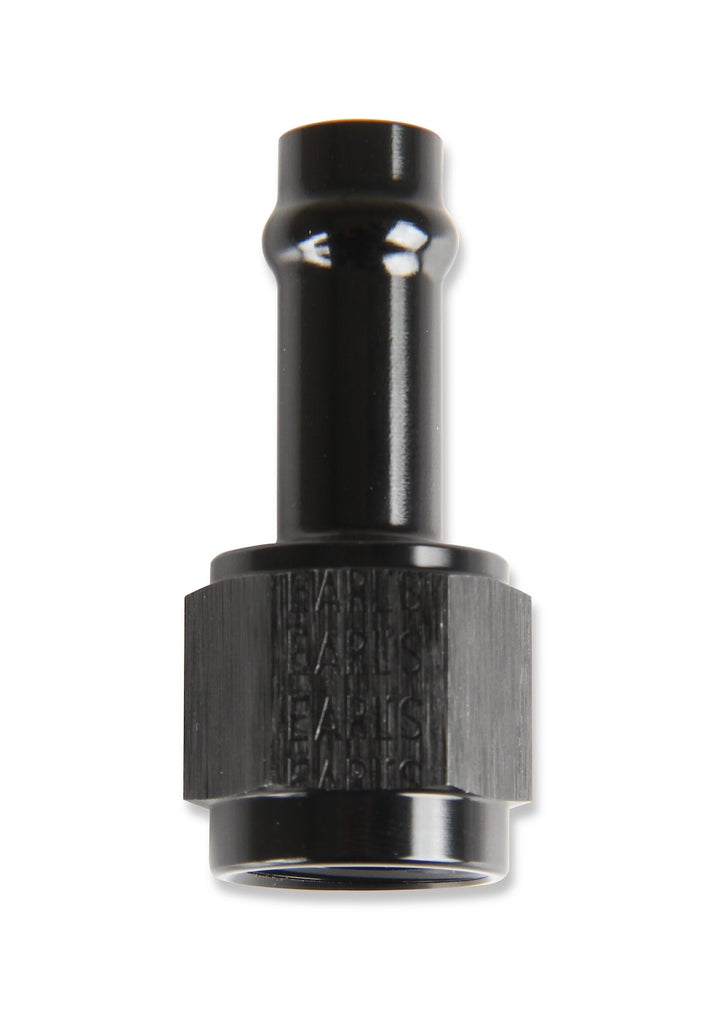

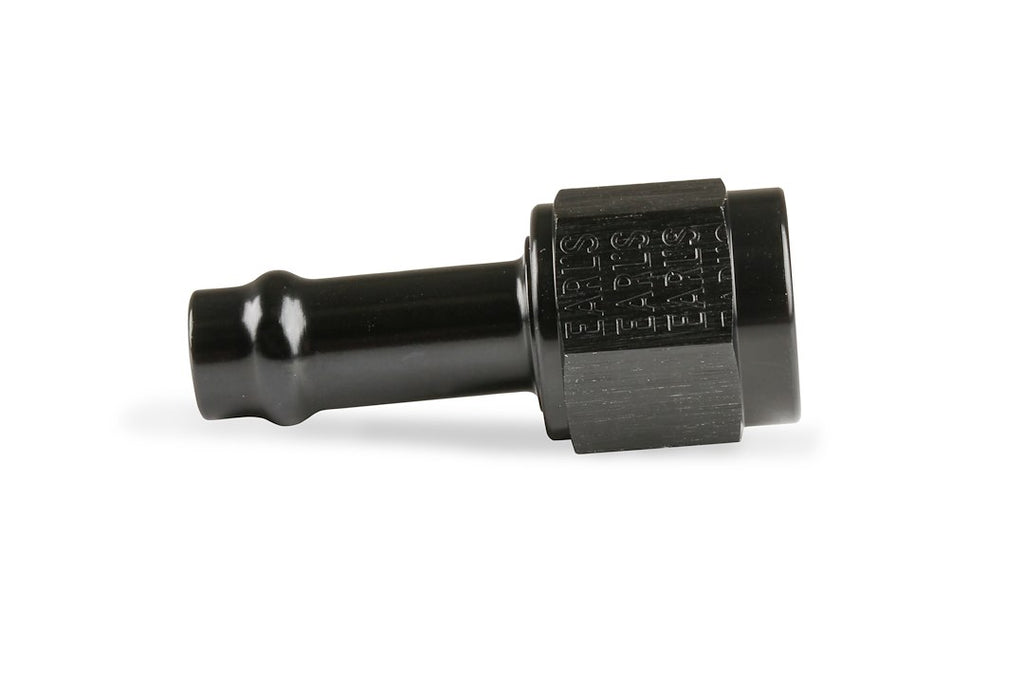

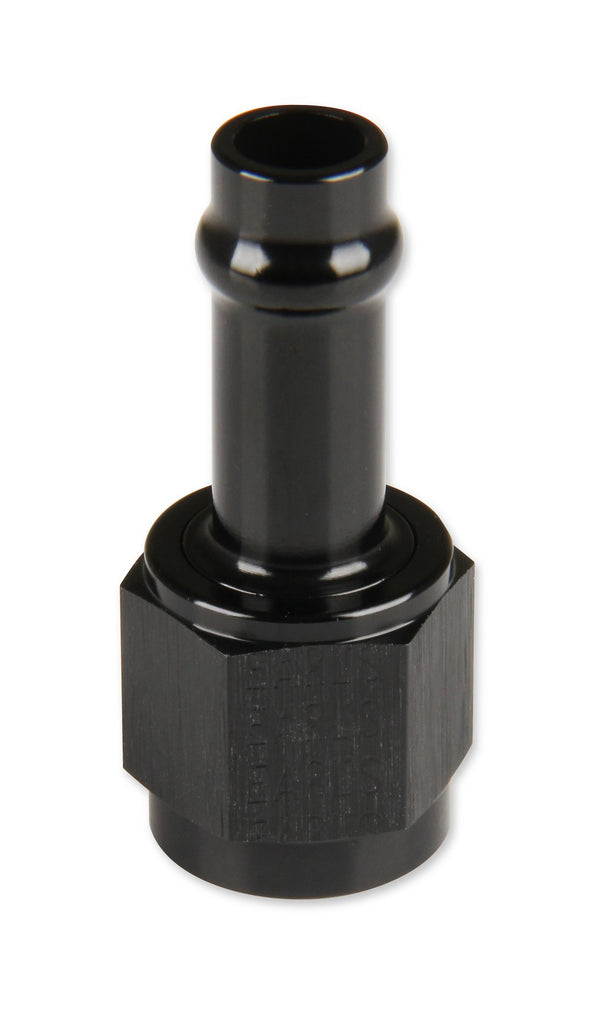

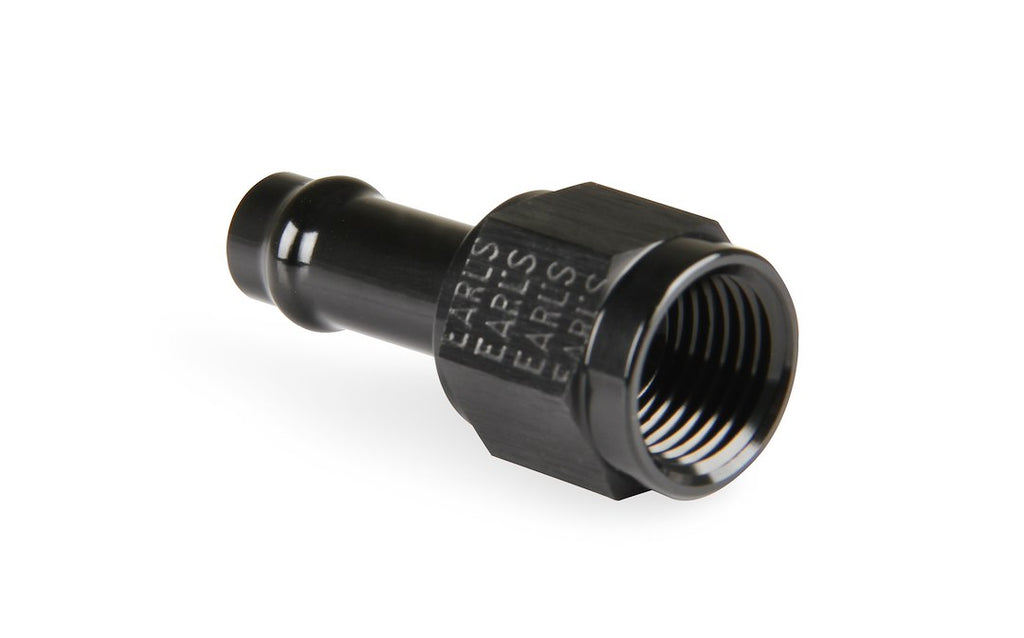

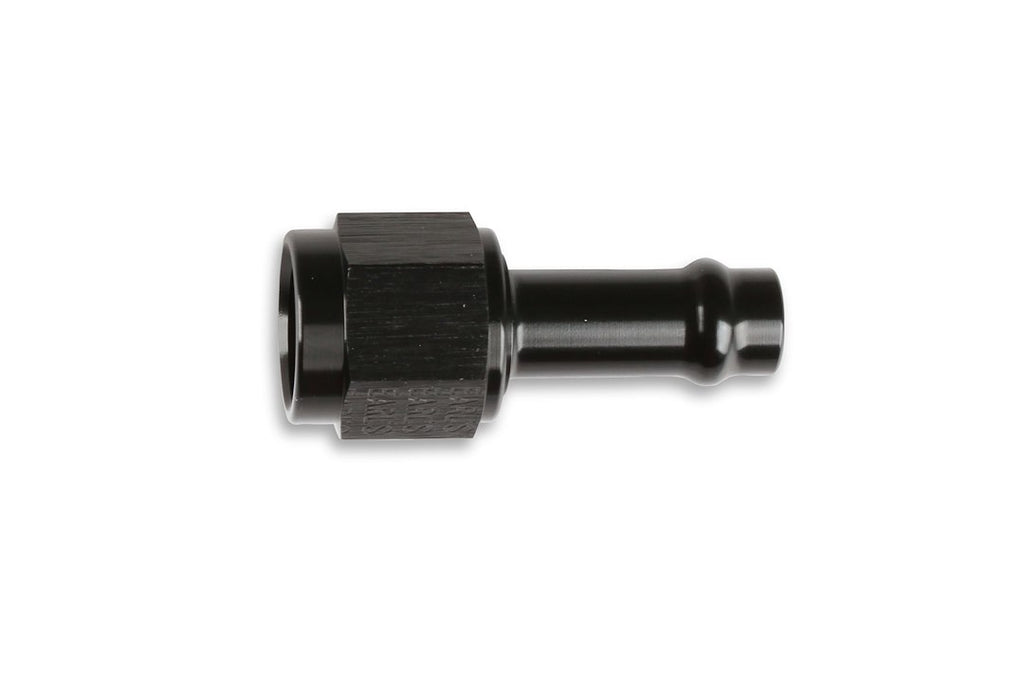

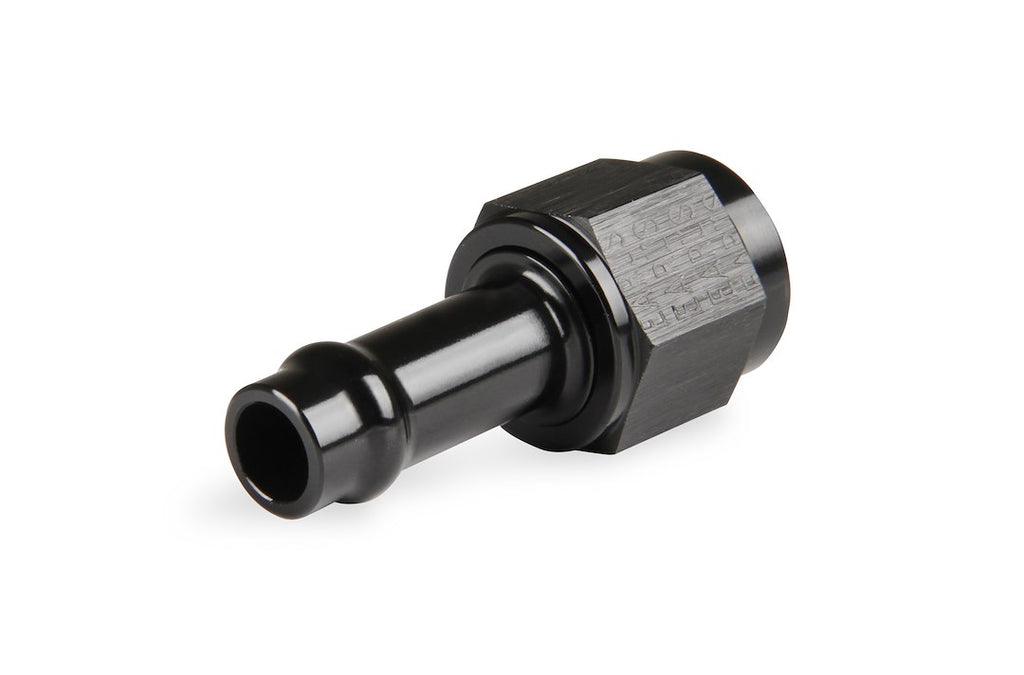

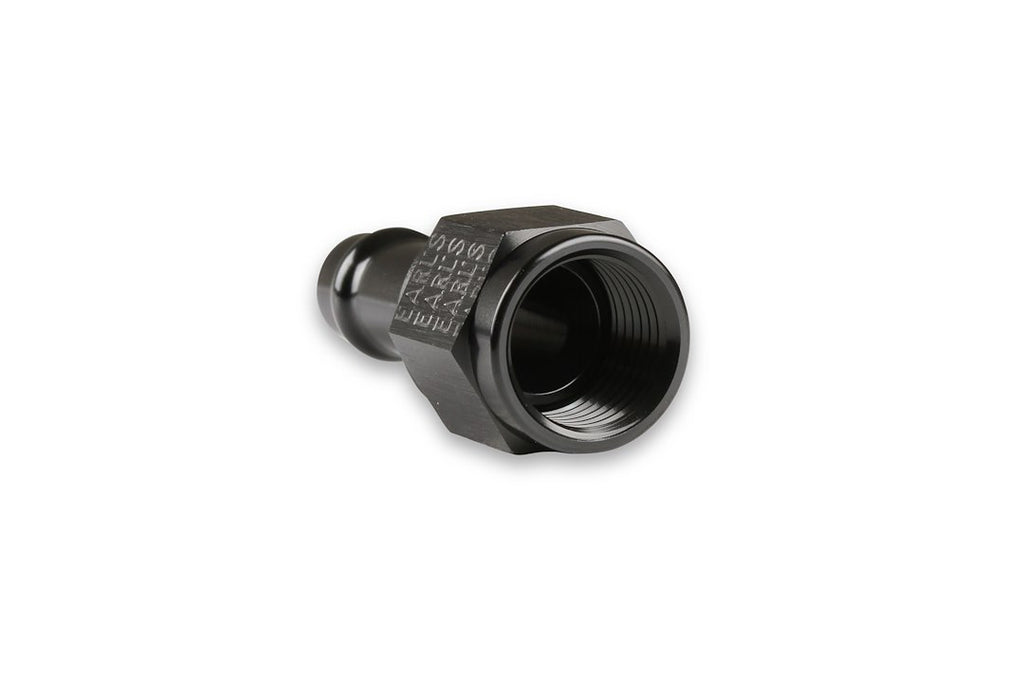

Earl's Vapor Guard Hose End Fitting (MPN: 750166ERL)

Durable aluminum fitting designed for modern fuel systems.

Earl's Vapor Guard hose end fitting is engineered for high-performance applications, featuring a 3/8 inch hose size and a -06 AN outlet. The fitting is constructed from anodized aluminum, providing both aesthetic appeal and resistance to corrosion, making it suitable for use with today's harsh fuels. The innovative smooth retention bead design ensures that the hose remains securely in place under pressure while protecting the hose liner from damage.

This fitting allows for easy assembly; simply cut the hose, push it onto the fitting, and tighten the clamps for a secure connection. The adjustable orientation after assembly enables precise clocking during installation, enhancing the overall efficiency of the setup. With its brazed bent-tube assembly, this fitting offers exceptional strength and reliability, making it a valuable addition to any automotive or racing application.

Features

• Black Brite Dip Anodizing Offers Long-Life Even When Used With Today’s Harsh Fuels
• Hose Ends Are Adjustable In Orientation After Assembly For Final Clocking During Installation
• Brazed Bent-Tube Assembly Provides Unsurpassed Strength
• Vapor-Guard Retention Bead - Retains Hose Under Pressure While Assuring Hose Liner Is Not Damaged
• Aluminum AN Style, NPT, And O-Ring Port Hose Ends
• Special Retention Bead Retains Hose Under Pressure While Assuring Hose Liner Is Not Damaged
• Single And Dual Ear Crimp Style And Screw Style Stainless Steel Hose Clamps Available For A Secure Assembly
• Easy Assembly Of Hose To Hose Ends W/ Clamps

Specifications

• Manufacturer: Earl's Plumbing
• Manufacturer Part Number: 750166ERL
• End Type1: Hose End
• End Size1: 3/8 Inch (-6 AN)
• End Type2: Female Thread
• End Size2: 3/8 Inch (-6 AN)
• Fitting Style: Socketless
• Fitting Angle: Straight
• Finish: Anodized
• Color: Black
• Material: Aluminum
• Quantity: Single
• Includes O-Ring: No
