High-intensity LED pods with innovative TIR optics for superior illumination.

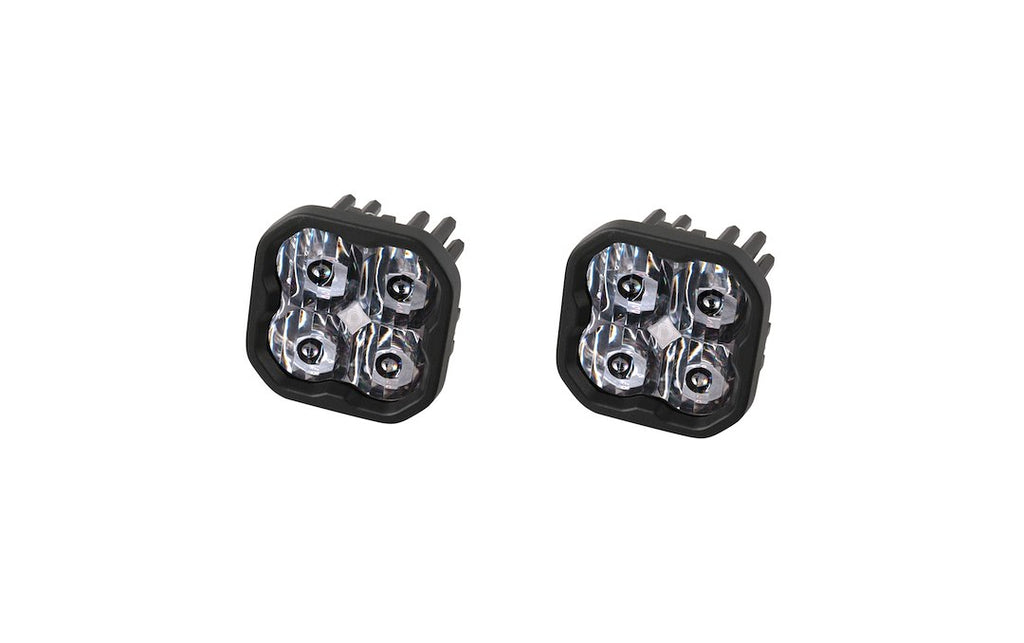

The Diode Dynamics Stage Series Sport LED Pod is engineered to deliver exceptional light output and efficiency. Featuring a custom-engineered TIR optic, this 3-inch LED pod maximizes light directionality while minimizing glare, ensuring that all emitted light is focused where it is needed most. With a robust construction of black cast aluminum housing and a clear polycarbonate lens, these pods are built to withstand harsh conditions and provide reliable performance.

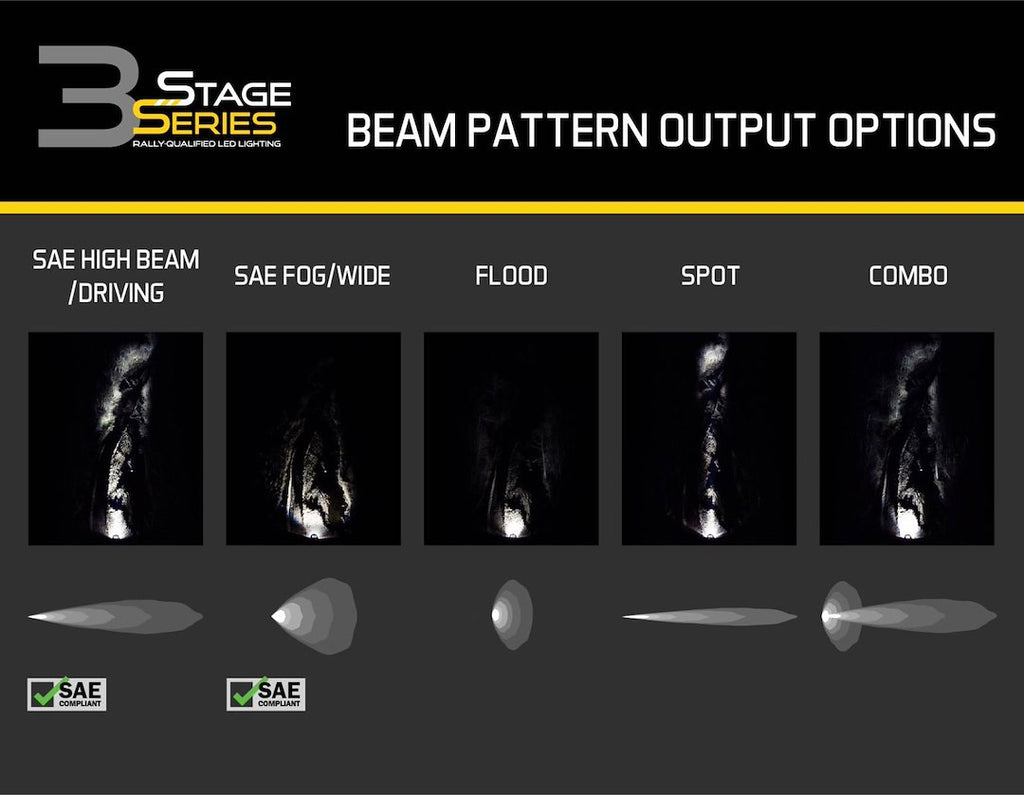

With a power consumption of 14.5 watts and a draw of only 1.1 amps at 12.8 volts, the SS3 LED pods produce an impressive 2262 raw lumens. The SAE driving beam pattern is specifically designed to enhance high beam visibility while also providing effective general illumination. This innovative design allows for an 18x8 degree spread, ensuring that the road ahead is fully illuminated at high speeds.
Tested for durability and performance, the Stage Series LED lighting has undergone rigorous evaluations for temperature extremes, vibration, moisture intrusion, and corrosion, meeting SAE standards for automotive components. Engineered and assembled in the USA, these LED pods are a reliable choice for both enthusiasts and everyday drivers seeking enhanced visibility and safety.
Features
- Durable Powder Coated Aluminum Construction
- Modern TIR Optics Provide Highest Intensity On The Market
- SAE Driving Beam Is Designed To Supplement Your High Beams, But It’s Great For General Illumination As Well
- Engineered And Assembled In USA
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD6853PNB
- Shape: Square
- Beam Type: Driving Beam
- Diameter: Not Applicable
- Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Semi-Universal
- Depth: 2-7/16 Inch
- Wattage: 14.5 Watt
- Voltage Rating: 12.8 Volt
- Mounting Style: Stud Mount
- Ampere Rating At 12 Volts: 1.1 Amp
- Lumens: 2262 Lumens
- Bulb Specifications: White Luxeon Z ES LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Estimated Install Time (Hours): 1.5
