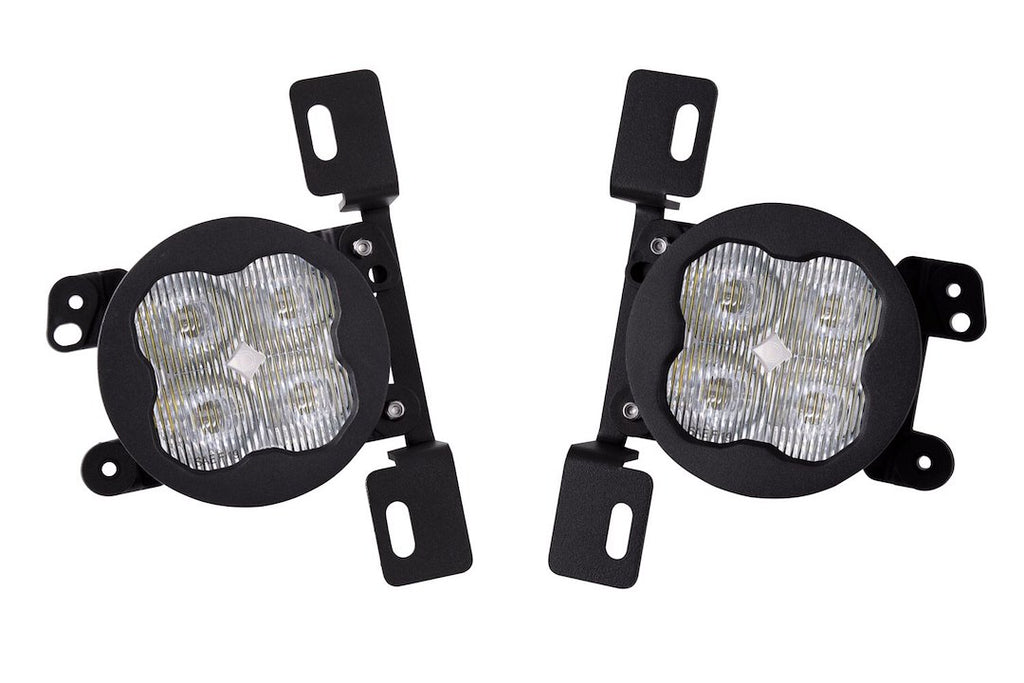

High-output LED fog lights designed for Jeep JL Wrangler installation.
The Diode Dynamics Stage Series Sport Fog Light is engineered to enhance visibility and safety during low-light conditions. Featuring advanced TIR optics, these 3-inch round LED bulbs deliver a powerful fog beam with an output of 2262 raw lumens, ensuring that light is directed precisely where it is needed while minimizing glare. The durable black aluminum cast housing and clear polycarbonate lens provide a robust and weather-resistant solution for off-road and on-road applications.
Designed specifically for the Jeep JL Wrangler, this fog light kit includes all necessary mounting brackets and adapters for a straightforward installation process. The plug-and-play design allows for a quick replacement of factory fog lights without the need for additional wiring or modifications. With a wattage of 14.5 watts and a low amp draw of 1.1 amps at 12.8 volts, these lights are both efficient and effective.
The Stage Series Sport Fog Light not only meets SAE compliance for road-legal output but also features a factory-style appearance with a round bezel. This ensures that the upgraded lights blend seamlessly with the vehicle's design while providing superior illumination. Engineered and assembled in the USA, these fog lights utilize high-intensity Luxeon Z ES LED chips for maximum performance and longevity.
Features
- Advanced TIR Optics Provide High Efficiency And Focus
- SAE-Compliant Road-Legal Output
- Features Round Bezel, For Factory-Style Appearance
- Plug And Play, No Modification Needed
- Durable Powdercoated Aluminum Die-Cast
- Direct Replacement For Jeep JL Wrangler Fog Lamps
- Engineered And Assembled In USA
- Traditional Optics Like Reflectors Or Simple Lenses Lose Light Internally And To Glare, So Not All Of The Light Shines On Target
- All Stage Series Beam Pattern Options Were Designed With Optical Simulation Modeling, To Shape The Output In A Highly-Functional Beam Pattern
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD7052
- Shape: Round
- Beam Type: Fog Beam
- Diameter: 3 Inch
- Height/ Width: Not Applicable
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Depth: 1-5/8 Inch
- Wattage: 14.5 Watt
- Voltage Rating: 9 To 16 Volt
- Mounting Style: Bracket Mount
- Lumens: 2262 Lumens
- Bulb Specifications: White Luxeon Z ES LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum

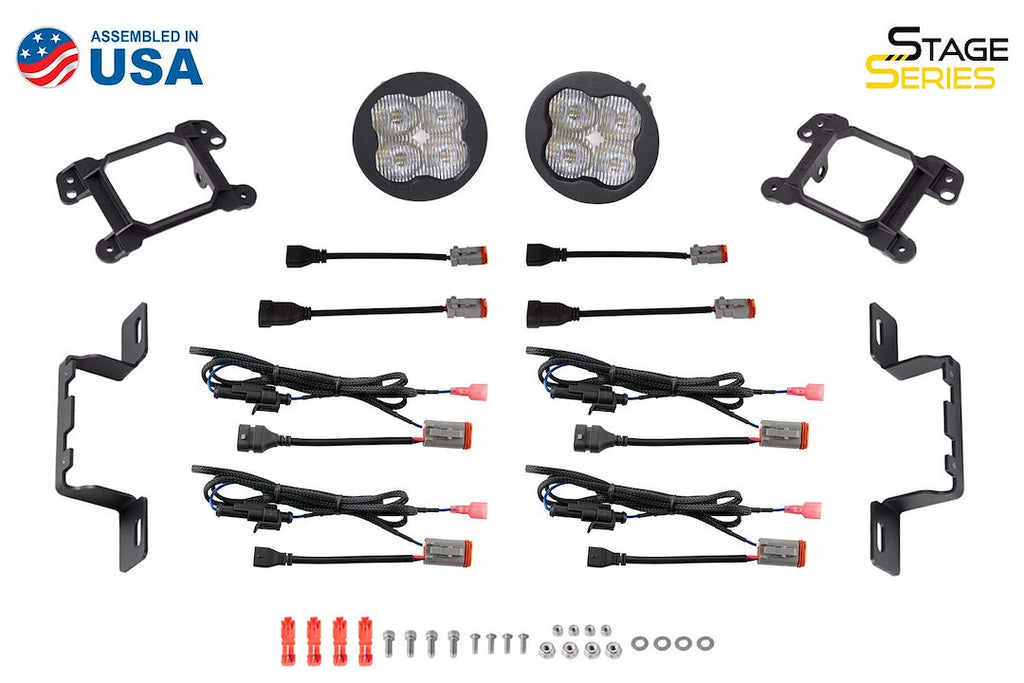

- Includes: With Two Plastic Type M Base Mounting Brackets/ Two 9006 DT Adapters/ Two 5202 DT Adapters/ Hardware
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 2020-2025 Jeep Gladiator JT
- 2018-2018 Jeep Wrangler JK
- 2018-2025 Jeep Wrangler JL
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
