High-Intensity LED Fog Lights with Advanced TIR Optics
The Diode Dynamics Stage Series Sport Fog Light is engineered to provide superior illumination with its advanced TIR optics, ensuring high efficiency and focused light output. This 3-inch round LED bulb set delivers an impressive 2262 raw lumens, making it one of the brightest options available in the market. Designed for easy installation, the fog lights come with custom brackets and adapters that allow for a plug-and-play setup without the need for modifications to your vehicle.
Constructed with a durable black aluminum cast housing and a clear polycarbonate lens, these fog lights are built to withstand harsh conditions. The SAE-compliant fog beam pattern is optimized for road use, providing a clear and effective light distribution while minimizing glare. The innovative design of the TIR optics not only enhances light efficiency but also reduces light loss, ensuring that all emitted light is directed where it is needed most.
With a power draw of only 14.5 watts and a voltage rating of 9 to 16 volts, these LED fog lights are energy-efficient while still delivering high performance. The Stage Series Sport Fog Light is rigorously tested for long-term operation across a wide temperature range and is resistant to vibration, moisture intrusion, and corrosion. This makes it a reliable choice for enhancing visibility in various driving conditions.
Features
- Advanced TIR Optics Provide High Efficiency And Focus
- SAE-Compliant Road-Legal Output
- Features Custom Bracket With Bezel, For Factory-Style Appearance
- Plug And Play, No Modification Needed
- Durable Powdercoated Aluminum Extrusion
- Engineered And Assembled In USA
- Traditional Optics Like Reflectors Or Simple Lenses Lose Light Internally And To Glare, So Not All Of The Light Shines On Target
- All Stage Series Beam Pattern Options Were Designed With Optical Simulation Modeling, To Shape The Output In A Highly-Functional Beam Pattern
- Stage Series LED Lighting Has Been Extensively Tested For Long-Term Operation From -40 To 185 Degree Fahrenheit, Along With Vibration, Moisture Intrusion, And Corrosion Testing
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD7020
- Shape: Round
- Beam Type: Fog Beam
- Diameter: 3 Inch
- Height/ Width: Not Applicable
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Depth: 2-5/8 Inch
- Wattage: 14.5 Watt
- Voltage Rating: 9 To 16 Volt
- Mounting Style: Bracket Mount
- Lumens: 2262 Lumens
- Bulb Specifications: White Luxeon Z ES LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum

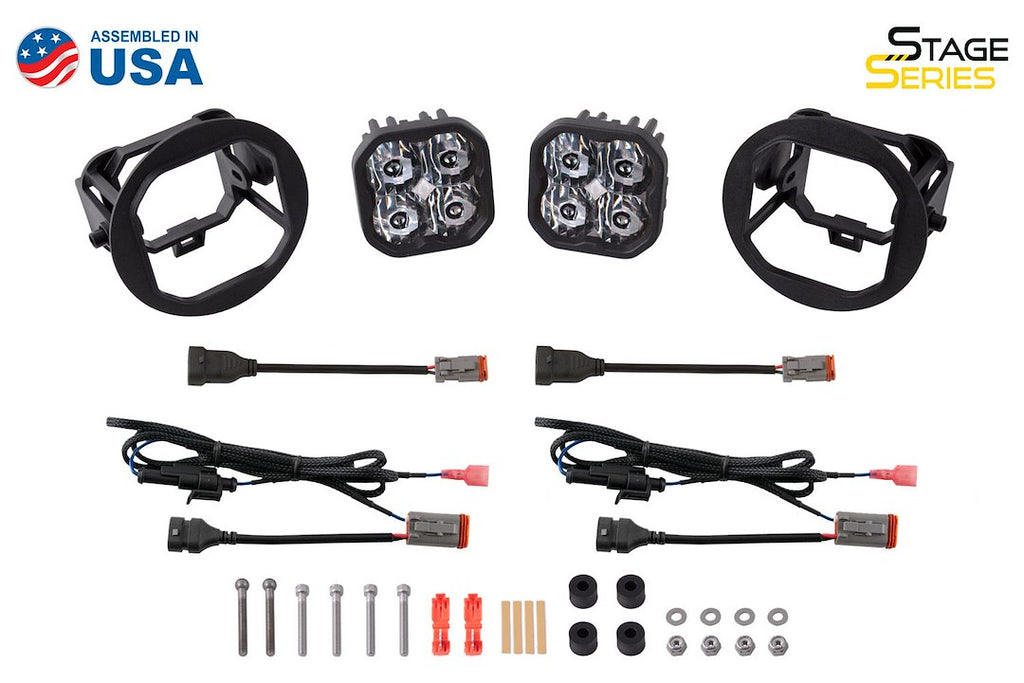

- Includes: With Two 9006 DT 2-Pin Adapters/ Two 9006 DT 4-Pin Backlight Tap Wire Kit/ Mounting Brackets
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 1996-2006 Dodge Viper
- 2008-2010 Dodge Viper
- 2006-2014 Ford F-150
- 2008-2017 Toyota Sequoia
- 2004-2005 Toyota Solara
- 2005-2011 Toyota Tacoma
- 2007-2013 Toyota Tundra
