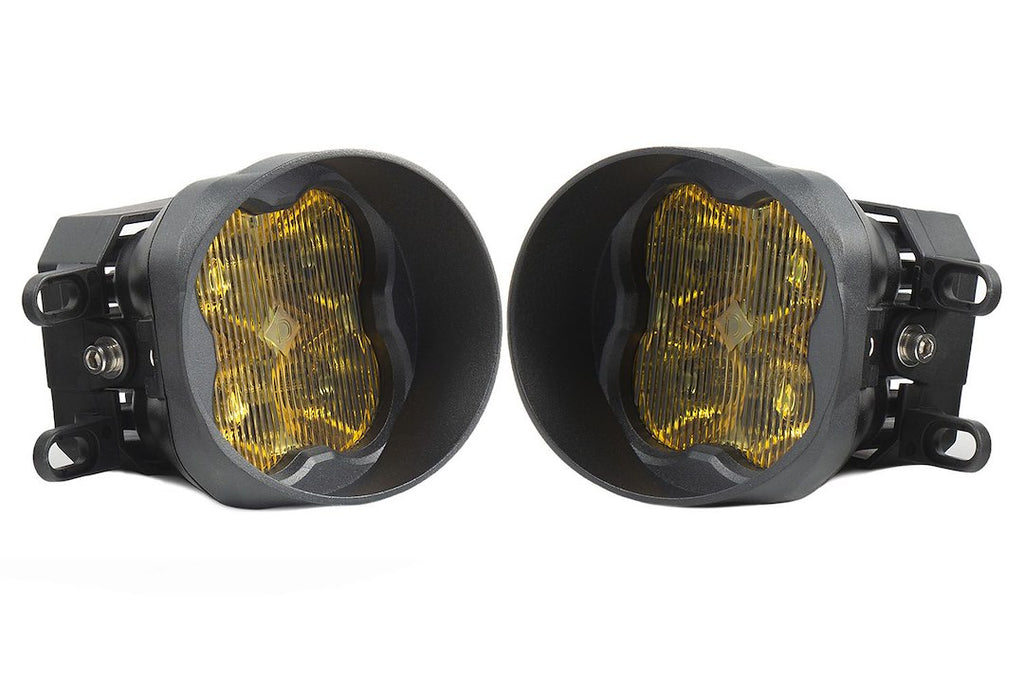

Diode Dynamics Stage Series Sport Fog Light (MPN: DD6996)

High-output LED fog lights with advanced optics for superior visibility.

The Diode Dynamics Stage Series Sport Fog Light is engineered to enhance visibility in challenging driving conditions. Featuring Luxeon Z ES LED bulbs, these 3-inch round lights deliver an impressive 2262 raw lumens output, ensuring a bright and clear view ahead. The advanced TIR optics provide a focused beam pattern that is both efficient and effective, making these lights suitable for fog and wide beam applications.

Constructed with a durable black aluminum housing and a polycarbonate lens, these fog lights are designed to withstand the rigors of the road. The set includes two Type B brackets, H11 2-pin DT adapters, and all necessary mounting hardware, allowing for a straightforward installation without modifications. With a power draw of only 1.1 amps at 12.8 volts, these lights are energy-efficient while still providing SAE compliant road-legal output.

The Diode Dynamics Stage Series Sport Fog Light not only improves safety but also adds a modern touch to your vehicle with its factory-style appearance. Engineered and assembled in the USA, these lights are built to last and perform under various conditions, making them a reliable choice for drivers seeking enhanced illumination.

Features

• Durable Powdercoated Aluminum Extrusion
• Advanced TIR Optics Provide High Efficiency And Focus
• SAE Compliant Road Legal Output
• Features Angled Bezel, For Factory Style Appearance
• Plug And Play, No Modification Needed
• Engineered And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD6996
• Shape: Round

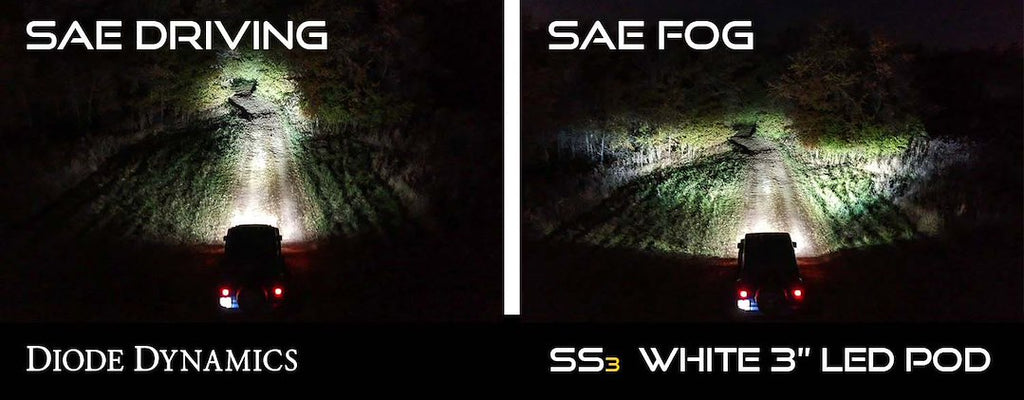

• Beam Type: Combo Beam Fog And Wide
• Diameter: 3 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 2-3/16 Inch
• Wattage: 14.5 Watt
• Voltage Rating: 16 Volt
• Mounting Style: Bracket Mount
• Ampere Rating At 12 Volts: 1.1 Amp
• Lumens: 2262 Lumens
• Bulb Specifications: Luxeon Z ES LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

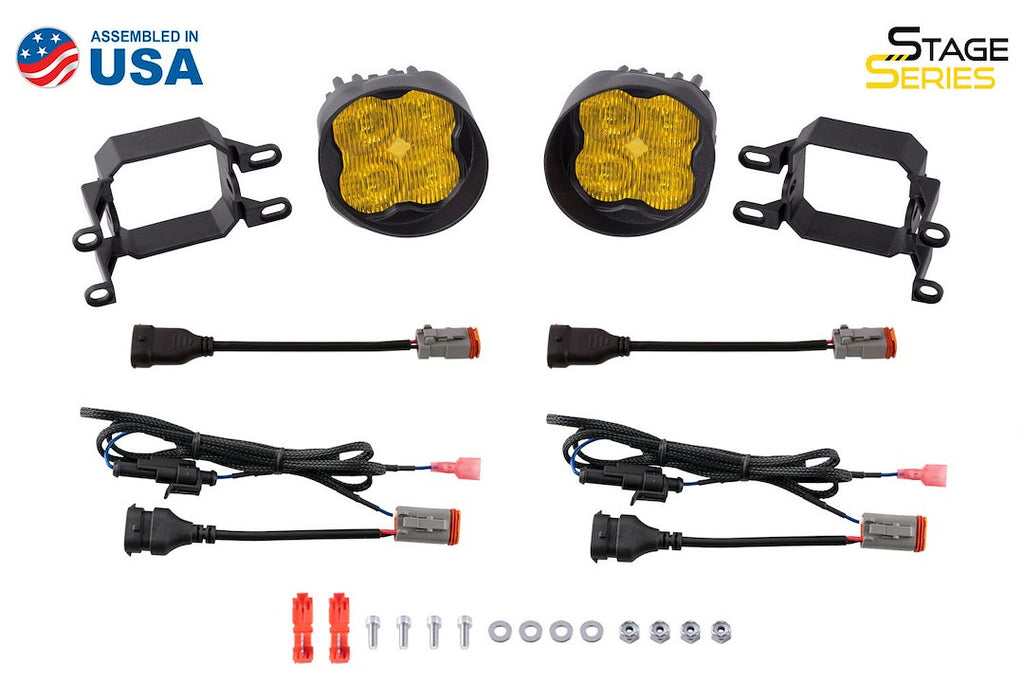

• Includes: With Two Type B Brackets/ Two H11 2-Pin DT Adapter/ Mounting Hardware/ Mounting Guide
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2014-2017 Lexus CT200h
• 2013-2018 Lexus ES300h
• 2013-2018 Lexus ES350
• 2016-2017 Lexus GS200t
• 2013-2020 Lexus GS350
• 2014-2018 Lexus GS450h
• 2010-2012 Lexus HS250h
• 2008-2014 Lexus IS F
• 2016-2016 Lexus IS200t
• 2014-2015 Lexus IS250
• 2014-2014 Lexus IS350
• 2008-2011 Lexus LX570
• 2013-2015 Lexus LX570
• 2015-2017 Lexus NX200t
• 2015-2021 Lexus NX300h
• 2010-2022 Lexus RX350
• 2010-2022 Lexus RX450h
• 2015-2017 Subaru Legacy
• 2014-2024 Toyota 4Runner
• 2007-2012 Toyota Avalon
• 2007-2015 Toyota Camry
• 2009-2016 Toyota Corolla
• 2008-2010 Toyota Highlander
• 2014-2023 Toyota Highlander
• 2009-2013 Toyota Matrix
• 2010-2011 Toyota Prius
• 2015-2016 Toyota Prius
• 2012-2016 Toyota Prius C
• 2012-2016 Toyota Prius V
• 2006-2012 Toyota RAV4
• 2016-2025 Toyota RAV4
• 2007-2008 Toyota Solara
• 2012-2023 Toyota Tacoma
• 2014-2021 Toyota Tundra
• 2009-2014 Toyota Venza
• 2007-2016 Toyota Yaris

Technical Documents

• SS3_Type_B_Bracket_Mounting_Guide.pdf
