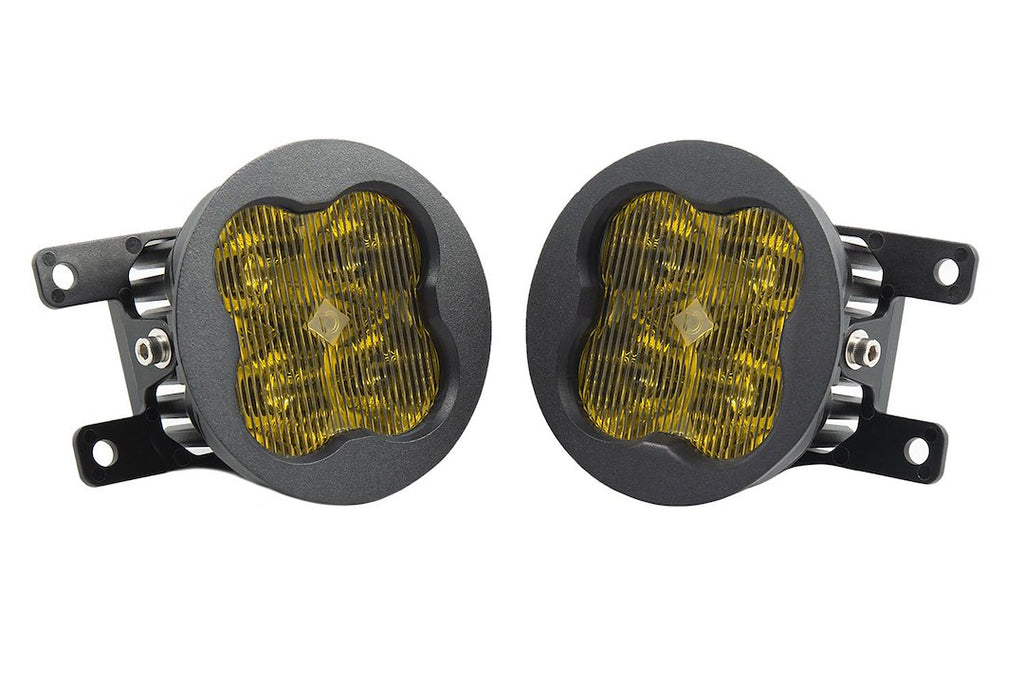

Diode Dynamics Stage Series Sport Fog Light (MPN: DD6981)

High-output LED fog lights with advanced optics for improved visibility.

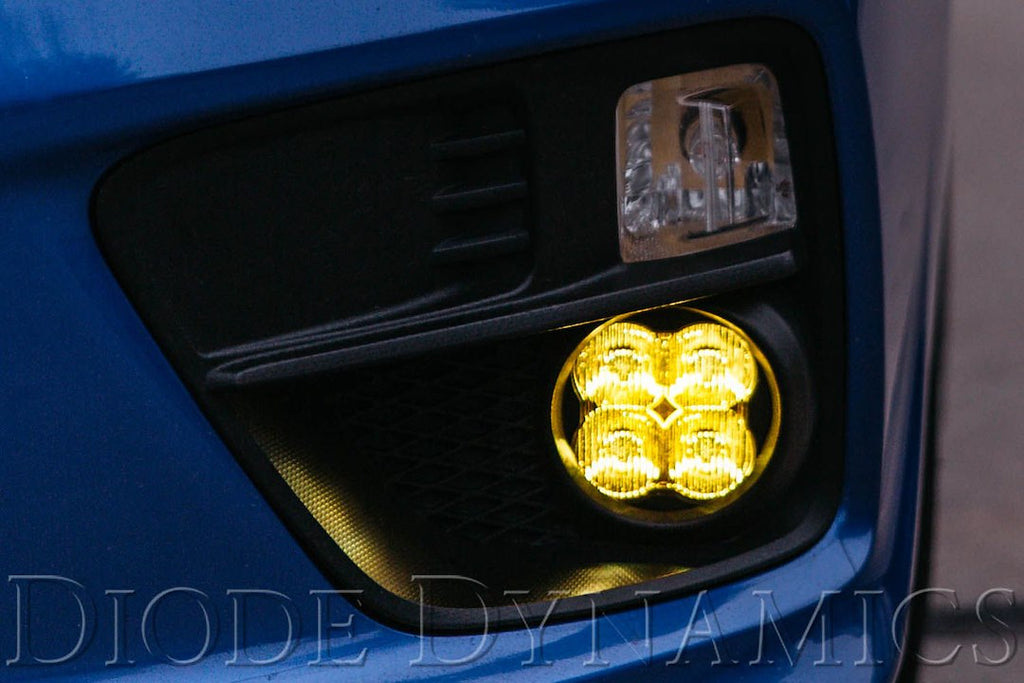

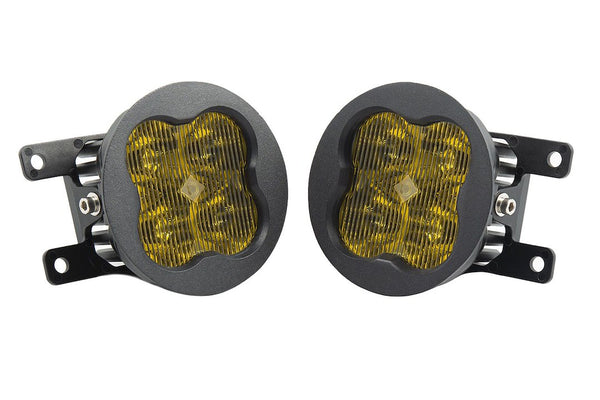

The Diode Dynamics Stage Series Sport Fog Light is engineered to enhance visibility and safety during adverse weather conditions. Featuring a durable black aluminum housing and a yellow polycarbonate lens, these 3-inch round LED bulbs deliver an impressive 1930 raw lumens output. The advanced TIR optics are designed to focus light efficiently, minimizing glare and maximizing illumination on the road ahead. With a power draw of only 14.5 watts and a 1.1 amp draw at 12.8 volts, these fog lights are both energy-efficient and effective.

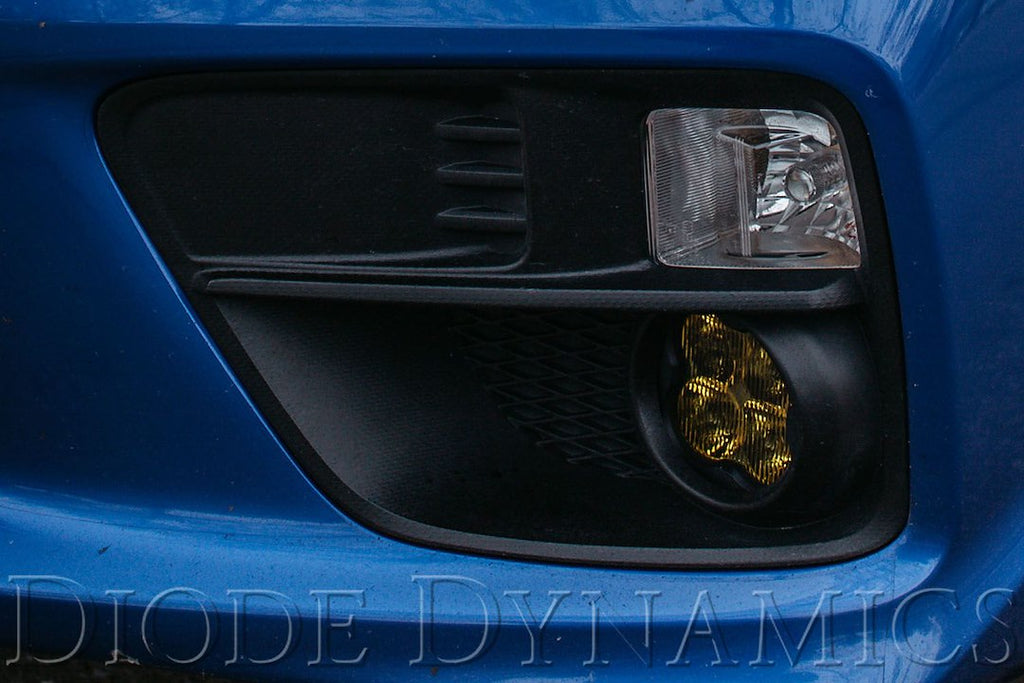

Installation is straightforward with the included plug-and-play components, allowing for a seamless replacement of factory fog lights. The kit comes complete with two Type A brackets, H11 2-pin DT adapters, and a backlight tap wire kit, ensuring compatibility with various vehicle models. The SAE-compliant output guarantees road legality, making these fog lights a reliable choice for enhancing your vehicle's lighting system. Built to withstand the elements, the powder-coated aluminum construction ensures longevity and performance in diverse conditions.

Features

• Durable Powder Coated Aluminum Construction
• SAE-Compliant Road-Legal Output
• Advanced TIR Optics Provide High Efficiency And Focus
• Plug And Play, No Modification Needed
• Engineered And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD6981
• Shape: Round
• Beam Type: Combo Beam Fog And Wide

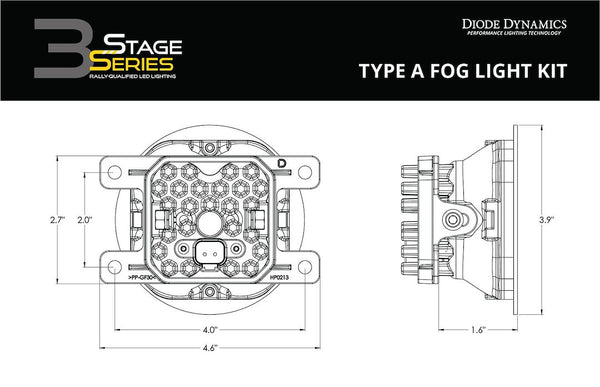

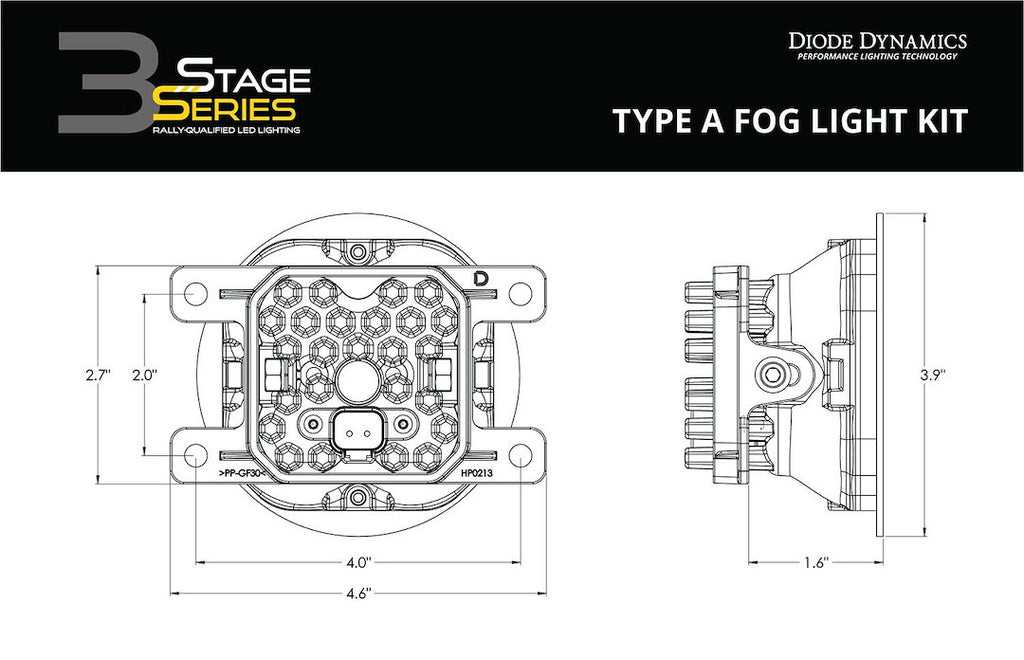

• Diameter: 3 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: Amber
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 1-5/8 Inch
• Wattage: 14.5 Watt
• Voltage Rating: 12.8 Volt
• Mounting Style: Bolt-On
• Ampere Rating At 12 Volts: 1.1 Amp
• Lumens: 1930 Lumens
• Bulb Specifications: Luxeon Z ES LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

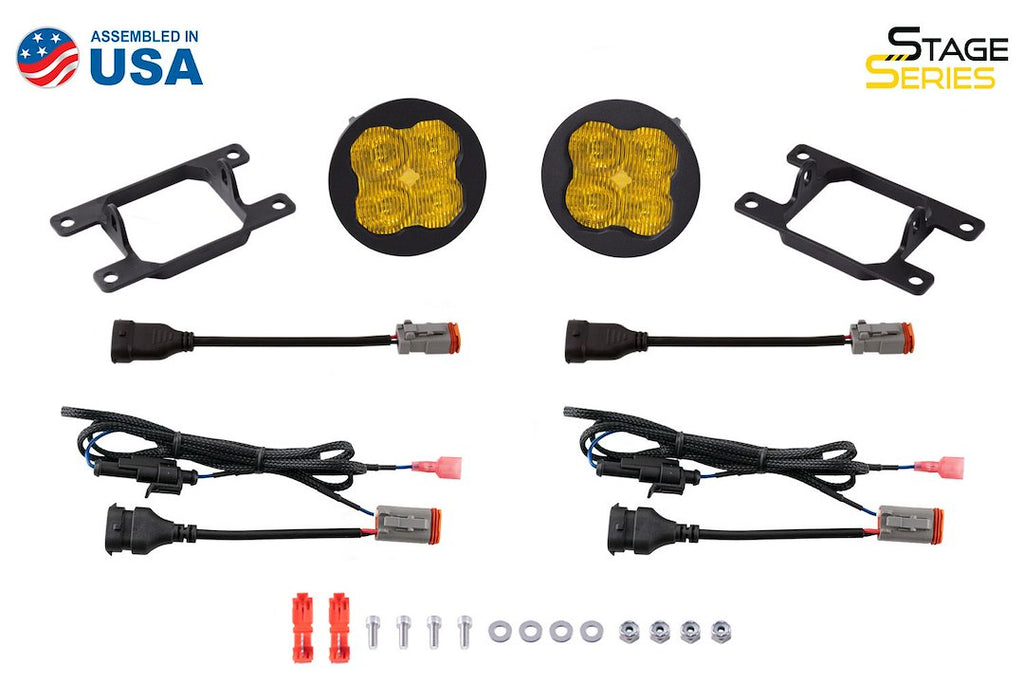

• Includes: With Two Type A Brackets/H11 2-Pin DT Adapter/H11 4-Pin DT Backlight Tap Wire Kit/Mounting Hardware
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2013-2022 Acura ILX
• 2013-2018 Acura RDX
• 2012-2014 Acura TL
• 2011-2013 Acura TSX
• 2012-2016 Fiat 500
• 2013-2016 Ford C-Max
• 2014-2019 Ford Fiesta
• 2005-2007 Ford Freestyle
• 2013-2016 Ford Fusion
• 2004-2007 Ford Ranger
• 2008-2009 Ford Taurus X
• 2013-2015 Honda Accord
• 2013-2021 Honda Civic
• 2012-2014 Honda CR-V
• 2013-2016 Honda CR-Z
• 2013-2015 Honda Crosstour
• 2015-2017 Honda Fit
• 2010-2014 Honda Insight
• 2019-2020 Honda Odyssey
• 2012-2022 Honda Pilot
• 2009-2021 Nissan Frontier
• 2007-2012 Nissan Sentra
• 2017-2019 Nissan Titan
• 2016-2016 Nissan Titan XD
• 2005-2015 Nissan Xterra
• 2013-2016 Scion FR-S
• 2013-2017 Subaru BRZ
• 2016-2025 Subaru Crosstrek
• 2014-2024 Subaru Forester
• 2012-2023 Subaru Impreza
• 2010-2014 Subaru Legacy
• 2022-2025 Subaru Outback
• 2015-2021 Subaru WRX
• 2015-2017 Subaru WRX STI
• 2013-2015 Subaru XV Crosstrek

Technical Documents

• SS3_Type_A_Bracket_Mounting_Guide.pdf
