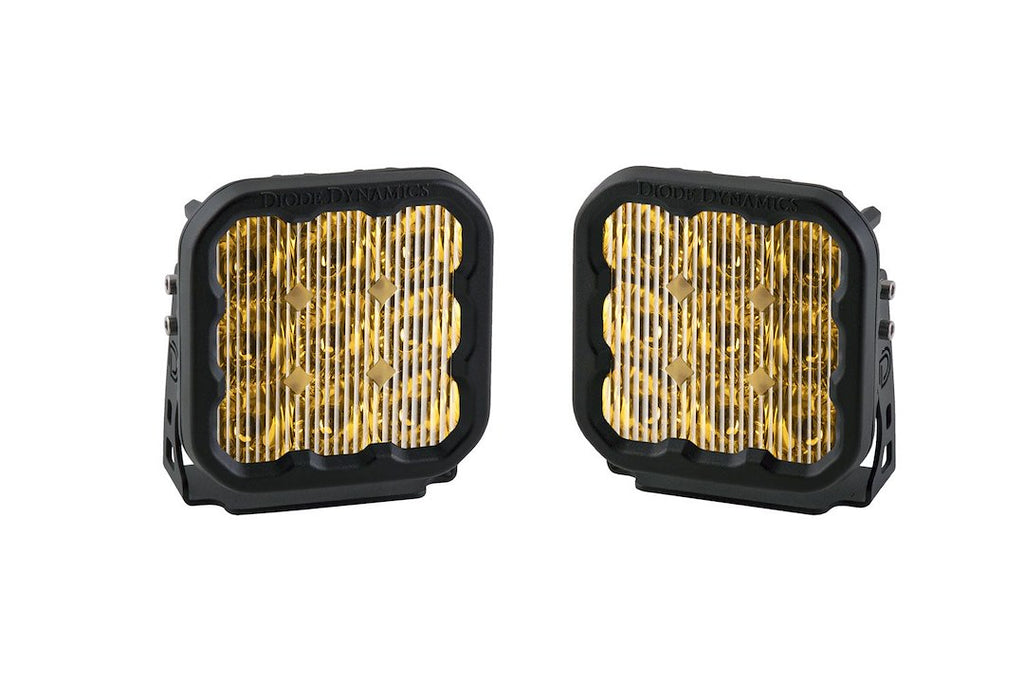

High-Intensity 5 Inch LED Driving Lights with Advanced Optics
The Diode Dynamics Stage Series Pro LED Pod is engineered to deliver the highest output intensity among 5 inch LED pods available. Utilizing patented technology and custom-engineered TIR optics, these auxiliary lamps maximize functionality while minimizing glare. The innovative design ensures that all light emitted from the LED is directed precisely where it is needed, enhancing overall efficiency and visibility on the road.
With a driving beam pattern that provides a 30x20 degree spread, the SS5 is optimized for high-speed driving, illuminating the road ahead without overwhelming foreground light. The heavy-duty construction is torture-tested for durability, making it suitable for various driving conditions. Additionally, the brilliant amber backlight adds an accent feature, enhancing the aesthetic appeal of the lights.
The SS5 LED Pod is fully universal and includes all necessary mounting hardware, making installation straightforward. With a total output of 8900 raw lumens and a power draw of 6 amps at 12.8 volts, these lights are designed for serious illumination needs. Engineered and assembled in the USA, the SS5 combines high performance with robust build quality.
Features
- Torture-Tested, Heavy-Duty Construction
- Engineered Total Internal Reflection Optics
- Built-In Linking Feature, Build Up To 50 Inch Bar
- Brilliant Amber Backlight Color, For Additional Accent
- Ultra-High Intensity, Shines Almost Mile Away
- Engineered And Assembled In USA
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD6783P
- Shape: Square
- Beam Type: Driving Beam
- Diameter: Not Applicable

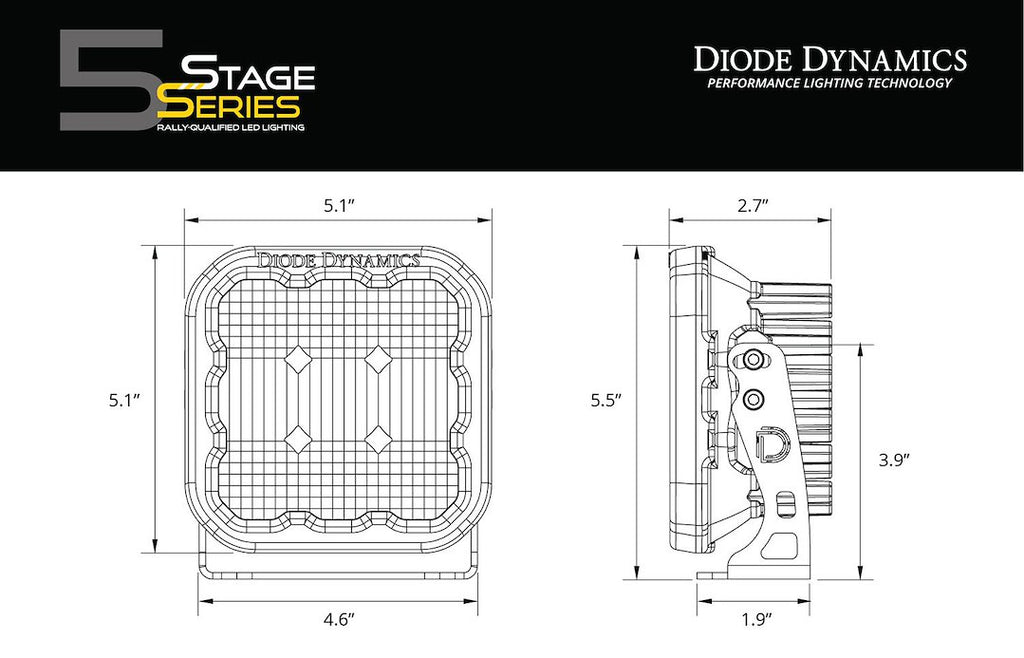

- Height/ Width: 5 Inch Height X 5 Inch Width
- Bulb Type: LED
- Light Color: Yellow
- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 2.7 Inch
- Wattage: 90 Watt
- Voltage Rating: 9 To 16 Volt
- Mounting Style: Bracket Mount
- Ampere Rating At 12 Volts: 6 Amp
- Lumens: 8900 Raw Lumens
- Bulb Specifications: Cree XP-L HI LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: With Two Deutsch-Style Wire Pigtails/ Two Mounting Brackets/ Hardware
- Estimated Install Time (Hours): 1.5
