High-Intensity 5 Inch LED Pods with Advanced Optics for Maximum Light Output

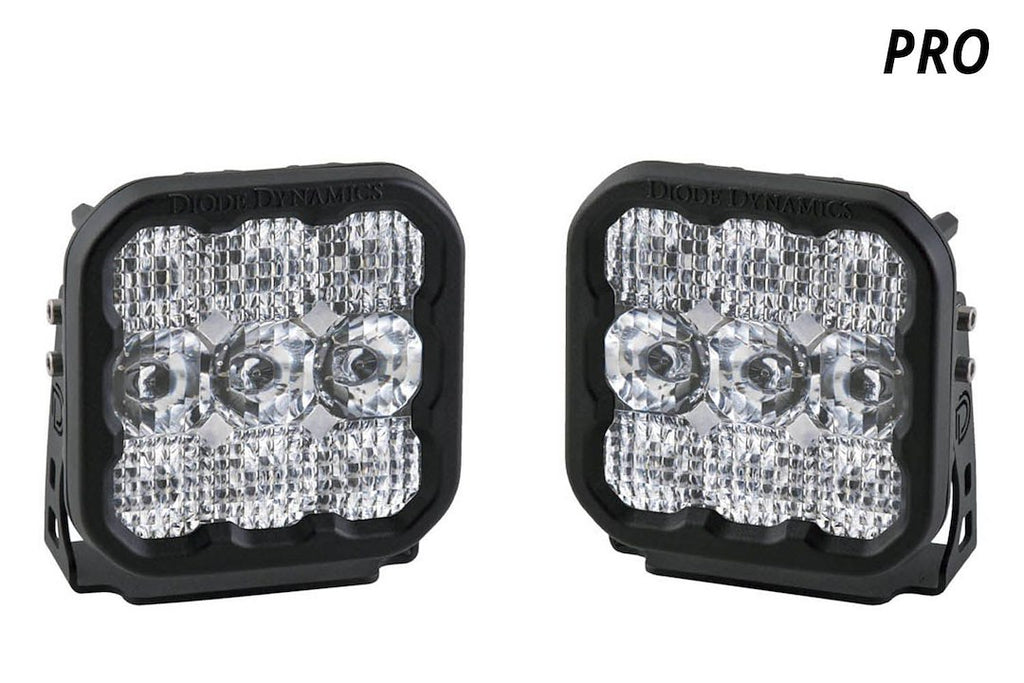

The Diode Dynamics Stage Series Pro LED Pod is engineered to deliver the highest output intensity among 5 inch LED pods available. Utilizing patented technology and custom-engineered TIR optics, these auxiliary lamps provide exceptional functionality in a robust design. The innovative TIR optic collects and directs all light from the LED, significantly reducing glare and enhancing overall efficiency compared to traditional optics that lose light internally.
With a powerful output of 9700 raw lumens and a combo beam pattern, the SS5 LED Pod is capable of illuminating distances nearly a mile away. The custom-molded TIR optic serves as both the optic and main lens, ensuring maximum light transmission without the losses associated with standard outer lenses. This design, combined with high-intensity Cree XP-L HI LED chips, results in superior light intensity and performance.
Constructed with heavy-duty materials, the SS5 is built to withstand rigorous conditions. The black aluminum housing and clear polycarbonate lens ensure durability and longevity, making these pods suitable for various applications. Each set includes two LED pods, Deutsch-style wire pigtails, mounting brackets, and hardware for easy installation.
Features
- Torture-Tested, Heavy-Duty Construction
- Engineered Total Internal Reflection Optics
- Built-In Linking Feature, Build Up To 50 Inch Bar
- Ultra-High Intensity, Shines Almost Mile Away
- Engineered And Assembled In USA
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD6775P
- Shape: Square

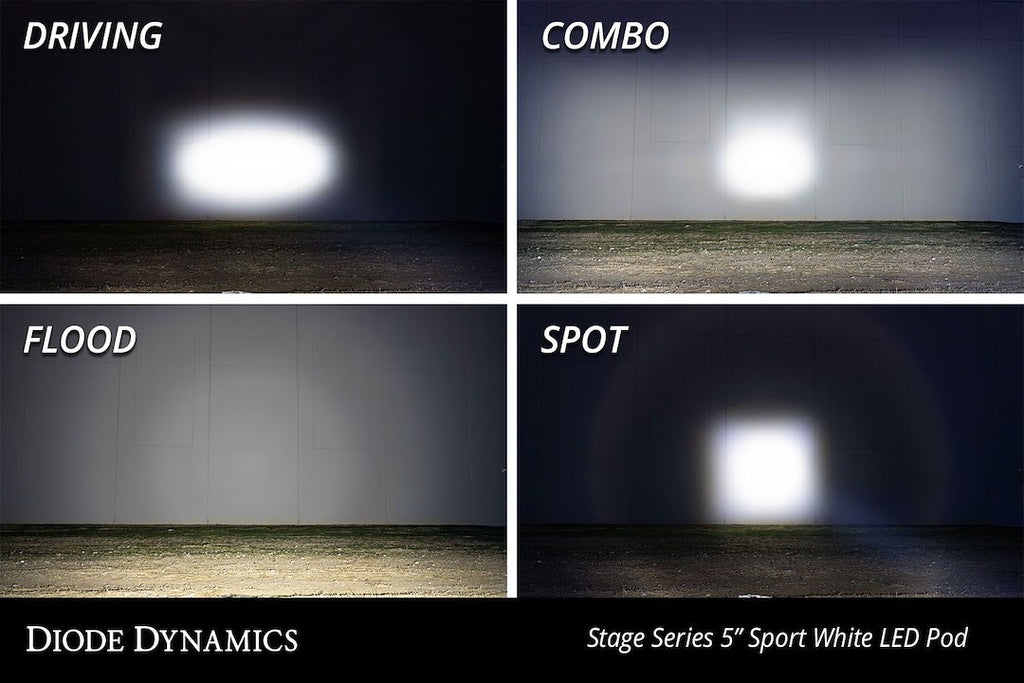

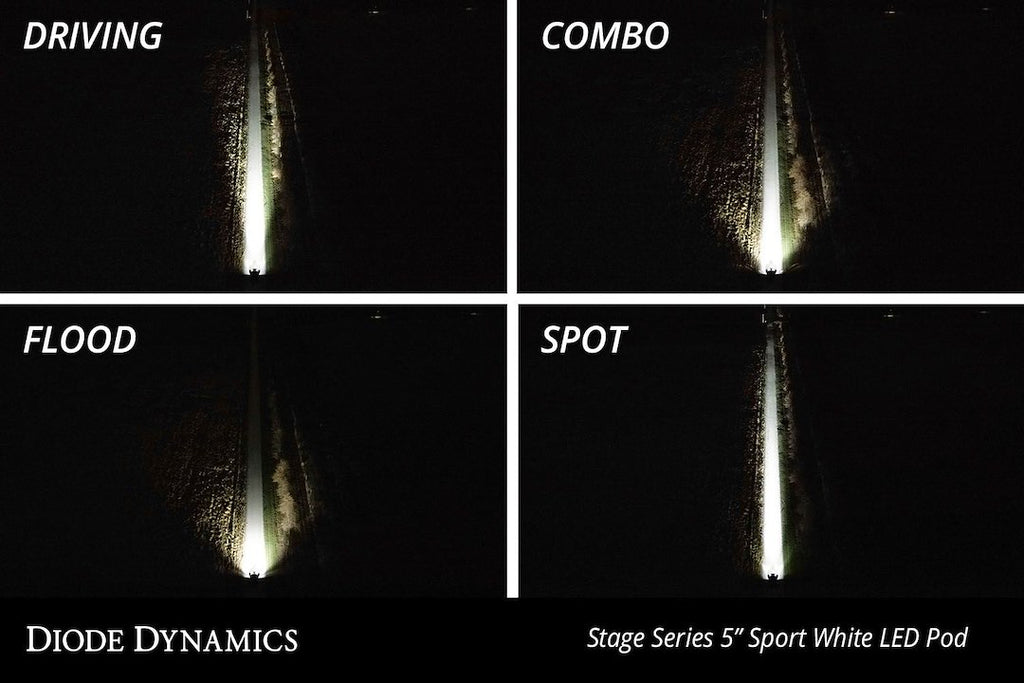

- Beam Type: Combo Beam Flood And Spot
- Diameter: Not Applicable

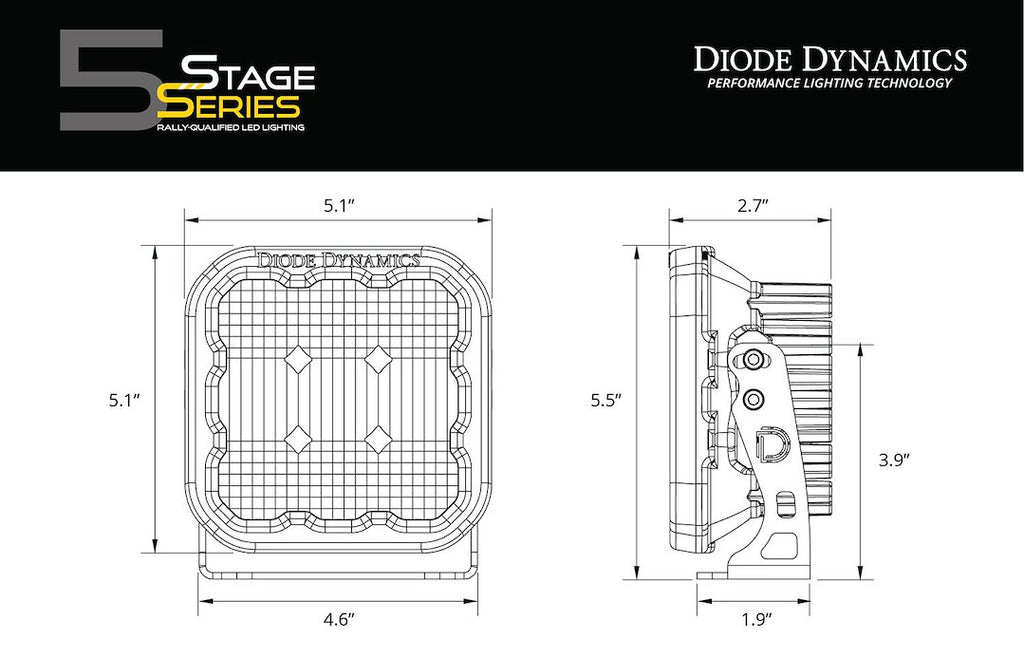

- Height/ Width: 5-1/8 Inch Height X 5-1/8 Inch Width
- Bulb Type: LED
- Light Color: White

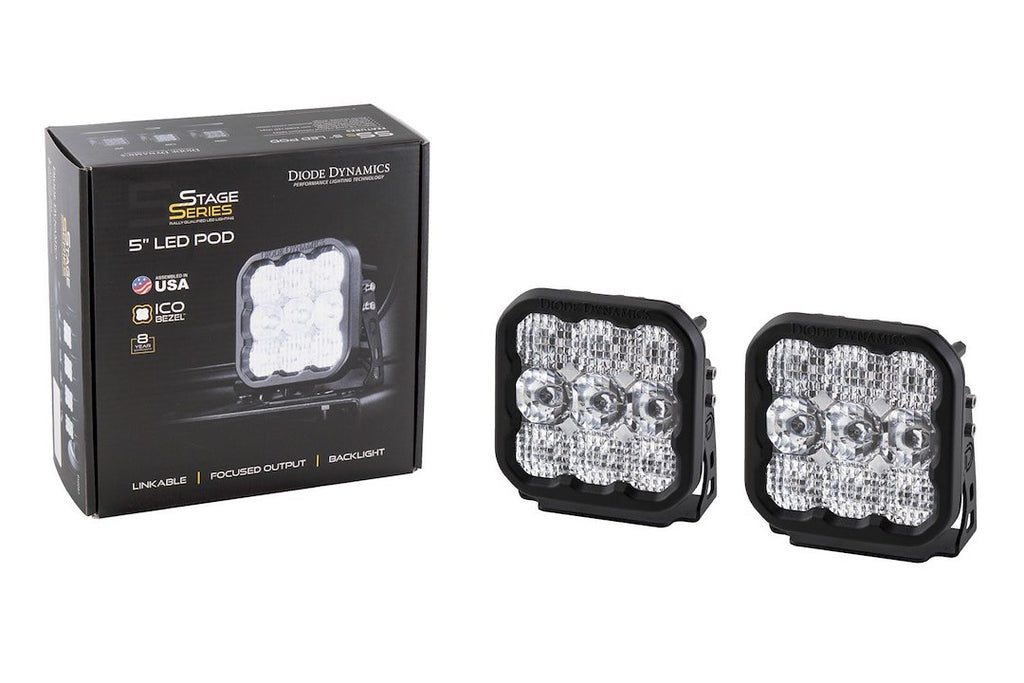

- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 2-11/16 Inch
- Wattage: 90 Watt
- Voltage Rating: 12.8 Volt
- Mounting Style: Bolt-On
- Ampere Rating At 12 Volts: 6 Amp
- Lumens: 9700 Lumens
- Bulb Specifications: Cree XP-L HI LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum

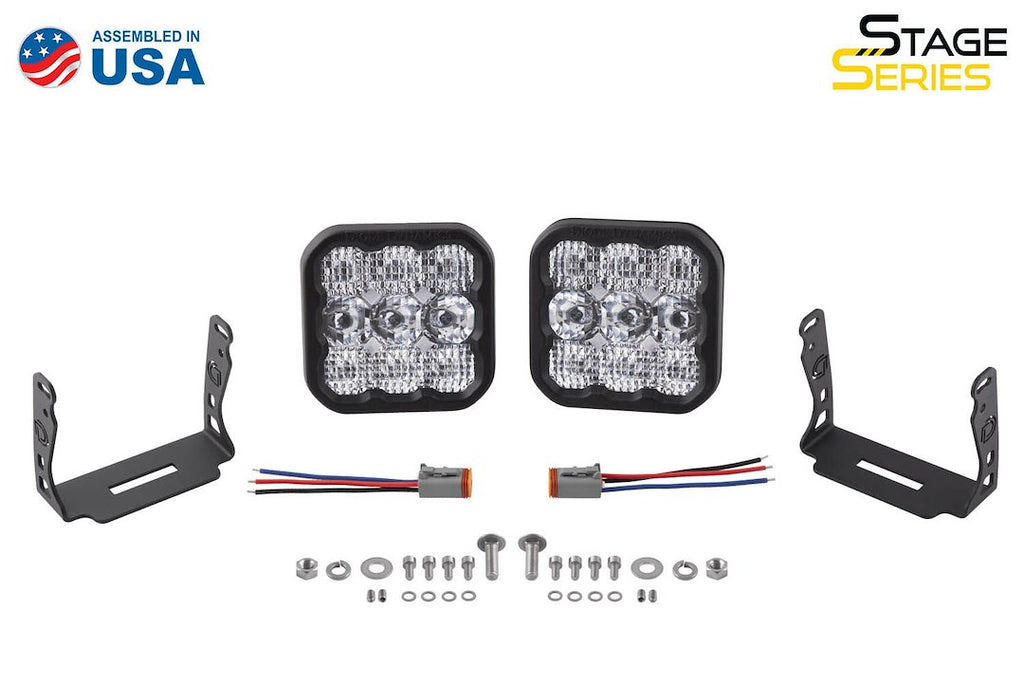

- Includes: With Two Deutsch-Style Wire Pigtails/ Two Mounting Brackets/ Hardware
- Estimated Install Time (Hours): 1.5
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
