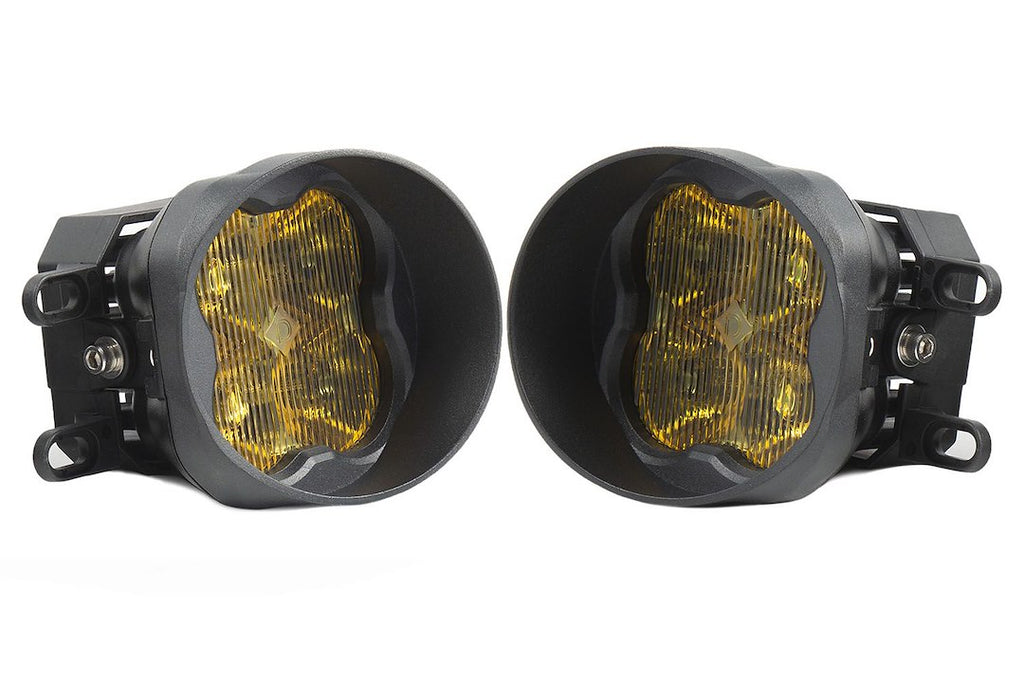

Diode Dynamics Stage Series Pro LED Fog Light (MPN: DD7000)

High-output, durable LED fog lights with advanced optics for superior visibility.

The Diode Dynamics Stage Series Pro LED Fog Light is engineered for maximum functionality and performance. Featuring a 3-inch round design, these lights utilize Cree XP-L HI LED bulbs to deliver an impressive 5220 raw lumens output. The custom-engineered TIR optics enhance light efficiency by directing illumination precisely where needed, significantly reducing glare and improving visibility in foggy conditions. Constructed with a durable black aluminum housing and a yellow polycarbonate lens, these lights are built to withstand harsh environments while maintaining a factory-style appearance.

Installation is straightforward with the included plug-and-play components, allowing for quick replacement of factory fog lights on compatible vehicles. The kit comes complete with two Type B brackets, H11 2-pin DT adapters, and all necessary mounting hardware, ensuring a seamless setup without the need for additional wiring. With a power draw of only 2.7 amps at 12.8 volts and a wattage of 36 watts, these fog lights are both energy-efficient and road-legal, meeting SAE compliance standards. Designed and assembled in the USA, the Diode Dynamics Stage Series Pro LED Fog Light is a reliable choice for enhanced visibility and safety on the road.

Features

• Durable Powder coated Aluminum Die-Cast
• SAE-Compliant Road-Legal Output
• Features Round Bezel, For Factory-Style Appearance
• Plug And Play, No Modification Needed
• Advanced TIR Optics Provide High Efficiency And Focus
• Engineered And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD7000
• Shape: Round
• Beam Type: Combo Beam Fog And Wide

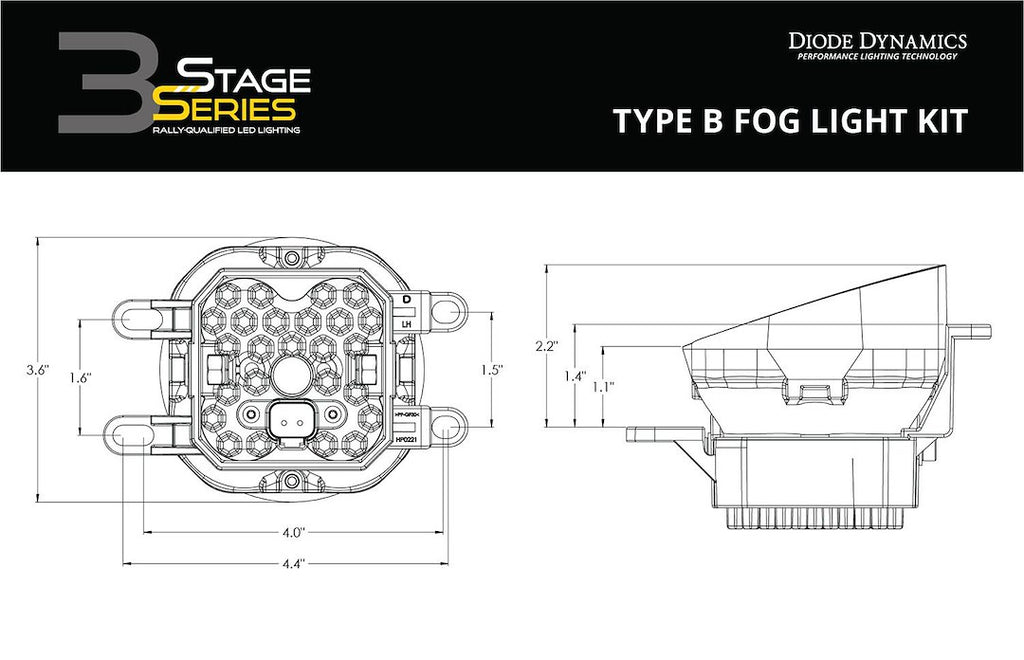

• Diameter: 3 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: Amber
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 2-3/16 Inch
• Wattage: 36 Watt
• Voltage Rating: 12.8 Volt
• Mounting Style: Bolt-On
• Ampere Rating At 12 Volts: 2.7 Amp
• Lumens: 5220 Lumens
• Bulb Specifications: Cree XP-L HI LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

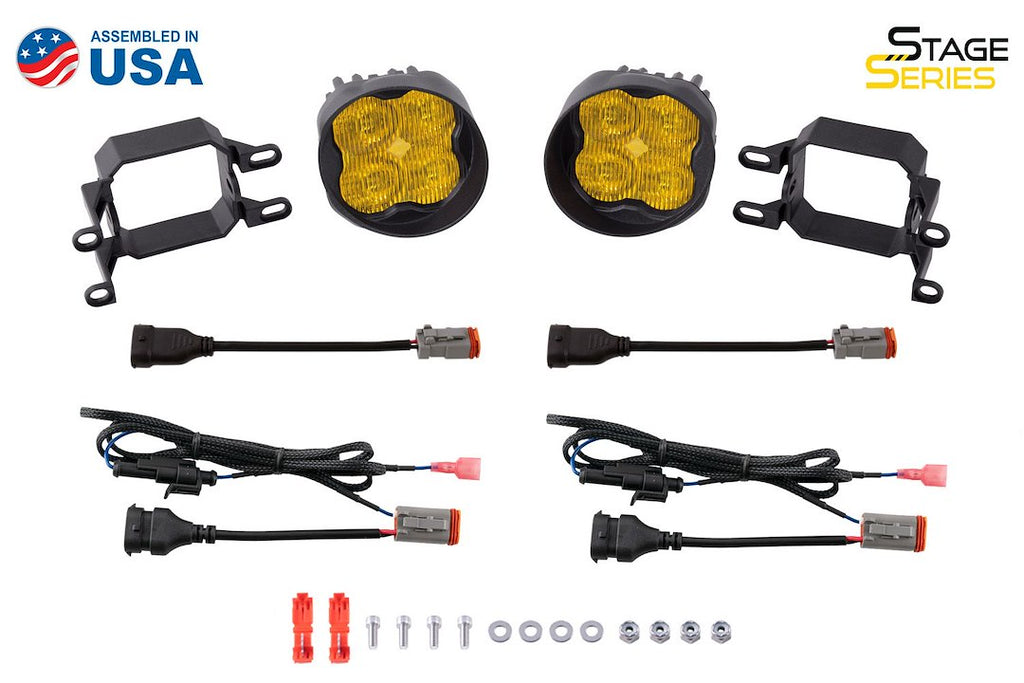

• Includes: With Two Type B Bracket/H11 2-Pin DT Adapter/H11 4-Pin DT Backlight Tap Wire Kit/Mounting Hardware
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2014-2017 Lexus CT200h
• 2013-2018 Lexus ES300h
• 2013-2018 Lexus ES350
• 2016-2017 Lexus GS200t
• 2013-2020 Lexus GS350
• 2014-2018 Lexus GS450h
• 2010-2012 Lexus HS250h
• 2008-2014 Lexus IS F
• 2016-2016 Lexus IS200t
• 2014-2015 Lexus IS250
• 2014-2014 Lexus IS350
• 2008-2011 Lexus LX570
• 2013-2015 Lexus LX570
• 2015-2017 Lexus NX200t
• 2015-2021 Lexus NX300h
• 2010-2022 Lexus RX350
• 2010-2022 Lexus RX450h
• 2015-2017 Subaru Legacy
• 2014-2024 Toyota 4Runner
• 2007-2012 Toyota Avalon
• 2007-2015 Toyota Camry
• 2009-2016 Toyota Corolla
• 2008-2010 Toyota Highlander
• 2014-2023 Toyota Highlander
• 2009-2013 Toyota Matrix
• 2010-2011 Toyota Prius
• 2015-2016 Toyota Prius
• 2012-2016 Toyota Prius C
• 2012-2016 Toyota Prius V
• 2006-2012 Toyota RAV4
• 2016-2025 Toyota RAV4
• 2007-2008 Toyota Solara
• 2012-2023 Toyota Tacoma
• 2014-2021 Toyota Tundra
• 2009-2014 Toyota Venza
• 2007-2016 Toyota Yaris

Technical Documents

• SS3_Type_B_Bracket_Mounting_Guide.pdf
