High-output LED fog lights with advanced optics for superior visibility.

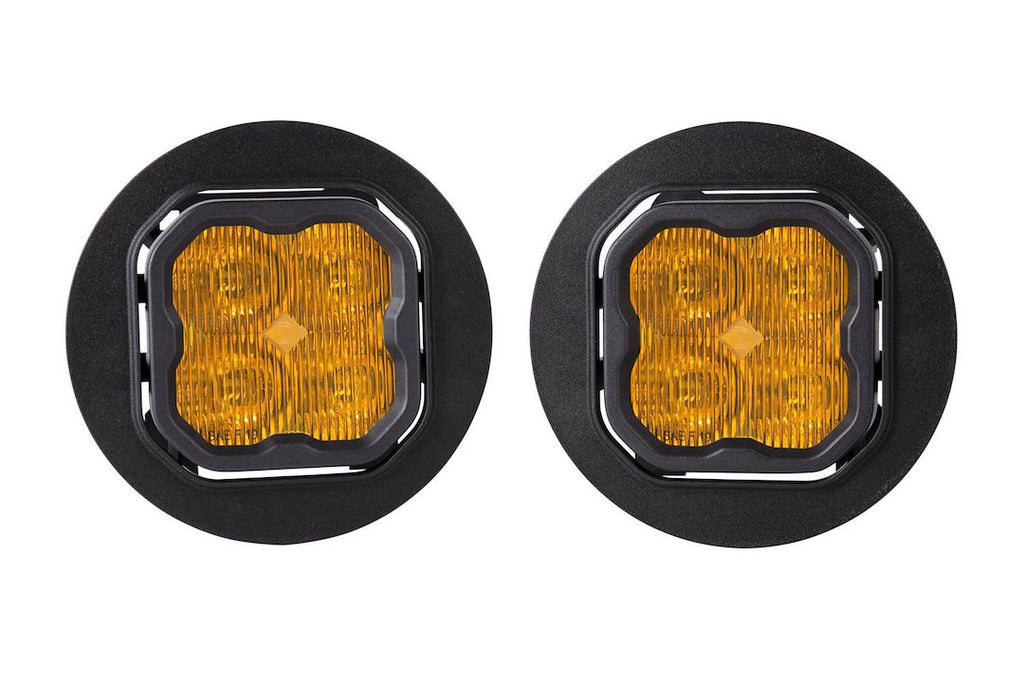

The Diode Dynamics Stage Series Max LED Fog Light is engineered to provide exceptional illumination with a focus on efficiency and performance. Featuring advanced TIR optics, these 3-inch square LED bulbs deliver a powerful SAE-compliant fog beam, producing 7920 raw lumens while drawing only 3 amps at 12.8 volts. The yellow Osram Boost HX LED bulbs are encased in a durable black aluminum housing with a polycarbonate lens, ensuring longevity and resilience against the elements.

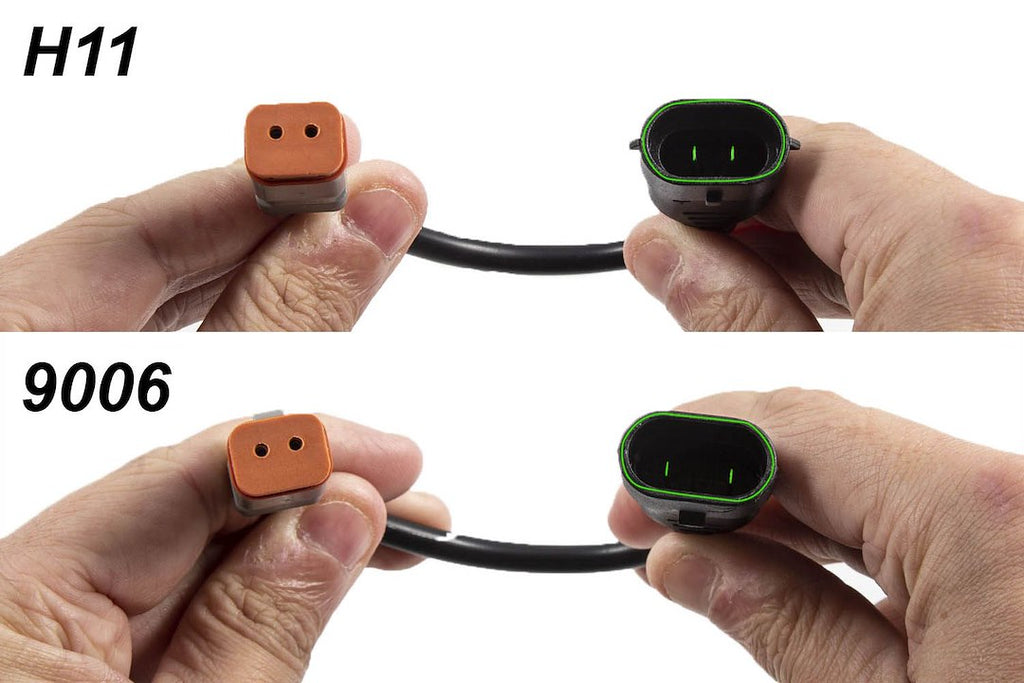

Installation is straightforward with the included custom brackets and plug-and-play adapters for both 9006 and H11 connectors, allowing for a seamless replacement of factory fog lights. The innovative design minimizes glare and maximizes light output, making these fog lights a practical choice for improved visibility in adverse weather conditions. The backlight functionality adds a distinctive amber glow, enhancing the aesthetic appeal of your vehicle.
Constructed with a powder-coated aluminum extrusion, the Stage Series Max LED Fog Light is built to withstand harsh environments while maintaining a factory-style appearance. This product is engineered and assembled in the USA, ensuring high-quality standards and performance. With a total wattage of 38.5 watts, these fog lights are fully universal and suitable for a wide range of vehicles.
Features
- Advanced TIR Optics Provide High Efficiency And Focus
- SAE-Compliant Road-Legal Output
- Features Custom Bracket, For Factory-Style Appearance
- Plug And Play, No Modification Needed
- Durable Powdercoated Aluminum Extrusion
- Engineered And Assembled In USA

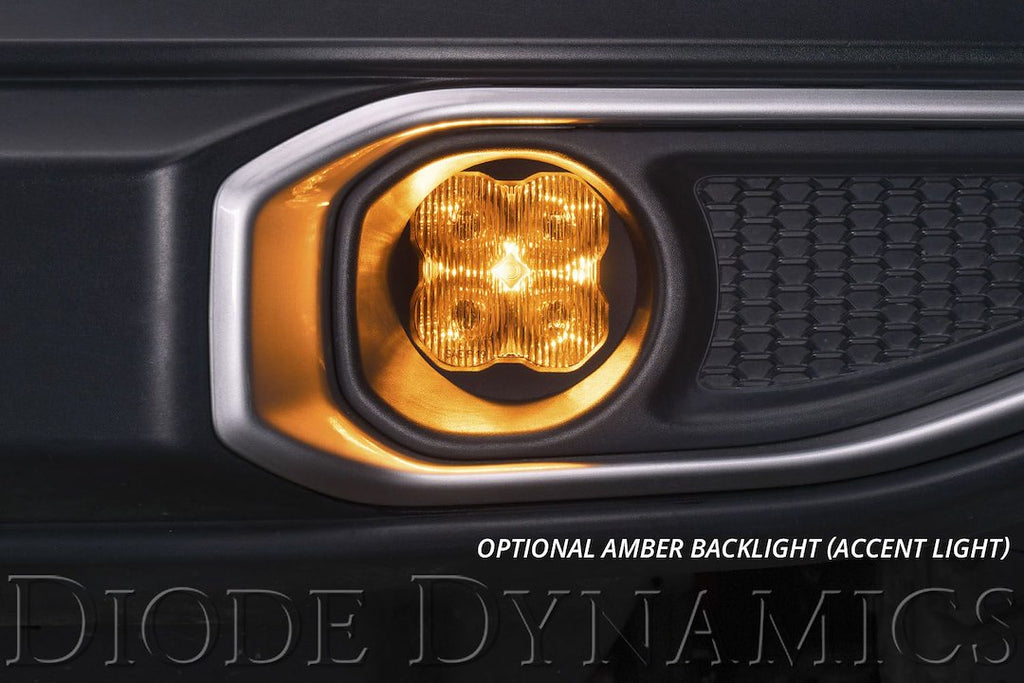

- Backlight Functionality: The Stage Series 3 Inch LED Pod Is Now Available With A Distinctive Backlight, In A Brilliant Amber Color
- White Or Yellow: All Stage Series LED Pods Are Available In A Cool White Or Selective Yellow Color
- Sport, Pro, Or Maximum: Stage Series LED Pods Are Available At Three Different Power Levels
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD7074
- Shape: Round
- Beam Type: Fog Beam

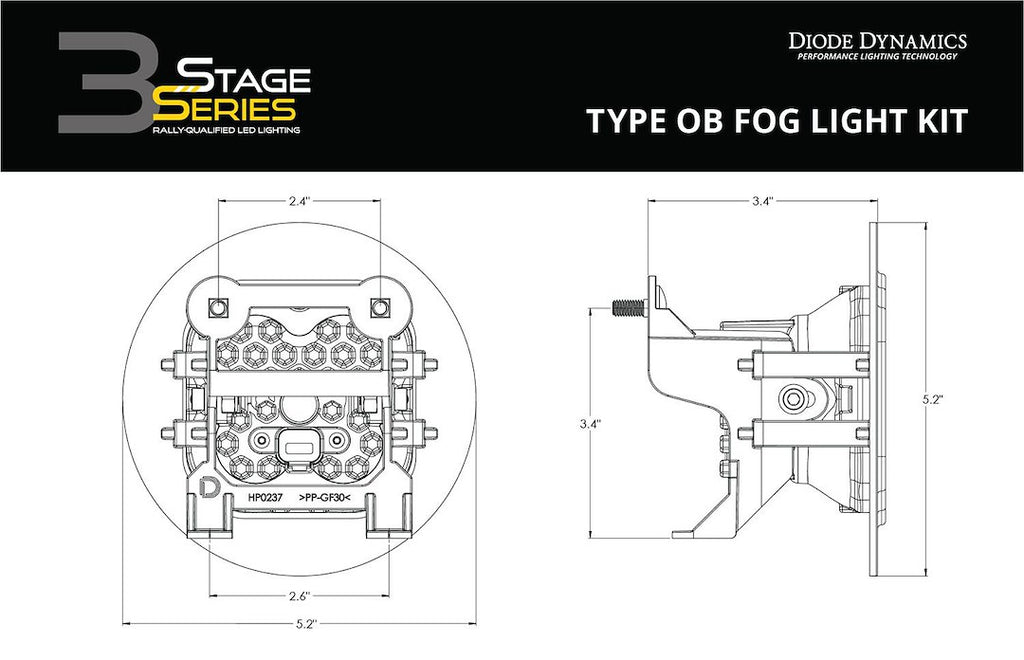

- Diameter: 5-3/16 Inch
- Height/ Width: Not Applicable
- Bulb Type: LED
- Light Color: Amber
- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 3-7/16 Inch
- Wattage: 38.5 Watt
- Voltage Rating: 12.8 Volt
- Mounting Style: Bracket Mount
- Ampere Rating At 12 Volts: 3 Amp
- Lumens: 7920 Lumens
- Bulb Specifications: Yellow Osram Boost HX LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum

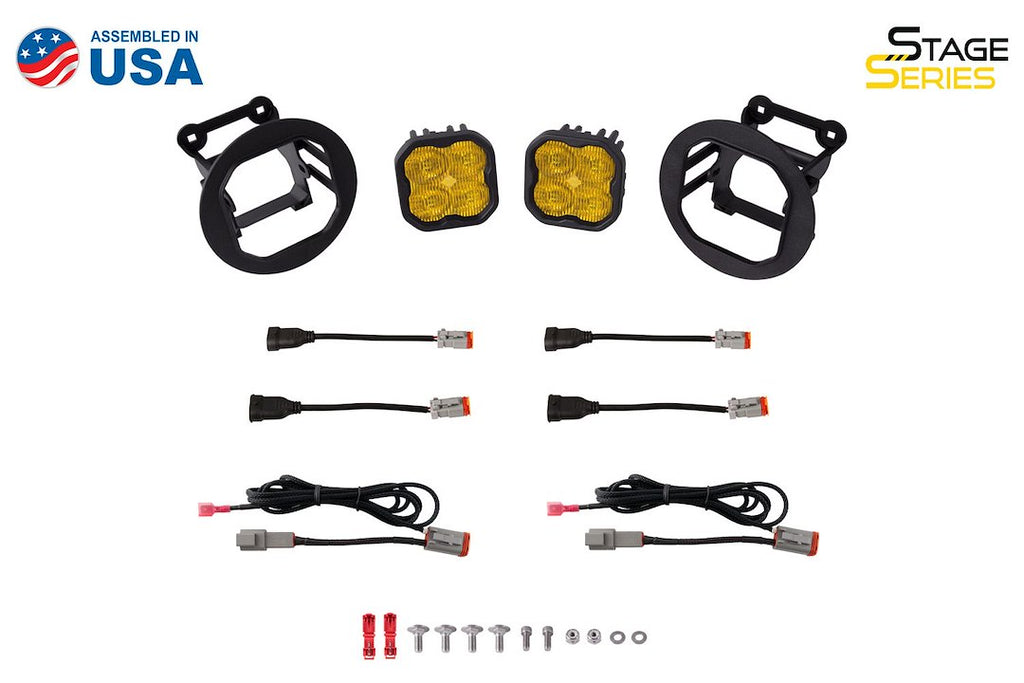

- Includes: With Deutsch-Style Wire Pigtail And Mounting Hardware
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 2005-2009 Subaru Outback
- 2013-2019 Subaru Outback
