Diode Dynamics Stage Series Max LED Fog Light (MPN: DD7002)

High-output, durable LED fog lights with advanced optics for superior visibility.

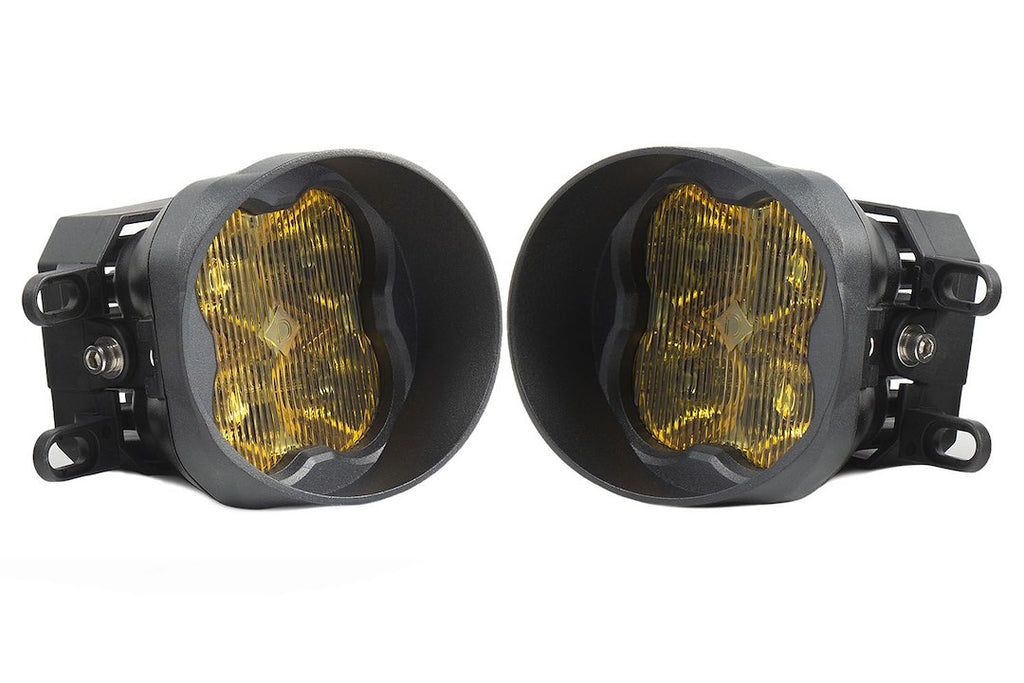

The Diode Dynamics Stage Series Max LED Fog Light is engineered for maximum functionality and performance. Featuring a compact 3-inch round design, these lights utilize custom-engineered TIR optics to deliver a focused beam pattern that significantly reduces glare while enhancing visibility. With a robust construction of powder-coated aluminum die-cast housing and a yellow polycarbonate lens, these lights are built to withstand harsh conditions while providing SAE-compliant road-legal output.

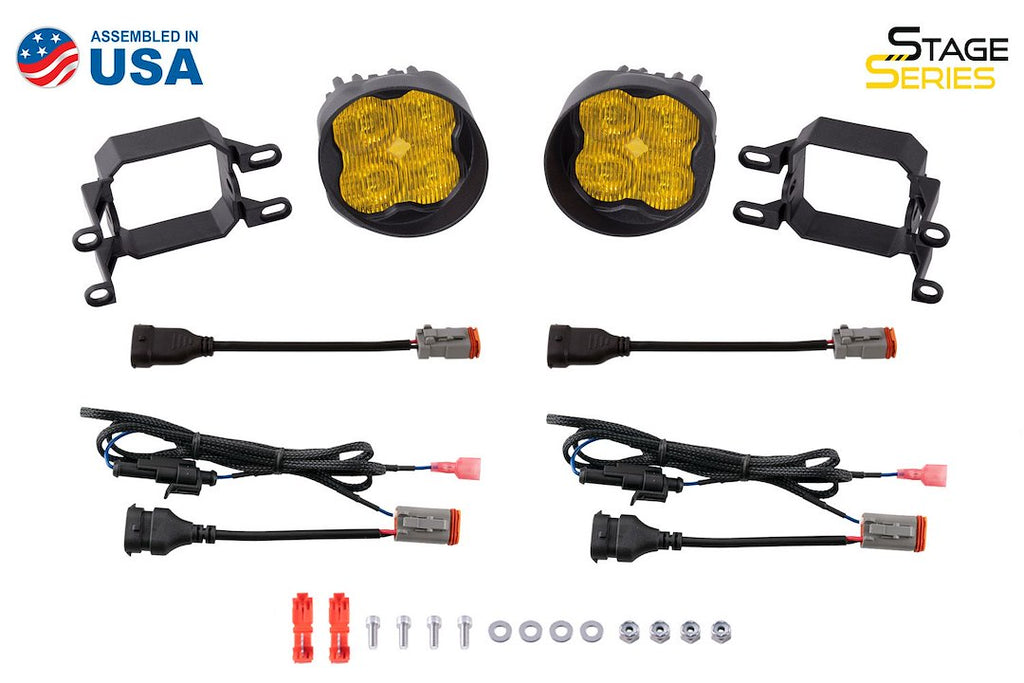

Designed for easy installation, the SS3 Fog Light Kit includes custom-molded brackets and wire adapters, allowing for a plug-and-play setup on compatible vehicles like the Toyota RAV4. The kit comes complete with all necessary mounting hardware, ensuring a straightforward installation process without the need for modifications. With a power draw of only 3 amps at 12.8 volts and an impressive output of 7920 raw lumens, these LED fog lights are both efficient and effective.

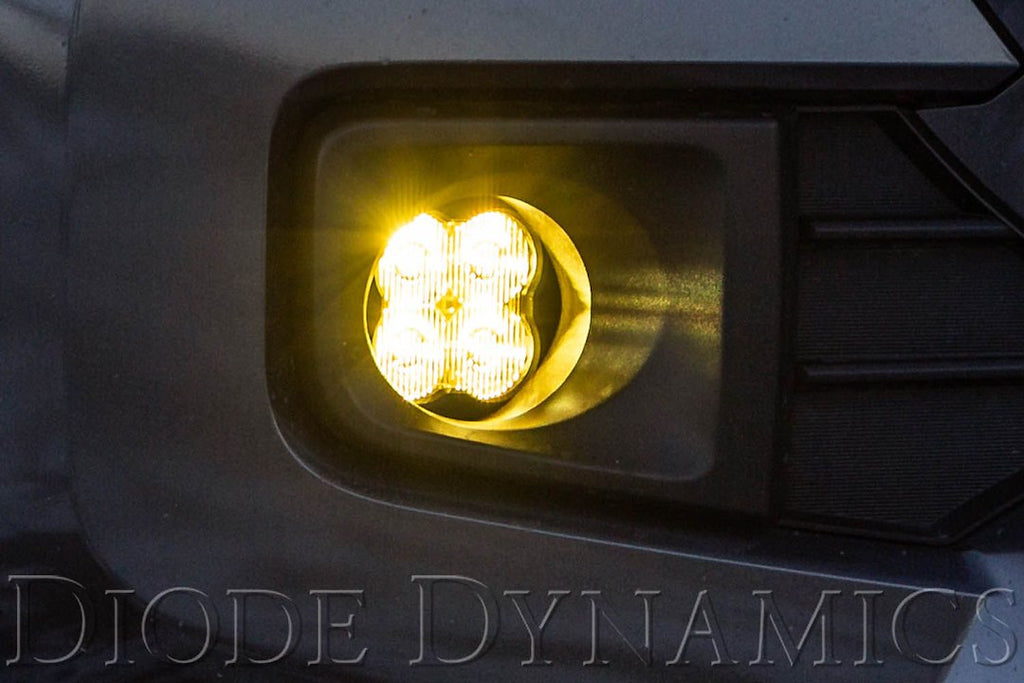

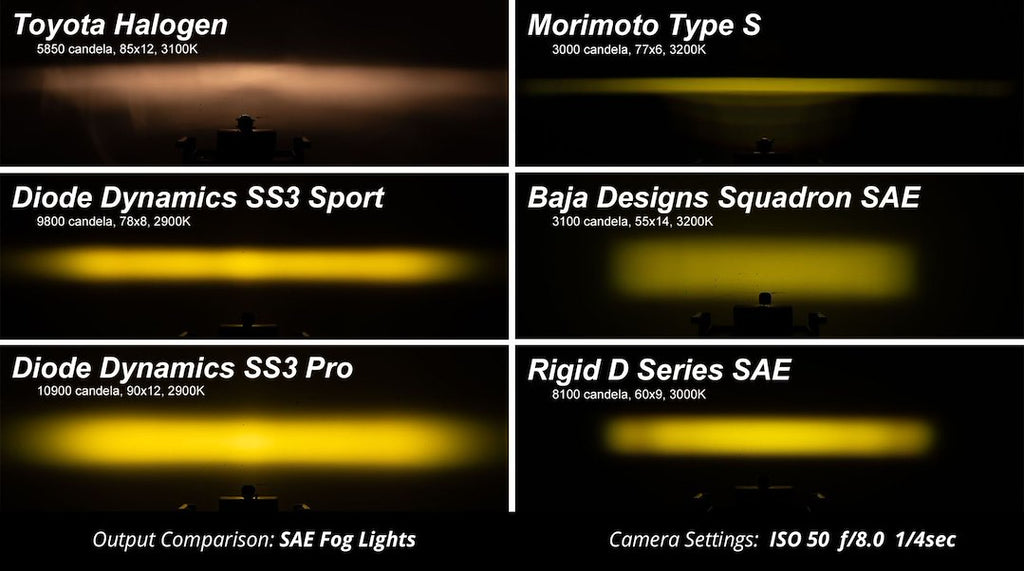

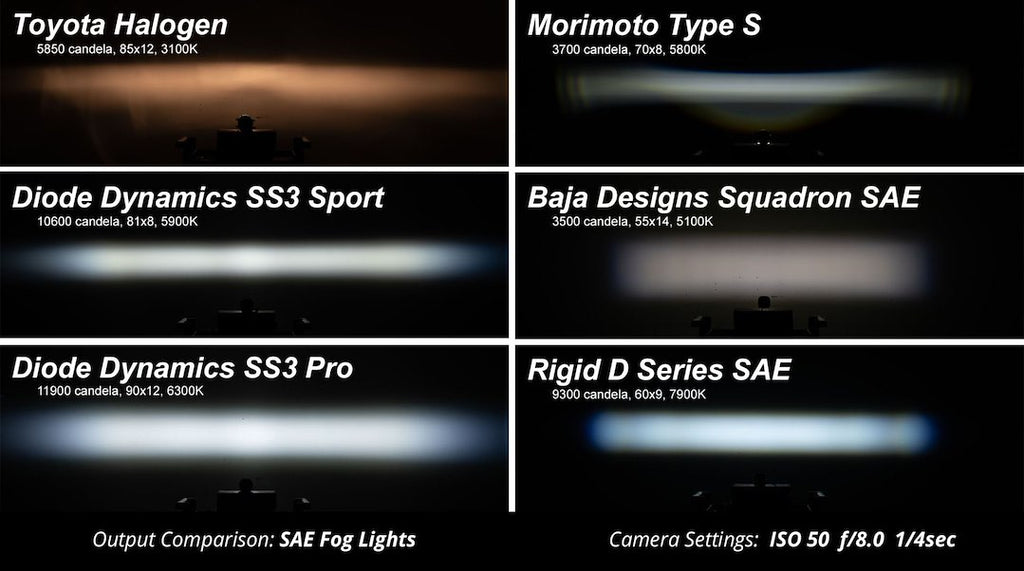

The Diode Dynamics Stage Series Max LED Fog Light is not just about brightness; it is about delivering light where it is needed most. The advanced TIR optics maximize light efficiency, ensuring that all emitted light is directed towards the intended target. This results in improved visibility in foggy or low-light conditions, making these lights a practical addition to any vehicle's lighting system.

Features

• Durable Powder coated Aluminum Die-Cast
• SAE-Compliant Road-Legal Output
• Features Round Bezel, For Factory-Style Appearance
• Plug And Play, No Modification Needed
• Advanced TIR Optics Provide High Efficiency And Focus
• Engineered And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD7002
• Shape: Round
• Beam Type: Combo Beam Fog And Wide

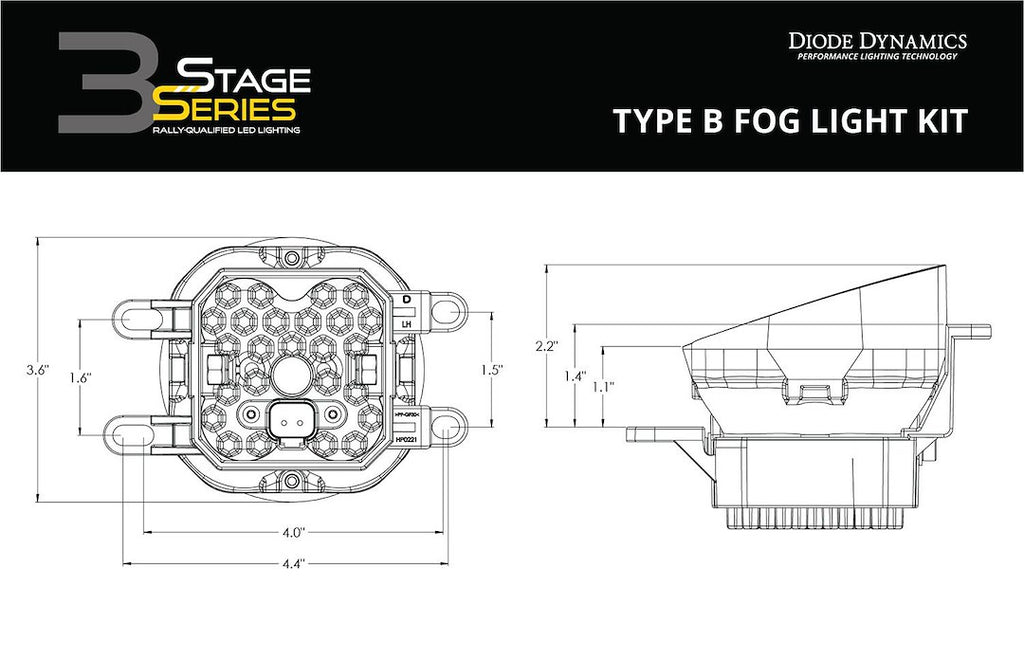

• Diameter: 3 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: Amber
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 2-3/16 Inch
• Wattage: 38.5 Watt
• Voltage Rating: 12.8 Volt
• Mounting Style: Bolt-On
• Ampere Rating At 12 Volts: 3 Amp
• Lumens: 7920 Lumens
• Bulb Specifications: Osram Boost HX LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

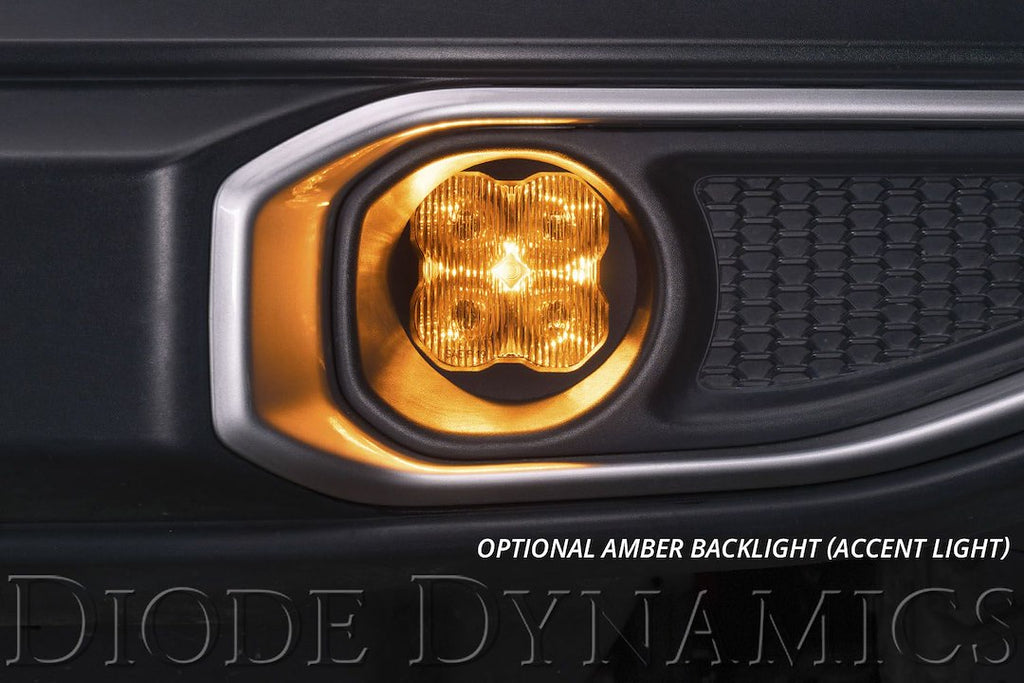

• Includes: With Two Type B Bracket/H11 2-Pin DT Adapter/H11 4-Pin DT Backlight Tap Wire Kit/Mounting Hardware
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2014-2017 Lexus CT200h
• 2013-2018 Lexus ES300h
• 2013-2018 Lexus ES350
• 2016-2017 Lexus GS200t
• 2013-2020 Lexus GS350
• 2014-2018 Lexus GS450h
• 2010-2012 Lexus HS250h
• 2008-2014 Lexus IS F
• 2016-2016 Lexus IS200t
• 2014-2015 Lexus IS250
• 2014-2014 Lexus IS350
• 2008-2011 Lexus LX570
• 2013-2015 Lexus LX570
• 2015-2017 Lexus NX200t
• 2015-2021 Lexus NX300h
• 2010-2022 Lexus RX350
• 2010-2022 Lexus RX450h
• 2015-2017 Subaru Legacy
• 2014-2024 Toyota 4Runner
• 2007-2012 Toyota Avalon
• 2007-2015 Toyota Camry
• 2009-2016 Toyota Corolla
• 2008-2010 Toyota Highlander
• 2014-2023 Toyota Highlander
• 2009-2013 Toyota Matrix
• 2010-2011 Toyota Prius
• 2015-2016 Toyota Prius
• 2012-2016 Toyota Prius C
• 2012-2016 Toyota Prius V
• 2006-2012 Toyota RAV4
• 2016-2025 Toyota RAV4
• 2007-2008 Toyota Solara
• 2012-2023 Toyota Tacoma
• 2014-2021 Toyota Tundra
• 2009-2014 Toyota Venza
• 2007-2016 Toyota Yaris

Technical Documents

• SS3_Type_B_Bracket_Mounting_Guide.pdf
