Diode Dynamics Stage Series Max LED Fog Light (MPN: DD6986)

High-intensity LED fog lights with advanced optics for superior visibility.

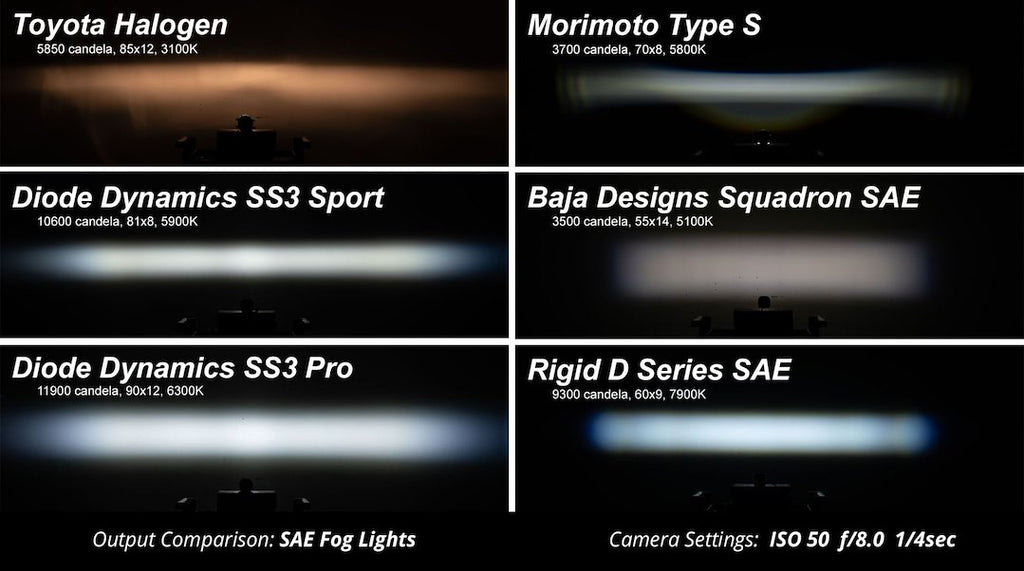

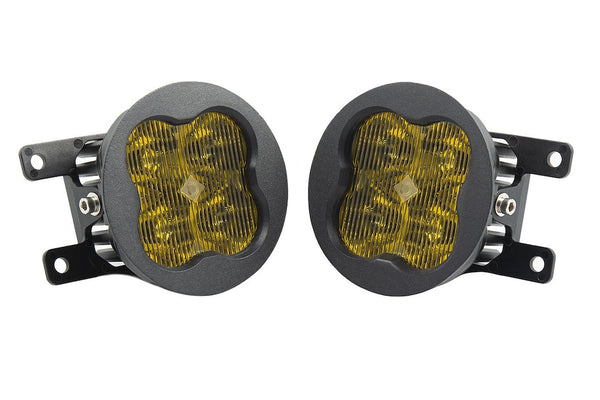

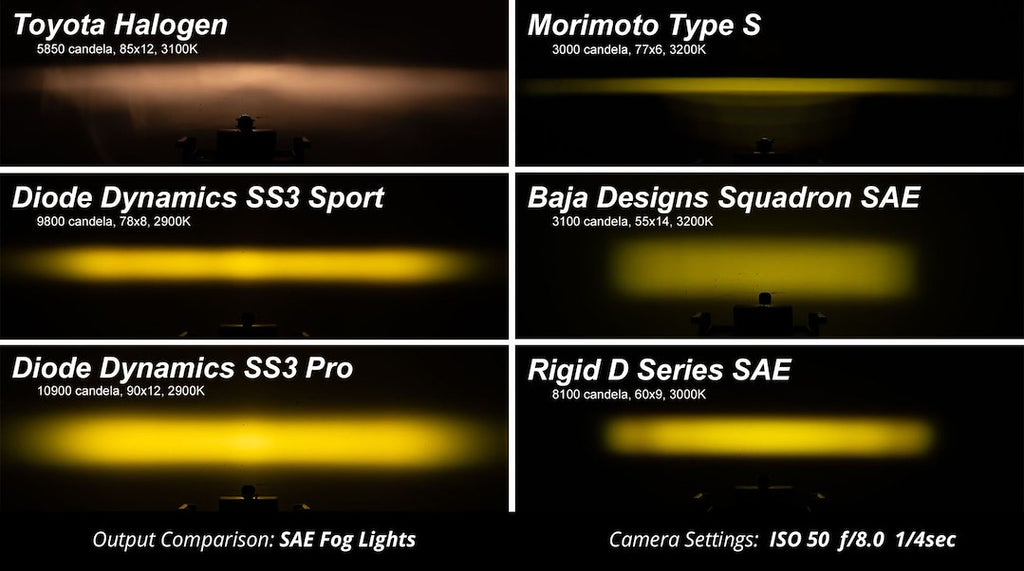

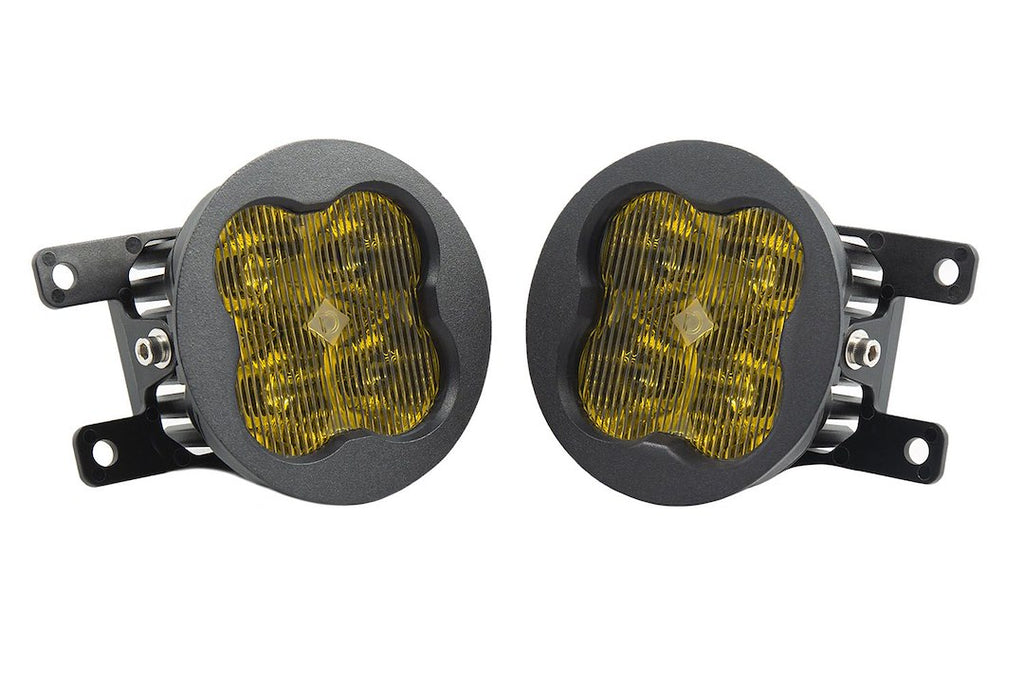

The Diode Dynamics Stage Series Max LED Fog Light is engineered to provide exceptional illumination with a focus on efficiency and performance. Featuring a durable black aluminum housing and a yellow polycarbonate lens, these 3-inch round fog lights deliver an impressive 7920 raw lumens while drawing only 3 amps at 12.8 volts. The advanced TIR optics are designed to minimize glare and maximize light output, ensuring that all emitted light is directed where it is needed most, enhancing visibility in foggy or low-light conditions.

This set of two LED bulbs utilizes Osram Boost HX technology, which significantly increases the output intensity compared to traditional fog lights. The SAE-compliant design ensures that these lights are road-legal, making them suitable for various driving conditions. The plug-and-play installation process requires no modifications, allowing for a straightforward setup with included mounting hardware and adapters.

With a focus on durability and performance, the Diode Dynamics Stage Series Max LED Fog Light is assembled in the USA and features a powder-coated aluminum construction that withstands harsh environments. The combination of high-efficiency optics and robust materials makes these fog lights a reliable choice for enhancing vehicle safety and visibility.

Features

• Durable Powder Coated Aluminum Construction
• SAE-Compliant Road-Legal Output
• Advanced TIR Optics Provide High Efficiency And Focus
• Plug And Play, No Modification Needed
• Engineered And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD6986
• Shape: Round
• Beam Type: Combo Beam Fog And Wide

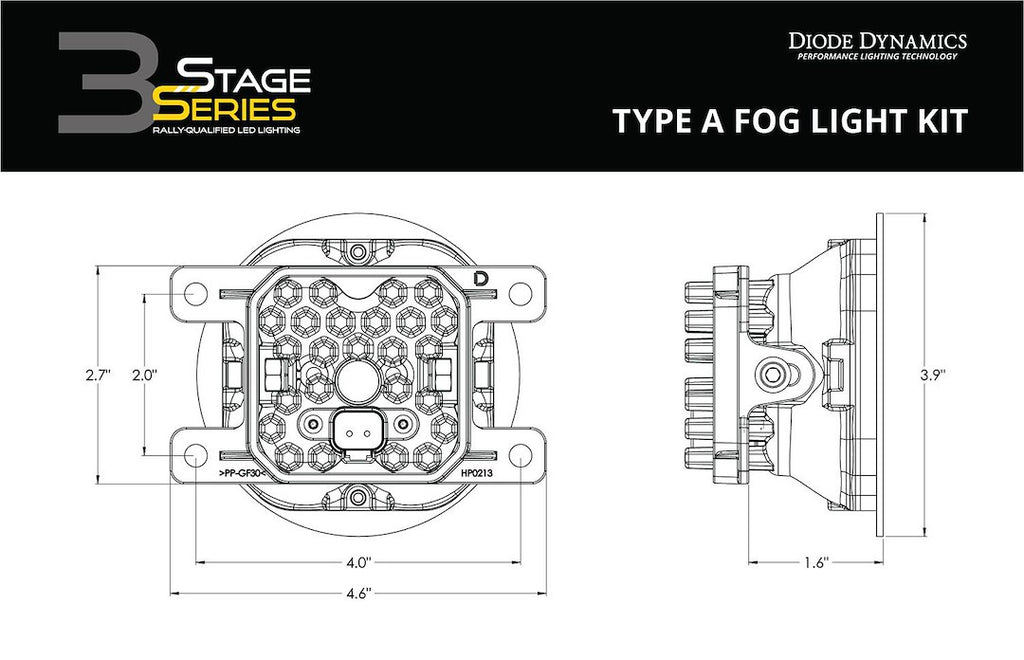

• Diameter: 3 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: Amber
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 1-5/8 Inch
• Wattage: 38.5 Watt
• Voltage Rating: 12.8 Volt
• Mounting Style: Bolt-On
• Ampere Rating At 12 Volts: 3 Amp
• Lumens: 7920 Lumens
• Bulb Specifications: Osram Boost HX LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

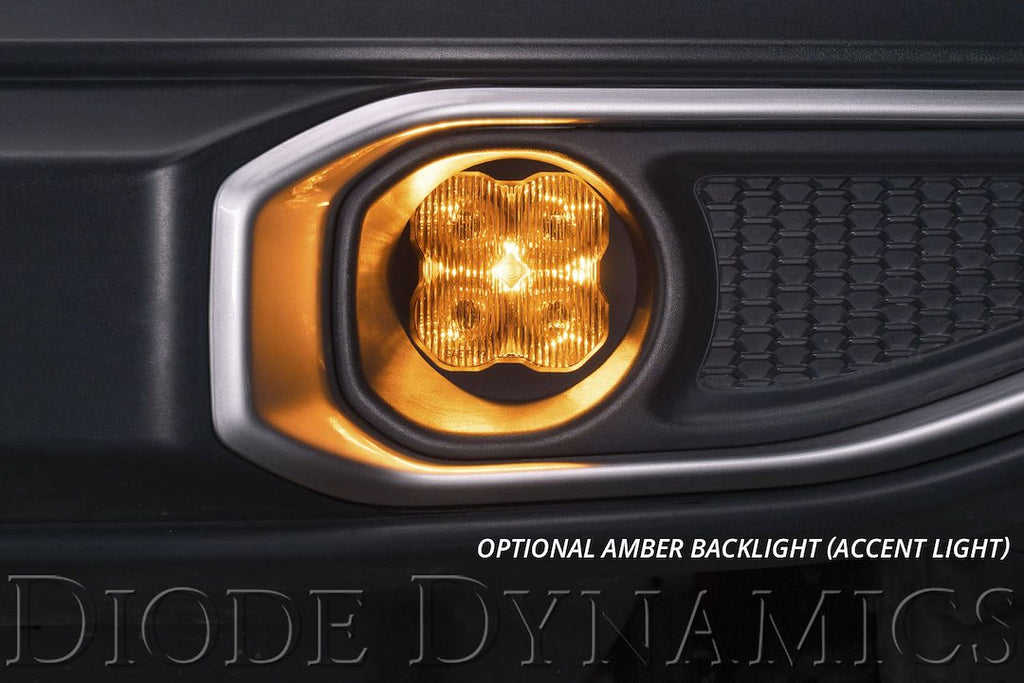

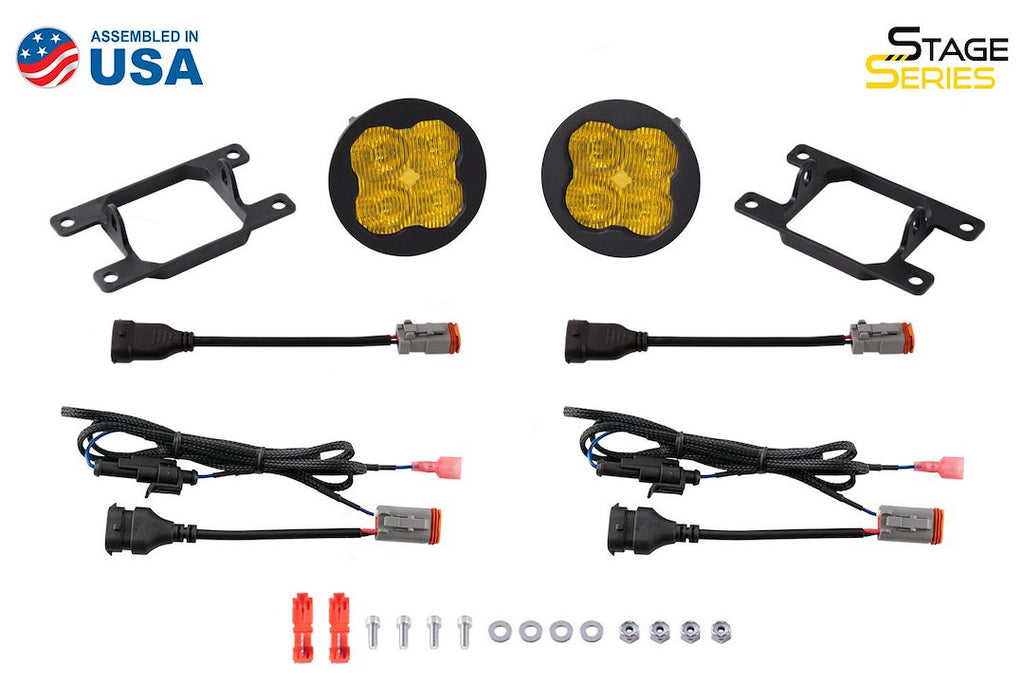

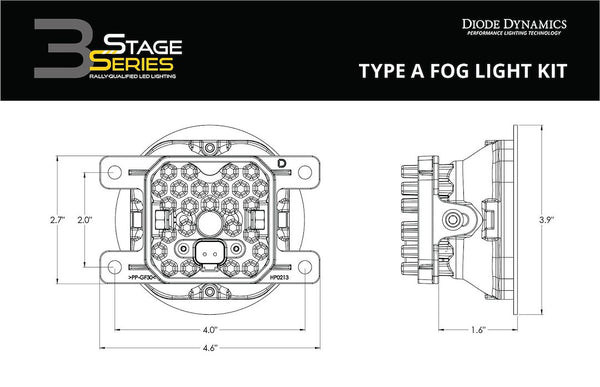

• Includes: With Two Type A Brackets/H11 2-Pin DT Adapter/H11 4-Pin DT Backlight Tap Wire Kit/Mounting Hardware
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2013-2022 Acura ILX
• 2013-2018 Acura RDX
• 2012-2014 Acura TL
• 2011-2013 Acura TSX
• 2012-2016 Fiat 500
• 2013-2016 Ford C-Max
• 2014-2019 Ford Fiesta
• 2005-2007 Ford Freestyle
• 2013-2016 Ford Fusion
• 2004-2007 Ford Ranger
• 2008-2009 Ford Taurus X
• 2013-2015 Honda Accord
• 2013-2021 Honda Civic
• 2012-2014 Honda CR-V
• 2013-2016 Honda CR-Z
• 2013-2015 Honda Crosstour
• 2015-2017 Honda Fit
• 2010-2014 Honda Insight
• 2019-2020 Honda Odyssey
• 2012-2022 Honda Pilot
• 2009-2021 Nissan Frontier
• 2007-2012 Nissan Sentra
• 2017-2019 Nissan Titan
• 2016-2016 Nissan Titan XD
• 2005-2015 Nissan Xterra
• 2013-2016 Scion FR-S
• 2013-2017 Subaru BRZ
• 2016-2025 Subaru Crosstrek
• 2014-2024 Subaru Forester
• 2012-2023 Subaru Impreza
• 2010-2014 Subaru Legacy
• 2022-2025 Subaru Outback
• 2015-2021 Subaru WRX
• 2015-2017 Subaru WRX STI
• 2013-2015 Subaru XV Crosstrek

Technical Documents

• SS3_Type_A_Bracket_Mounting_Guide.pdf
