Diode Dynamics Stage Series LED Light Bar (MPN: DD5034)

High-performance 42 inch LED light bar with advanced optics and durable design.

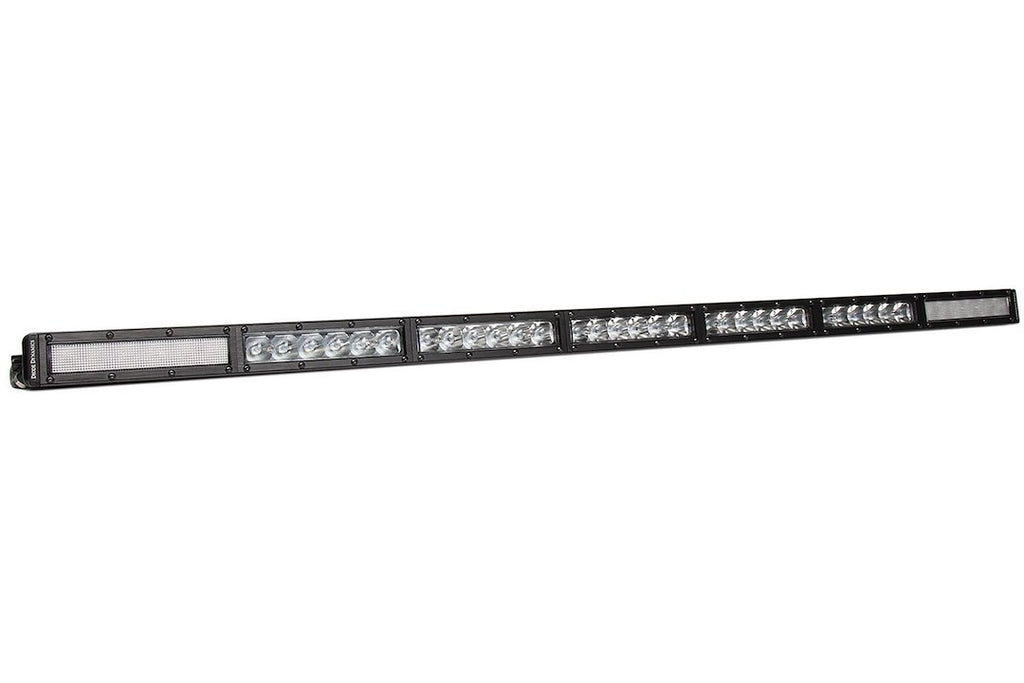

The Diode Dynamics Stage Series LED Light Bar is engineered for optimal performance and versatility. Measuring 42 inches in length, this light bar features a unique driving and flood combo beam pattern, delivering an impressive 9800 effective lumens. The advanced TIR optics enhance efficiency and focus, making it suitable for various applications, including off-road driving and professional use.

Constructed with a slim 42 millimeter profile, the light bar fits in tight spaces where traditional dual-row light bars may not. Its durable matte powder-coated aluminum housing ensures longevity and resistance to harsh conditions. The polycarbonate lens provides additional protection while maintaining clarity and light output.

Installation is straightforward with the included universal mounting brackets, wire pigtail, and mounting hardware. The light bar operates at 224 watts and 16 amps at 14 volts, making it a powerful addition to any vehicle's lighting system. With its low-profile design and high-intensity white LEDs, the Diode Dynamics Stage Series LED Light Bar is a reliable choice for enhancing visibility and safety.

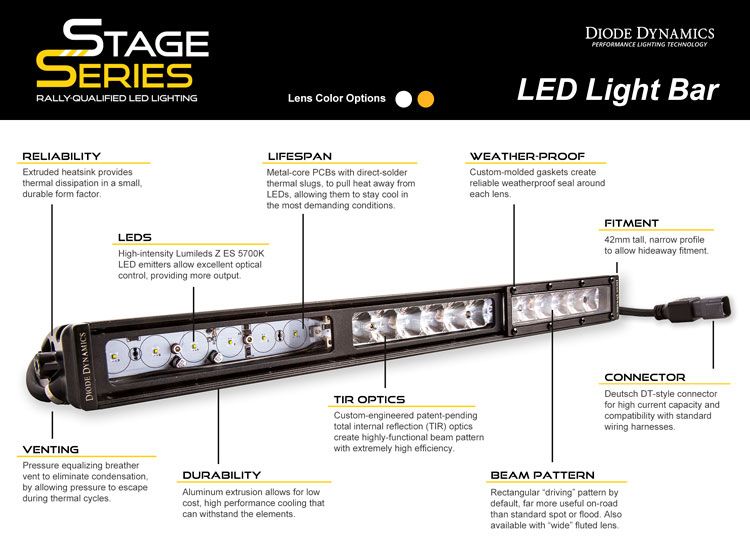

Features

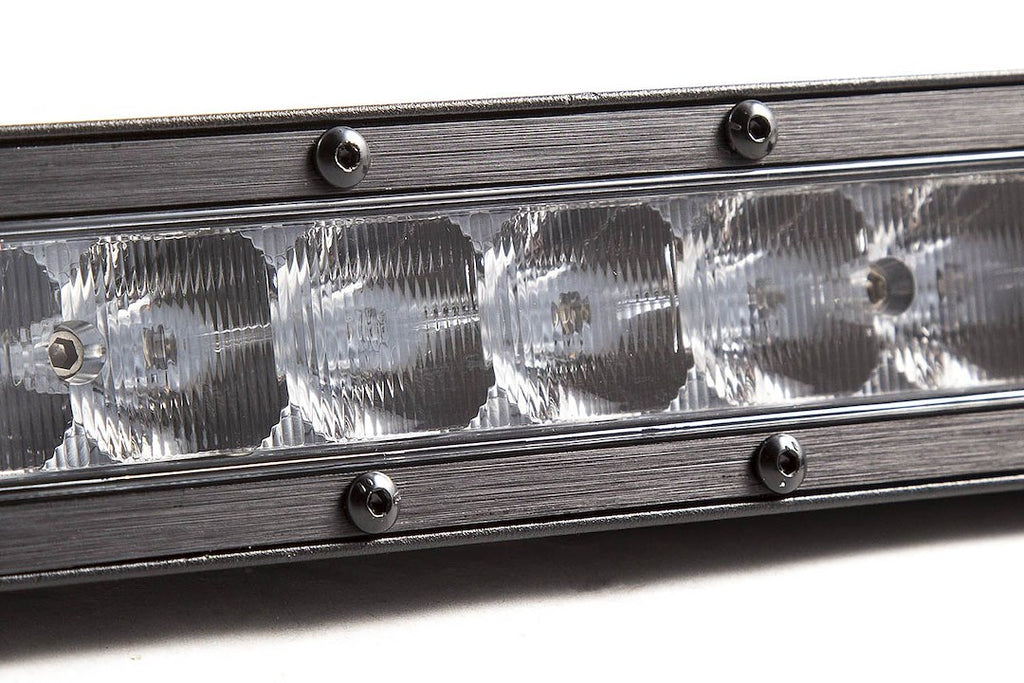

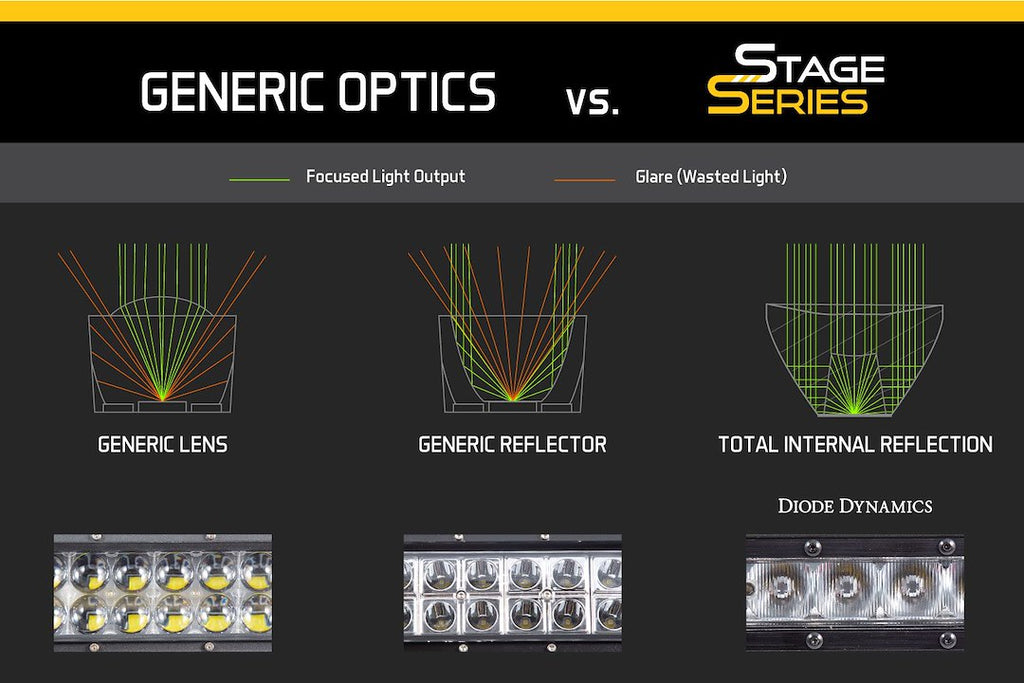

• Advanced TIR Optics Provide High Efficiency And Focus
• High-Intensity Automotive-Type LEDs With Pure White Color
• Available In Driving, Wide Or Flood Beam Patterns
• Slim 42 Millimeter Housing For Low-Profile Fitment
• Durable Matte Powder Coated Extrusion

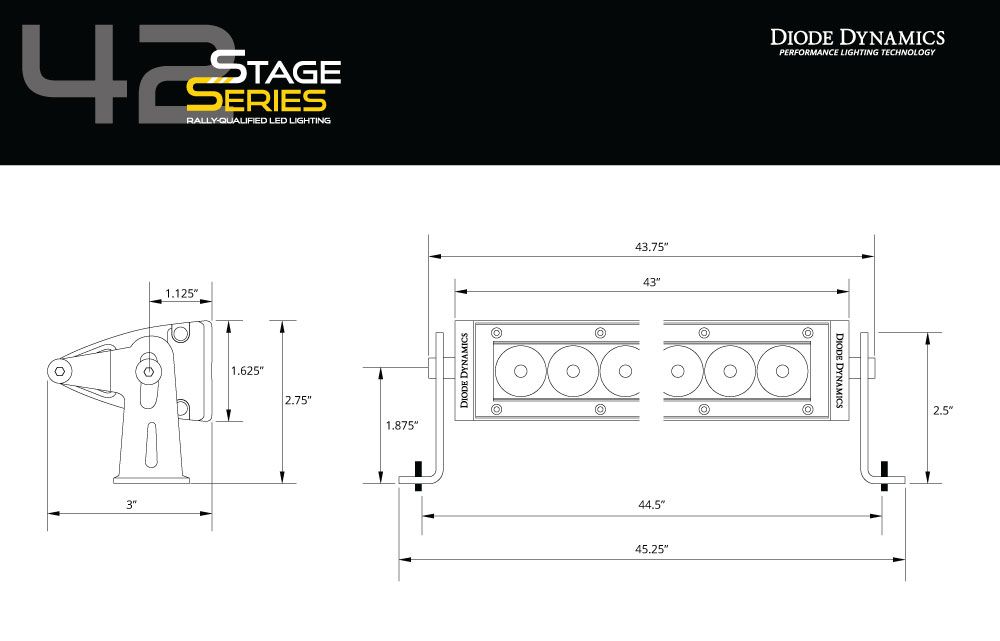

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD5034
• Bulb Type: LED
• Style: Straight
• Length: 42 Inch

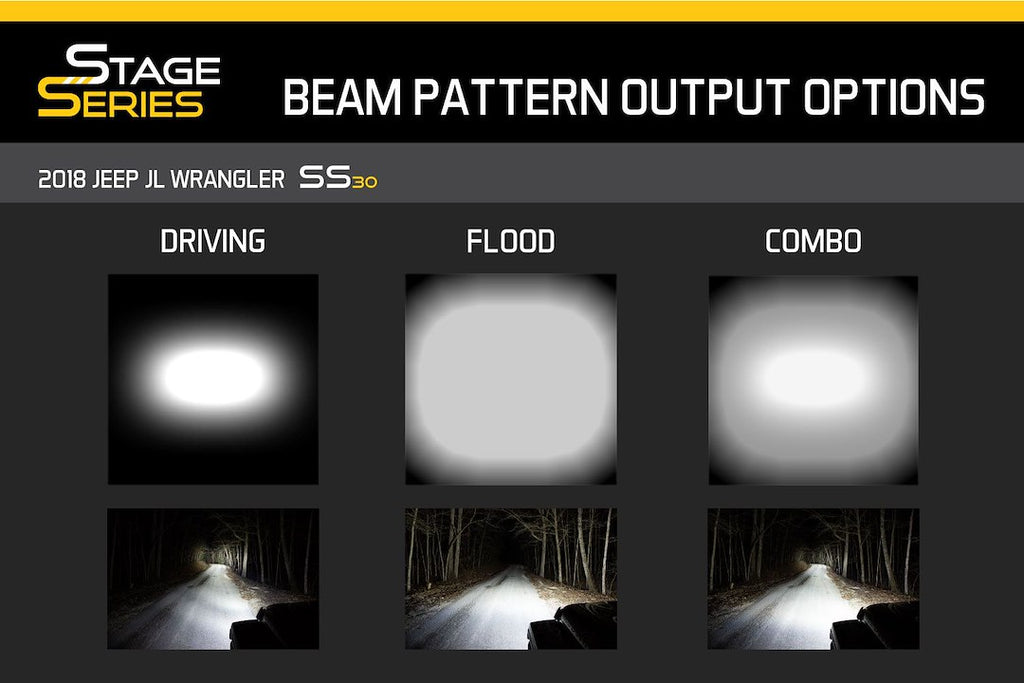

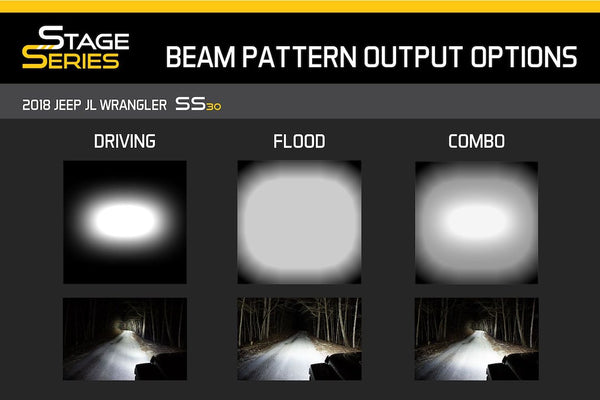

• Beam Type: Combo Beam Driving And Flood
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 20 Degree Driving/ 80 Degree Flood
• Lumens: 9800 Lumens
• Wattage: 224 Watt
• Width: 3 Inch
• Height: 1.62 Inch
• Voltage Rating: 14 Volt
• Ampere Rating At 12 Volts: 16 Amp
• Bulb Specifications: White LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 45-14 Inch
• Mounting Style: Bolt-On Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Universal Mounting Brackets/ Wire Pigtail/ Mounting Hardware
• Estimated Install Time (Hours): 1.5

Technical Documents

• Stage_Series_42_inch_installation_guide_2B.pdf
• Stage_Series_installation_guide_single_heavy_duty.pdf
• Warranty-Diode_Dynamics.pdf
