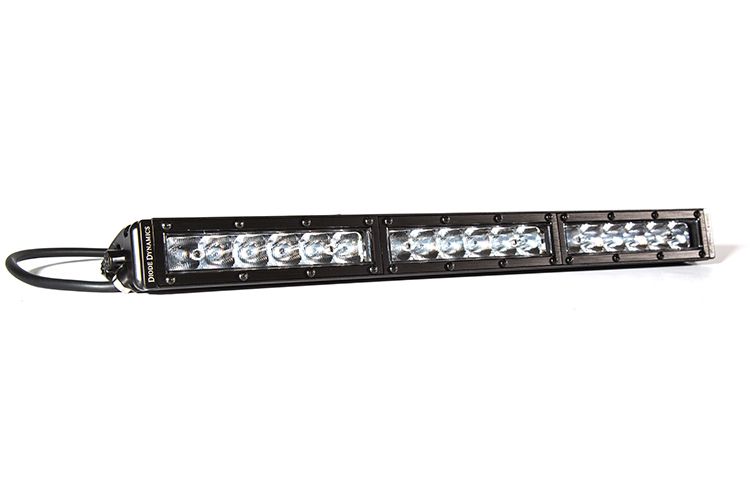

Diode Dynamics Stage Series LED Light Bar (MPN: DD5016)

Compact and efficient lighting solution for various applications.

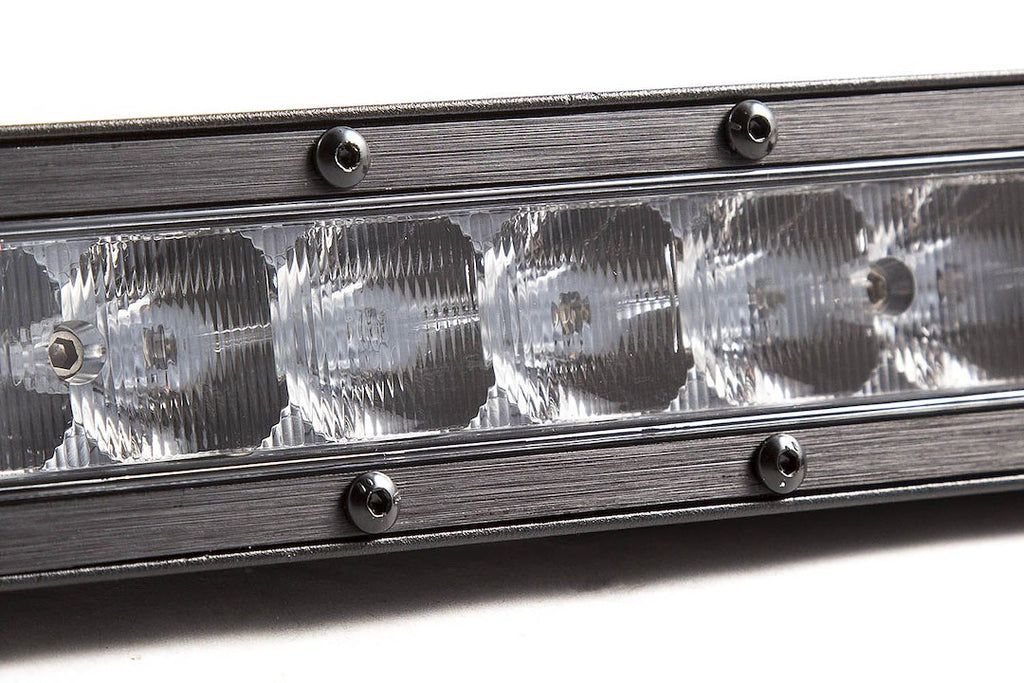

The Diode Dynamics Stage Series LED Light Bar is engineered for high performance and versatility. With an 18-inch length and a slim profile of just 42 millimeters, this light bar is designed to fit in tight spaces where traditional light bars may not. It features advanced TIR optics that provide high efficiency and a focused beam pattern, delivering 4200 effective lumens for optimal visibility in various conditions.

Constructed with a durable matte powder-coated aluminum housing, the light bar is built to withstand harsh environments while maintaining a sleek appearance. The polycarbonate lens ensures clarity and resilience against impacts, making it suitable for off-road and professional use. The light bar operates at 79.8 watts and 5.7 amps at 14 volts, ensuring reliable performance without excessive power draw.

Installation is straightforward with the included universal mounting brackets, wire pigtail, and mounting hardware. The driving beam pattern, with a beam angle of 20 x 8 degrees, is ideal for focused illumination, enhancing safety and visibility during nighttime driving or in low-light conditions. This light bar is a practical choice for those seeking a robust and efficient lighting solution.

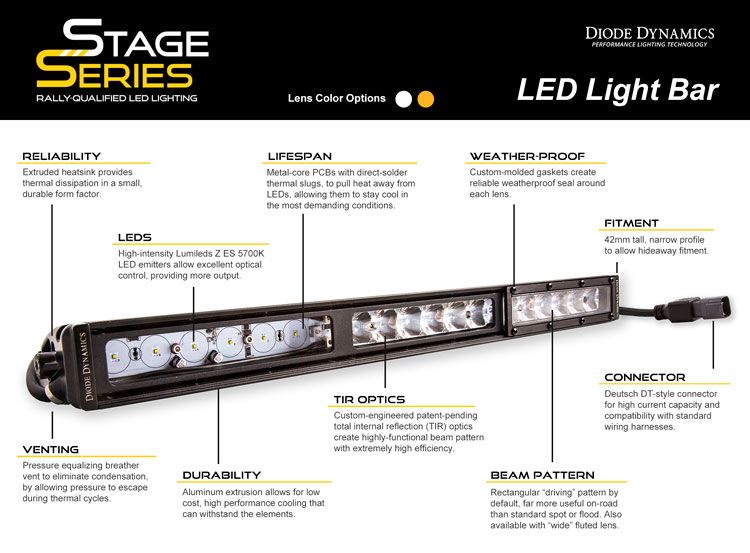

Features

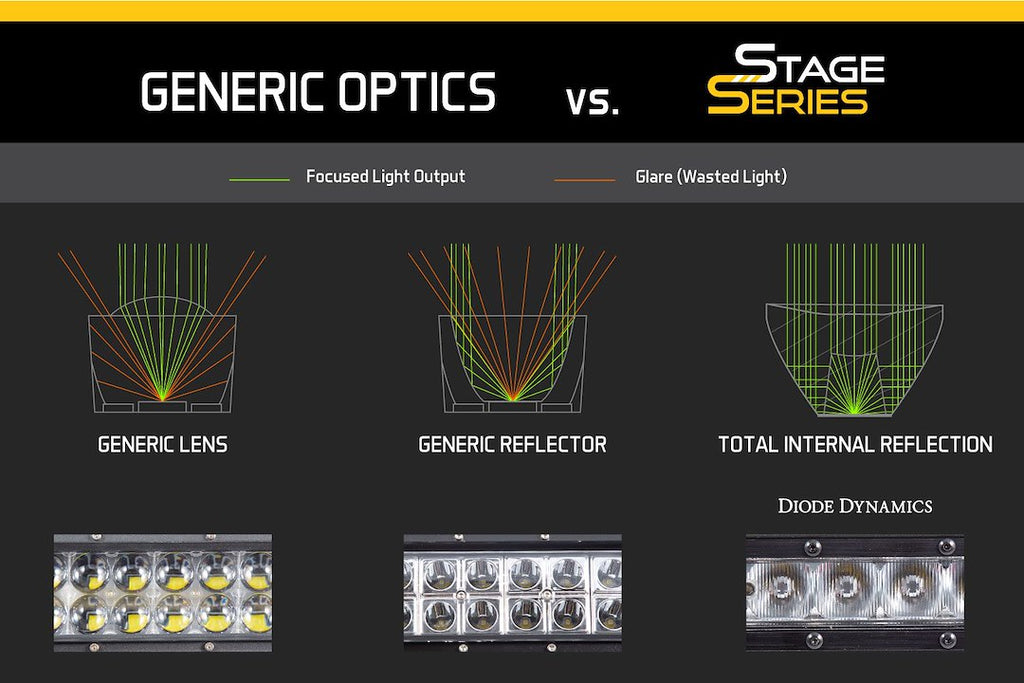

• Advanced TIR Optics Provide High Efficiency And Focus
• High-Intensity Automotive-Type LEDs With Pure White Color

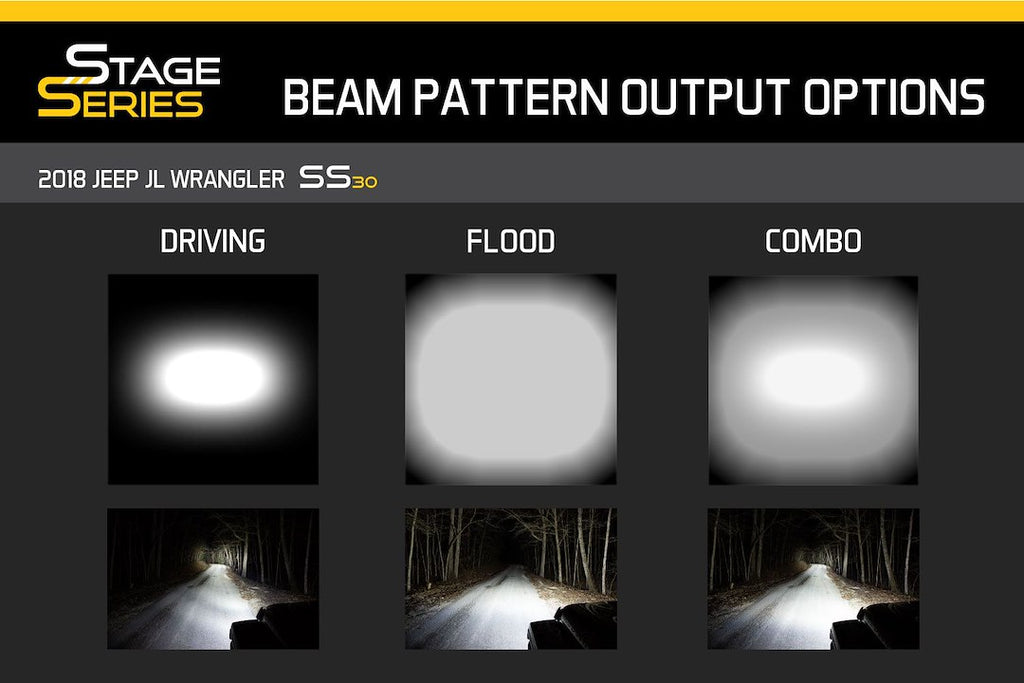

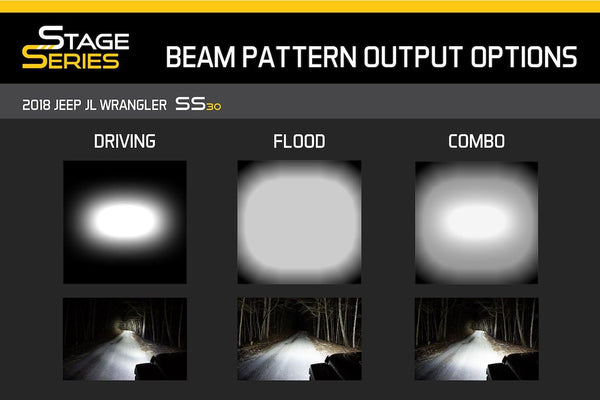

• Available In Driving, Wide Or Flood Beam Patterns
• Slim 42 Millimeter Housing For Low-Profile Fitment
• Durable Matte Powder Coated Extrusion

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD5016
• Bulb Type: LED
• Style: Straight

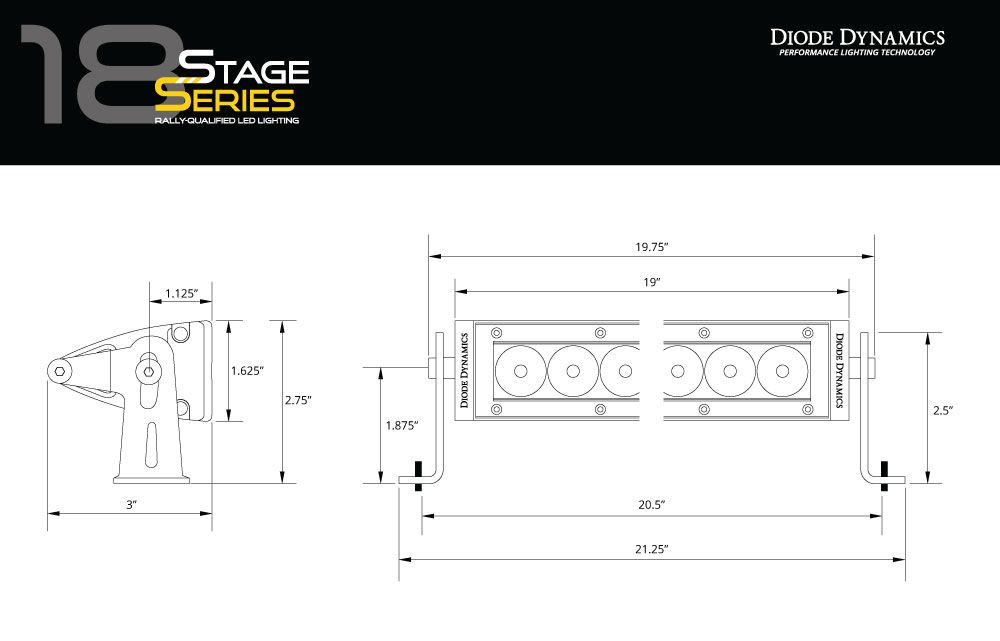

• Length: 18 Inch
• Beam Type: Driving Beam
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 20 X 8 Degree Driving/ 100 X 8 Degree Wide
• Lumens: 4200 Lumens
• Wattage: 79.8 Watt
• Width: 3 Inch
• Height: 1.62 Inch
• Voltage Rating: 14 Volt
• Ampere Rating At 12 Volts: 5.7 Amp
• Bulb Specifications: 18 LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 21-1/4 Inch
• Mounting Style: Bolt-On Mount
• Connection Type: Plug And Play Wiring Harness
• Includes: With Universal Mounting Brackets/ Wire Pigtail/ Mounting Hardware
• Estimated Install Time (Hours): 1.5

Technical Documents

• Stage_Series_18_inch_installation_guide_2B.pdf
• Stage_Series_installation_guide_single_heavy_duty.pdf
• Warranty-Diode_Dynamics.pdf
