Compact and powerful LED light bar with advanced optics for superior visibility.

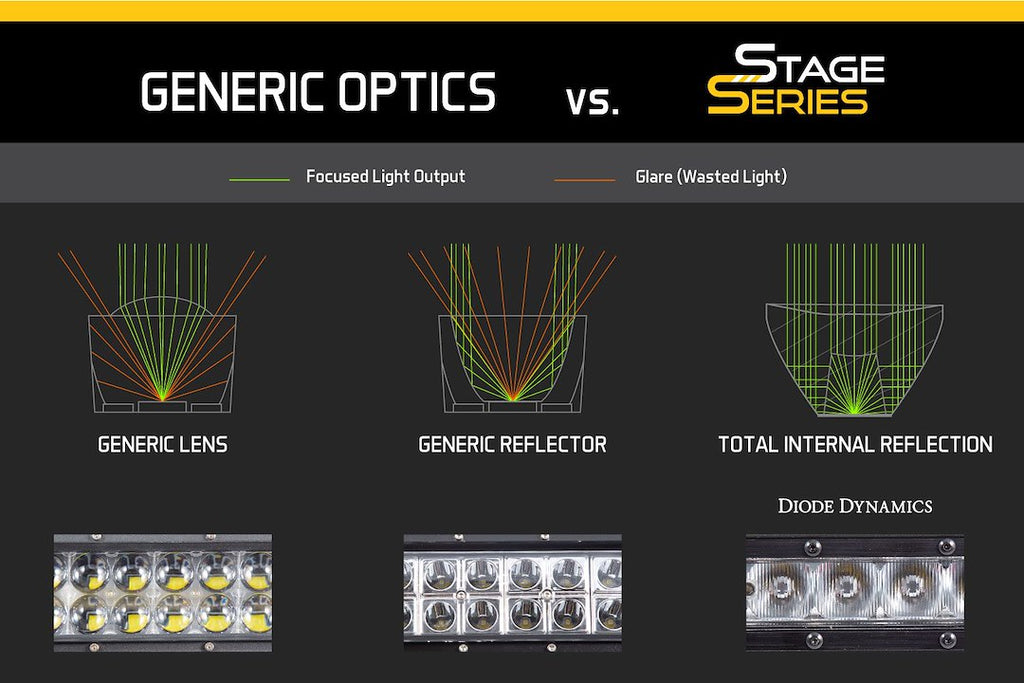

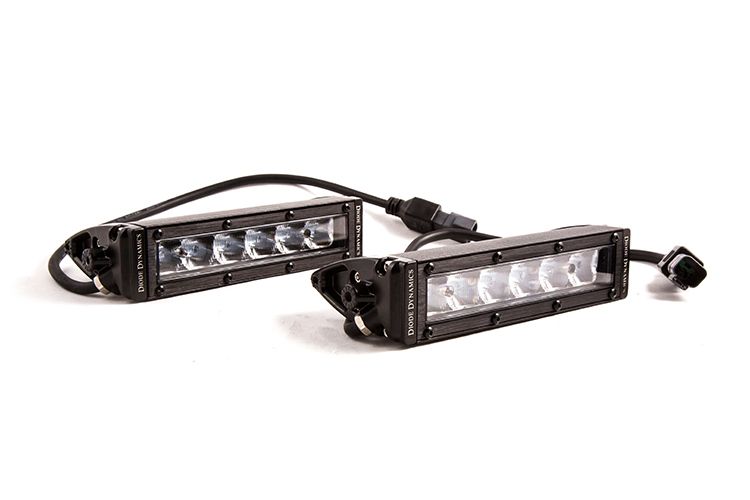

The Diode Dynamics Stage Series LED Light Bar is engineered for high performance and durability, making it suitable for various applications. With a compact 6-inch length and a slim 42-millimeter profile, this light bar can fit in tight spaces where traditional light bars may not. It features advanced total internal reflection (TIR) optics that enhance light efficiency and focus, directing 2280 raw lumens precisely where needed while minimizing glare.
Constructed with a robust black aluminum housing and a polycarbonate lens, the Stage Series light bar is built to withstand harsh conditions, boasting an IP68 weatherproof rating. The high-intensity Luxeon Z ES LED bulbs emit a pure white light, ensuring optimal visibility in various environments. The included universal mounting brackets and plug-and-play wiring harness facilitate easy installation, making it a practical choice for both professional and recreational use.
This light bar operates at 26.6 watts and 1.9 amps at 14 volts, providing efficient power consumption without compromising brightness. The innovative heatsink design reduces wind noise, ensuring a quieter operation compared to standard light bars. The Diode Dynamics Stage Series LED Light Bar combines cutting-edge technology with a durable design, making it a reliable lighting solution for any vehicle.

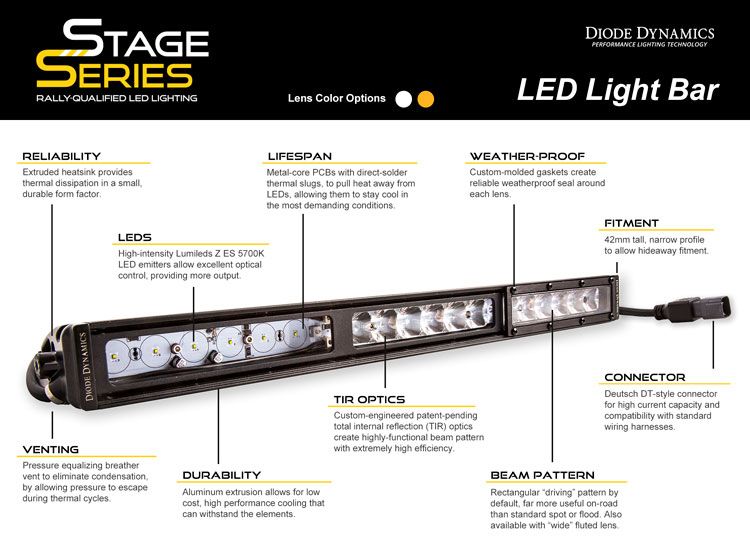

Features
- Advanced TIR Optics Provide High Efficiency And Focus
- High-Intensity Automotive-Type LEDs With Pure White Color
- Slim 42 Millimeter Housing For Low-Profile Fitment
- Durable Matte Powder coated Extrusion
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD5014P
- Bulb Type: LED
- Style: Straight

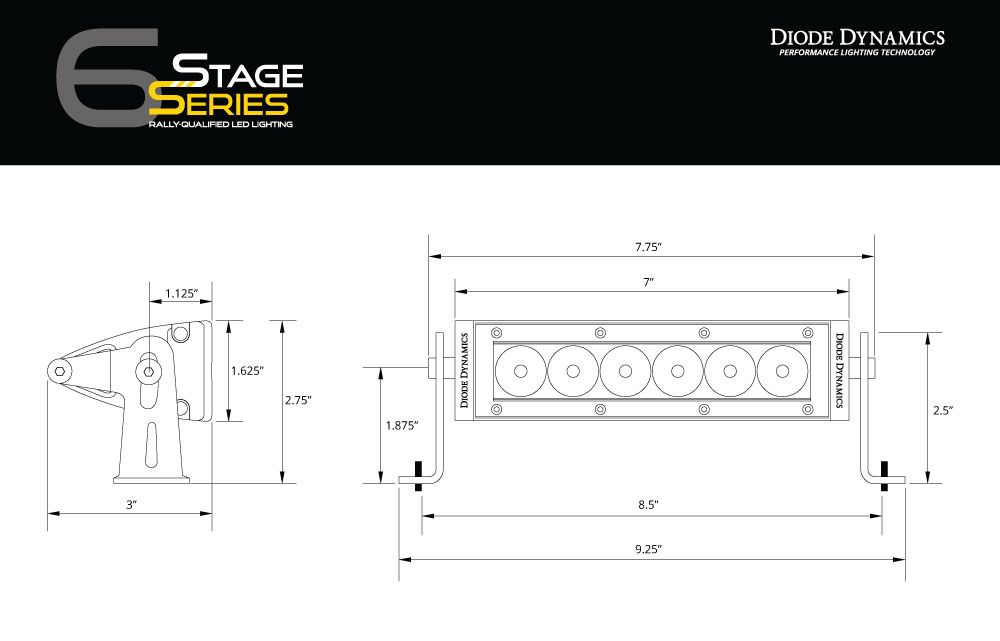

- Length: 6 Inch
- Beam Type: Driving Beam
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible

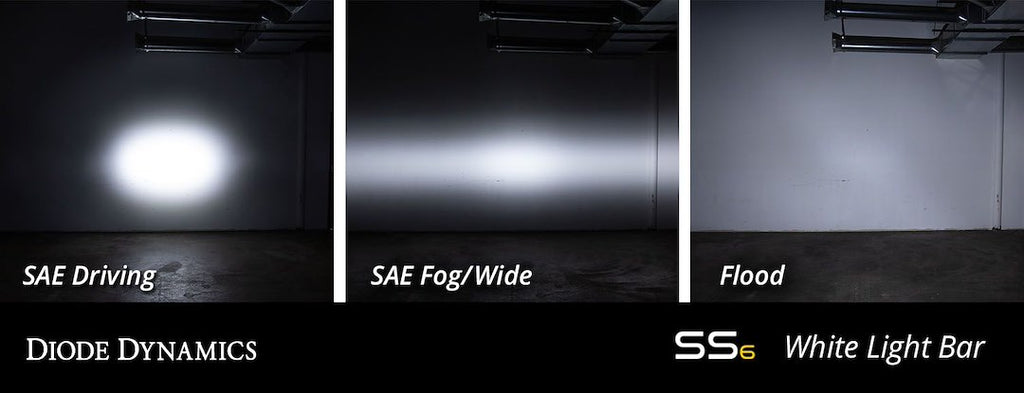

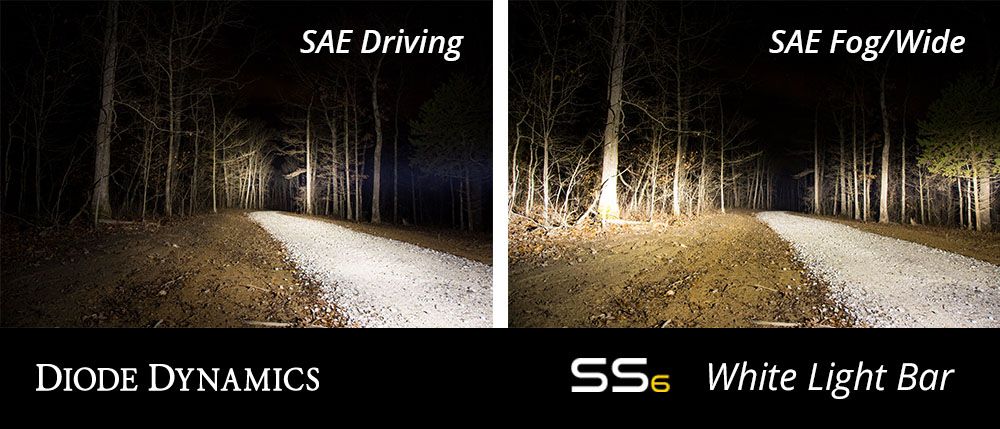

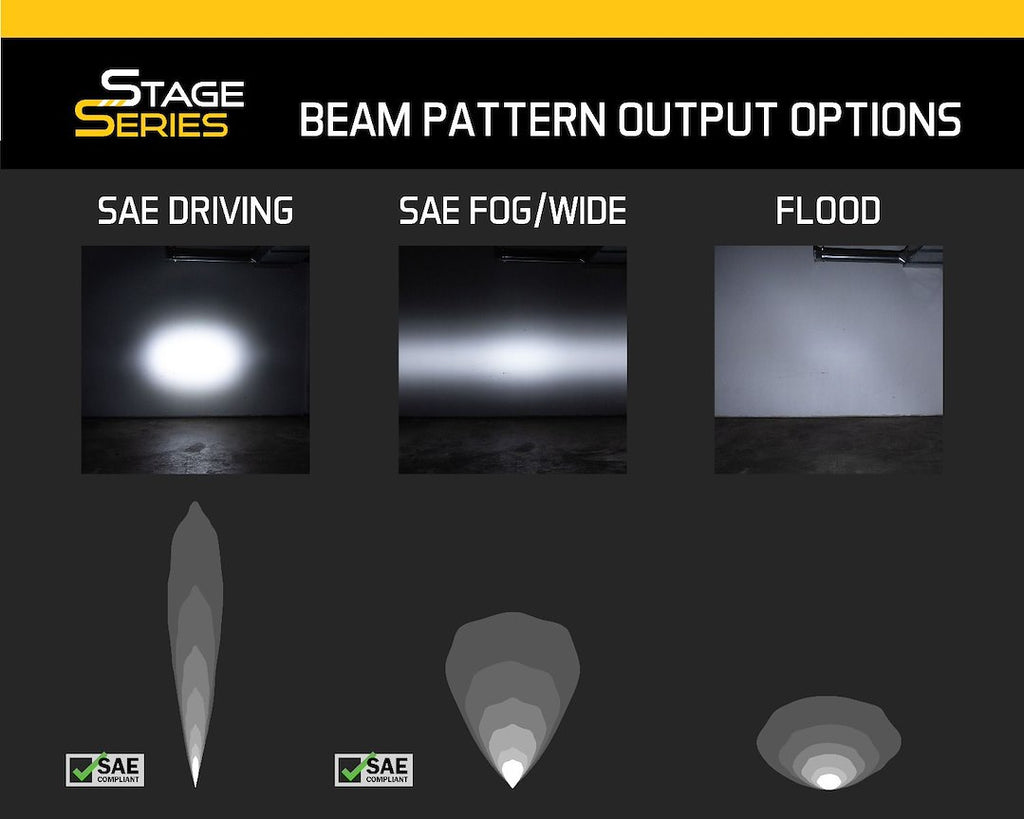

- Beam Angle (Deg): 20 X 8 Degree Driving/ 100 X 8 Degree Wide
- Lumens: 2280 Lumens
- Wattage: 26.6 Watt

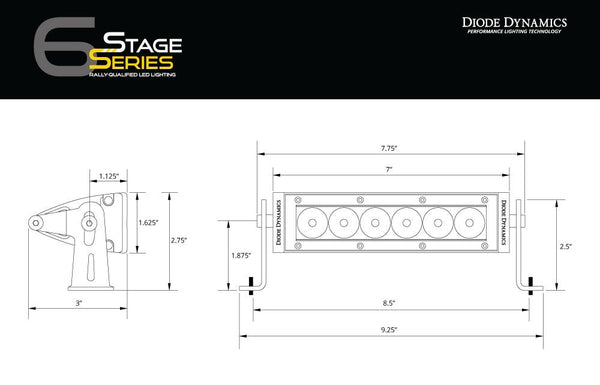

- Width: 3 Inch
- Height: 1.62 Inch
- Voltage Rating: 14 Volt
- Ampere Rating At 12 Volts: 1.9 Amp
- Bulb Specifications: Luxeon Z ES LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 9-1/4 Inch
- Mounting Style: Bolt-On Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Universal Mounting Brackets/ Wire Pigtail/ Mounting Hardware
- Estimated Install Time (Hours): 1.5
