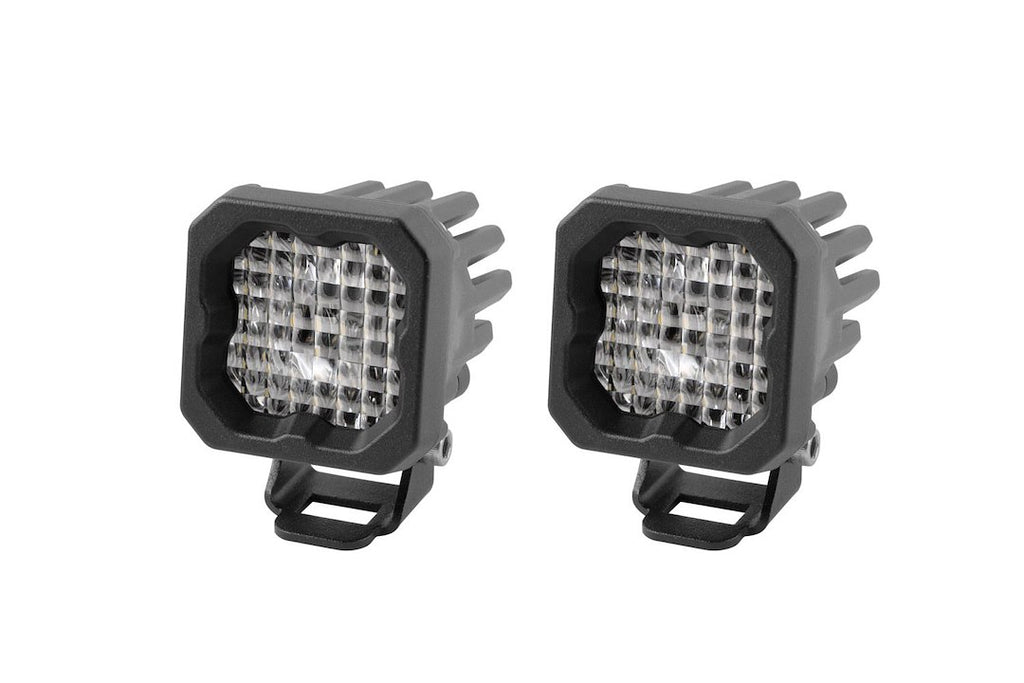

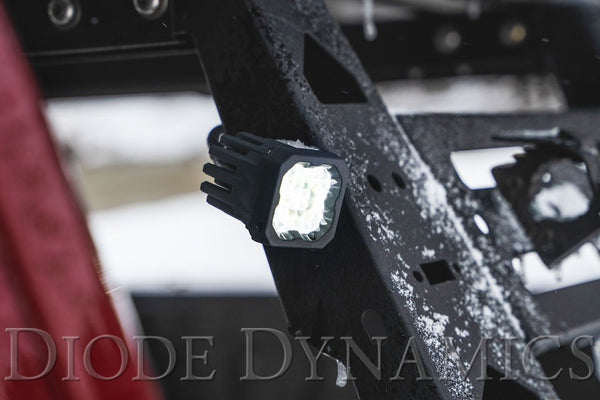

Diode Dynamics Stage Series C1 LED Pod (MPN: DD6454P)

Compact LED pods with advanced optics for superior light output.

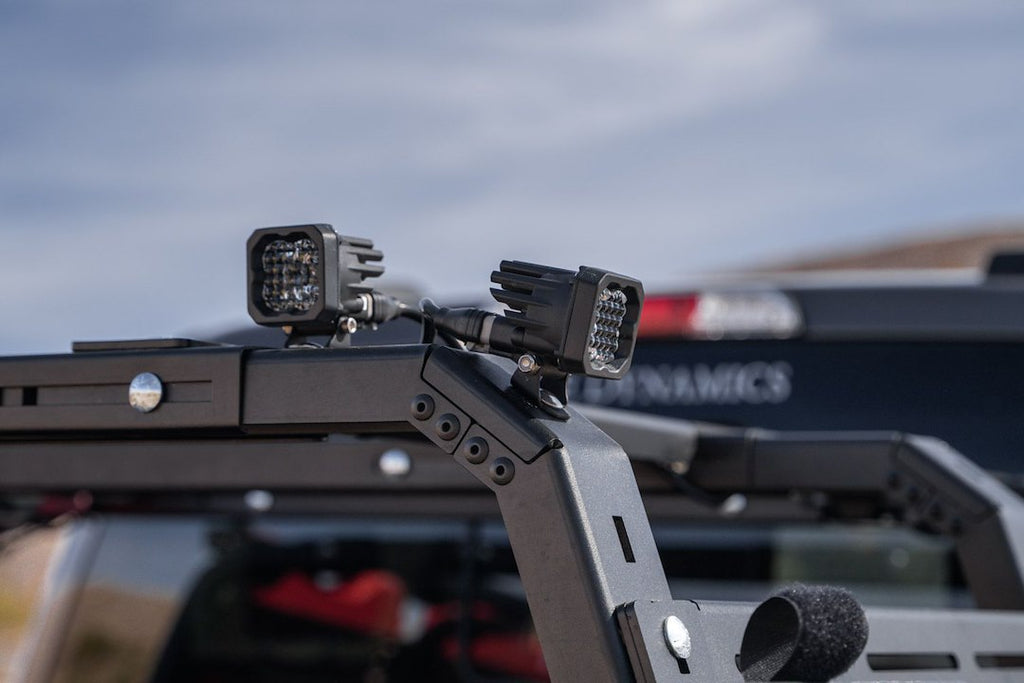

The Diode Dynamics Stage Series C1 LED Pod is engineered for maximum performance in a compact design. Utilizing a high-power Cree XHP50 LED chip, this 2-inch square pod delivers an impressive 2375 raw lumens with a wide beam pattern. The innovative TIR optics ensure that light is directed precisely where needed, minimizing glare and enhancing efficiency compared to traditional reflectors and lenses. This design allows for versatile mounting options on various vehicles including cars, trucks, motorcycles, and UTVs, making it suitable for diverse applications.

Constructed with a durable black aluminum cast housing and a clear polycarbonate lens, the SSC1 is built to withstand harsh conditions while providing reliable illumination. The integrated pin-fin heatsink design promotes superior thermal dissipation, ensuring optimal performance over extended use. Each set includes two pods, Deutsch-style wire pigtails, mounting brackets, and hardware, facilitating straightforward installation. With a power draw of only 1.5 amps at 12.8 volts, these LED pods are energy-efficient while delivering high-intensity lighting.

Designed, torture-tested, and assembled in the USA, the Diode Dynamics Stage Series C1 LED Pod represents a significant advancement in LED lighting technology. Its compact form factor and high-intensity output make it a practical choice for enhancing visibility in various driving conditions.

Features

• Ultra-Compact, Single-LED Form Factor
• High-Intensity 10-Watt LED Chip
• Pin-Fin Heatsink Design, For Superior Thermal Dissipation
• Integrated Deutsch-Style Connector
• Designed, Torture-Tested And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD6454P
• Shape: Square

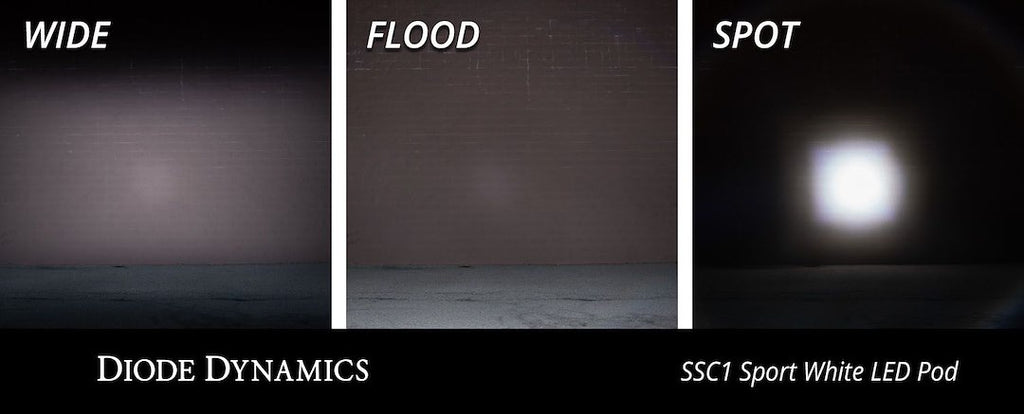

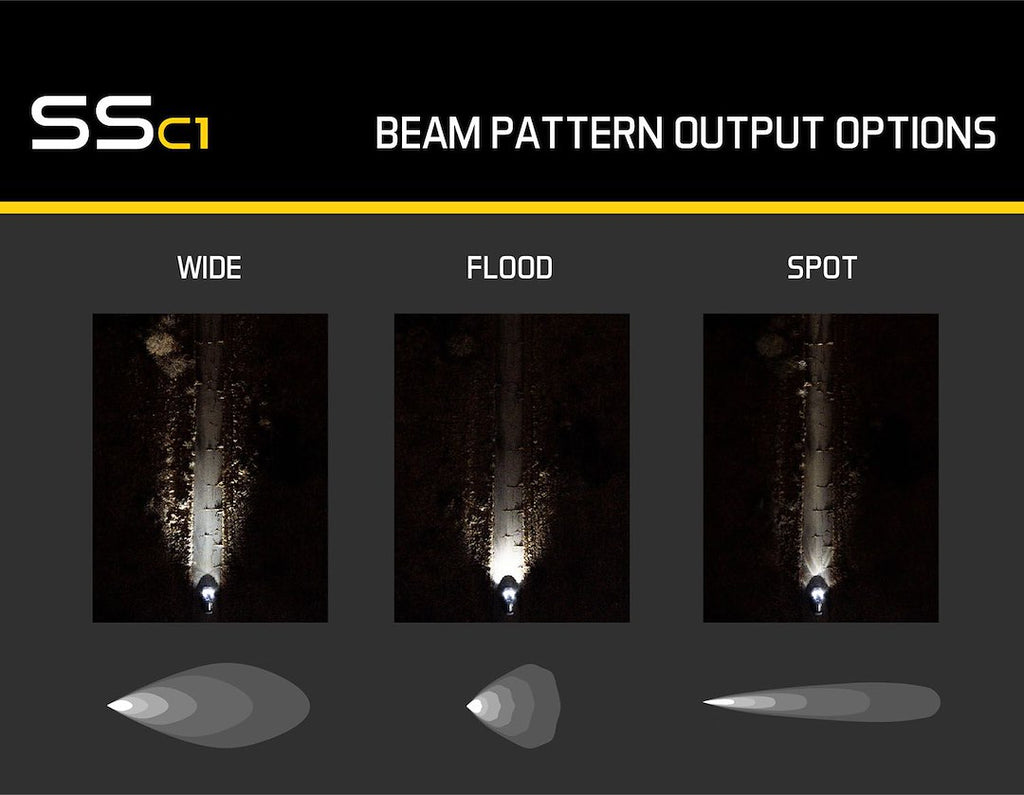

• Beam Type: Wide Beam
• Diameter: Not Applicable

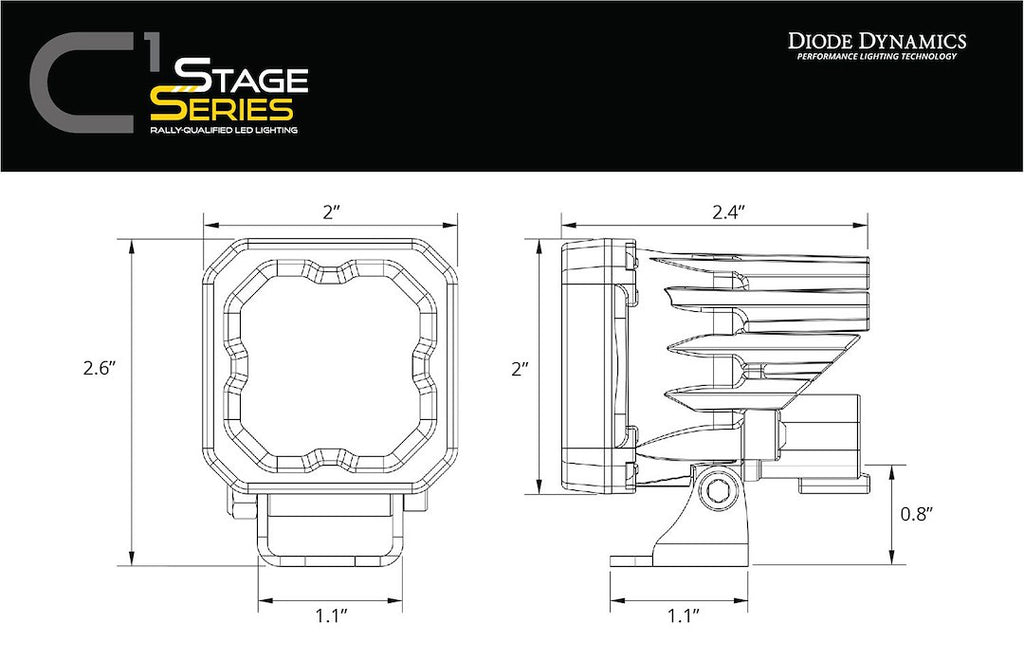

• Height/ Width: 2 Inch Height X 2 Inch Width
• Bulb Type: LED
• Light Color: White

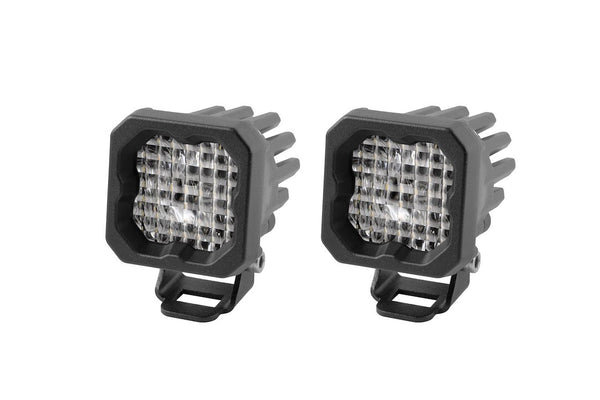

• Quantity: Set Of 2
• Universality: Fully Universal
• Depth: 2-7/16 Inch
• Wattage: 19 Watt
• Voltage Rating: 12.8 Volt
• Mounting Style: Flush Mount
• Ampere Rating At 12 Volts: 1.5 Amp
• Lumens: 2375 Lumens
• Bulb Specifications: White CREE 19 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Two Deutsch-Style Wire Pigtails/ Two Mounting Brackets/ Hardware
• Estimated Install Time (Hours): 1.5
