Compact LED pods with advanced optics for superior light output.

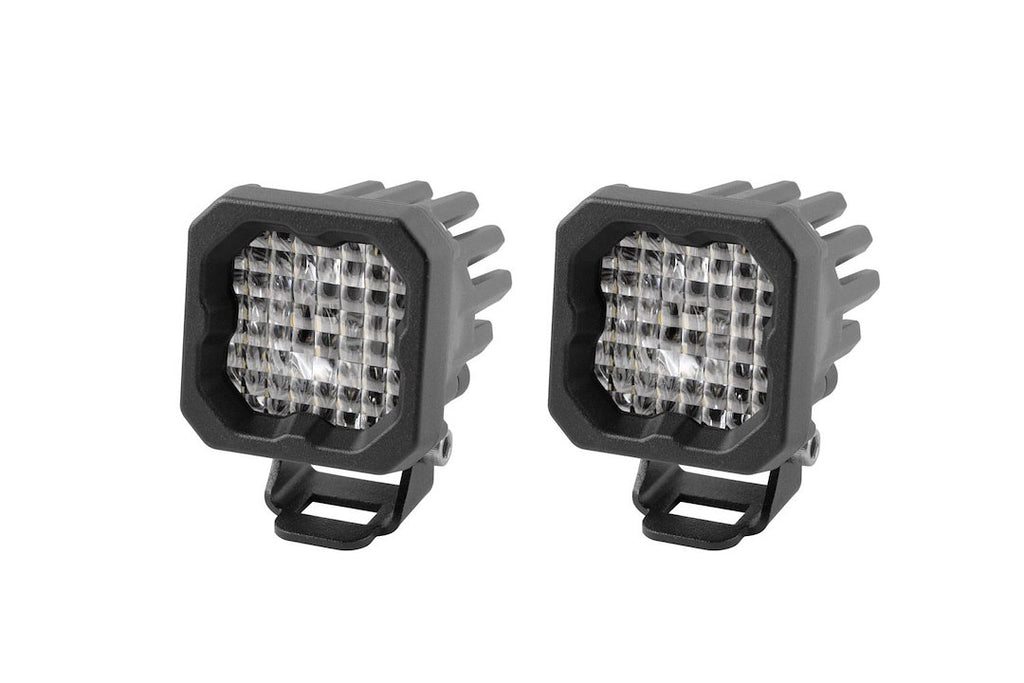

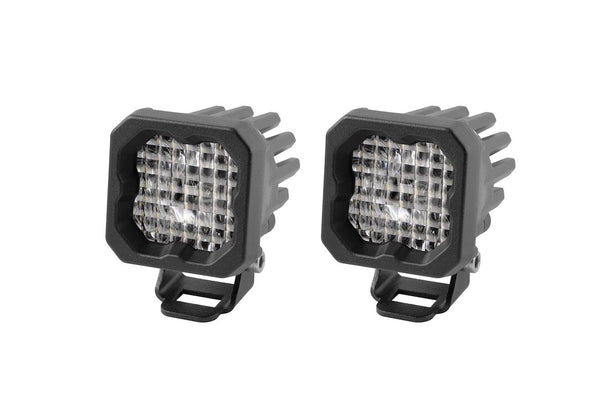

The Diode Dynamics Stage Series C1 LED Pod is engineered for maximum performance and versatility in a compact design. Featuring a high-power Cree XP-L HI LED bulb, these 2-inch square pods deliver an impressive 1449 raw lumens with a wide beam pattern, making them suitable for various applications including cars, trucks, motorcycles, and UTVs. The innovative custom-engineered Total Internal Reflection (TIR) optics ensure that light is directed precisely where needed, significantly reducing glare and enhancing overall efficiency compared to traditional optics.

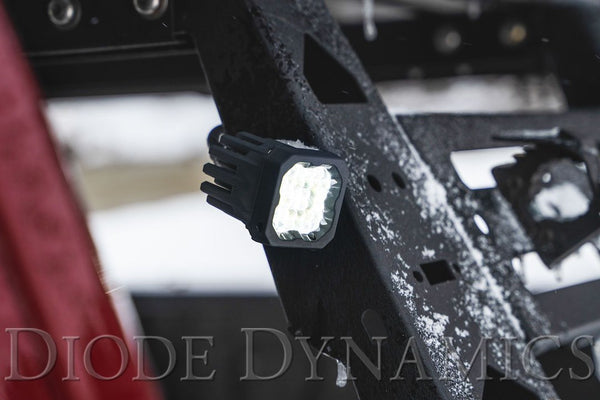

Constructed with a durable black aluminum cast housing and a clear polycarbonate lens, the Stage Series C1 is designed to withstand harsh conditions. It has been rigorously tested for long-term operation across a wide temperature range from -40 to 185 degrees Fahrenheit, ensuring reliability in diverse environments. The integrated Deutsch-style connector and included mounting hardware facilitate easy installation, making these LED pods a practical choice for any vehicle.

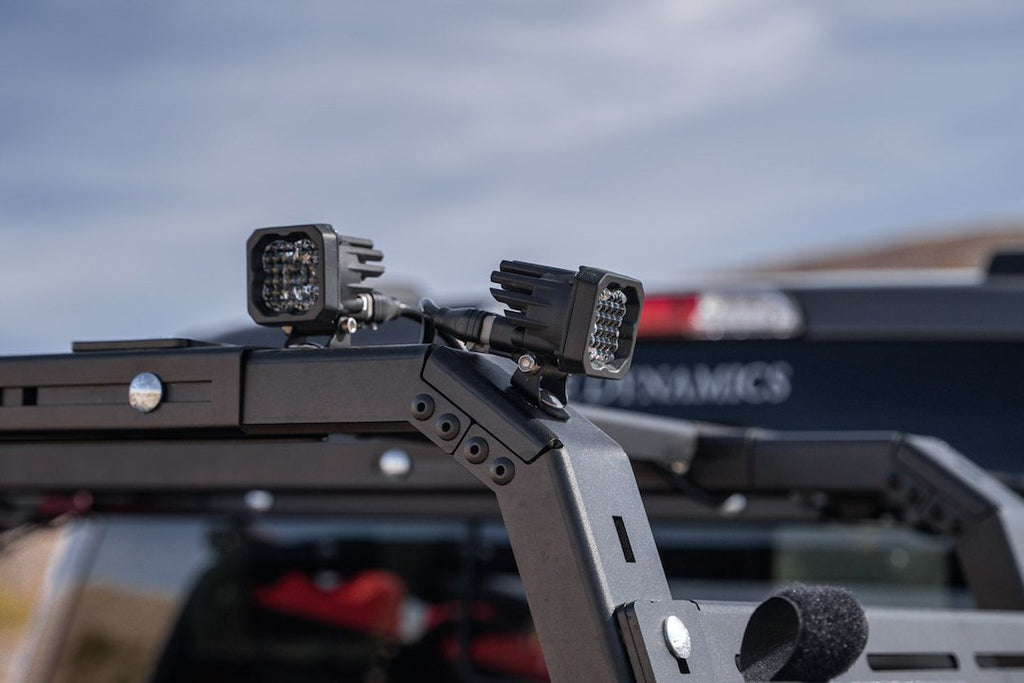

With a power draw of only 1 amp at 12.8 volts, the Stage Series C1 LED Pods are energy-efficient while providing high-intensity illumination. The pin-fin heatsink design promotes superior thermal dissipation, further enhancing the longevity and performance of the lighting solution. This set of two pods is fully universal, allowing for flexible mounting options to meet various lighting needs.
Features
- Ultra-Compact, Single-LED Form Factor
- High-Intensity 10-Watt LED Chip

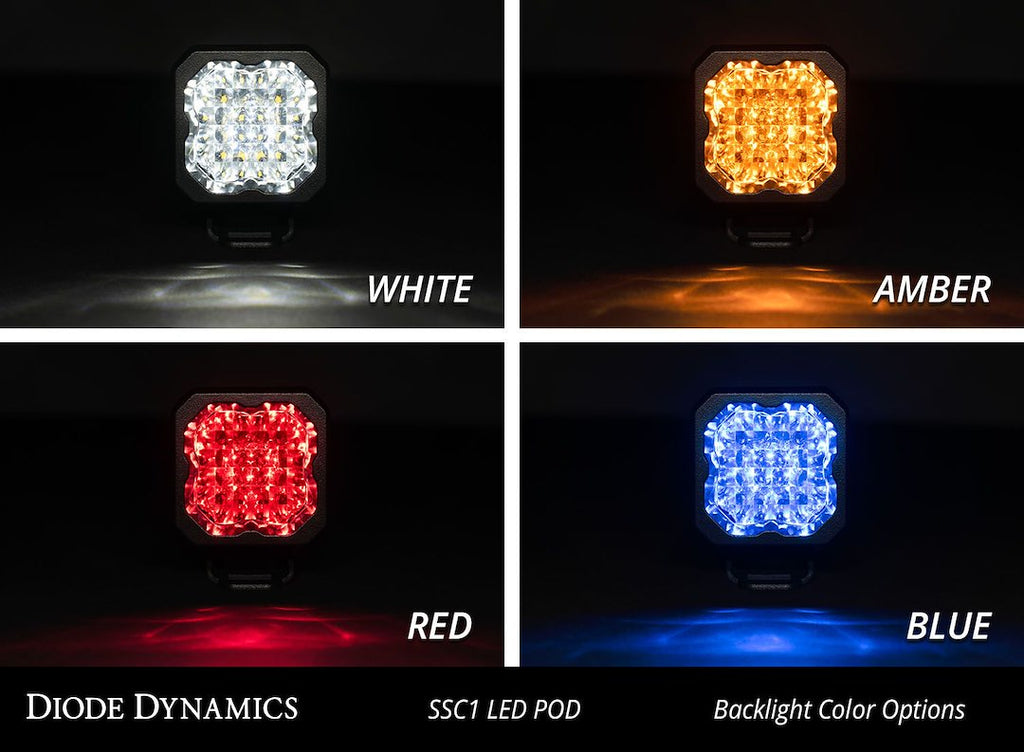

- Backlighting Available In White, Amber, Red, And Blue
- Pin-Fin Heatsink Design, For Superior Thermal Dissipation
- Integrated Deutsch-Style Connector
- Designed, Torture-Tested And Assembled In USA
- All Stage Series C1 LED Pods Feature A Custom-Molded DT Type Deutsch-Style Connector On The Back, And Come With A 6-Inch Pigtail With Bare Leads
- Stage Series LED Lighting Has Been Extensively Tested For Long-Term Operation From -40 To 185 Degree Fahrenheit, Along With Vibration, Moisture Intrusion, And Corrosion Testing
- Stage Series LED Pods Are Available At Two Different Power Levels: Both Options Use High-Intensity LED Emitters, And TIR Optics For Unmatched Focus And Overall Output
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD6440P
- Shape: Square

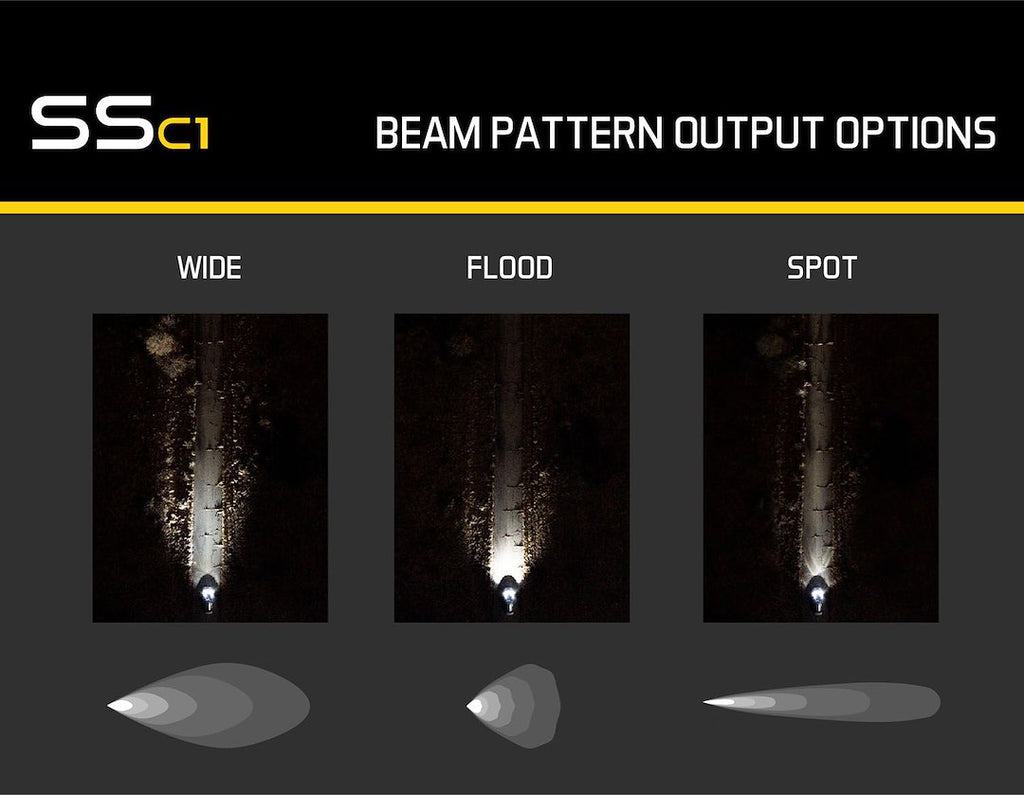

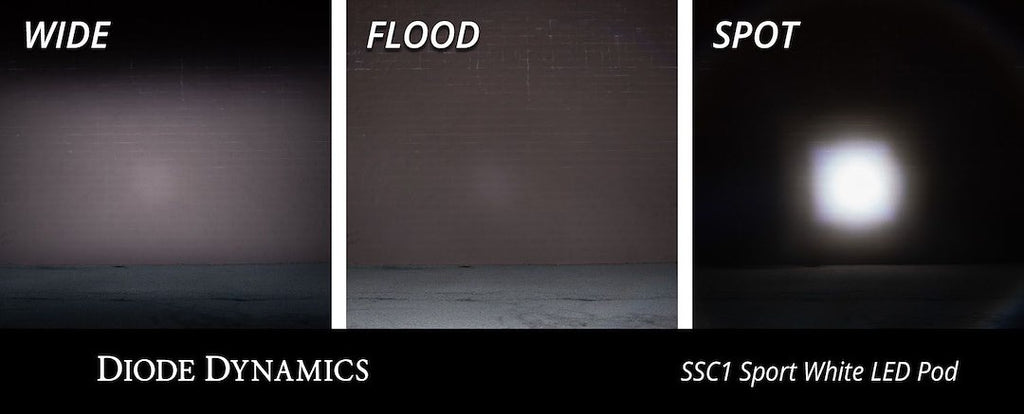

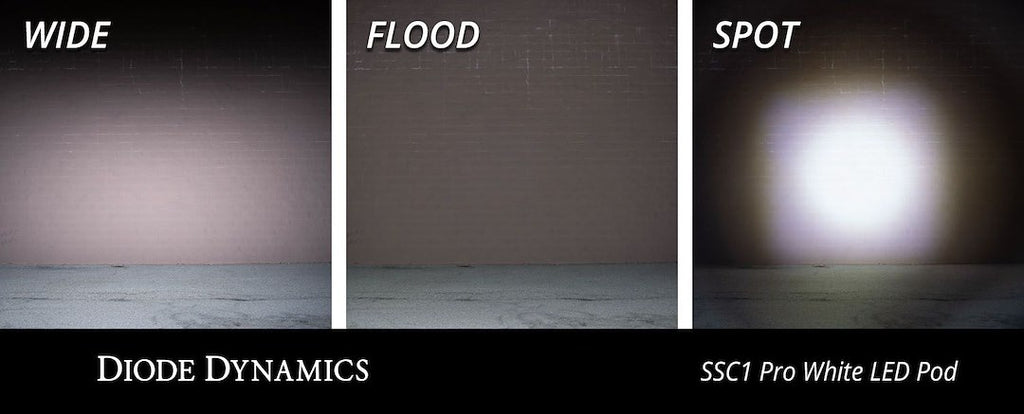

- Beam Type: Wide Beam
- Diameter: Not Applicable

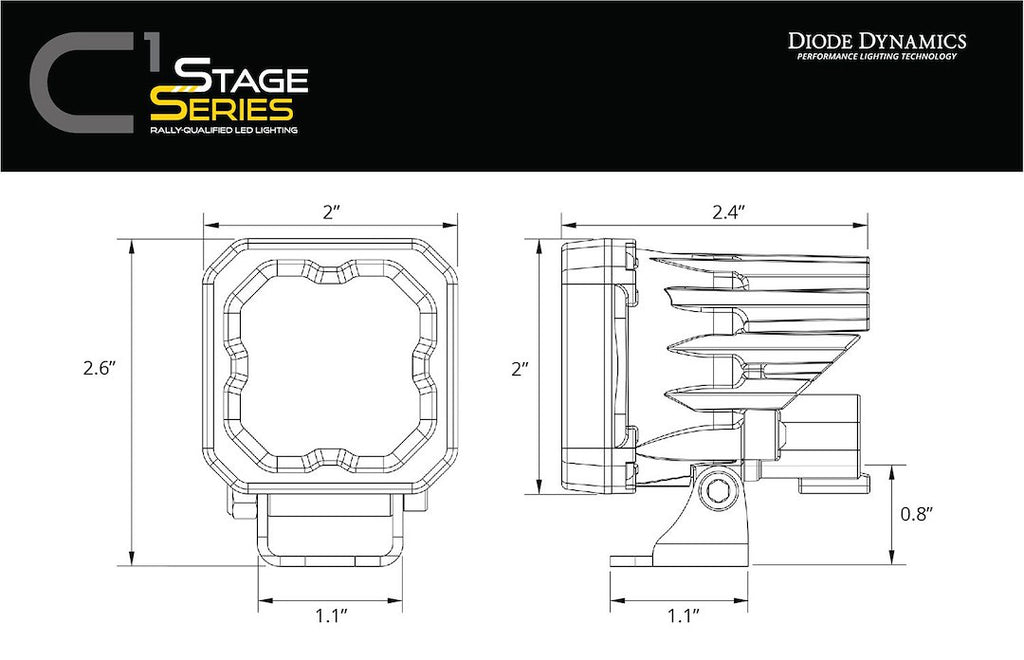

- Height/ Width: 2 Inch Height X 2 Inch Width
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 2-7/16 Inch
- Wattage: 12.8 Watt
- Voltage Rating: 9 To 16 Volt
- Mounting Style: Bracket Mount
- Lumens: 1449 Lumens
- Bulb Specifications: Cree XP-L HI LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum
- Includes: With Two Deutsch-Style Wire Pigtails/ Two Mounting Brackets/ Hardware
- Estimated Install Time (Hours): 1.5
