High-Intensity LED Pods with Advanced TIR Optics for Superior Light Output

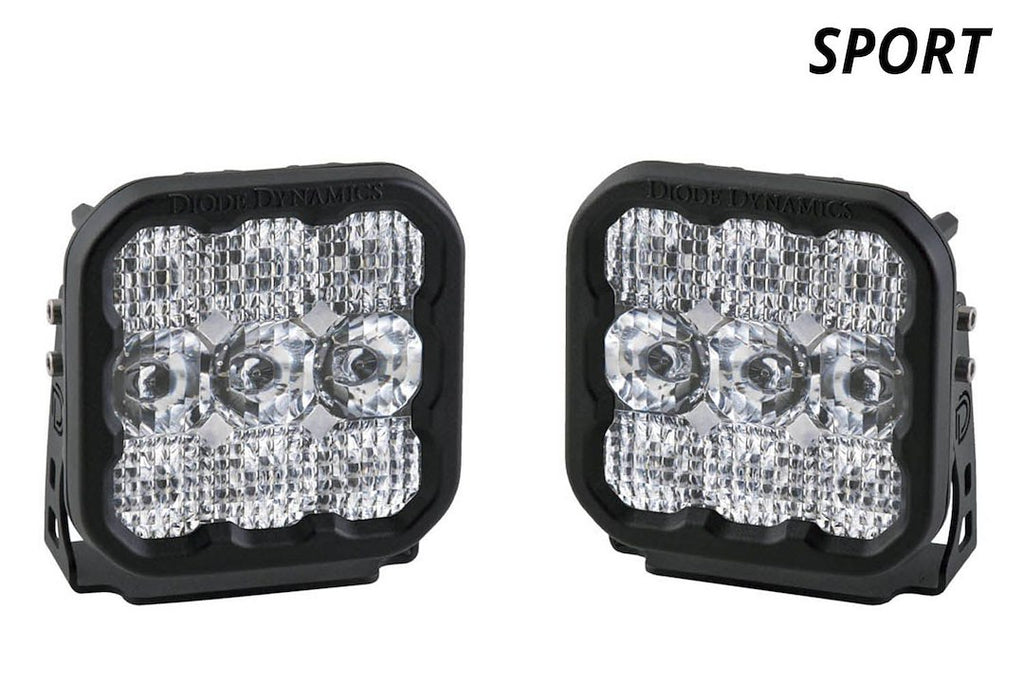

The Diode Dynamics SS5 LED Pod Lights are engineered for maximum performance and efficiency, featuring the highest output intensity of any 5 inch LED pod available. Utilizing patented technology and custom-engineered Total Internal Reflection (TIR) optics, these lights focus all emitted light directly where it is needed, significantly reducing glare and enhancing overall visibility. The SS5's innovative design eliminates light loss that is common with traditional optics, ensuring that nearly all light output is directed towards the target area.
Constructed with heavy-duty materials, the SS5 LED Pods are built to withstand rigorous conditions, making them suitable for various applications. The durable black aluminum housing and clear polycarbonate lens provide both protection and clarity, while the ultra-high intensity output allows for visibility nearly a mile away. Each set includes two pods, Deutsch-style wire pigtails, mounting brackets, and hardware for easy installation.
With a combined output of 4800 raw lumens and a power draw of only 2.75 amps at 12.8 volts, these LED pods are energy-efficient while delivering exceptional brightness. The combo beam design offers a versatile lighting solution, combining flood and spot capabilities to illuminate a wide area effectively. The SS5 LED Pods are fully universal, making them compatible with a variety of vehicles and applications.
Features
- Torture-Tested, Heavy-Duty Construction
- Built-In Linking Feature, Build Up To 50 Inch Bar
- Engineered Total Internal Reflection Optics
- Ultra-High Intensity: Shines Almost Mile Away
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD6769P
- Shape: Square

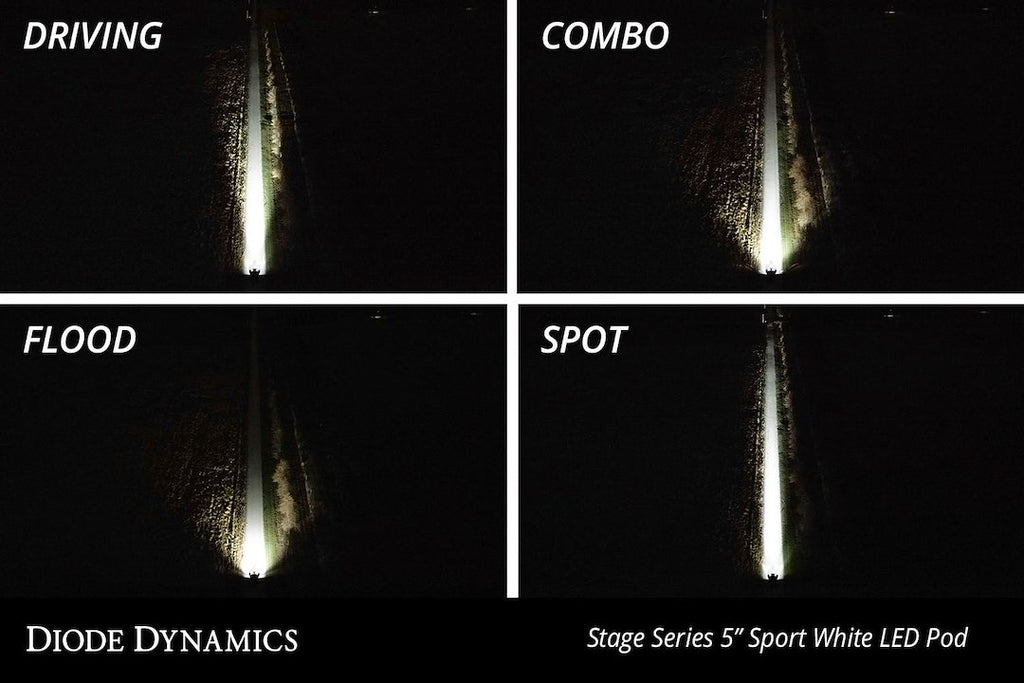

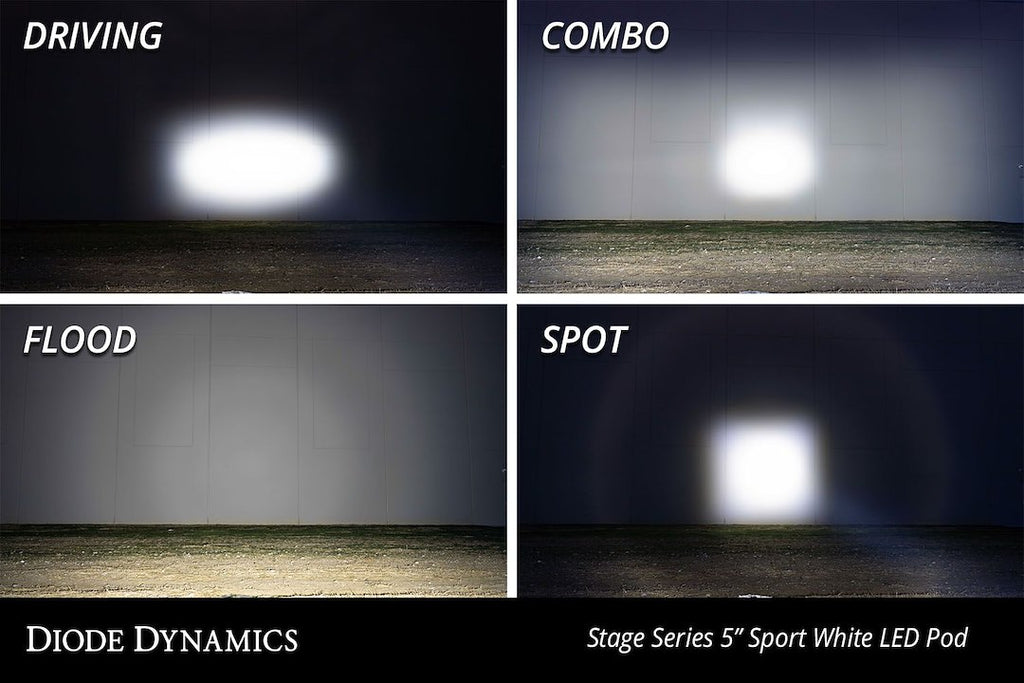

- Beam Type: Combo Beam Flood And Spot
- Diameter: Not Applicable

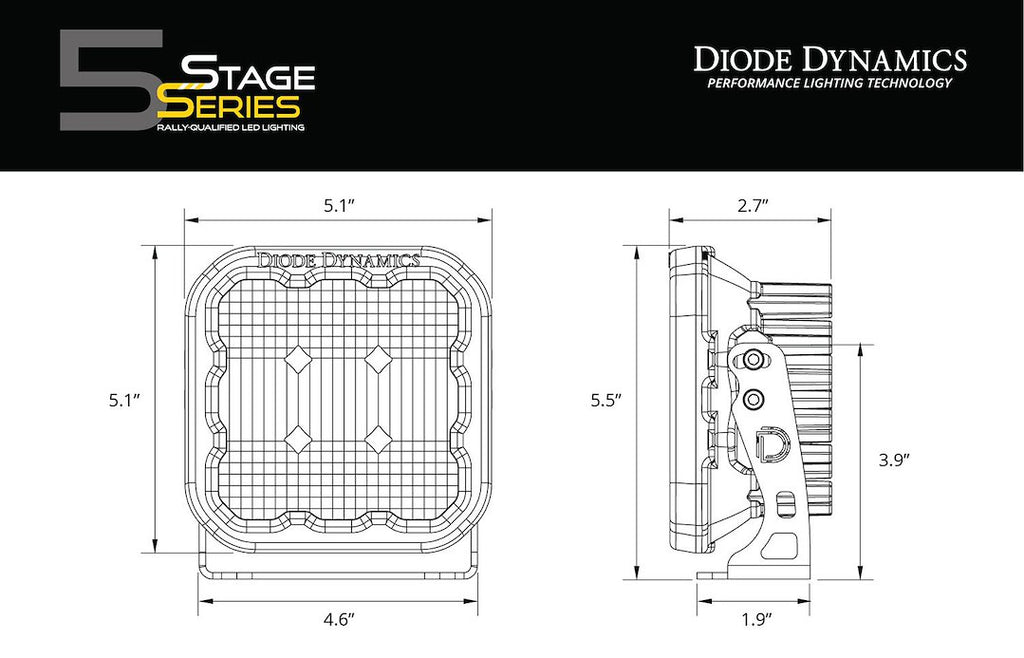

- Height/ Width: 5-1/8 Inch Height X 5-1/8 Inch Width
- Bulb Type: LED
- Light Color: White

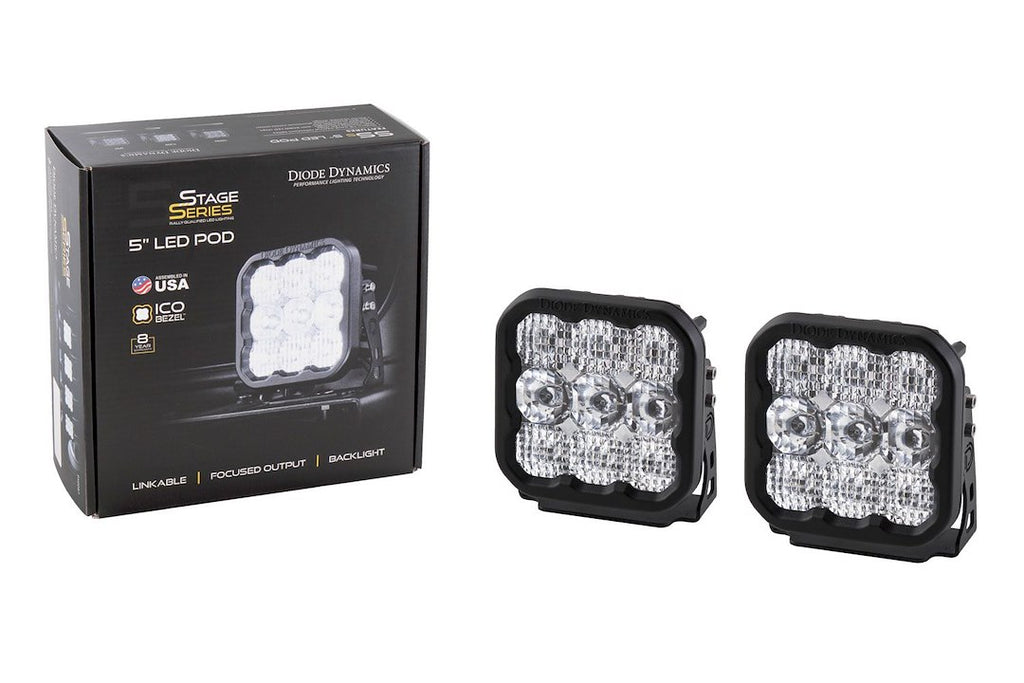

- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 2-11/16 Inch
- Wattage: 40 Watt
- Voltage Rating: 12.8 Volt
- Mounting Style: Bolt-On
- Ampere Rating At 12 Volts: 2.75 Amp
- Lumens: 4800 Lumens
- Bulb Specifications: Luxeon Z ES LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum

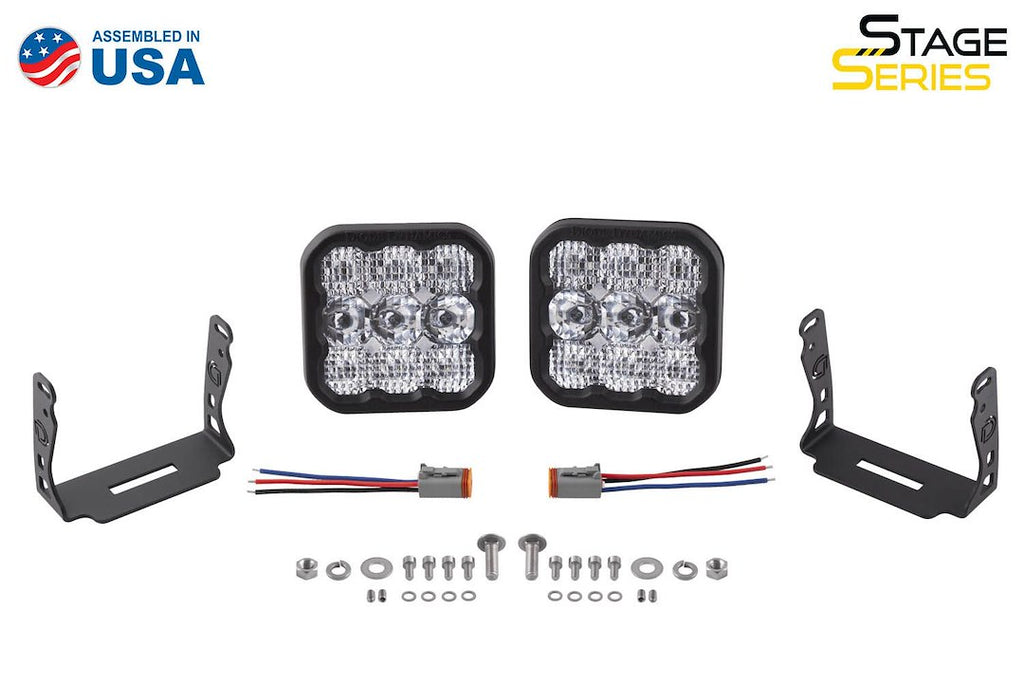

- Includes: With Two Deutsch-Style Wire Pigtails/ Two Mounting Brackets/ Hardware
- Estimated Install Time (Hours): 1.5
