High-output LED fog lights with advanced optics for superior visibility.
The Diode Dynamics SS3 Sport LED Fog Light is engineered to provide exceptional illumination with its advanced TIR optics, ensuring high efficiency and focused light output. This 3-inch square fog light features a robust black aluminum housing and a clear polycarbonate lens, designed to withstand harsh conditions while delivering a powerful 2262 raw lumens. The main beam operates at 14.5 watts with a low amp draw of 1.1 amps at 12.8 volts, making it an efficient choice for enhancing visibility in foggy conditions.

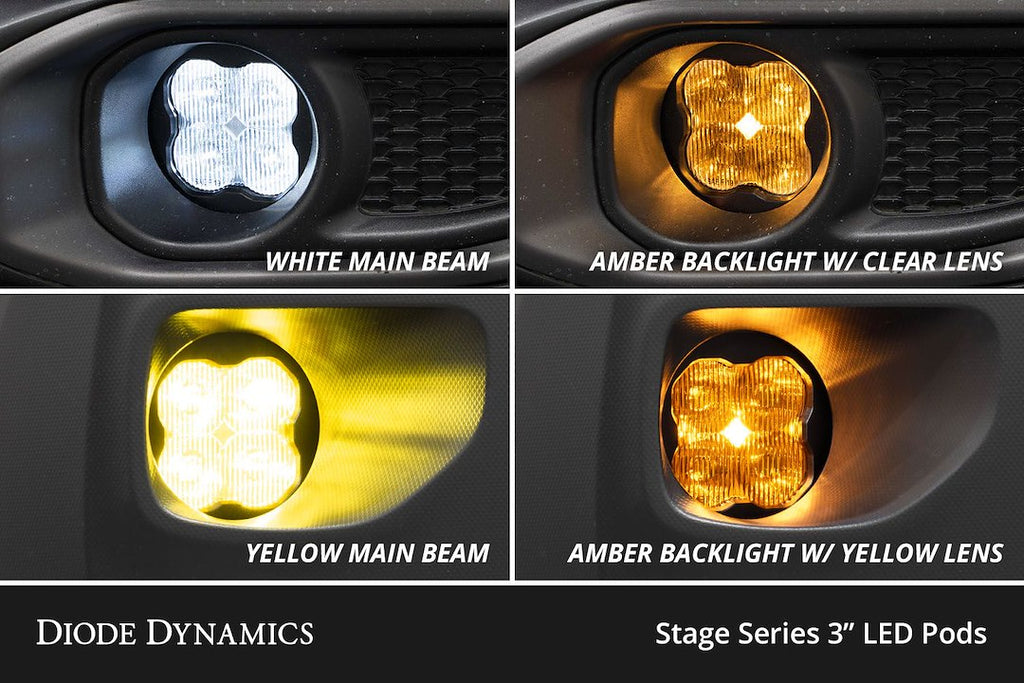

Installation is straightforward with the included bolt-on mounting brackets and Deutsch-style wire pigtails, allowing for a plug-and-play setup without the need for modifications. The SS3 Sport is SAE-compliant, ensuring it meets road-legal standards while providing a clean, factory-style appearance. Additionally, the integrated backlight offers a unique amber accent, enhancing the overall aesthetic of your vehicle.
Constructed with durable powder-coated aluminum and featuring a pin-fin heatsink design, the SS3 Sport LED Fog Light is built for longevity and superior thermal dissipation. This product is designed, torture tested, and assembled in the USA, reflecting a commitment to quality and performance. With its high-intensity automotive-grade LEDs, the SS3 Sport is a reliable choice for those seeking enhanced fog lighting solutions.
Features
- Advanced TIR Optics Provide High Efficiency And Focus
- Durable Powder Coated Aluminum Construction
- High-Intensity Automotive-Type LED's
- Pin-Fin Heatsink Design, For Superior Thermal Dissipation
- Integrated Deutsch-Style Connector
- SAE-Compliant Road-Legal Output
- Plug And Play, No Modification Needed
- Designed, Torture Tested And Assembled In USA
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD8463
- Shape: Square
- Beam Type: Fog Beam
- Diameter: Not Applicable
- Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
- Bulb Type: LED
- Light Color: White
- Quantity: Set Of 2
- Universality: Fully Universal
- Wattage: 14.5 Watt Main Beam/ 0.4 Watt Backlight
- Voltage Rating: 9 To 16 Volt
- Mounting Style: Bolt-On
- Ampere Rating At 12 Volts: 0.03 Amp Backlight/ 1.1 Amp Main Beam
- Lumens: 2262 Lumens
- Bulb Specifications: Luxeon Z ES LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Cast Aluminum

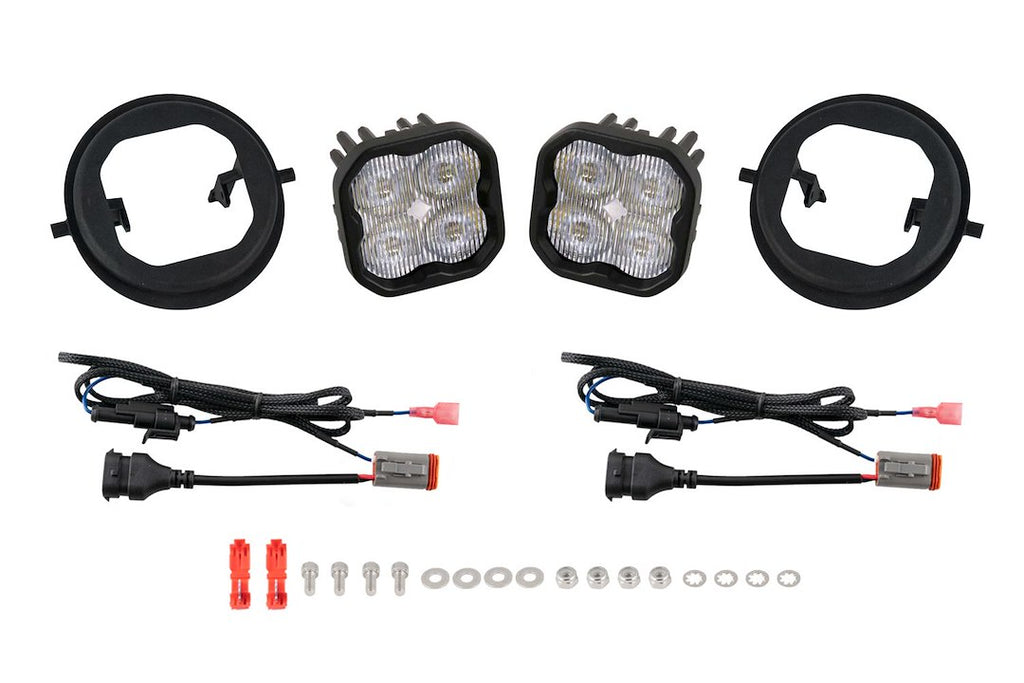

- Includes: With 2 SS3 Standard LED Pods/ 2 Deutsch Style Wire Pigtails/ 2 Mounting Brackets/ Mounting Hardware
- Estimated Install Time (Hours): 1.5
Compatibility / Fit
- 2003-2006 GMC Sierra 1500
- 2007-2007 GMC Sierra 1500 Classic
- 2003-2003 GMC Sierra 1500 HD
- 2005-2006 GMC Sierra 1500 HD
- 2003-2004 GMC Sierra 2500
- 2003-2006 GMC Sierra 2500 HD
- 2003-2006 GMC Sierra 3500
