Diode Dynamics SS3 Pro LED Fog Light (MPN: DD8466)

High-output LED fog lights with advanced optics for superior visibility.

The Diode Dynamics SS3 Pro LED Fog Light is engineered to provide exceptional illumination with its advanced TIR optics, ensuring high efficiency and focused light output. This 3-inch square fog light features a powerful 36-watt main beam and a 0.4-watt backlight, delivering a total of 5220 raw lumens. Constructed with durable powder-coated aluminum housing and a clear polycarbonate lens, these lights are designed to withstand harsh conditions while maintaining optimal performance.

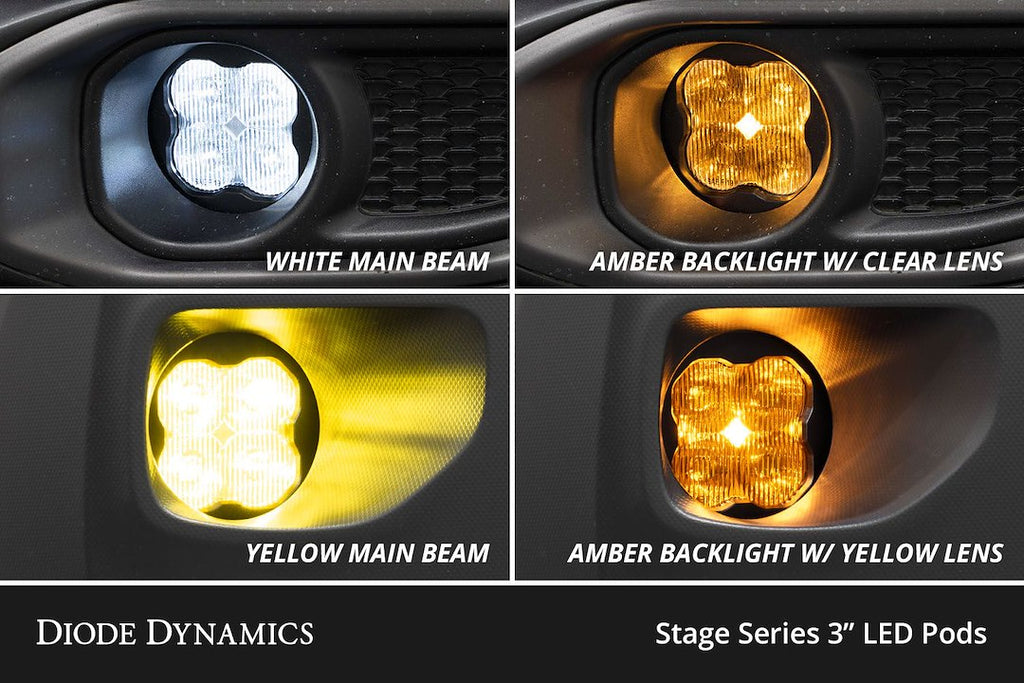

Installation is straightforward with the included bolt-on mounting brackets and Deutsch-style wire pigtails, allowing for a plug-and-play setup without the need for modifications. The SS3 Pro is SAE-compliant, making it road-legal and suitable for various vehicles. The integrated backlight offers a unique amber accent, enhancing visibility and aesthetics.

With a focus on reducing glare and maximizing light efficiency, the custom-engineered TIR optics collect and direct all light precisely where it is needed. This design minimizes internal light loss, ensuring that the SS3 Pro fog lights provide superior performance compared to traditional optics. The product is designed, torture tested, and assembled in the USA, reflecting a commitment to quality and reliability.

Features

• Advanced TIR Optics Provide High Efficiency And Focus
• Durable Powder Coated Aluminum Construction
• High-Intensity Automotive-Type LED's
• Pin-Fin Heatsink Design, For Superior Thermal Dissipation
• Integrated Deutsch-Style Connector
• SAE-Compliant Road-Legal Output
• Plug And Play, No Modification Needed
• Designed, Torture Tested And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD8466
• Shape: Square
• Beam Type: Fog Beam
• Diameter: Not Applicable
• Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
• Bulb Type: LED
• Light Color: Yellow
• Quantity: Set Of 2
• Universality: Fully Universal
• Wattage: 36 Watt Main Beam/ 0.4 Watt Backlight
• Voltage Rating: 9 To 16 Volt
• Mounting Style: Bolt-On
• Ampere Rating At 12 Volts: 0.03 Amp Backlight/ 2.7 Amp Main Beam
• Lumens: 5220 Lumens
• Bulb Specifications: Cree XP-L HI LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Cast Aluminum

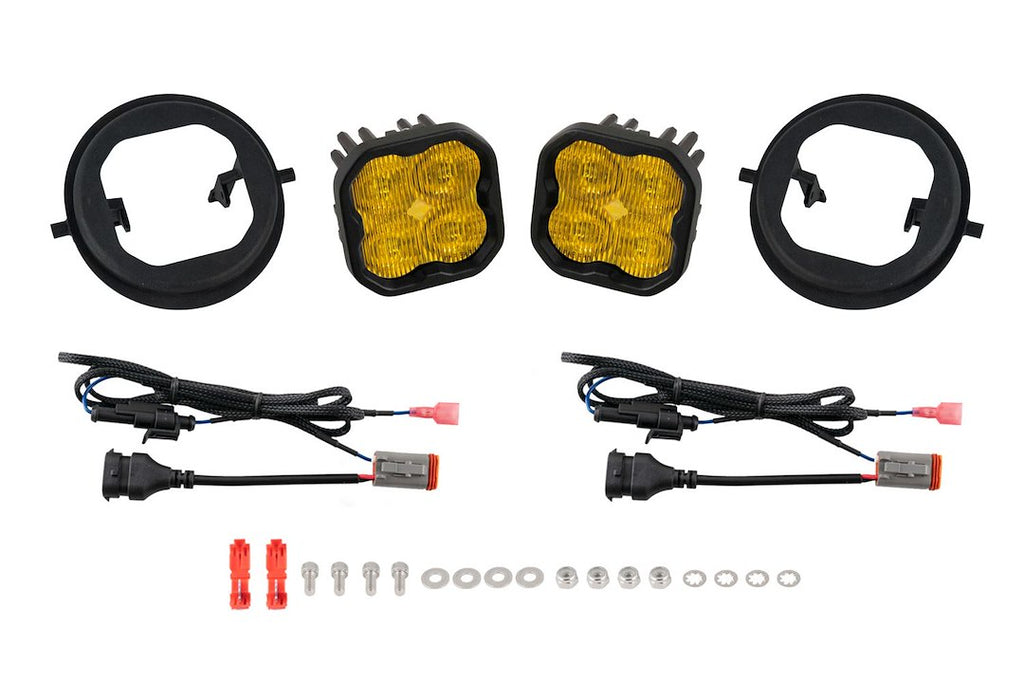

• Includes: With 2 SS3 Standard LED Pods/ 2 Deutsch Style Wire Pigtails/ 2 Mounting Brackets/ Mounting Hardware
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2003-2006 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2003-2003 GMC Sierra 1500 HD
• 2005-2006 GMC Sierra 1500 HD
• 2003-2004 GMC Sierra 2500
• 2003-2006 GMC Sierra 2500 HD
• 2003-2006 GMC Sierra 3500
