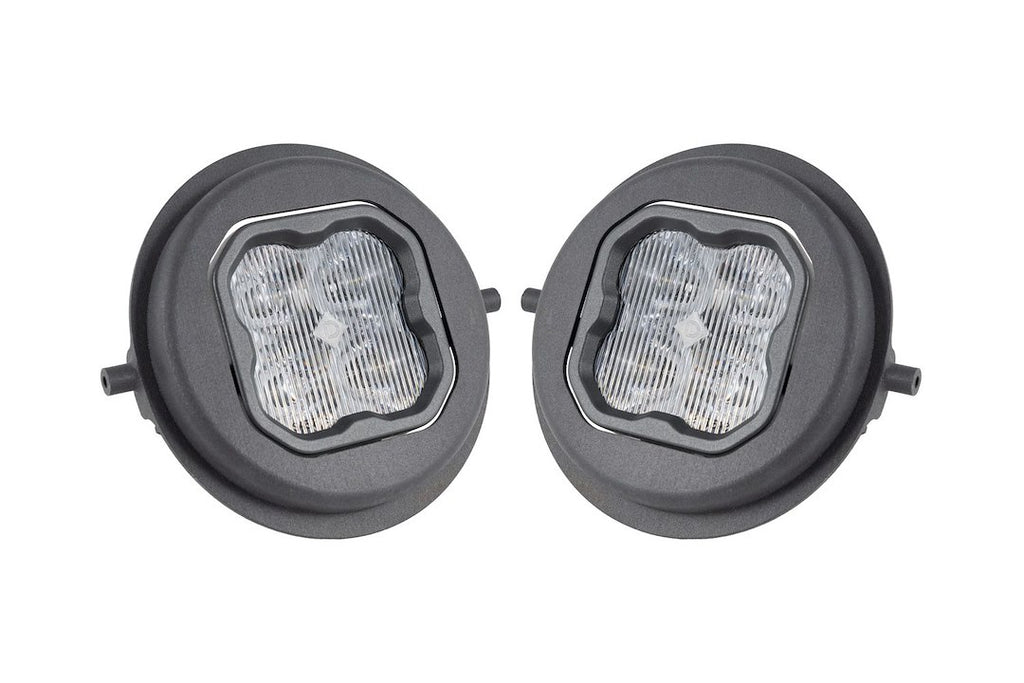

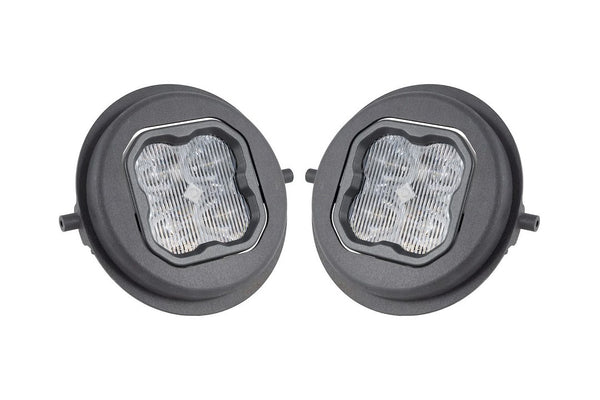

Diode Dynamics SS3 Pro LED Fog Light (MPN: DD8465)

High-output LED fog lights with advanced optics for superior visibility.

The Diode Dynamics SS3 Pro LED Fog Light is engineered to provide exceptional illumination with its advanced TIR optics, ensuring high efficiency and focused light output. This 3-inch square fog light features a powerful main beam rated at 36 watts, delivering an impressive 5796 raw lumens, making it one of the brightest options available in its category. Constructed with durable powder-coated aluminum housing and a clear polycarbonate lens, the SS3 Pro is designed to withstand harsh conditions while maintaining optimal performance.

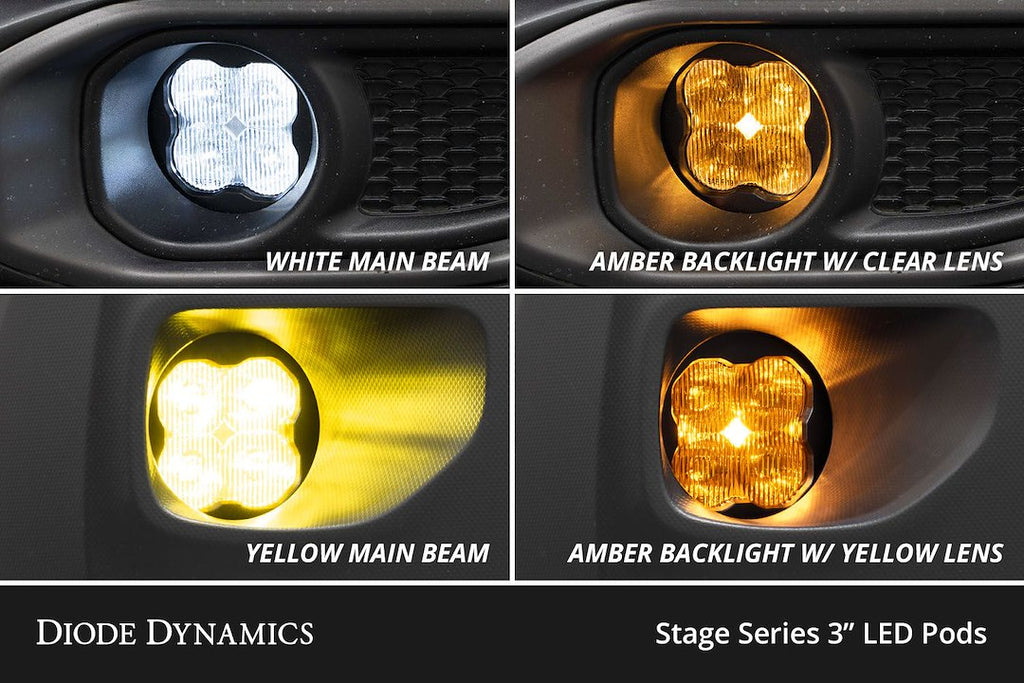

Installation is straightforward with the included bolt-on mounting brackets and Deutsch-style wire pigtails, allowing for a plug-and-play setup without the need for modifications. The SS3 Pro also includes an integrated backlight that enhances visibility and adds a modern aesthetic to your vehicle. This backlight operates at 0.4 watts and can be connected to your vehicle's existing wiring for added functionality.

With SAE-compliant road-legal output, the SS3 Pro LED Fog Light is suitable for various applications, providing reliable performance in foggy or low-visibility conditions. The pin-fin heatsink design ensures superior thermal dissipation, prolonging the lifespan of the LEDs. Designed, torture tested, and assembled in the USA, the SS3 Pro is a robust lighting solution for those seeking enhanced visibility and safety on the road.

Features

• Advanced TIR Optics Provide High Efficiency And Focus
• Durable Powder Coated Aluminum Construction
• High-Intensity Automotive-Type LED's
• Pin-Fin Heatsink Design, For Superior Thermal Dissipation
• Integrated Deutsch-Style Connector
• SAE-Compliant Road-Legal Output
• Plug And Play, No Modification Needed
• Designed, Torture Tested And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD8465
• Shape: Square
• Beam Type: Fog Beam
• Diameter: Not Applicable
• Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Fully Universal
• Wattage: 36 Watt Main Beam/ 0.4 Watt Backlight
• Voltage Rating: 9 To 16 Volt
• Mounting Style: Bolt-On
• Ampere Rating At 12 Volts: 0.03 Amp Backlight/ 2.7 Amp Main Beam
• Lumens: 5796 Lumens
• Bulb Specifications: Cree XP-L HI LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Cast Aluminum

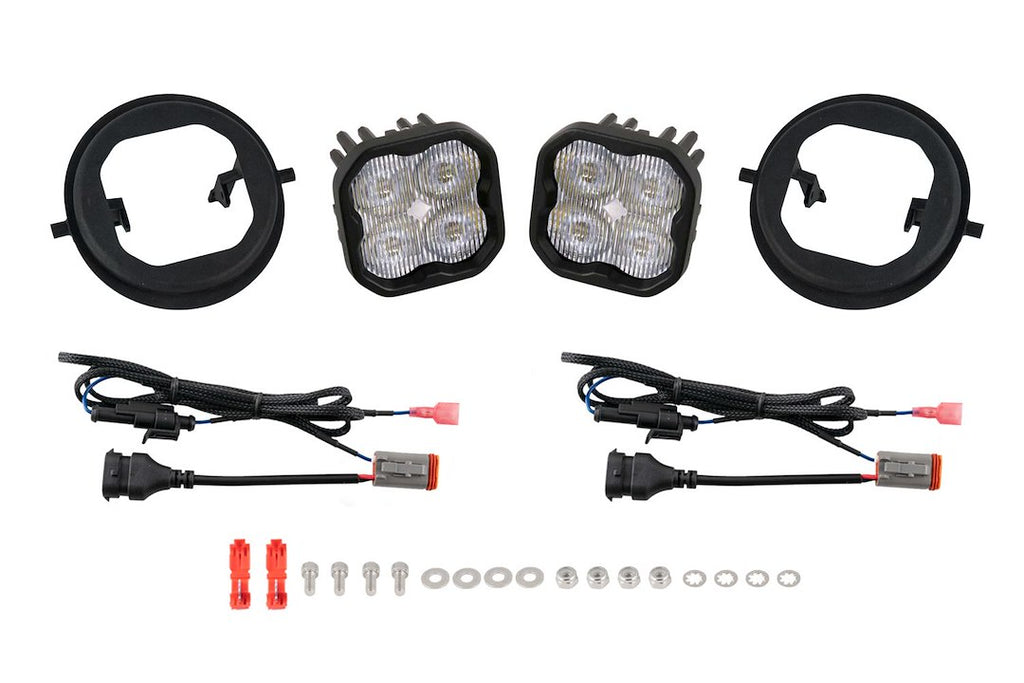

• Includes: With 2 SS3 Standard LED Pods/ 2 Deutsch Style Wire Pigtails/ 2 Mounting Brackets/ Mounting Hardware
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2003-2006 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2003-2003 GMC Sierra 1500 HD
• 2005-2006 GMC Sierra 1500 HD
• 2003-2004 GMC Sierra 2500
• 2003-2006 GMC Sierra 2500 HD
• 2003-2006 GMC Sierra 3500
