Diode Dynamics SS3 Max LED Fog Light (MPN: DD8468)

High-output LED fog lights with advanced optics for superior visibility.

The Diode Dynamics SS3 Max LED Fog Light is engineered to provide exceptional illumination with a focus on efficiency and performance. Featuring advanced TIR optics, these 3-inch square LED pods deliver a powerful fog beam output of 7920 raw lumens while minimizing glare. The durable black aluminum housing and clear polycarbonate lens ensure longevity and resilience against harsh conditions. Installation is straightforward with a bolt-on design, allowing for a seamless replacement of factory fog lights without the need for modifications.

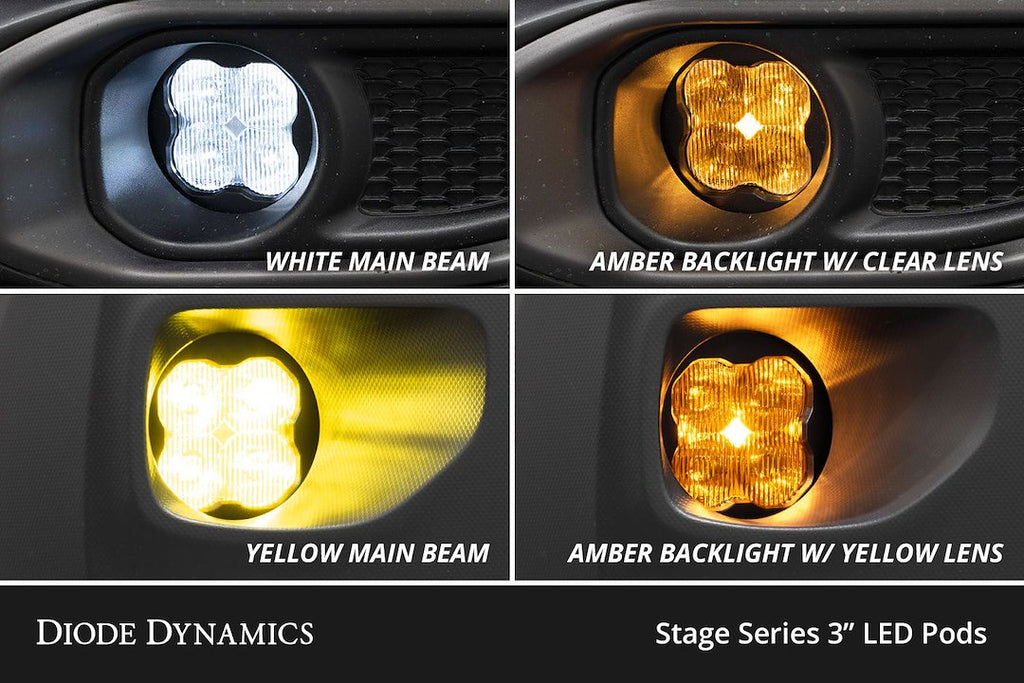

This fog light kit includes two SS3 LED pods, Deutsch-style wire pigtails, and mounting brackets, making it a comprehensive solution for enhancing your vehicle's lighting system. The integrated backlight in amber color adds a modern touch while providing additional visibility. With a main beam power of 38.5 watts and a backlight power of 0.4 watts, the SS3 Max is designed to operate efficiently within a voltage range of 9 to 16 volts. The plug-and-play setup ensures that users can connect the lights to their factory bulb sockets easily, streamlining the installation process.

Constructed with high-intensity automotive-grade LEDs and a pin-fin heatsink design, the SS3 Max ensures superior thermal dissipation, enhancing the lifespan and performance of the lights. This product is SAE-compliant, making it road-legal and suitable for various applications. The Diode Dynamics SS3 Max LED Fog Light is a reliable choice for those seeking to improve their vehicle's fog lighting capabilities.

Features

• Advanced TIR Optics Provide High Efficiency And Focus
• Durable Powder Coated Aluminum Construction
• High-Intensity Automotive-Type LED's
• Pin-Fin Heatsink Design, For Superior Thermal Dissipation
• Integrated Deutsch-Style Connector
• SAE-Compliant Road-Legal Output
• Plug And Play, No Modification Needed
• Designed, Torture Tested And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD8468
• Shape: Square
• Beam Type: Fog Beam
• Diameter: Not Applicable
• Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
• Bulb Type: LED
• Light Color: Yellow
• Quantity: Set Of 2
• Universality: Fully Universal
• Wattage: 38.5 Watt Main Beam/ 0.4 Watt Backlight
• Voltage Rating: 9 To 16 Volt
• Mounting Style: Bolt-On
• Ampere Rating At 12 Volts: 0.03 Amp Backlight/ 3 Amp Main Beam
• Lumens: 7920 Lumens
• Bulb Specifications: Osram Boost HX LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Cast Aluminum

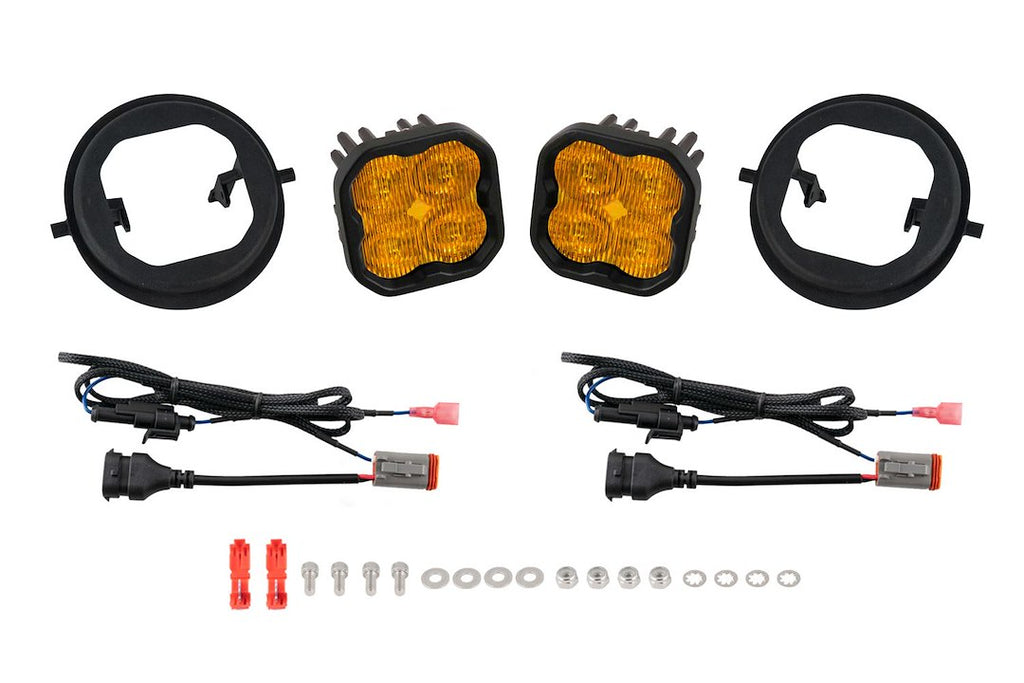

• Includes: With 2 SS3 Standard LED Pods/ 2 Deutsch Style Wire Pigtails/ 2 Mounting Brackets/ Mounting Hardware
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2003-2006 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2003-2003 GMC Sierra 1500 HD
• 2005-2006 GMC Sierra 1500 HD
• 2003-2004 GMC Sierra 2500
• 2003-2006 GMC Sierra 2500 HD
• 2003-2006 GMC Sierra 3500
