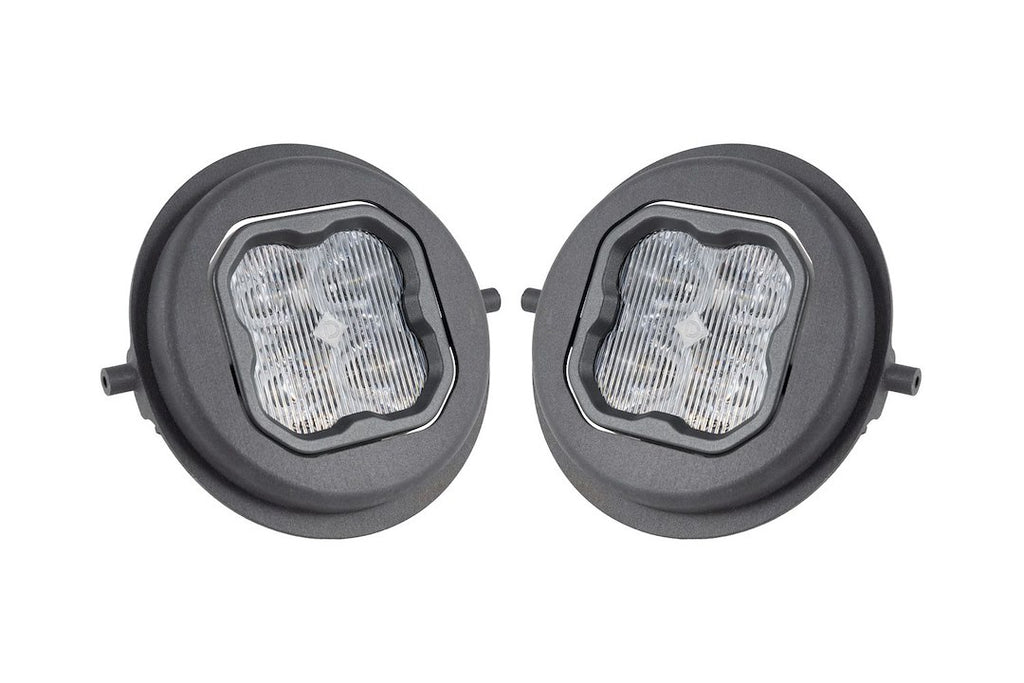

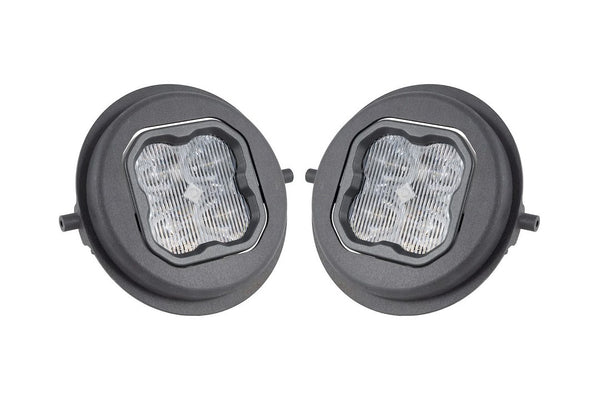

Diode Dynamics SS3 Max LED Fog Light (MPN: DD8467)
Diode Dynamics SS3 Max LED Fog Light (MPN: DD8467)
Diode Dynamics SS3 Max LED Fog Light (MPN: DD8467)
Diode Dynamics SS3 Max LED Fog Light (MPN: DD8467)

Diode Dynamics SS3 Max LED Fog Light (MPN: DD8467)

  • Sale
  • $931.89
Accepted Credit Cards

High-output LED fog lights with advanced optics for superior visibility.

The Diode Dynamics SS3 Max LED Fog Light is engineered to provide exceptional illumination with a main beam power of 38.5 watts and a backlight power of 0.4 watts. Featuring advanced TIR optics, these lights focus the output efficiently, minimizing glare and maximizing visibility on the road. The robust construction includes a durable black aluminum housing and a clear polycarbonate lens, ensuring longevity and resilience against harsh conditions.

With a total output of 7920 raw lumens, the SS3 Max lights are designed to enhance your vehicle's fog light capabilities significantly. The plug-and-play installation process allows for quick setup, utilizing included Deutsch-style connectors and mounting hardware. This product is SAE-compliant, ensuring it meets road-legal standards for safety and performance.

The integrated backlight feature adds a modern touch, providing an additional accent light that enhances visibility and aesthetics. The SS3 Max is fully universal, making it compatible with a wide range of vehicles. Its efficient thermal dissipation is supported by a pin-fin heatsink design, ensuring optimal performance during extended use.

Features

  • Advanced TIR Optics Provide High Efficiency And Focus
  • Durable Powder Coated Aluminum Construction
  • High-Intensity Automotive-Type LED's
  • Pin-Fin Heatsink Design, For Superior Thermal Dissipation
  • Integrated Deutsch-Style Connector
  • SAE-Compliant Road-Legal Output
  • Plug And Play, No Modification Needed
  • Designed, Torture Tested And Assembled In USA

Specifications

  • Manufacturer: Diode Dynamics
  • Manufacturer Part Number: DD8467
  • Shape: Square
  • Beam Type: Fog Beam
  • Diameter: Not Applicable
  • Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
  • Bulb Type: LED
  • Light Color: White
  • Quantity: Set Of 2
  • Universality: Fully Universal
  • Wattage: 38.5 Watt Main Beam/ 0.4 Watt Backlight
  • Voltage Rating: 9 To 16 Volt
  • Mounting Style: Bolt-On
  • Ampere Rating At 12 Volts: 0.03 Amp Backlight/ 3 Amp Main Beam
  • Lumens: 7920 Lumens
  • Bulb Specifications: Osram Boost HX LED Bulbs
  • Lens Material: Polycarbonate
  • Housing Color: Black
  • Housing Material: Cast Aluminum

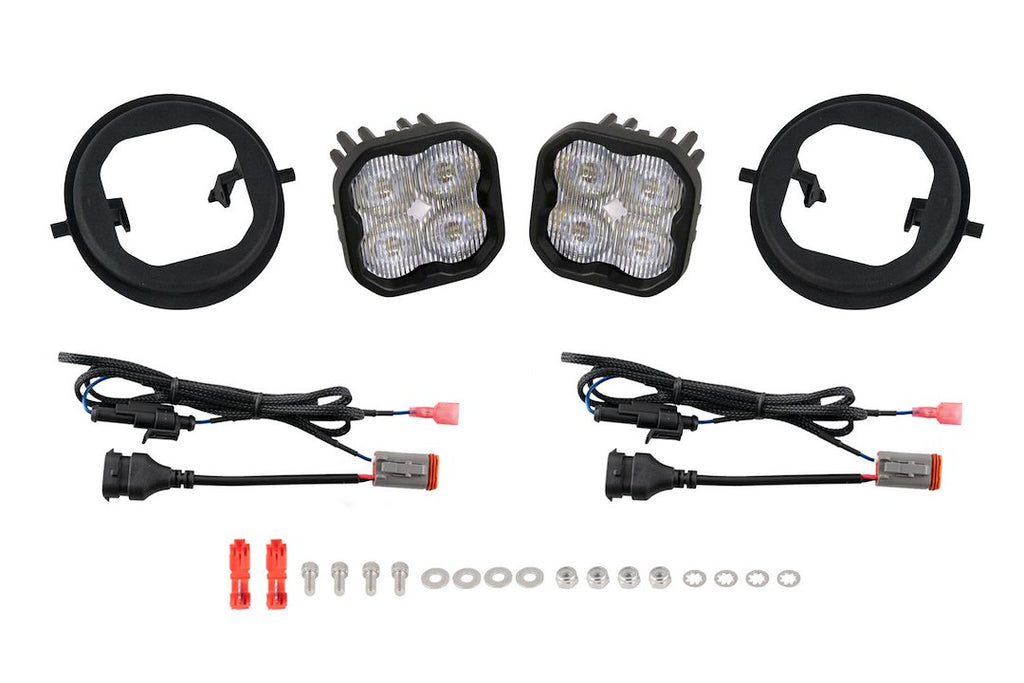

  • Includes: With 2 SS3 Standard LED Pods/ 2 Deutsch Style Wire Pigtails/ 2 Mounting Brackets/ Mounting Hardware
  • Estimated Install Time (Hours): 1.5

Compatibility / Fit

  • 2003-2006 GMC Sierra 1500
  • 2007-2007 GMC Sierra 1500 Classic
  • 2003-2003 GMC Sierra 1500 HD
  • 2005-2006 GMC Sierra 1500 HD
  • 2003-2004 GMC Sierra 2500
  • 2003-2006 GMC Sierra 2500 HD
  • 2003-2006 GMC Sierra 3500
