Diode Dynamics SS3 LED Pod Lights (MPN: DD6479P)

High-intensity LED pods with advanced optics for superior visibility.

The Diode Dynamics SS3 3 Inch LED Pod Lights are engineered for maximum functionality and performance. These lights feature custom-engineered TIR optics that provide a highly efficient beam pattern, significantly reducing glare while maximizing light output. With a total intensity that surpasses other 3 Inch lights on the market, the SS3 utilizes high-intensity LED chips to deliver 1520 effective lumens, ensuring optimal visibility in various driving conditions.

Constructed with durable powder-coated aluminum, the SS3 pods are designed to withstand harsh environments while maintaining their performance. The integrated Deutsch-style connector simplifies installation, making these lights fully universal for a wide range of applications. The polycarbonate clear lens serves as both the optic and main lens, enhancing light efficiency and output.

This set includes two lights, each with mounting brackets and hardware, allowing for straightforward installation. With a wattage of 14.5 watts and an amp draw of 1.1 amps at 12.8 volts, these LED pods are energy-efficient while providing powerful illumination. Engineered and assembled in the USA, the Diode Dynamics SS3 LED Pod Lights are a reliable choice for enhancing visibility on the road.

Features

• Durable Powder Coated Aluminum Construction
• Modern TIR Optics Provide Highest Intensity On The Market
• Integrated Deutsch-Style Connector
• Engineered And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD6479P
• Shape: Square

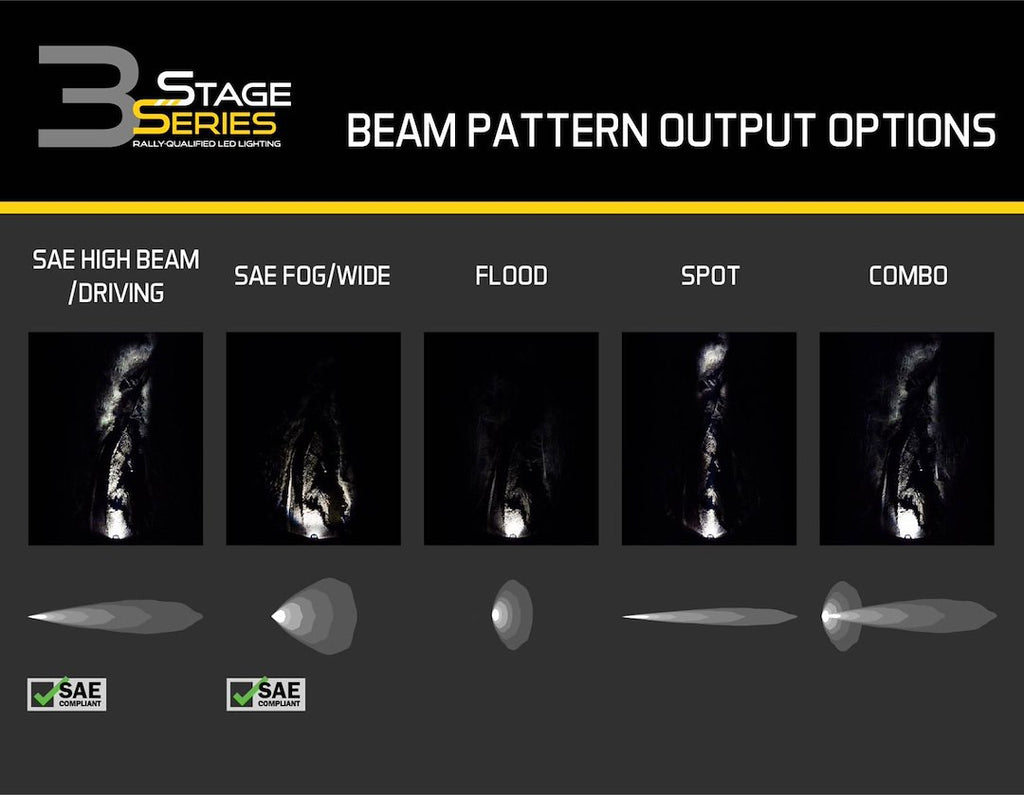

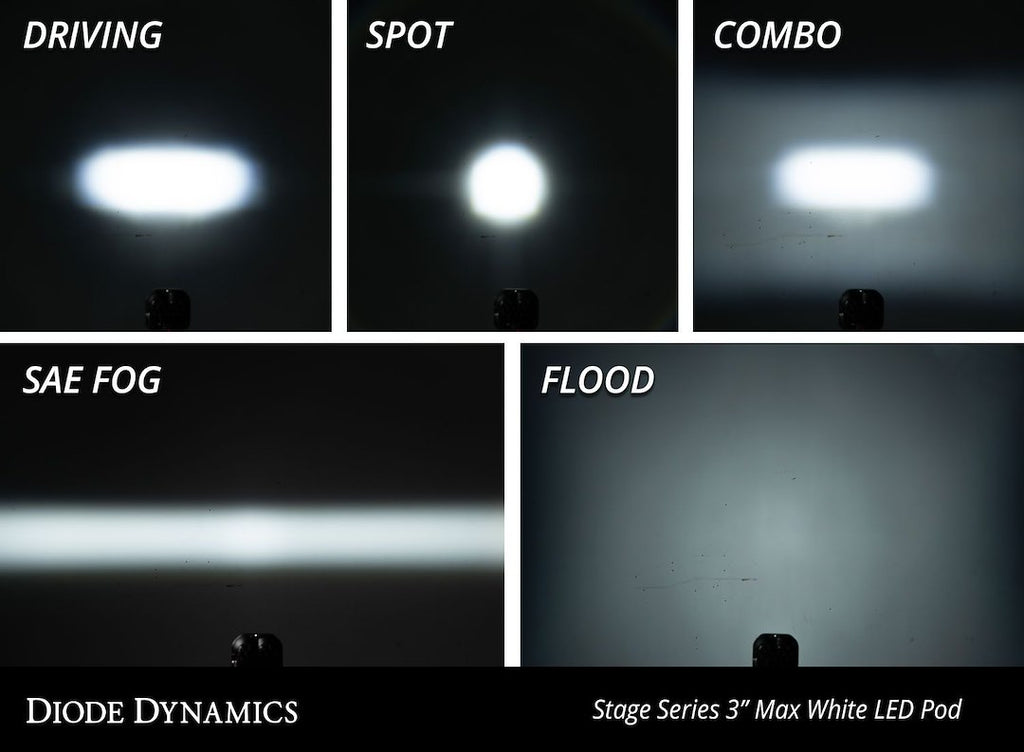

• Beam Type: Combo Beam Driving And Flood
• Diameter: Not Applicable

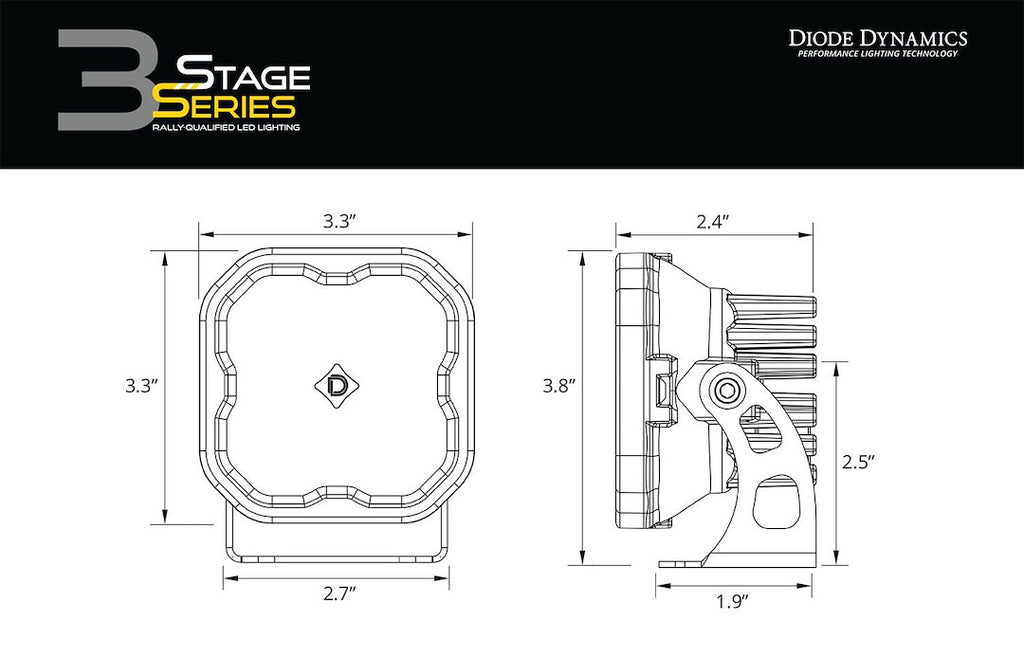

• Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
• Bulb Type: LED
• Light Color: White

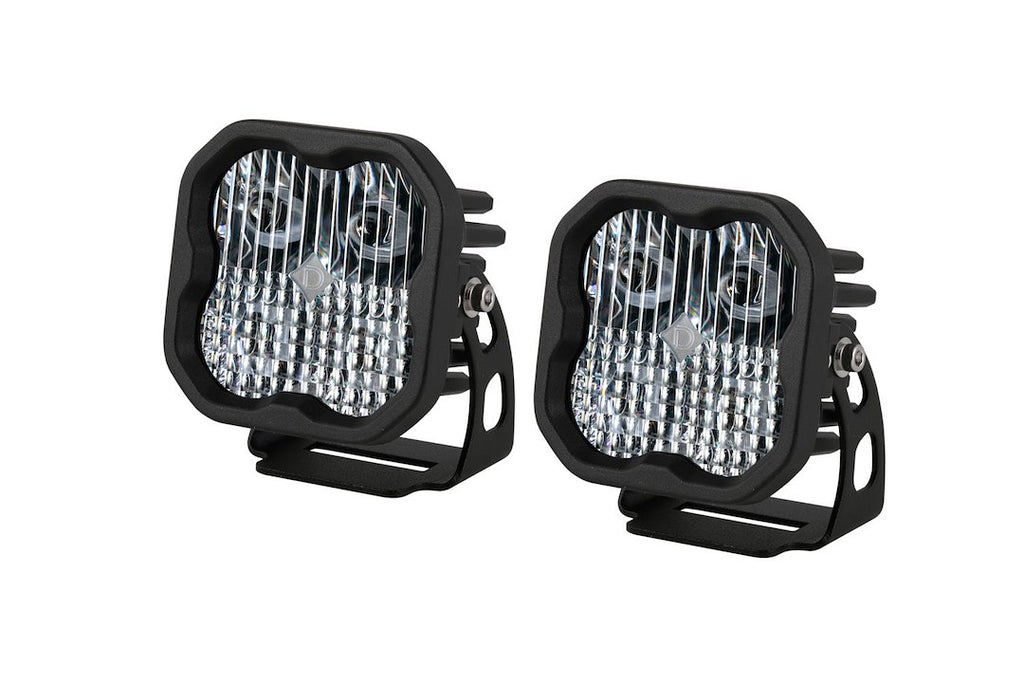

• Quantity: Set Of 2
• Universality: Fully Universal
• Depth: 2-7/16 Inch
• Wattage: 14.5 Watt
• Voltage Rating: 12.8 Volt
• Mounting Style: Stud Mount
• Ampere Rating At 12 Volts: 1.1 Amp
• Lumens: 1520 Lumens
• Bulb Specifications: White LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With 2 Deutsch-Style Wire Pigtails/ 2 Mounting Brackets And Hardware
• Estimated Install Time (Hours): 1.5

Technical Documents

• Stage_Series_installation_guide_single_light_duty.pdf
• Stage_Series_3in_Worklight_Pod_Info_Guide.pdf
• Warranty-Diode_Dynamics.pdf
