High-intensity LED pods with innovative TIR optics for superior performance.

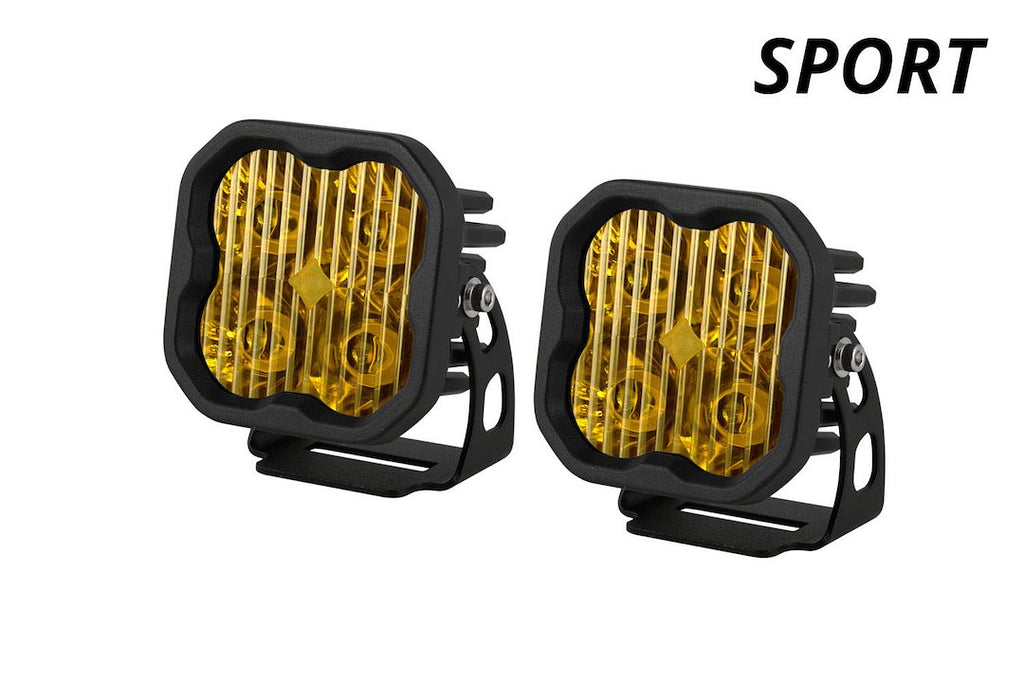

The Diode Dynamics SS3 3 Inch LED Pod Light is engineered for maximum functionality and output intensity, surpassing other 3 Inch lights available. Utilizing custom-engineered Total Internal Reflection (TIR) optics, this LED pod directs light efficiently, minimizing glare and enhancing overall light output. The innovative design combines the optic and lens into a single component, ensuring that nearly all emitted light is focused on the target area, resulting in a significant increase in brightness compared to traditional reflectors or lenses.
Constructed with durable powder-coated aluminum, the SS3 is built to withstand harsh conditions while providing reliable performance. The pod features a combo beam pattern, delivering both flood and spot light capabilities, making it versatile for various applications. With a total output of 1930 raw lumens and a power draw of only 14.5 watts at 12.8 volts, this LED pod is energy-efficient while providing exceptional illumination.

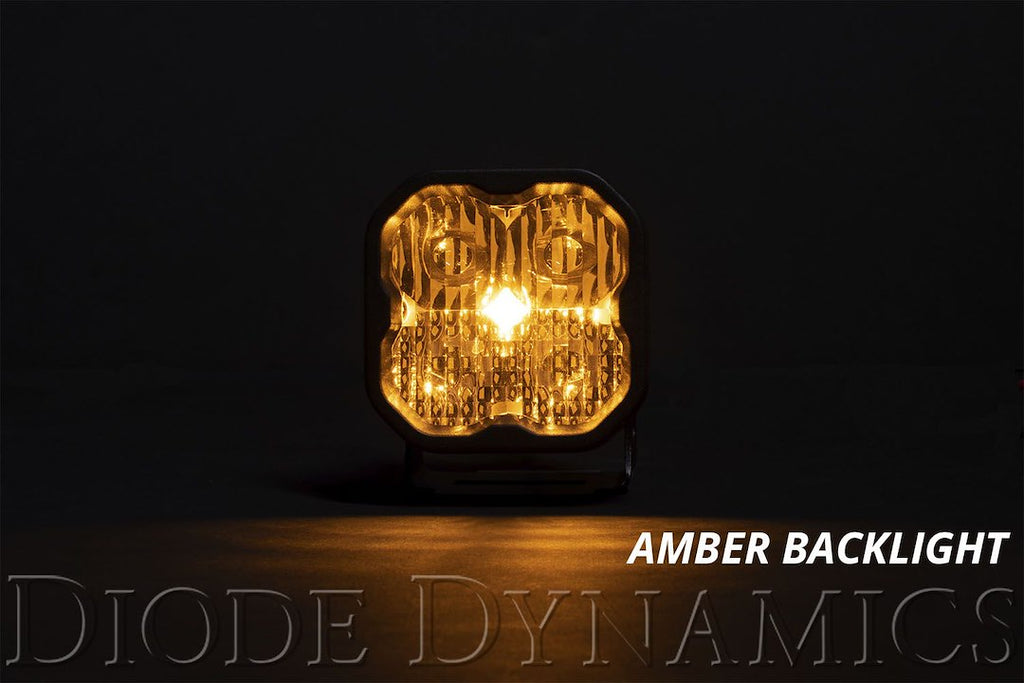

Additionally, the SS3 includes a backlight accent feature in a brilliant amber color, enhancing visibility and style. Each set comes complete with two Deutsch-style wire pigtails, mounting brackets, and hardware for straightforward installation. Engineered and assembled in the USA, the Diode Dynamics SS3 LED Pod Light is a reliable choice for those seeking high-performance lighting solutions.
Features
- Durable Powder Coated Aluminum Construction
- Modern TIR Optics Provide Highest Intensity On The Market
- Backlight Accent Feature, In A Brilliant Amber Color
- Integrated Deutsch-Style Connector
- Engineered And Assembled In USA
Specifications
- Manufacturer: Diode Dynamics
- Manufacturer Part Number: DD6872P
- Shape: Square

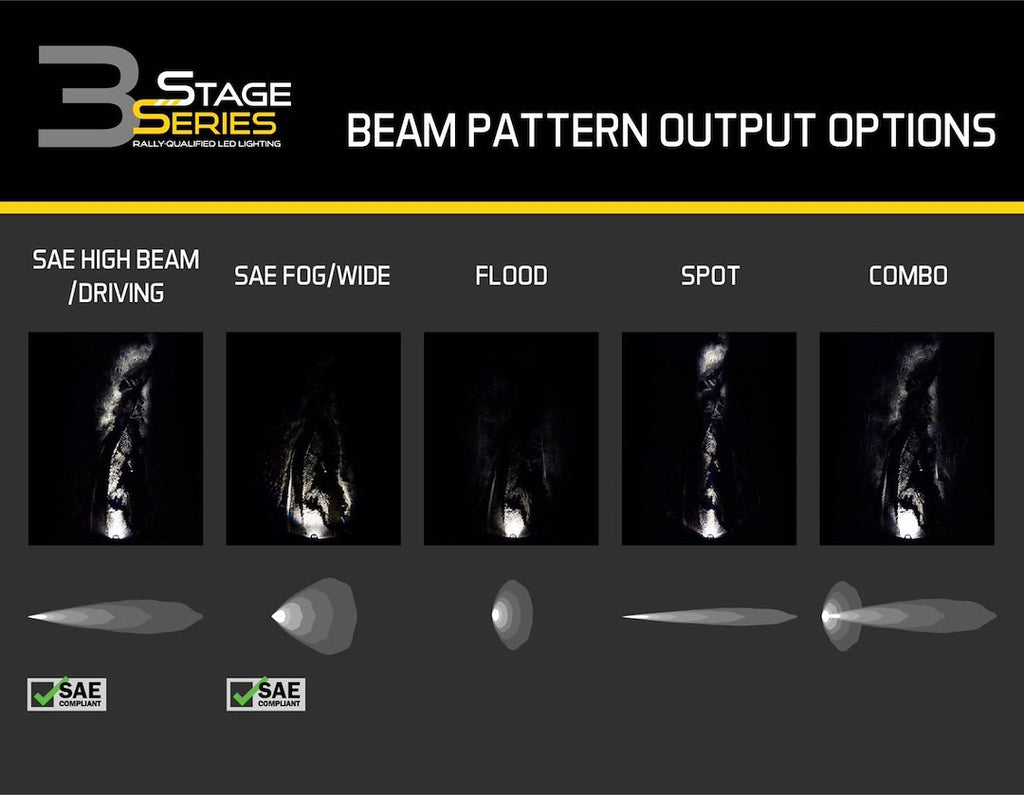

- Beam Type: Combo Beam Flood And Spot
- Diameter: Not Applicable

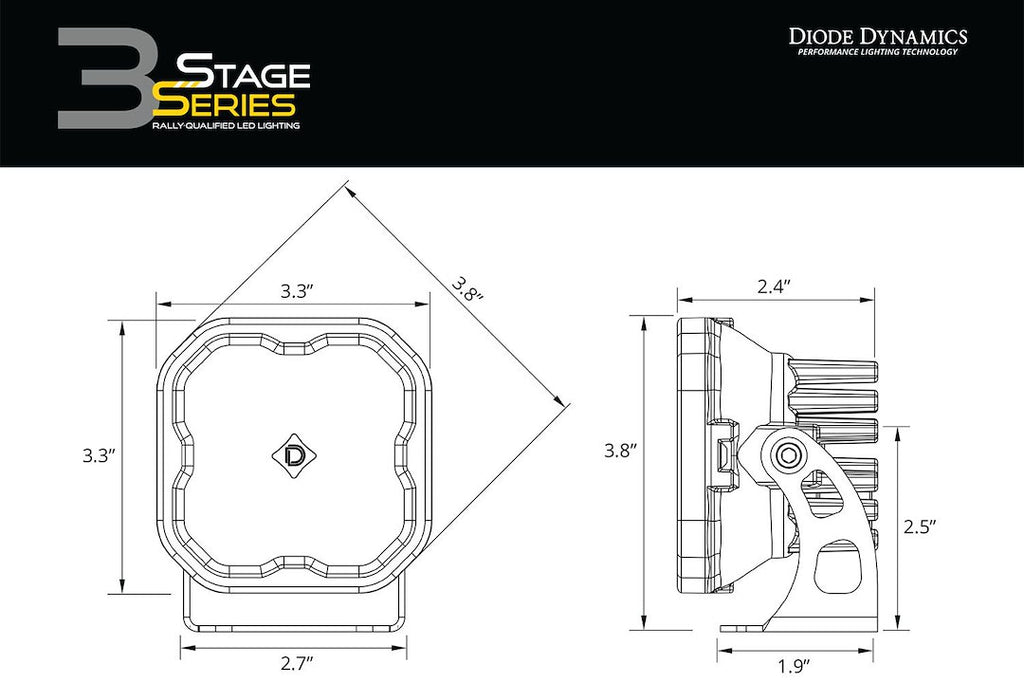

- Height/ Width: 3-5/16 Inch Height X 3-5/16 Inch Width
- Bulb Type: LED
- Light Color: Amber
- Quantity: Set Of 2
- Universality: Fully Universal
- Depth: 2-7/16 Inch
- Wattage: 14.5 Watt
- Voltage Rating: 12.8 Volt
- Mounting Style: Bolt-On
- Ampere Rating At 12 Volts: 1.1 Amp
- Lumens: 1930 Lumens
- Bulb Specifications: Luxeon Z ES LED Bulbs
- Lens Material: Polycarbonate
- Housing Color: Black
- Housing Material: Aluminum

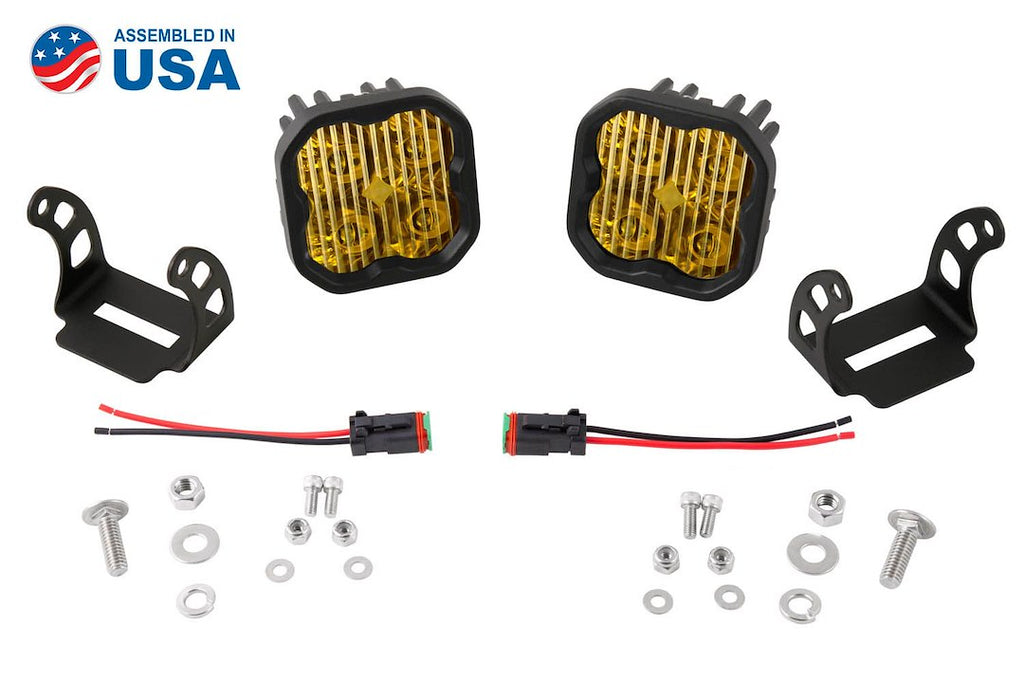

- Includes: With Two Deutsch-Style Wire Pigtails/ Two Mounting Brackets/ Hardware
- Estimated Install Time (Hours): 1.5
