Diode Dynamics Elite Series Fog Lights (MPN: DD5128P)

High-performance LED fog lights with superior visibility and design.

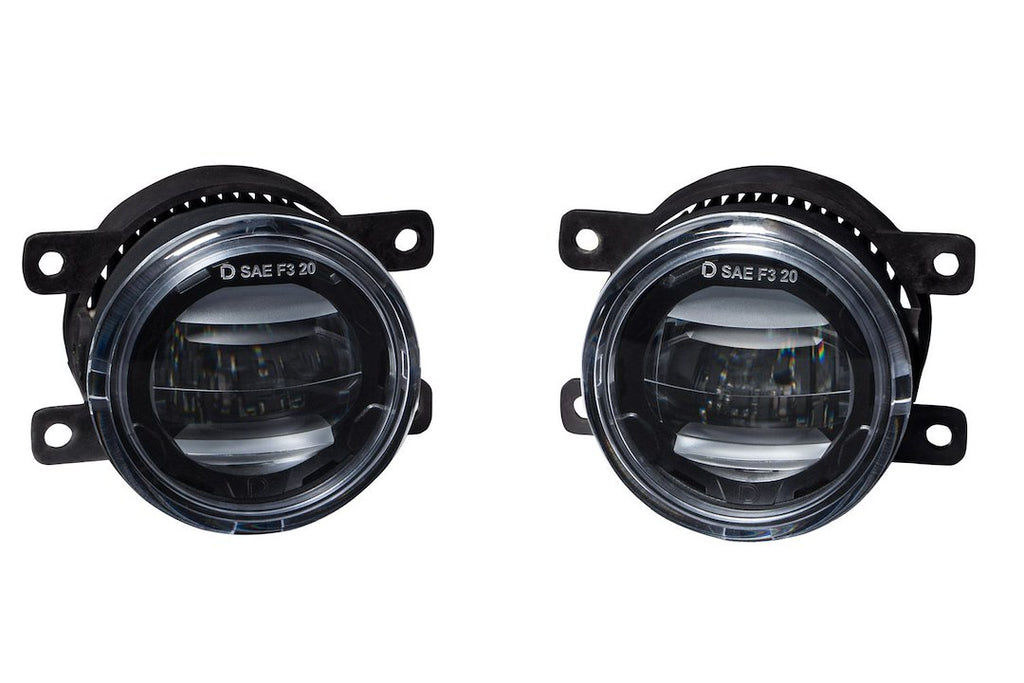

The Diode Dynamics Elite Series Fog Lights are engineered to provide exceptional performance and visibility in adverse weather conditions. Unlike standard factory fog lights, these LED lamps are designed from the ground up to deliver up to five times the output of traditional halogen lamps, ensuring a significant improvement in illumination. Featuring a custom-engineered optic, these fog lights produce an 80-degree beam spread that is both wide and intense, while maintaining a smooth light pattern with a sharp cutoff to minimize glare for oncoming traffic.

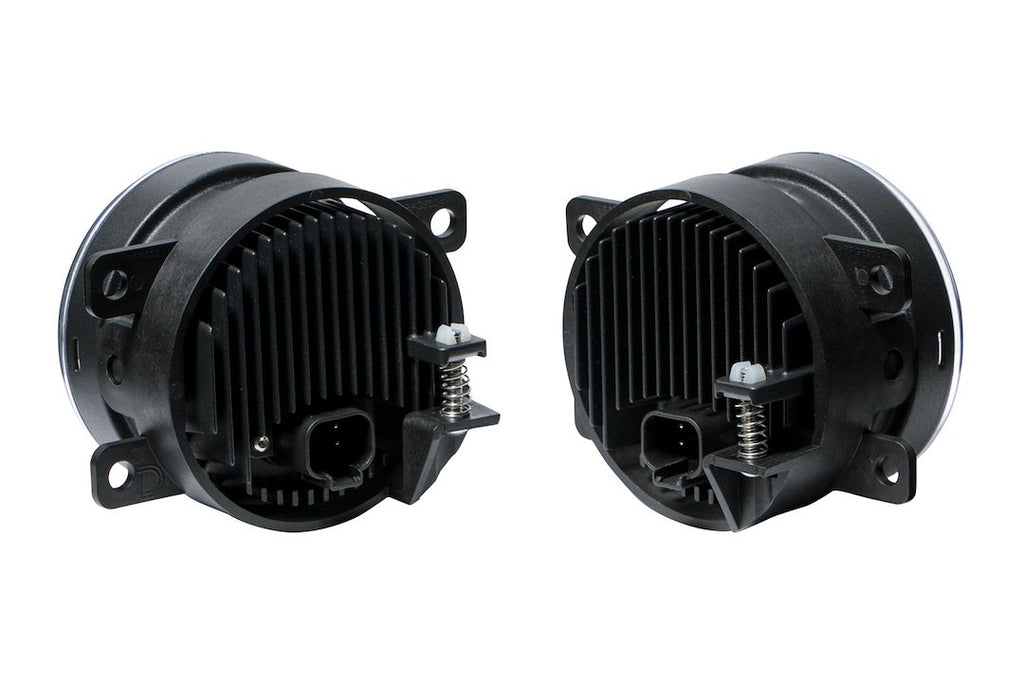

Constructed with a durable UV-coated clear polycarbonate lens and a robust black aluminum housing, the Elite Series Fog Lights are built to withstand the rigors of the road. The integrated amber backlight functionality adds a distinctive touch, enhancing visibility and safety. These fog lights are SAE F3 compliant, making them road legal and suitable for use in various driving conditions.

Installation is straightforward with a plug-and-play design, requiring no modifications to your vehicle. Each set includes two fog lamps, H11 4-pin DT backlight tap wires, T-taps, and a mounting guide, allowing for a quick and efficient setup. With a total output of 1850 lumens and a power draw of only 1.3 amps at 13.2 volts, these fog lights are an effective upgrade for any vehicle seeking enhanced visibility and performance.

Features

• High Performance OEM Grade Replacement
• Custom Engineered Optic Provides Extremely Wide, Intense Light Output
• Distinctive Integrated Amber Backlight
• Road Legal Fog Light, SAE F3 Compliant
• Plug And Play Main Beam, No Modification Needed
• Engineered And Assembled In USA

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD5128P
• Shape: Round
• Beam Type: 80 Degree Fog Beam

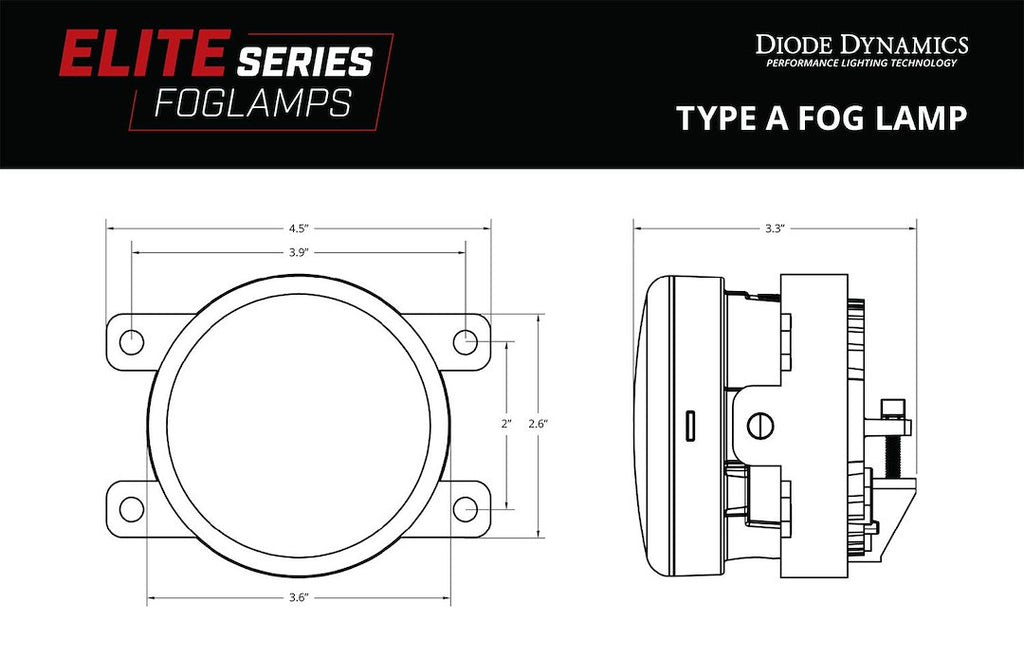

• Diameter: 3-9/16 Inch
• Height/ Width: Not Applicable
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 3-5/16 Inch
• Wattage: 17 Watt
• Voltage Rating: 9 To 16 Volt
• Mounting Style: Surface Mount
• Ampere Rating At 12 Volts: 1.3 Amp
• Lumens: 1850 Lumens
• Bulb Specifications: White LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

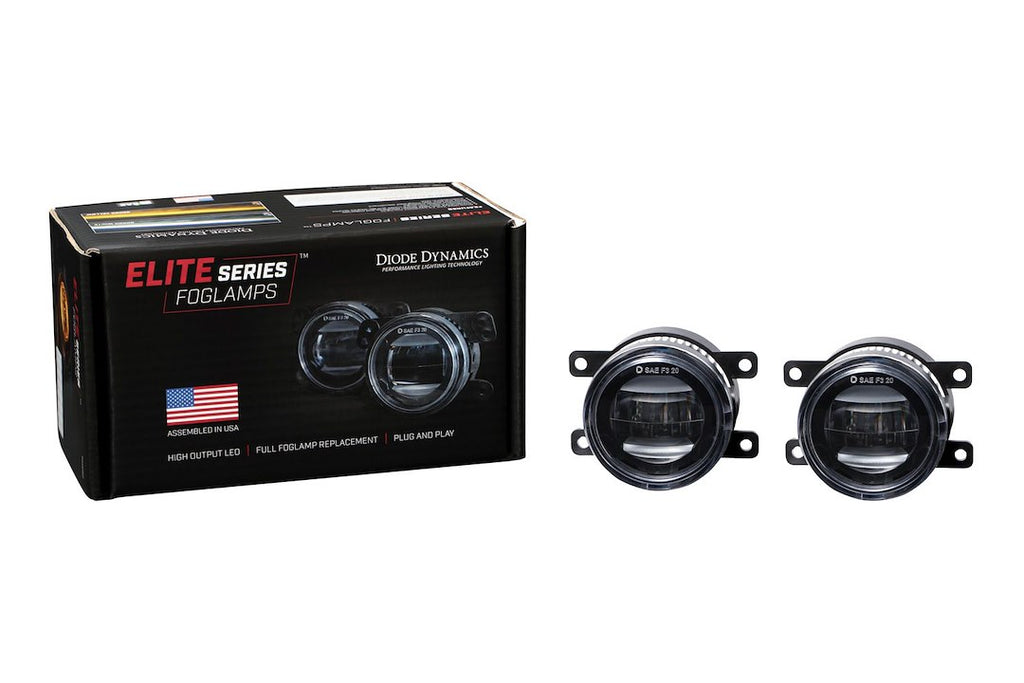

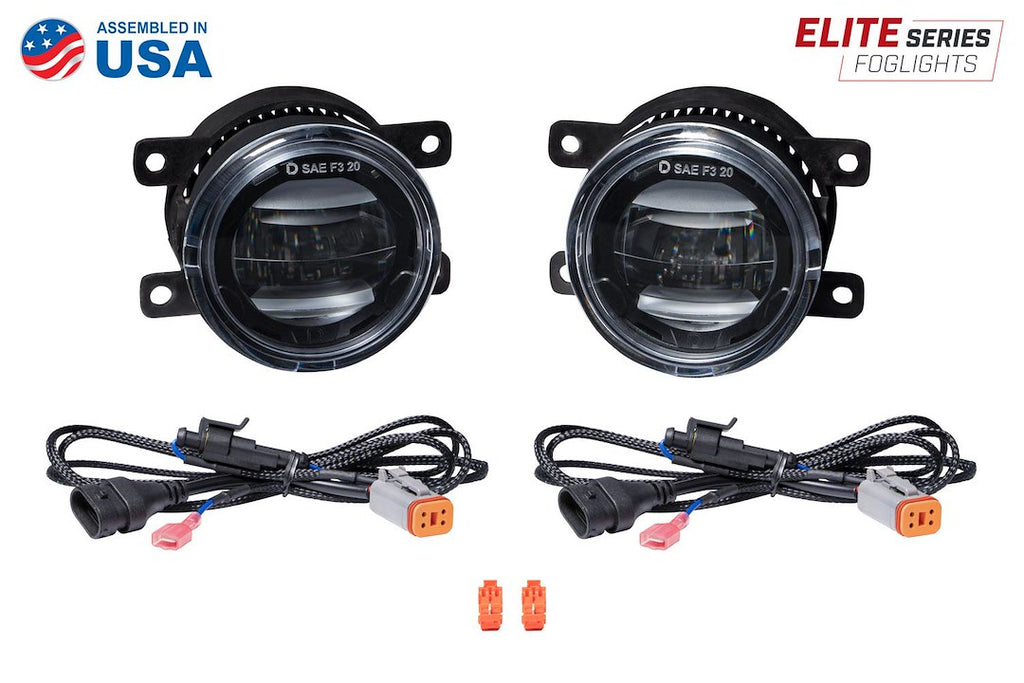

• Includes: With 2 Elite Series Type A Fog Lamps/ 2 H11 4-Pin DT Backlight Tap Wires/ 2 T-Taps/ Mounting Guide
• Estimated Install Time (Hours): 1.5

Compatibility / Fit

• 2013-2022 Acura ILX
• 2010-2018 Acura RDX
• 2012-2014 Acura TL
• 2011-2013 Acura TSX
• 2012-2016 Fiat 500
• 2021-2026 Ford Bronco
• 2013-2016 Ford C-Max
• 2012-2015 Ford Explorer
• 2014-2019 Ford Fiesta
• 2009-2014 Ford Focus
• 2005-2007 Ford Freestyle
• 2013-2016 Ford Fusion
• 2006-2009 Ford Mustang
• 2015-2017 Ford Mustang
• 2005-2007 Ford Ranger
• 2019-2023 Ford Ranger
• 2008-2009 Ford Taurus X
• 2010-2018 Ford Transit Connect
• 2013-2015 Honda Accord
• 2013-2021 Honda Civic
• 2012-2014 Honda CR-V
• 2013-2016 Honda CR-Z
• 2013-2015 Honda Crosstour
• 2015-2017 Honda Fit
• 2010-2014 Honda Insight
• 2019-2020 Honda Odyssey
• 2012-2022 Honda Pilot
• 2009-2021 Nissan Frontier
• 2007-2012 Nissan Sentra
• 2017-2019 Nissan Titan
• 2016-2016 Nissan Titan XD
• 2005-2015 Nissan Xterra
• 2024-2024 Ram 1500
• 2019-2023 Ram 1500- New Model
• 2013-2016 Scion FR-S
• 2019-2025 Subaru Ascent
• 2013-2017 Subaru BRZ
• 2016-2023 Subaru Crosstrek
• 2014-2024 Subaru Forester
• 2012-2023 Subaru Impreza
• 2010-2014 Subaru Legacy
• 2018-2022 Subaru Legacy
• 2022-2025 Subaru Outback
• 2015-2021 Subaru WRX
• 2015-2017 Subaru WRX STI
• 2013-2015 Subaru XV Crosstrek

Technical Documents

• Elite_Series_Type_A_B_M_Fog_Lamp_Installation_Guide.pdf
• Elite_Series_Type_A_B_M_MR_CGX_Fog_Lamp_Sales_Kit.pdf
