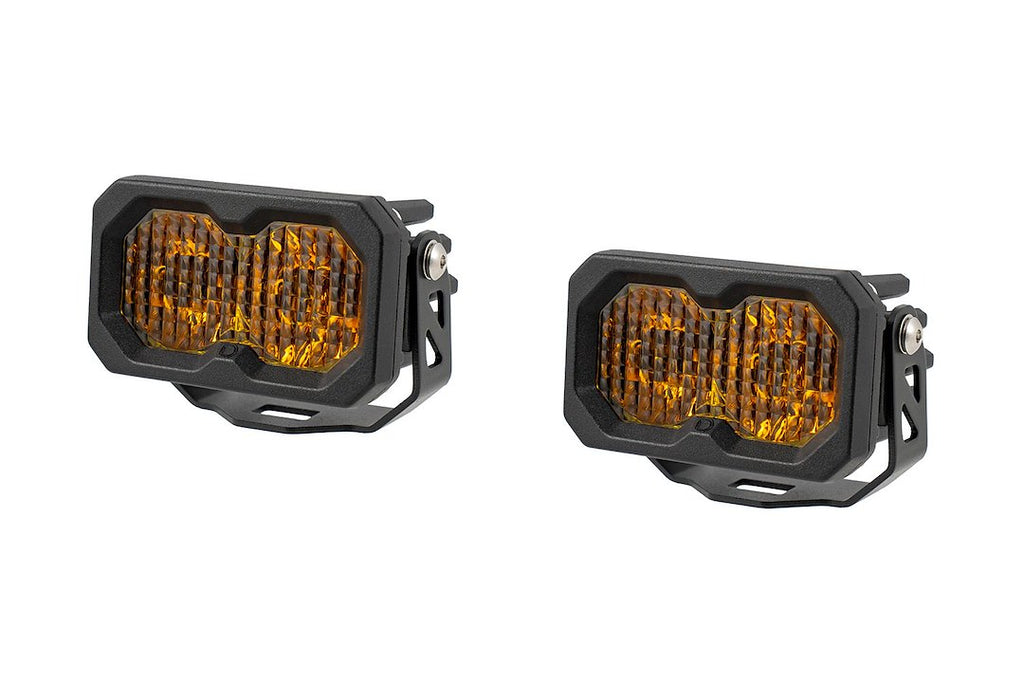

Diode Dynamics C2 2.0 Sport LED Pod (MPN: DD8094P)

Compact LED lighting with high-intensity output and versatile mounting options.

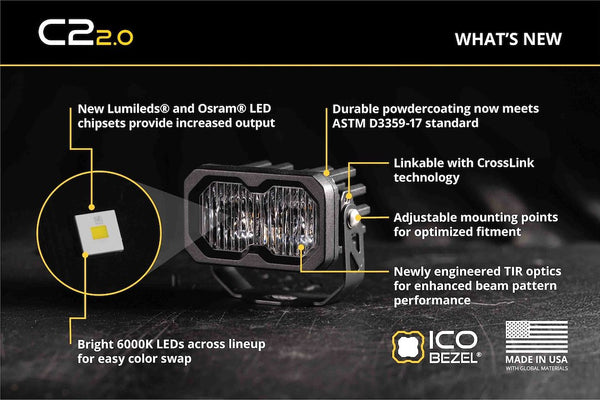

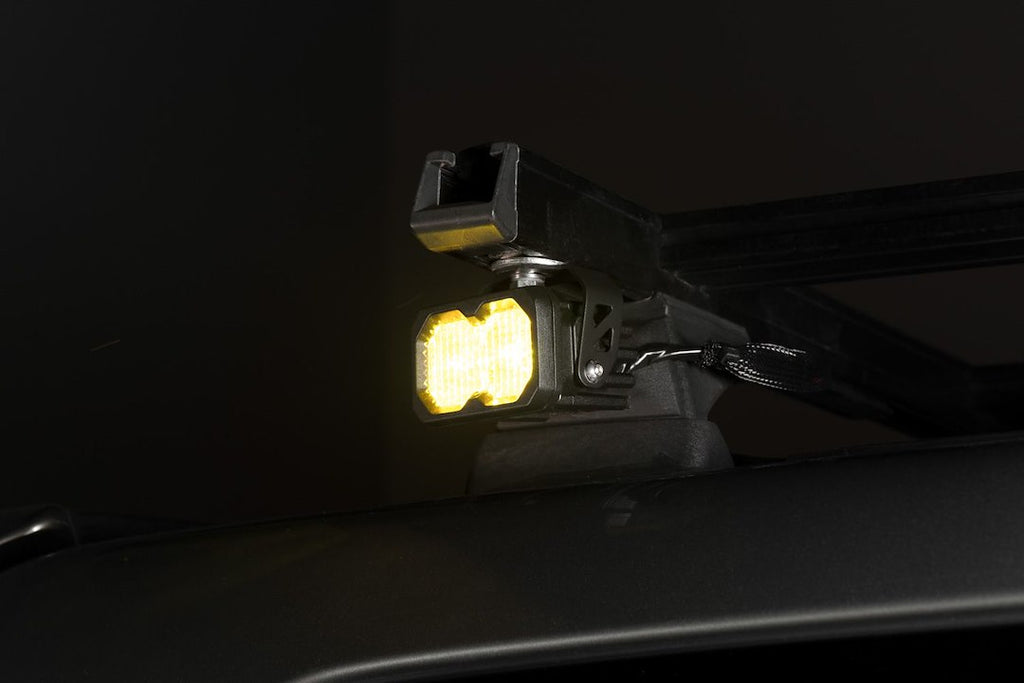

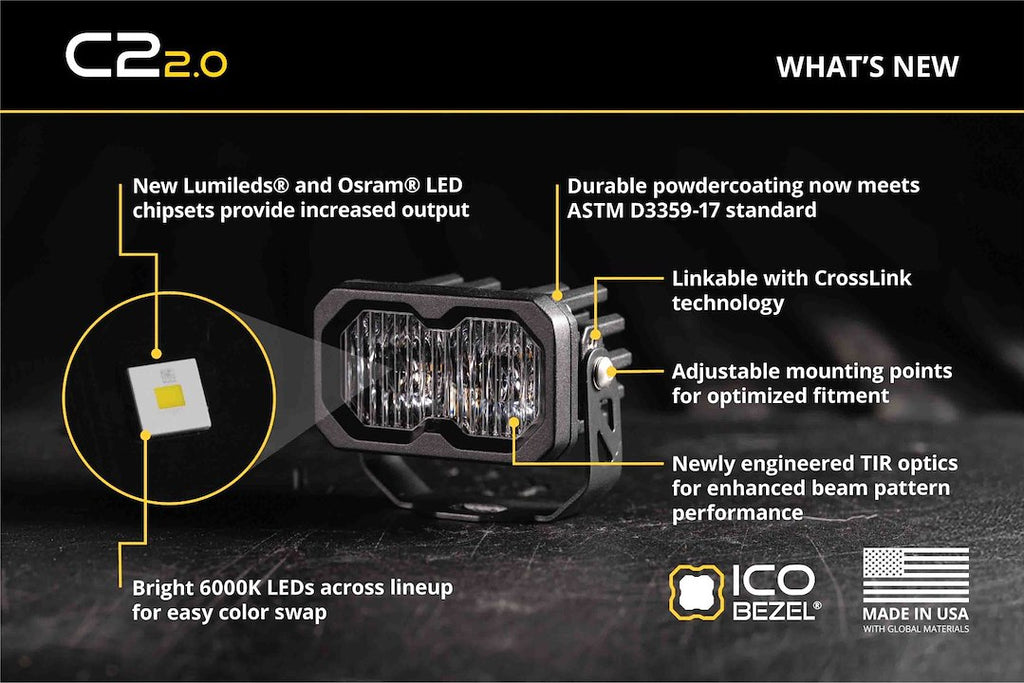

The Diode Dynamics C2 2.0 Sport LED Pod represents the next generation of compact LED lighting, designed for various applications including roof racks, roll bars, and bumpers. This model features a compact design that allows for easy installation in tight spaces while delivering impressive performance. The re-engineered copper-core circuit board enhances thermal efficiency, ensuring optimal light output and longevity. With a robust aluminum housing that dissipates heat effectively, the C2 2.0 Sport achieves a remarkable 1190 raw lumens output, making it a powerful choice for driving and fog light applications.

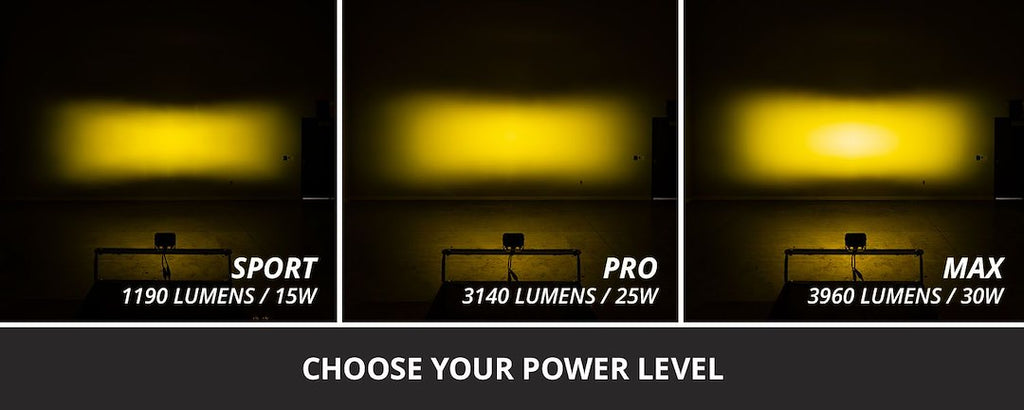

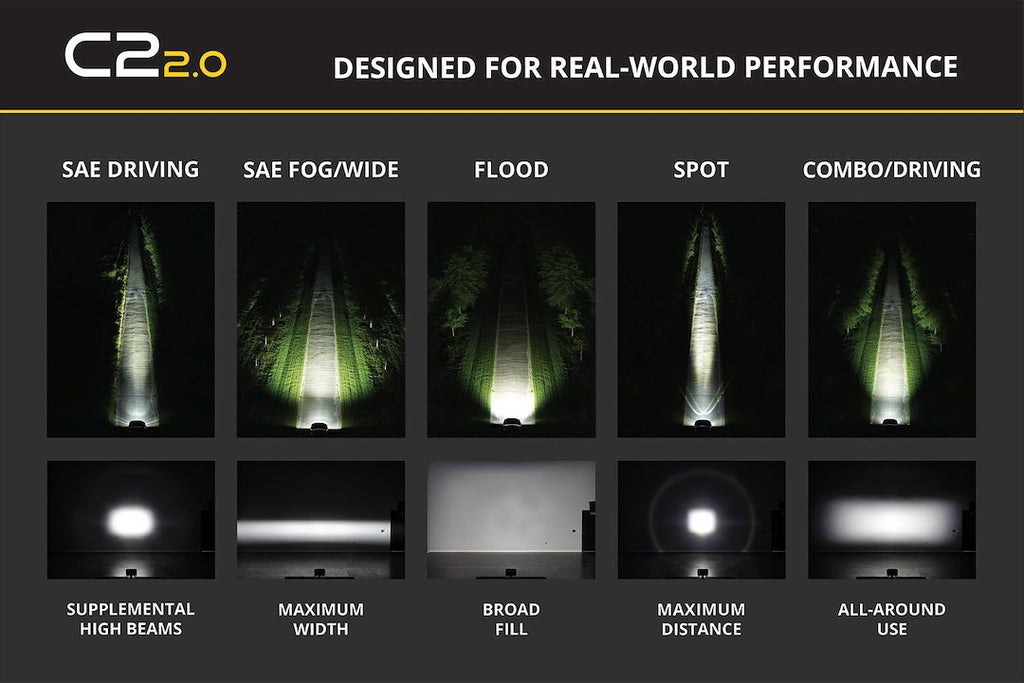

Equipped with patented TIR optics, this LED pod maximizes light intensity and focus, providing a beam pattern that is fine-tuned for real-world conditions. The C2 2.0 Sport is available in multiple power levels, with the Sport model offering high-intensity LEDs for a balance of performance and value. Additionally, the distinctive backlight feature serves as a low-power accent light, enhancing visibility and aesthetics. This model includes all necessary mounting hardware and Deutsch-style wire pigtails for straightforward installation.

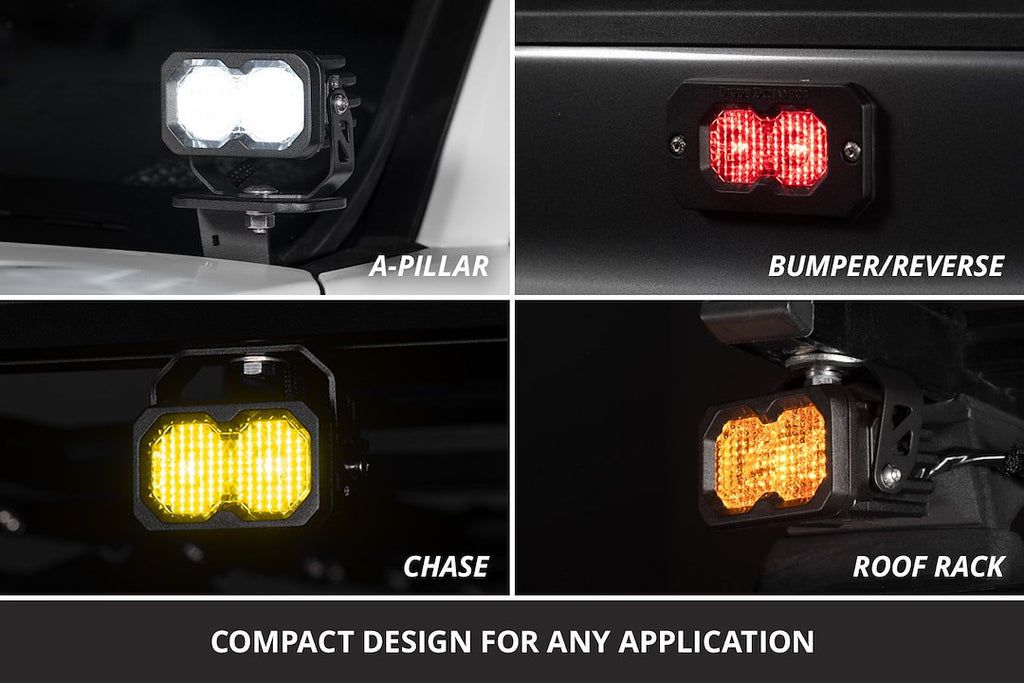

Overall, the Diode Dynamics C2 2.0 Sport LED Pod is engineered for those seeking a reliable and efficient lighting solution. Its combination of compact size, high output, and customizable mounting options makes it suitable for a variety of vehicles and applications.

Features

• Ultra-Compact Design For Tight Mounting Spots
• Patented TIR Optics For Maximum Output
• Up To 95 Percent More Power Than C2 1.0
• Customizable Mounting To Dial In Your Setup
• Link Multiple Pods With Crosslink Technology
• Includes Distinctive Backlight Feature Which Serves As A Low-Power Accent Light, The Backlight Fully Illuminates The Tir Optic, Providing A Unique And Modern Look

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD8094P
• Shape: Rectangular
• Beam Type: Combo Beam Driving And Spot
• Diameter: Not Applicable
• Height/ Width: 2 Inch x 3.3 Inch
• Bulb Type: LED
• Light Color: Yellow
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 2.4 Inch
• Wattage: 15 Watt
• Voltage Rating: 9 To 30 Volt
• Mounting Style: Bracket Mount
• Ampere Rating At 12 Volts: 1.17 Amp
• Lumens: 1190 Raw Lumens
• Bulb Specifications: Lumileds Automotive Grade LED Bulb
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

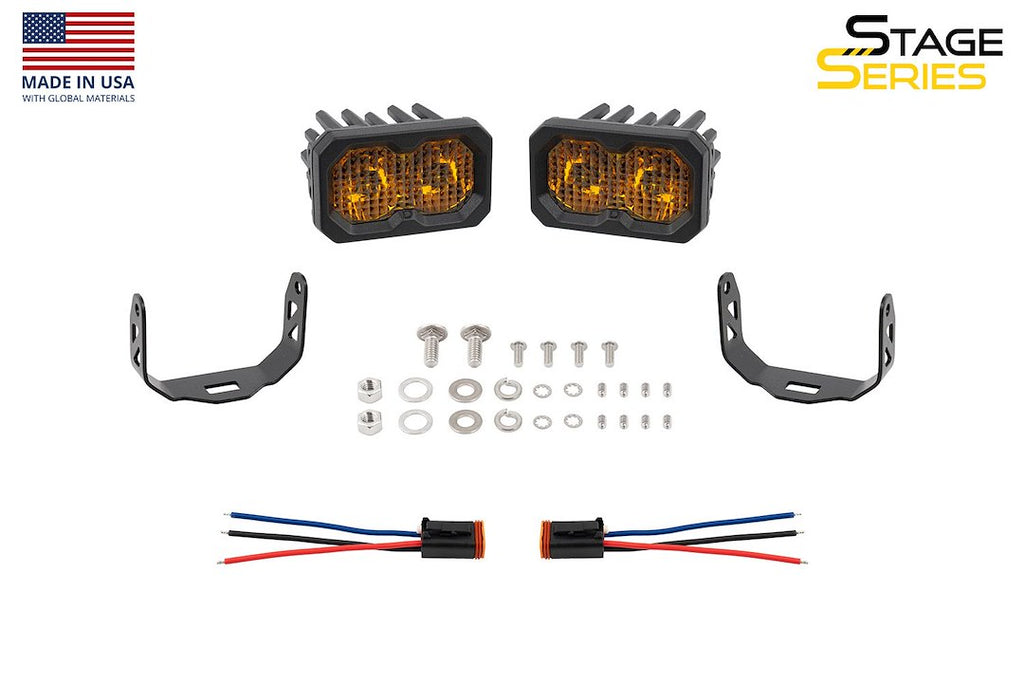

• Includes: With 2 Deutsch-Style Wire Pigtails/ 2 Mounting Brackets And Hardware
• Estimated Install Time (Hours): 1.5
