Diode Dynamics C2 2.0 Max LED Pod (MPN: DD8114P)

Compact LED lighting with high output and versatile mounting options.

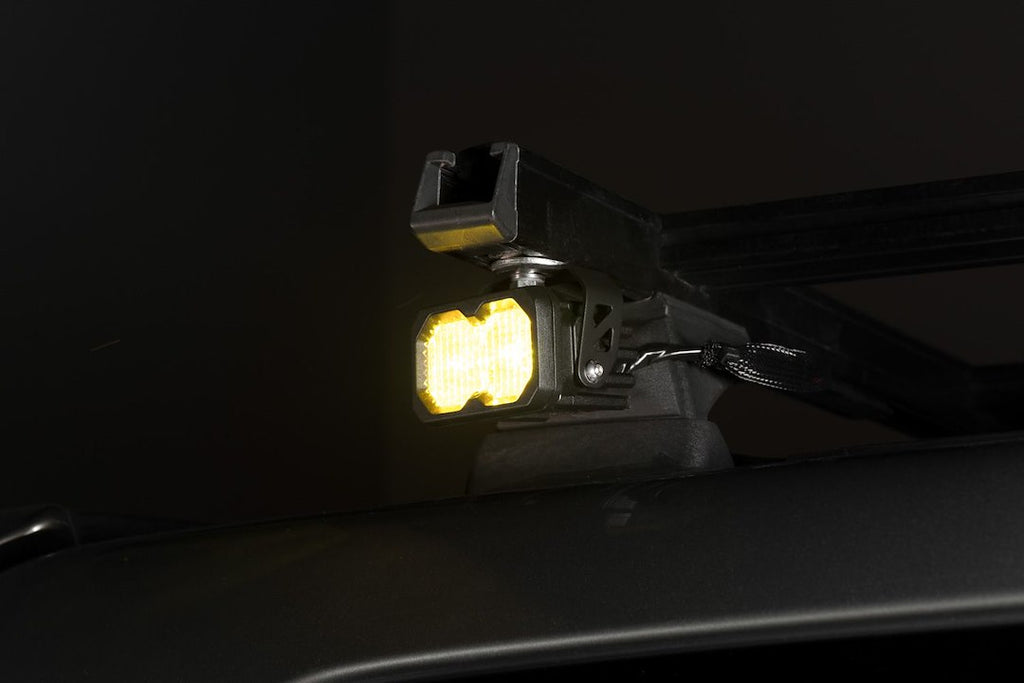

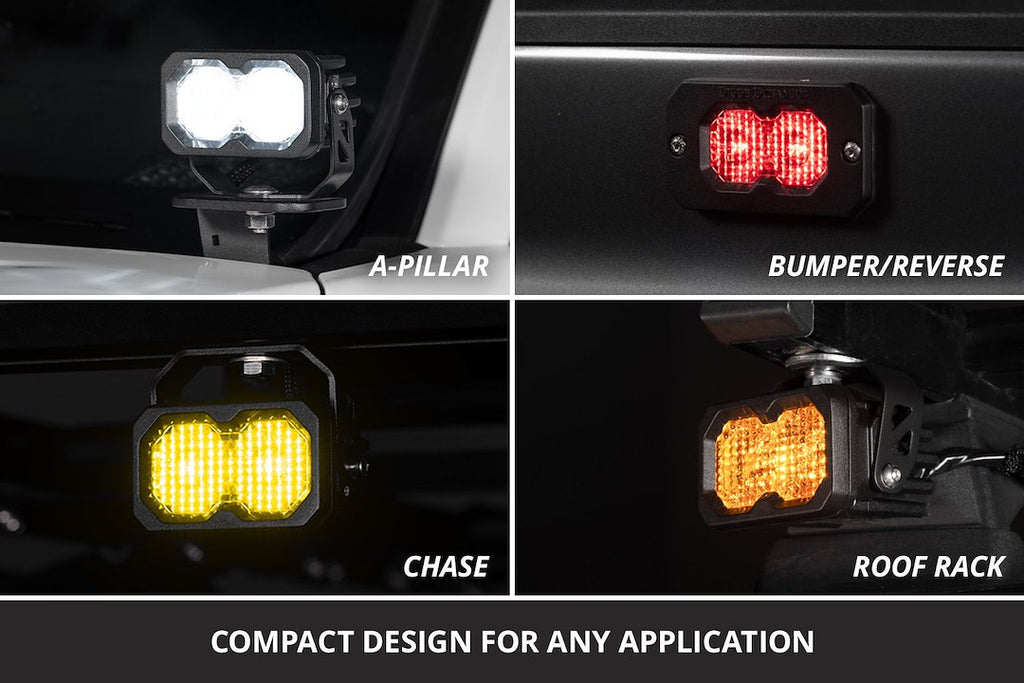

The Diode Dynamics C2 2.0 Max LED Pod represents the next generation of compact LED lighting, designed for various applications including roof racks, roll bars, and bumpers. This pod features a compact design that allows for easy installation in tight spaces while delivering impressive performance with 3960 raw lumens of brightness. The re-engineered copper-core circuit board enhances thermal efficiency, ensuring optimal performance even under demanding conditions.

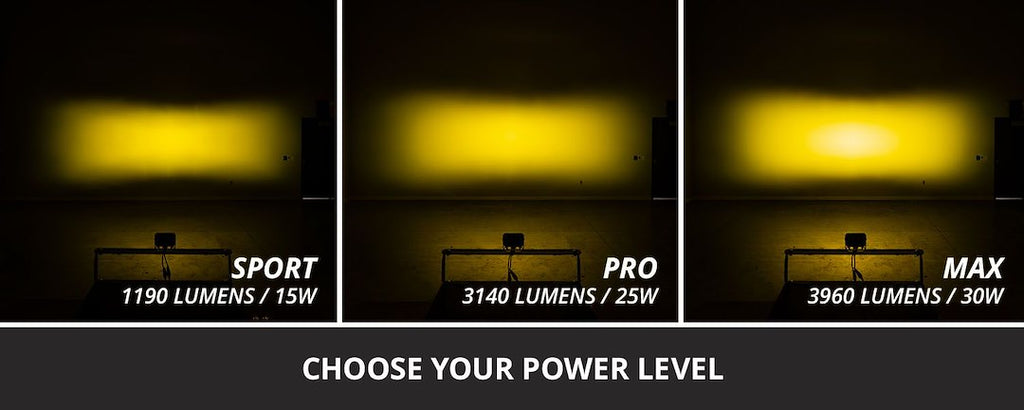

Equipped with patented TIR optics, the C2 2.0 Max maximizes light output and intensity, providing a focused beam pattern that reduces glare and improves visibility. The pod is available in multiple power levels, utilizing high-intensity automotive-grade LED emitters for superior illumination. The distinctive backlight feature adds a modern touch, serving as a low-power accent light that enhances the overall aesthetic.

Constructed with a durable black aluminum housing and a yellow polycarbonate lens, this LED pod is built to withstand the elements while maintaining high performance. The bracket mount design allows for customizable installation, making it suitable for a variety of vehicles and setups. With a power draw of 2.3 amps at 12.8 volts, the C2 2.0 Max is an efficient lighting solution for those seeking reliability and brightness in a compact form.

Features

• Ultra-Compact Design For Tight Mounting Spots
• Patented TIR Optics For Maximum Output
• Up To 95 Percent More Power Than C2 1.0
• Customizable Mounting To Dial In Your Setup
• Link Multiple Pods With Crosslink Technology
• Includes Distinctive Backlight Feature Which Serves As A Low-Power Accent Light, The Backlight Fully Illuminates The Tir Optic, Providing A Unique And Modern Look

Specifications

• Manufacturer: Diode Dynamics
• Manufacturer Part Number: DD8114P
• Shape: Rectangular
• Beam Type: Combo Beam Driving And Spot
• Diameter: Not Applicable
• Height/ Width: 2 Inch x 3.3 Inch
• Bulb Type: LED
• Light Color: Yellow
• Quantity: Set Of 2
• Universality: Semi-Universal
• Depth: 2.4 Inch
• Wattage: 30 Watt
• Voltage Rating: 9 To 30 Volt
• Mounting Style: Bracket Mount
• Ampere Rating At 12 Volts: 2.3 Amp
• Lumens: 3960 Raw Lumens
• Bulb Specifications: Osram Boost HX LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum

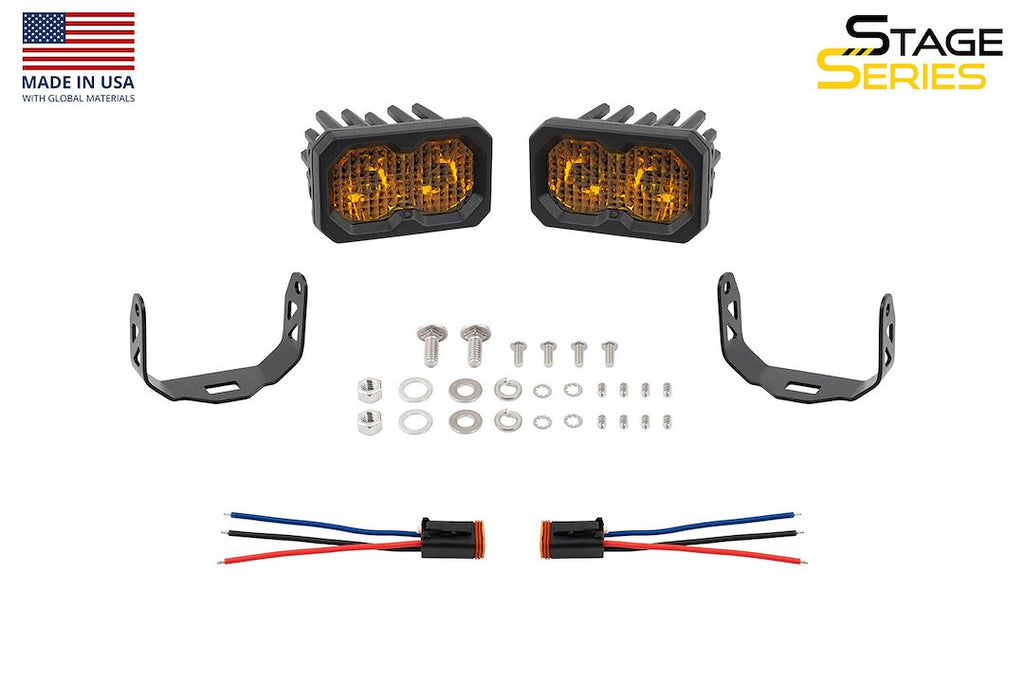

• Includes: With 2 Deutsch-Style Wire Pigtails/ 2 Mounting Brackets And Hardware
• Estimated Install Time (Hours): 1.5
