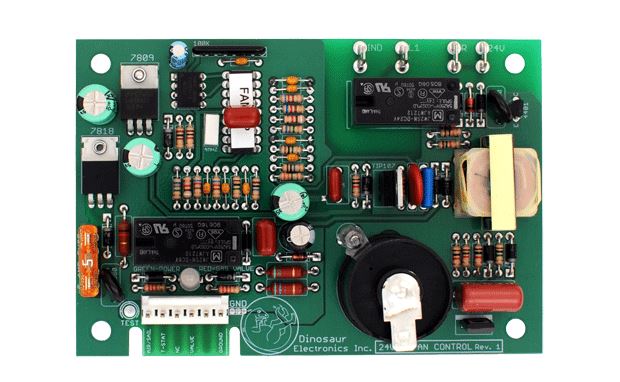

Dinosaur Electronics Ignition Control Circuit Board (MPN: 24VAC FAN BOARD)

Reliable replacement for Hydro-Flame and Suburban furnaces with advanced features.

Dinosaur Electronics offers a high-quality Ignition Control Circuit Board designed for use with Hydro-Flame and Suburban furnaces. This 24 Volt AC Fan Control Board is engineered to connect seamlessly with existing systems, ensuring compatibility with various models including Atwood and Hydro-Flame furnaces. The board features a fuse protection mechanism, enhancing safety and reliability during operation.

This control board is equipped with advanced functionality, including a shutdown feature that turns off the fan motor after a failed ignition attempt, preventing unnecessary energy consumption. After a one-hour wait, the system will attempt to reignite, requiring a reset of the thermostat if the ignition fails again. Additionally, the bi-color LED indicators provide clear visual feedback, signaling power status and operational conditions.

With dimensions of 3-7/16 inches in length and 5 inches in width, this board is compact yet powerful, designed to fit within the constraints of RV furnace systems. The protective cover ensures durability and longevity, making it a dependable choice for RV enthusiasts seeking reliable furnace operation.

Features

• The Board Is Fuse Protected
• 24 Volt AC Operation "For Park Model Furnaces"
• Shuts The Fan Motor OFF A Minute And A Half After The Third Ignition Try Fails To Sense A Flame
• Waits One Hour And Tries The Cycle Again Before Locking Out Requiring The Thermostat To Be Reset
• A Bi-Color LED Comes On "Green" After Power Appears On The "AIR" Terminal. The LED Turns "Red" When Power Is Applied To The Valve Terminal

Specifications

• Manufacturer: Dinosaur Electric
• Manufacturer Part Number: 24VAC FAN BOARD
• Compatibility: Atwood/ Hydro-Flame Furnaces 8900 I/ 8900 III LD/ AC8200
• Voltage: 24 Volt
• Length (IN): 3-7/16 Inch
• Width (IN): 5 Inch
• With Protective Cover: Yes
