Reliable 12 Volt DC ignitor board for RV furnaces and water heaters

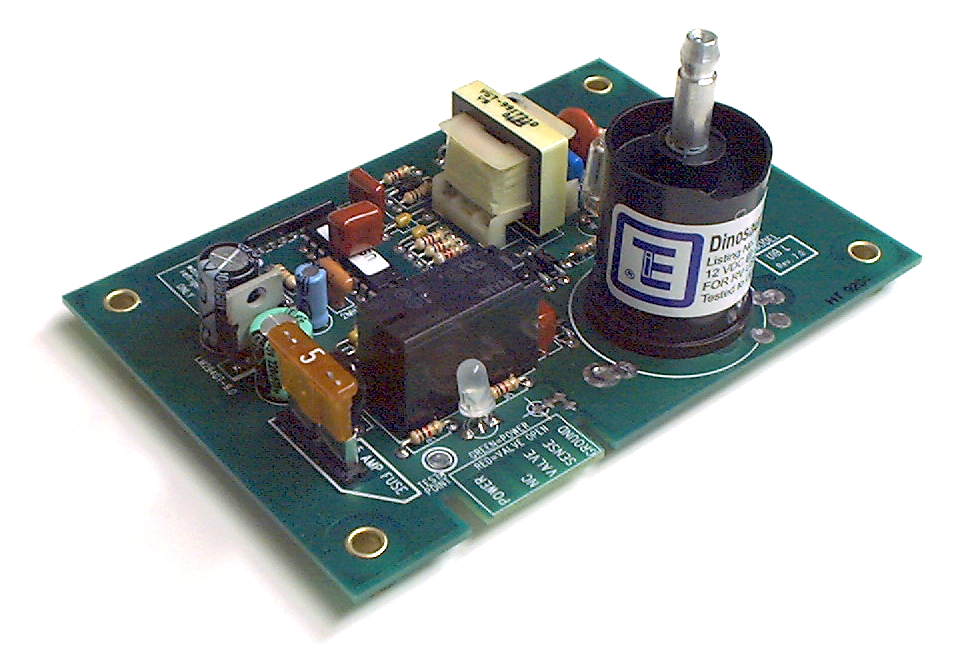

The Dinosaur Electric Ignition Control Circuit Board is designed for use in Coleman, Duo-Therm, Hydro-Flame, Suburban furnaces, and Atwood, Mor-Flo, Suburban water heaters. This universal 12 Volt DC ignitor board meets UL 372 and UL 353 specifications, ensuring compliance and safety in the RV industry. It features a compact design with dimensions of 4-1/4 inches in length and 3-1/4 inches in width, making it suitable for various installations.
Equipped with a diagnostic LED, the board provides visual feedback on power status, with green indicating power to the board and red indicating power to the valve. The board utilizes double sided-plated thru hole technology for enhanced reliability and is fused to protect against short circuits in the NC and valve circuitry. Additionally, it includes a removable jumper that allows for instant fire operation in water heaters and refrigerators, converting the board to a one-minute purge cycle between ignition tries.
This micro-controlled ignitor board is designed for durability and efficiency, making it a dependable choice for RV applications. Its features, including fuse and surge protection, ensure long-lasting performance and safety.
Features
- Universal 12 Volt DC Ignitor Boards Are Certified By Testing Engineers International To Meet UL 372 And UL 353 Specifications For Use In The RV Industry
- A Two Color LED Monitors The NC And Valve Terminals To Let You Know When There Is Power To The Board
- Micro-Controlled
- Removable Jumper For Instant Fire Operation In Water Heaters And Refrigerators
- Fuse And Surge Protected
- Use Double Sided-Plated Thru Hole Technology For Added Reliability
Specifications
- Manufacturer: Dinosaur Electric
- Manufacturer Part Number: UIB L POST
- Compatibility: Suburban Furnaces NT16FC/ NT22FCD/ NT30SP
- Voltage: 12 Volt
- Length (IN): 4-1/4 Inch
- Width (IN): 3-1/4 Inch
- With Protective Cover: Yes
