Reliable 12 Volt DC ignitor board for RV furnaces and water heaters

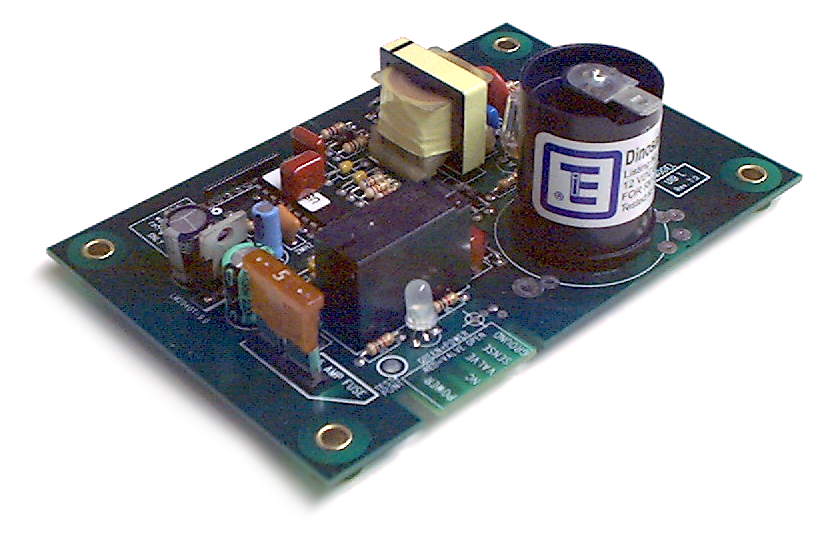

The Dinosaur Electric Ignition Control Circuit Board is designed for use in various RV furnaces and water heaters, including models from Coleman, Duo-Therm, Hydro-Flame, Atwood, and Mor-Flo. This universal 12 Volt DC ignitor board is certified by Testing Engineers International to meet UL 372 and UL 353 specifications, ensuring safety and reliability in the RV industry. It features a two-color LED that indicates power status, with green signaling power to the board and red indicating power to the valve.
Constructed with double sided-plated thru hole technology, this ignitor board offers enhanced reliability and is equipped with fuse and surge protection to prevent damage from short circuits. The board includes a removable jumper that allows for instant fire operation in water heaters and refrigerators, providing flexibility in its application. With a compact size of 5.10 inches in length and 3.43 inches in width, it is designed for convenient installation in various RV systems.
This delayed 3-try ignitor board incorporates a 20-second purge cycle and local flame sensing, making it a robust solution for ignition control. The design also includes a post for convenience, allowing for easy connection to spark plug tops. The protective cover is available to enhance durability and safety during operation.
Features
- Universal 12 Volt DC Ignitor Boards Are Certified By Testing Engineers International To Meet UL 372 And UL 353 Specifications For Use In The RV Industry
- A Two Color LED Monitors The NC And Valve Terminals To Let You Know When There Is Power To The Board
- Micro-Controlled
- Removable Jumper For Instant Fire Operation In Water Heaters And Refrigerators
- Fuse And Surge Protected
- Post For Convenience (Spark Plug Top). Protective Cover Available
- Use Double Sided-Plated Thru Hole Technology For Added Reliability
Specifications
- Manufacturer: Dinosaur Electric
- Manufacturer Part Number: UIB L
- Compatibility: Suburban Furnaces NT16FC/ NT22FCD/ NT30SP
- Voltage: 12 Volt
- Length (IN): 5 Inch
- Width (IN): 3-7/16 Inch
- With Protective Cover: Yes
