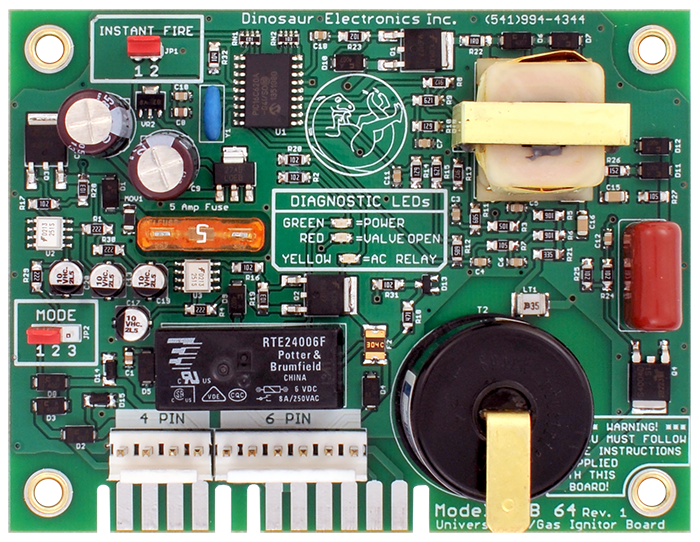

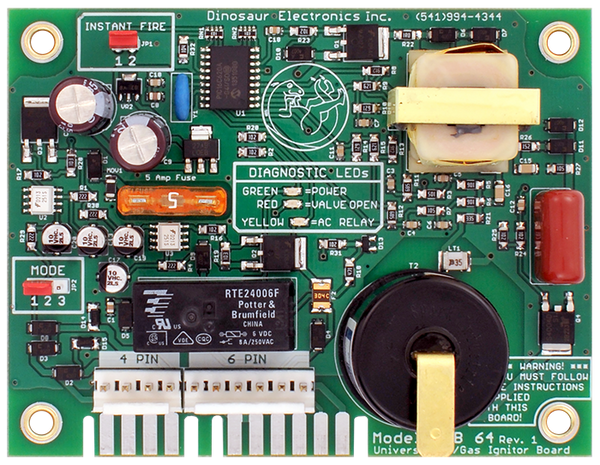

Dinosaur Electric Ignition Control Circuit Board (MPN: UIB 64)

Versatile ignitor board for Atwood water heaters and more.

The Dinosaur Electric Ignition Control Circuit Board is designed for use in Atwood AC/Gas water heaters featuring both 4 position and 6 position edge style connectors, as well as the 10 pin style connector found in newer models. This board is also adaptable for older furnaces, water heaters, and refrigerators that utilize a standard igniter board with a 6 position connector by adjusting the jumpers on the board. Operating at 12 volts DC, it ensures reliable ignition in various applications.

This ignitor board is TEI certified and includes features such as fuse and surge protection, enhancing its durability and safety during operation. It is equipped with three diagnostic LEDs that provide visual feedback for troubleshooting and monitoring purposes. The jumper configurable design allows for universal applications, making it a flexible solution for a range of heating and refrigeration systems.

With its compact dimensions of 4-1/4 inches in length and 3-1/4 inches in width, the Dinosaur Electric Ignition Control Circuit Board is engineered for easy installation and compatibility with multiple models. This board is an essential component for maintaining efficient operation in Atwood water heaters and other compatible appliances.

Features

• TEI Certified
• 12 Volt DC Operation
• Jumper Configurable For Universal Applications
• Fuse And Surge Protected
• 3 Diagnostic LEDs
• By Resetting The Jumpers It Can Function Like A UIB S Ignitor Board So It Can Be Configured To Replace Standard DSI Ignitor Boards That Use A Single 6 Position Connector

Specifications

• Manufacturer: Dinosaur Electric
• Manufacturer Part Number: UIB 64
• Compatibility: Atwood Water Heaters GCH6A-10E/ GC6AA-10E/ GC10A-4E/ GCH10A-4E/ GCH10A-4E
• Voltage: 12 Volt
• Length (IN): 4-1/4 Inch
• Width (IN): 3-1/4 Inch

Technical Documents

• UIB_64_inst.pdf
