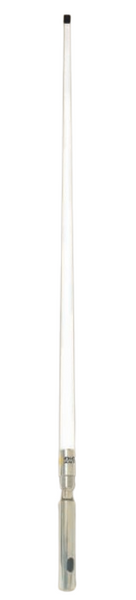

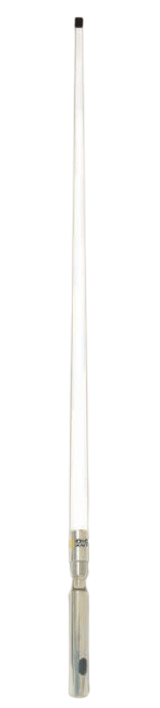

Digital Antenna Cellular Antenna (MPN: 869-CW-S)

Enhance marine cellular connectivity with multi-band performance.

Digital Antenna's cellular antenna is engineered for marine applications, providing reliable connectivity for yachts, speedboats, sailboats, and commercial vessels. This antenna operates across multiple frequency bands including 850, 900, 1700, 1800, 1900, and 2100 MHz, ensuring compatibility with various cellular systems, including 3G and WCDMA technology. With a robust 9 dB gain and an 8-foot length, it is designed to improve signal strength and extend cellular range significantly.

Constructed with high-quality materials, the antenna features a high gloss polyurethane finish and a durable stainless steel ferrule, ensuring longevity and resistance to marine environments. The omni-directional design allows for 360-degree signal reception, making it suitable for various mounting options, including pole and wall mounts. Each unit is meticulously assembled and tested in the USA, guaranteeing optimal performance and reliability.

For enhanced performance, this antenna can be paired with Digital Antenna's PowerLogic cellular amplifiers, extending the cellular range up to 50 miles. The antenna's design includes powerful brass radiators and soldered connections, ensuring efficient signal transmission. With its universal compatibility and professional-grade construction, this antenna is a valuable addition to any marine communication setup.

Features

• Powerful Brass Radiators
• Soldered Connections
• Power Directing Ferrite Choke Bead
• High Gloss Urethane Finish
• 316 Stainless Steel Ferrule
• Mount: Stainless Steel Double Female Ferrule For Mounting 1 Inch To 14 Threaded Base
• Connector: Highest Quality Type N Female

Specifications

• Manufacturer: Digital Antenna
• Manufacturer Part Number: 869-CW-S
• Recommended Use: Marine
• Frequency Range: 850/ 900/ 1700/ 1800/ 1900/ 2100 MHz Multi Band
• Gain: 9 dB
• Length: 96 Inch
• Universality: Fully Universal
• Power: 250 Watt
• Direction: Omni-Directional
• Impedance: 50 Ohm
• Finish: High Gloss Polyurethane
• Color: White
• Material: Stainless Steel Ferrule
• Mounting Style: Pole/ Wall Mount
• Includes: With Stainless Steel Double Female Ferrule And Type N Female Connector

Technical Documents

• DA_GlobalCellAntennas.pdf
