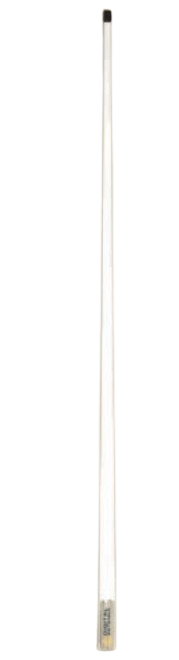

Digital Antenna 500 GOLD Series AM FM Antenna (MPN: 538-AW-S)

Experience superior reception with a durable, multi-functional antenna solution.

The Digital Antenna 500 GOLD Series AM FM Antenna is engineered for optimal performance in onboard entertainment systems. With a length of 8 feet and a gain of 9 dB, this antenna is designed to provide exceptional reception for AM, FM, cellular, and PCS signals. Its omni-directional design ensures reliable signal capture from all directions, making it a versatile choice for various applications.

Constructed with high-quality materials, the antenna features a high-gloss urethane finish and 316 grade stainless steel ferrules, ensuring durability and resistance to harsh marine environments. The antenna is equipped with soldered connections for enhanced reliability and comes with a 15-foot RG-8X low-loss cable that is UV stable and shielded for optimal performance.

Installation is straightforward with a standard 1 inch to 14 threaded base mount, allowing for easy integration into existing setups. The Digital Antenna 500 GOLD Series is compatible with 529-VW/529-VB 8 foot VHF radio antennas and 567-CW/567-CB 8 foot cellular antennas, making it a semi-universal solution for various marine and mobile applications.

Features

• Soldered Connections
• High Gloss Urethane Finish
• 316 Stainless Steel Ferrule
• Mount: Standard 1 Inch To 14 Threaded Base
• Connector: Unattached Motorola Type Plug
• Features 15 Feet Exclusive Low-Loss, Tinned Braid, Foil Shielded, UV Stable Marine Cable

Specifications

• Manufacturer: Digital Antenna
• Manufacturer Part Number: 538-AW-S
• Compatibility: 529-VW/ 529-VB 8 Foot VHF Radio Antenna And 567-CW/ 567-CB 8 Foot Cellular Antenna
• Universality: Semi-Universal
• Size: 96 Inch Length
• Direction: Omni-Directional
• Mounting Location: Base Mount
• Cable Length: 15 Feet
• Color/ Finish: White Gloss
• Material: Stainless Steel

Technical Documents

• DA_AMFMAntennas.pdf
