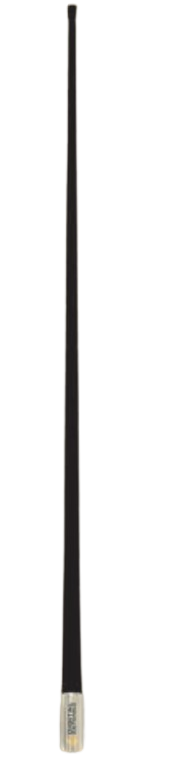

Digital Antenna 500 GOLD Series AM FM Antenna (MPN: 538-AB-S)

Experience superior reception with a durable, multi-functional antenna.

The Digital Antenna 500 GOLD Series AM FM Antenna is engineered for optimal performance in onboard entertainment systems. With a length of 8 feet and a gain of 9 dB, this antenna provides exceptional reception for AM, FM, cellular, and PCS signals. Its omni-directional design ensures reliable signal capture from all directions, making it a versatile choice for various applications.

Constructed with high-quality materials, the antenna features a high-gloss urethane finish and 316 grade stainless steel ferrules, ensuring durability and resistance to harsh marine environments. The soldered connections enhance reliability, while the standard 1 inch to 14 threaded base mount allows for easy installation. The included 15-foot RG-8X cable is designed for low-loss transmission, further improving signal clarity.

This antenna is compatible with the 529-VW/529-VB 8 foot VHF radio antennas and the 567-CW/567-CB 8 foot cellular antennas, making it a semi-universal solution for various setups. With a 50 Ohm impedance and a maximum input power of 250 watts, it meets the demands of modern communication systems.

Features

• Soldered Connections
• High Gloss Urethane Finish
• 316 Stainless Steel Ferrule
• Mount: Standard 1 Inch To 14 Threaded Base
• Connector: Unattached Motorola Type Plug
• Features 15 Feet Exclusive Low-Loss, Tinned Braid, Foil Shielded, UV Stable Marine Cable

Specifications

• Manufacturer: Digital Antenna
• Manufacturer Part Number: 538-AB-S
• Compatibility: 529-VW/ 529-VB 8 Foot VHF Radio Antenna And 567-CW/ 567-CB 8 Foot Cellular Antenna
• Universality: Semi-Universal
• Size: 96 Inch Length
• Direction: Omni-Directional
• Mounting Location: Base Mount
• Cable Length: 15 Feet
• Color/ Finish: White Gloss
• Material: Stainless Steel

Technical Documents

• DA_AMFMAntennas.pdf
