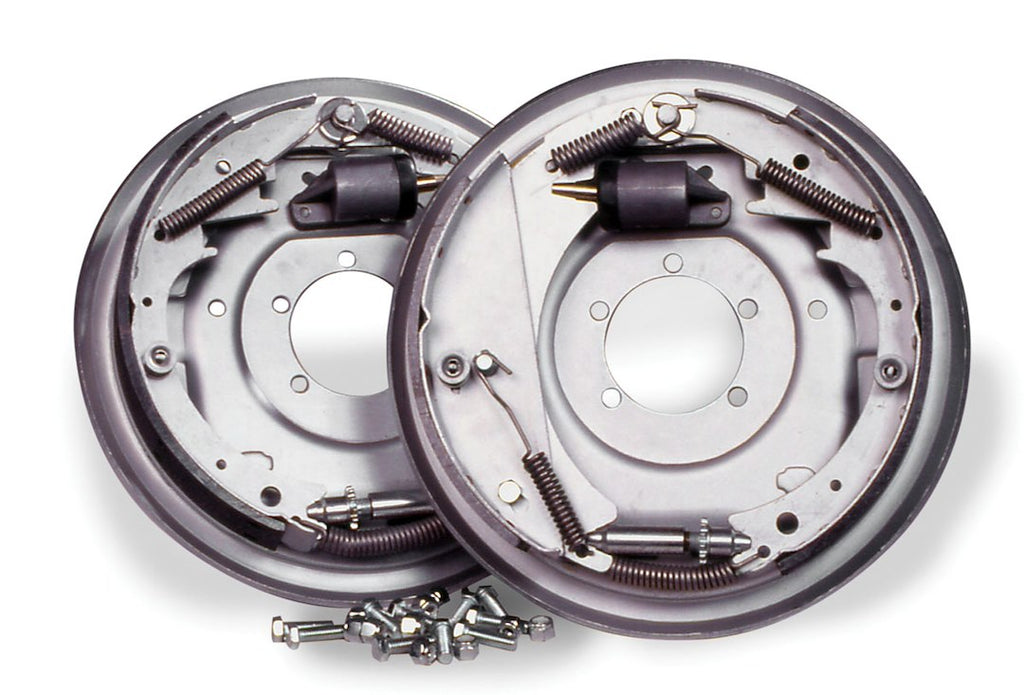

Dexter Marine Trailer Brake Assembly (MPN: 81097)

High-performance hydraulic drum brakes for reliable stopping power.

The Dexter Marine Trailer Brake Assembly features a robust 10-inch diameter design, specifically engineered for hydraulic braking systems. This assembly includes both left and right components, ensuring balanced performance across your trailer. Constructed with a GalvX coating, it offers superior resistance to saltwater corrosion, making it suitable for marine environments and enhancing durability over standard drum brakes.

Each brake pad is securely bonded and fastened with bronze rivets to the backing plate, ensuring longevity and consistent performance. The assembly is ISO 9001 certified, reflecting Dexter Group's commitment to high-quality manufacturing standards. This product is designed to meet the needs of various trailer applications, including RV, military, and cargo trailers, providing reliable stopping power and safety.

With an estimated installation time of just one hour, this brake assembly is user-friendly and efficient. It includes essential components such as backing plates, brake shoes, actuating levers, adjusting screws, and spring hardware, making it a comprehensive solution for your trailer braking needs.

Features

• GalvX Coating Offers Superior Saltwater Performance Over Standard Drum Brake
• Brake Pads Are Bonded And Fastened With Bronze Rivets To Backing Plate
• Dexter Provides High Quality Products
• ISO 9001 Certified

Specifications

• Manufacturer: Dexter Marine
• Manufacturer Part Number: 81097
• Diameter: 10 Inch
• Width: 2-1/4 Inch
• Brake System: Hydraulic
• Brake Type: Drum
• Position: Left And Right
• Includes Backing Plate: Yes
• Includes Brake Shoes: Yes
• Includes Magnets: No
• Includes Actuating Lever: Yes
• Includes Adjusting Screw: Yes
• Includes Spring Hardware: Yes
• Estimated Install Time (Hours): 1
