Efficient drum brake actuator for reliable towing performance.

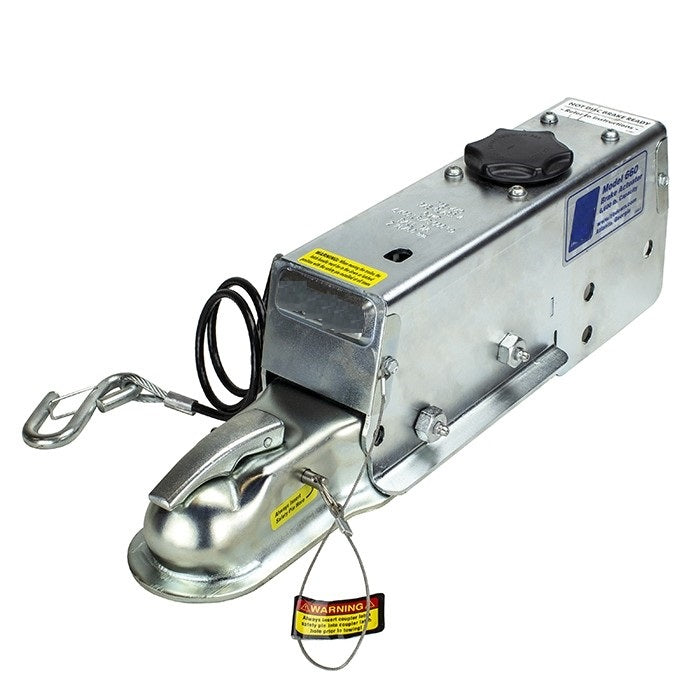

The Dexter Marine Trailer Brake Actuator Model 660 is designed for use with drum brakes and supports a gross vehicle weight rating of 6600 pounds. This actuator features a robust steel construction, ensuring durability and reliability during towing operations. It is equipped with a 2 inch ball coupler and mounts easily to a 3 inch tongue, making installation straightforward and efficient.
The Drop N Go Auto Latch Coupler simplifies the connection process by automatically latching onto the hitch ball with minimal effort. The integrated solenoid plumbing within the master cylinder allows for easy servicing without the need to remove the entire solenoid or detach the brake hose. Additional features include a cast steel ball clamp, grease fittings on the roller pin, and a safety pin that secures the ball clamp.
This actuator also includes a coiled E-stop cable that is PVC coated for added protection. With a polished finish and a silver color, it not only performs well but also maintains a clean appearance. The Dexter Marine Trailer Brake Actuator is a reliable choice for those needing a sturdy and efficient braking solution for their trailers.
Features
- Cast Steel Ball Clamp
- Grease Fittings On Roller Pin
- Safety Pin That Locks The Ball Clamp, Not The Latch Handle
- Coiled E-Stop Cable, PVC Coated
- 2 Inch Ball Size
Specifications
- Manufacturer: Dexter Marine
- Manufacturer Part Number: 82401
- Compatibility: 3 Inch Wide Tongue
- Used With: Drum Brake
- Gross Vehicle Weight (LB): 6600 Pound
- Tongue Weight (LB): 660 Pound
- Finish: Polished
- Color: Silver
- Material: Steel
- Mounting Type: Bolt-On
- With Coupler: Yes
- With Lockout: Yes
- With Mounting Hardware: Yes
