Reliable electric drum brakes for enhanced towing safety and performance.

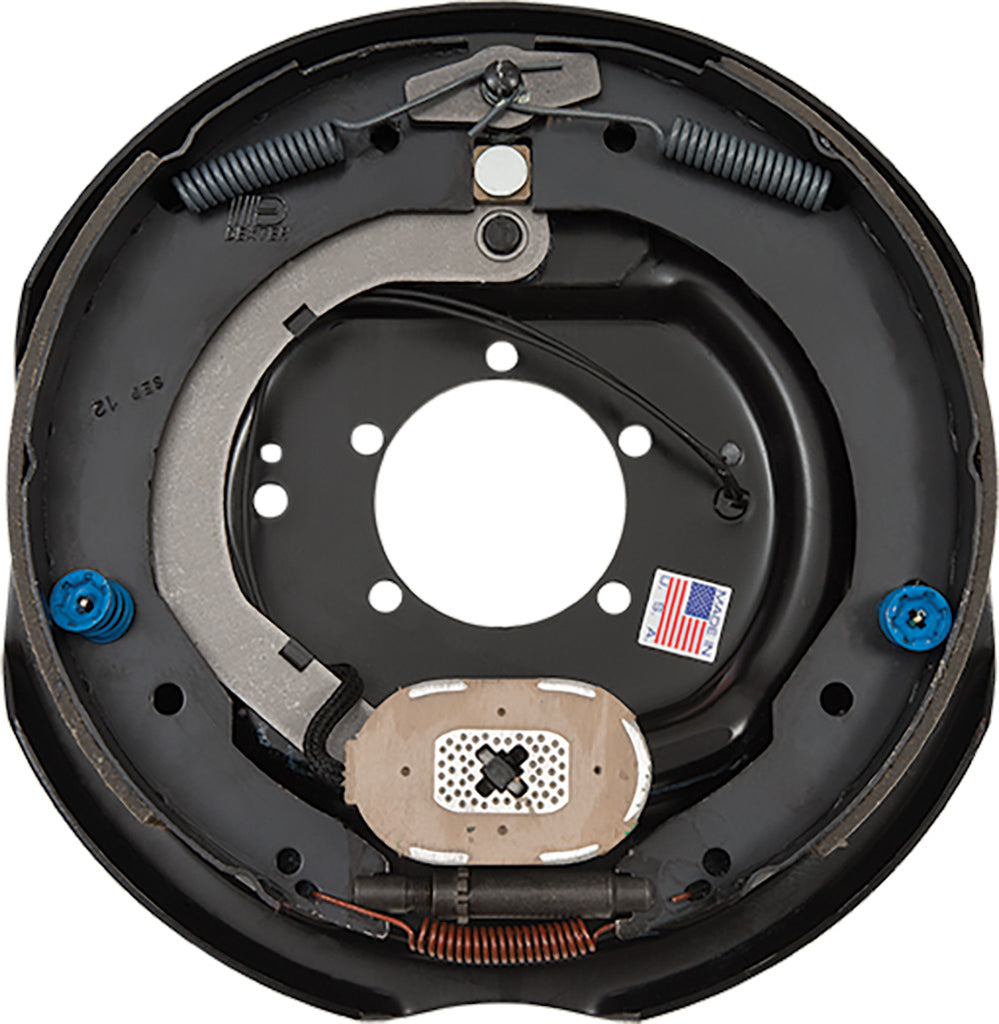

The Dexter Electric Trailer Brake Assembly is designed for 12 inch diameter and 2 inch width applications, providing a robust braking solution for trailers with a 7000 pound axle capacity. This electric brake system operates similarly to automotive drum brakes, utilizing an electromagnet for actuation, which ensures a responsive braking experience. The assembly features manual adjustment capabilities at the controller, allowing for precise braking performance tailored to varying road and load conditions.
With minimal lag time between the tow vehicle's brake activation and the trailer's response, this system enhances safety during towing. In emergency situations, the electric brakes can function independently of the tow vehicle, offering additional stopping power when needed. The assembly includes essential components such as backing plates, brake shoes, magnets, and actuating levers, ensuring a comprehensive solution for trailer braking needs.
Features
- Manually Adjusted At The Controller To Provide The Correct Braking Capability For Varying Road And Load Conditions
- Modulated To Provide More Or Less Braking Force, Thus Easing The Brake Load On The Towing Vehicle
- They Have Very Little Lag Time From The Moment The Tow Vehicle's Brakes Are Actuated Until The Trailer Brakes Are Actuated
- In An Emergency Situation, They Can Provide Some Braking Independent Of The Tow Vehicle
Specifications
- Manufacturer: Dexter Axle
- Manufacturer Part Number: 023-180-00
- Diameter: 12 Inch
- Width: 2 Inch
- Brake System: Electric
- Brake Type: Drum
- Axle Weight Capacity: 7000 Pound
- Position: Left
- Includes Backing Plate: Yes
- Includes Brake Shoes: Yes
- Includes Magnets: Yes
- Includes Actuating Lever: Yes
- Includes Adjusting Screw: No
- Includes Spring Hardware: Yes
- Estimated Install Time (Hours): 0.5
Technical Documents
- LDServiceOnline.pdf
- dexter-limited-warranty-lit-400-00.pdf
- dexter-limited-warranty-lit-400-00.pdf
- NevRAdjust(1).pdf
