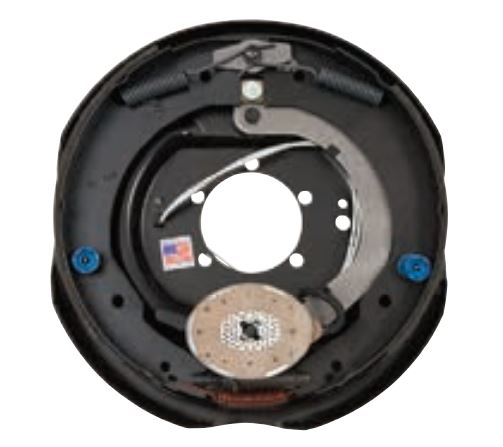

Dexter Electric Trailer Brake Assembly (MPN: 023-106-09)

Reliable electric drum brakes for enhanced towing safety and performance.

The Dexter Electric Trailer Brake Assembly is designed for trailers with a 6000 pound axle capacity, featuring a 12 inch diameter and 2 inch width. This electric brake system operates similarly to automotive drum brakes, utilizing an electromagnet for actuation instead of hydraulic pressure. This design allows for precise control and modulation of braking force, adapting to varying road and load conditions effectively.

The assembly includes essential components such as backing plates, brake shoes, magnets, actuating levers, adjusting screws, and spring hardware, ensuring a comprehensive solution for trailer braking needs. With minimal lag time between the tow vehicle's brake application and the trailer's response, this system enhances safety during towing. In emergency situations, the electric brakes can provide independent braking, further improving control and stability while on the road.

Features

• Manually Adjusted At The Controller To Provide The Correct Braking Capability For Varying Road And Load Conditions
• Modulated To Provide More Or Less Braking Force, Thus Easing The Brake Load On The Towing Vehicle
• Features Very Little Lag Time From The Moment The Tow Vehicle's Brakes Are Actuated Until The Trailer Brakes Are Actuated
• In An Emergency Situation, They Can Provide Some Braking Independent Of The Tow Vehicle

Specifications

• Manufacturer: Dexter Axle
• Manufacturer Part Number: 023-106-09
• Diameter: 12 Inch
• Width: 2 Inch
• Brake System: Electric
• Brake Type: Drum
• Axle Weight Capacity: 6000 Pound
• Position: Right
• Includes Backing Plate: Yes
• Includes Brake Shoes: Yes
• Includes Magnets: Yes
• Includes Actuating Lever: Yes
• Includes Adjusting Screw: Yes
• Includes Spring Hardware: Yes
• Estimated Install Time (Hours): 0.5

Technical Documents

• Dexter_Product_Bulletin_413.pdf
