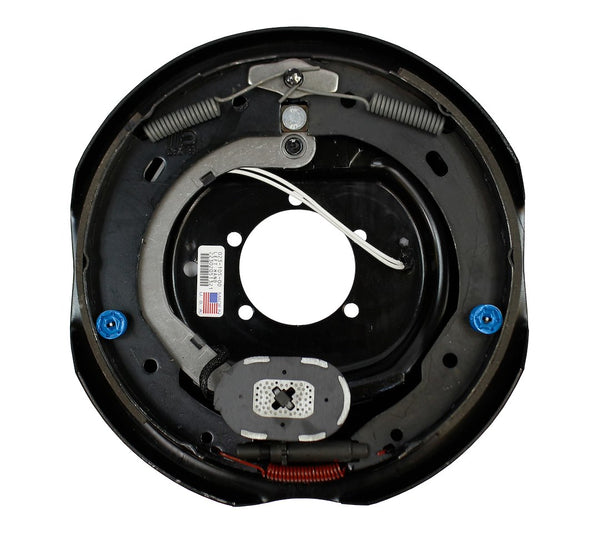

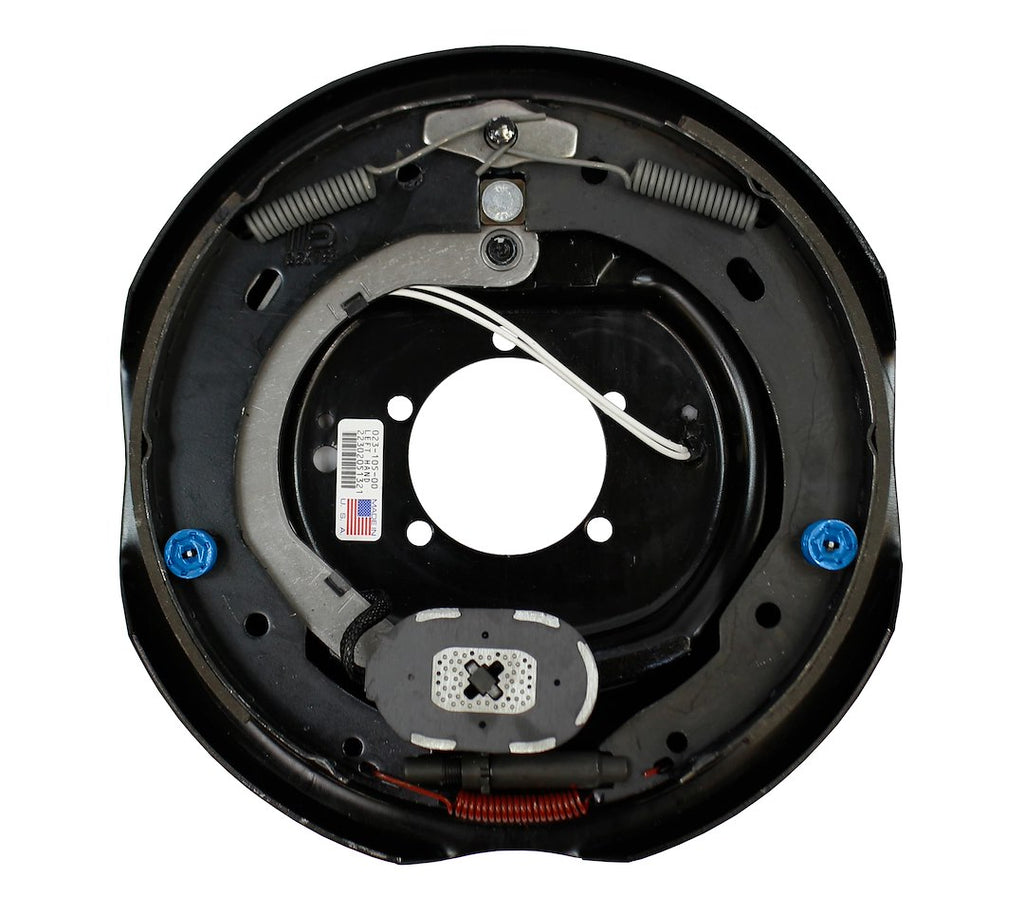

Dexter Electric Trailer Brake Assembly (MPN: 023-105-00)

Reliable electric drum brake system for enhanced towing safety and performance.

The Dexter Electric Trailer Brake Assembly is designed to provide efficient braking for trailers with a 5200 pound axle capacity. This assembly features a 12 inch diameter and 2 inch width drum brake type, ensuring compatibility with various trailer setups. The electric brake system operates using an electromagnet, which allows for quick and responsive braking, similar to automotive drum brakes but tailored for trailer applications.

This brake assembly is manually adjustable at the controller, allowing users to fine-tune the braking capability based on varying road and load conditions. The system is engineered to minimize lag time between the tow vehicle's brake actuation and the trailer's response, enhancing overall safety during towing. In emergency situations, the electric brakes can provide independent braking, offering an additional layer of security.

Included with the assembly are essential components such as the backing plate, brake shoes, magnets, and actuating lever, ensuring a comprehensive solution for trailer braking needs. The installation process is straightforward, with an estimated time of just half an hour, making it accessible for users looking to enhance their trailer's braking system.

Features

• Manually Adjusted At The Controller To Provide The Correct Braking Capability For Varying Road And Load Conditions
• Modulated To Provide More Or Less Braking Force, Thus Easing The Brake Load On The Towing Vehicle
• They Have Very Little Lag Time From The Moment The Tow Vehicle's Brakes Are Actuated Until The Trailer Brakes Are Actuated
• In An Emergency Situation, They Can Provide Some Braking Independent Of The Tow Vehicle

Specifications

• Manufacturer: Dexter Axle
• Manufacturer Part Number: 023-105-00
• Diameter: 12 Inch
• Width: 2 Inch
• Brake System: Electric
• Brake Type: Drum
• Axle Weight Capacity: 5200 Pound
• Position: Left
• Includes Backing Plate: Yes
• Includes Brake Shoes: Yes
• Includes Magnets: Yes
• Includes Actuating Lever: Yes
• Includes Adjusting Screw: No
• Includes Spring Hardware: Yes
• Estimated Install Time (Hours): 0.5

Technical Documents

• LDServiceOnline.pdf
• dexter-limited-warranty-lit-400-00.pdf
• dexter-limited-warranty-lit-400-00.pdf
• NevRAdjust(1).pdf
