Derale Tornado Electric Cooling Fan (MPN: 16626)

High performance 16 inch fan with efficient airflow and quiet operation.

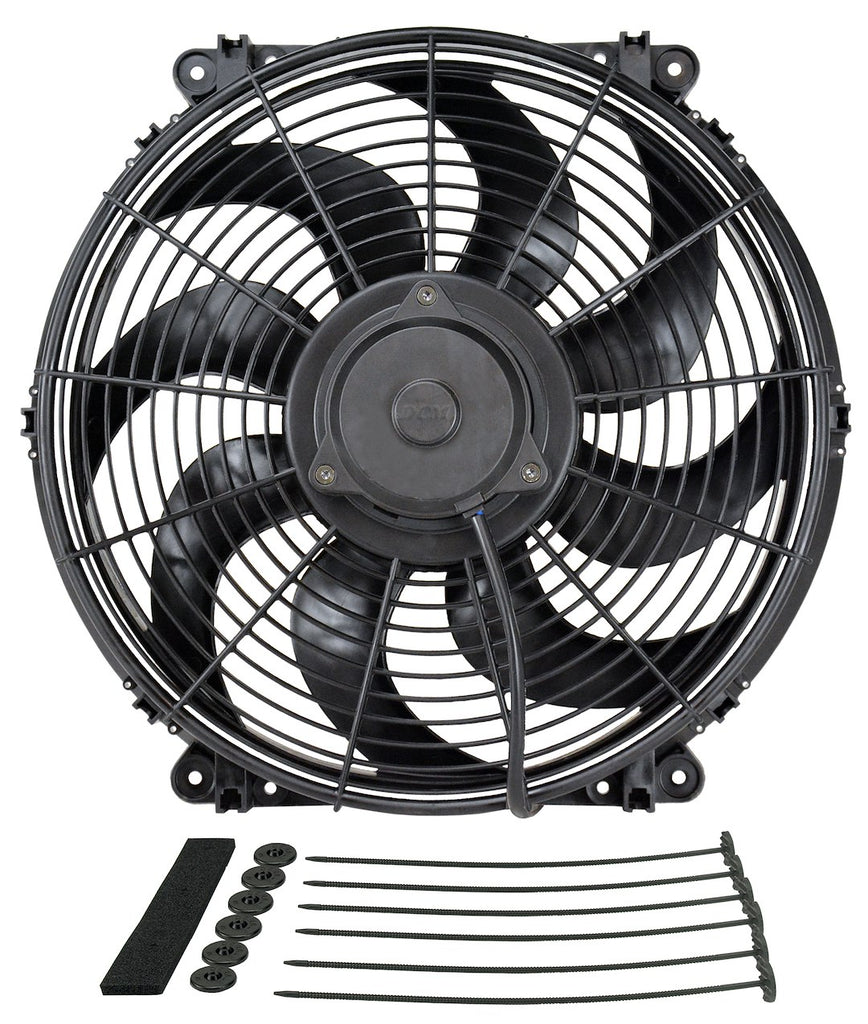

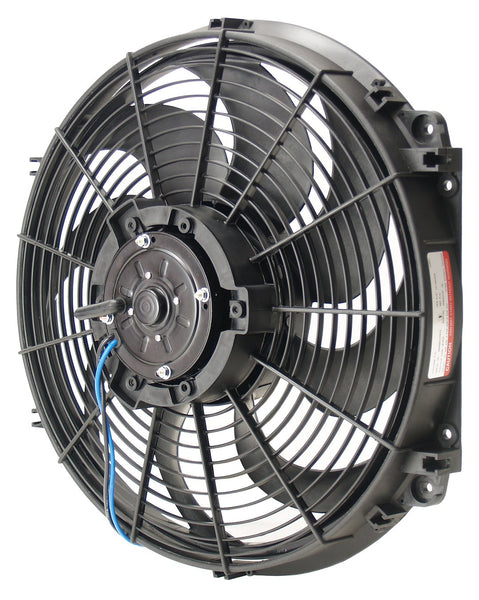

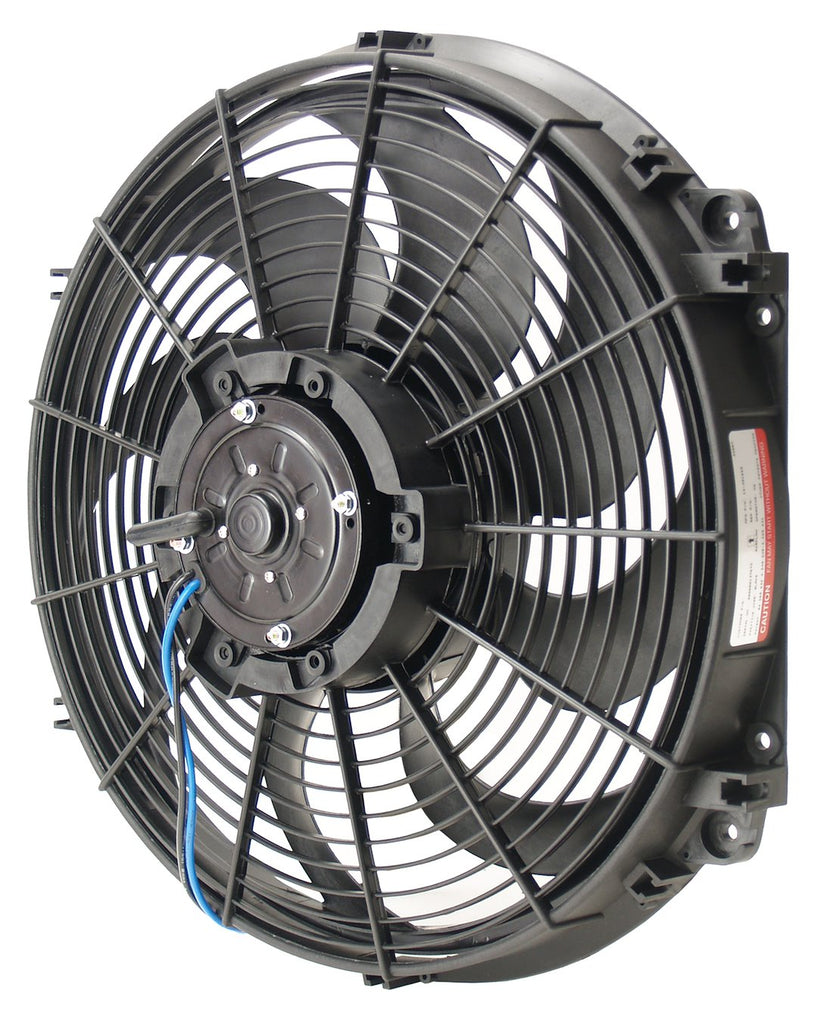

The Derale Tornado Electric Cooling Fan features a robust 16 inch diameter design equipped with 8 skewed blades, delivering an impressive airflow of 2175 Cubic Feet Per Minute at zero static pressure. This fan operates with a high torque 225 Watt motor that draws only 18.4 Amperes, ensuring efficient energy use while maintaining a quiet performance. The reversible design allows for versatile installation as either a pusher or puller, making it suitable for various cooling applications.

Included with the fan is a complete hardware kit along with illustrated installation instructions, facilitating a straightforward setup process. The fan's construction includes durable plastic blades that are designed for longevity and effective airflow management. With a maximum RPM of 1680, this fan is engineered to provide reliable cooling in demanding environments.

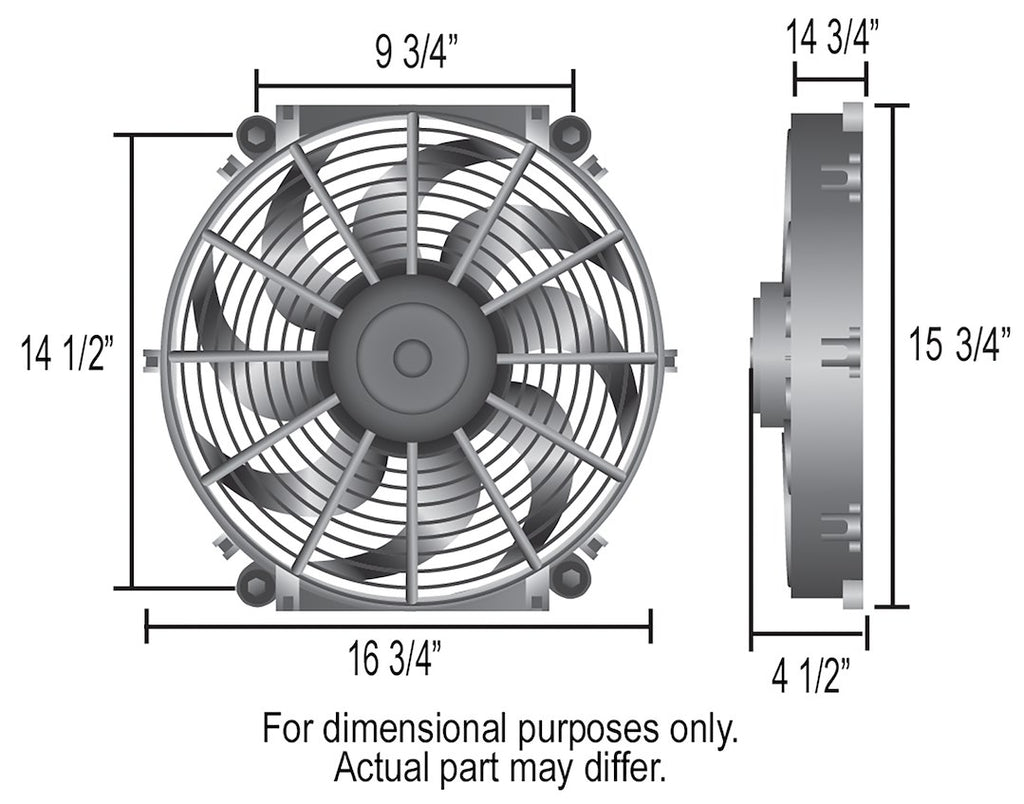

The absence of a shroud allows for flexible mounting options, and the fan's compact dimensions of 16-3/4 inches in width, 15-3/4 inches in height, and 4-1/8 inches in depth make it adaptable to various spaces. The Derale Tornado Electric Cooling Fan is an essential component for enhancing airflow and cooling efficiency in automotive and industrial applications.

Features

• Reliable, Efficient, High Torque Motors
• Ultra Quiet Patented Skewed Blade Design
• Reversible Design Can Be Used As A Pusher Or Puller
• Complete Hardware Kit Included

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 16626
• Condition: New
• Type: Electric
• Diameter: 16 Inch
• Height: 15-3/4 Inch
• Width: 16-3/4 Inch
• Depth: 4-1/8 Inch
• Maximum CFM: 2175 Cubic Feet Per Minute
• Maximum RPM: 1680 RPM
• Rotation Direction: Pusher/ Puller
• Controller Type: No Controller
• Amperage Draw: 18.4 Amp
• Number Of Blades: 8
• Blade Color: Black
• Blade Material: Plastic
• Shroud Material: No Shroud

Technical Documents

• 16626.pdf

Product Videos
