Efficient cooling solution for engine and transmission fluids

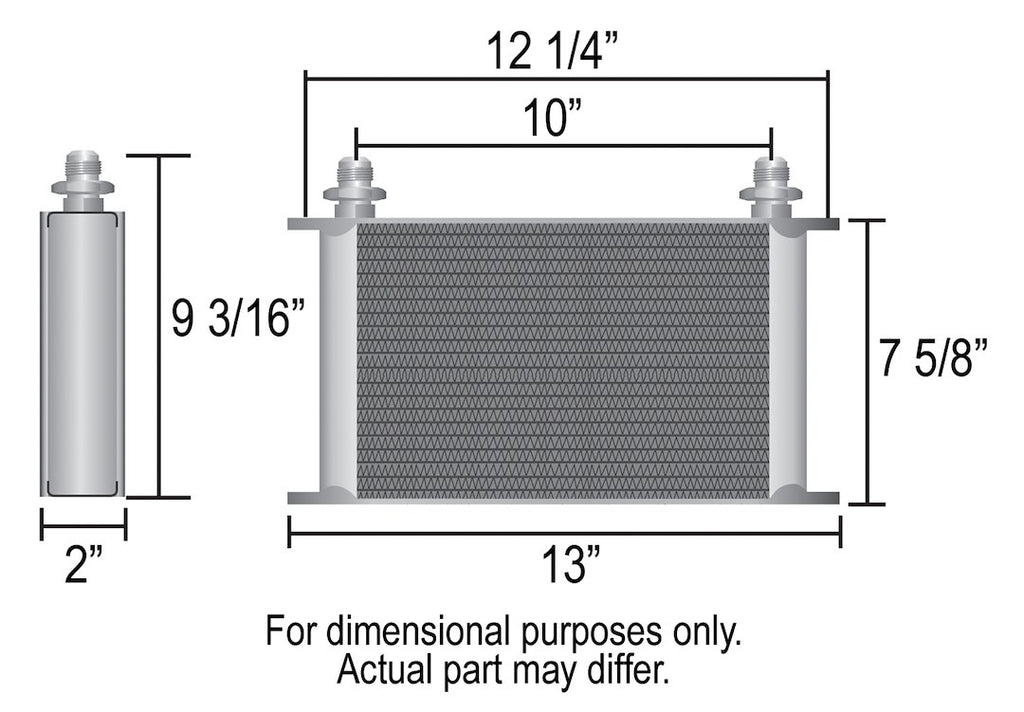

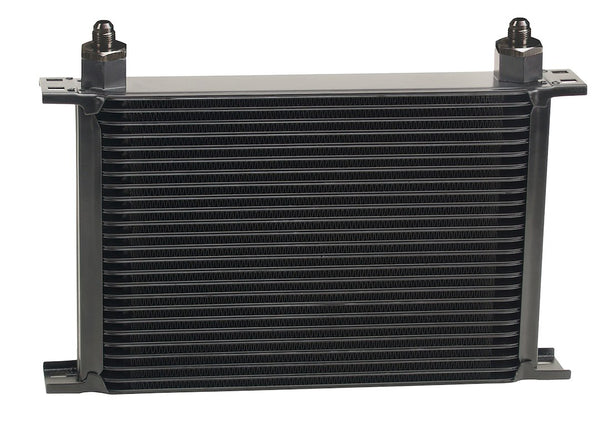

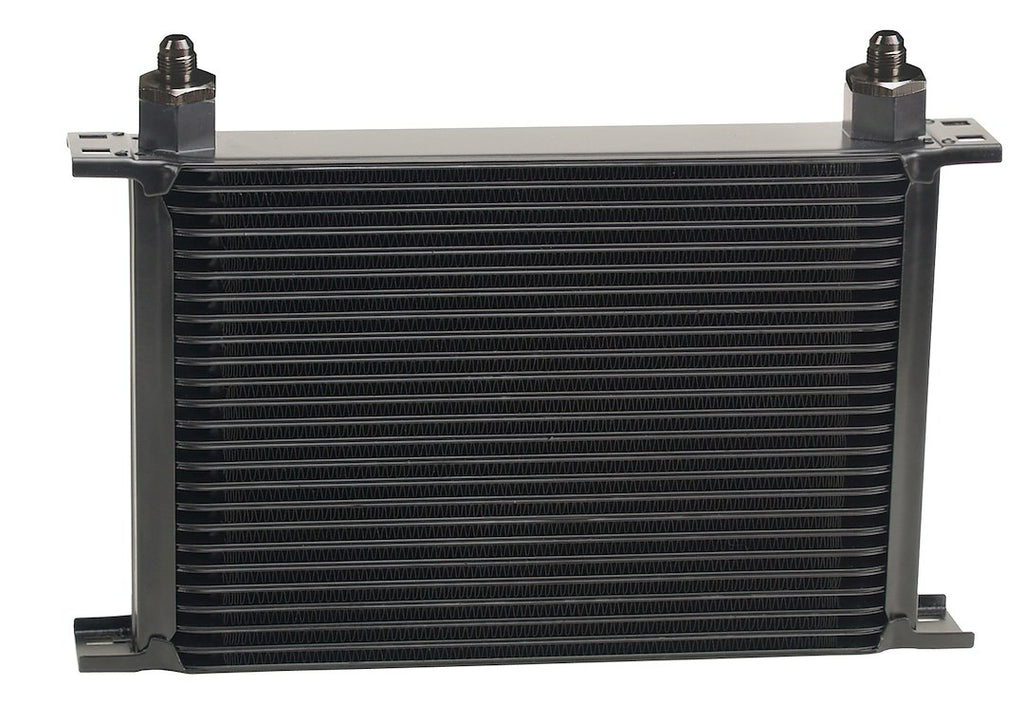

The Derale Stacked Plate Fluid Cooler is designed to provide efficient cooling for various automotive fluids including engine oil, transmission fluid, power steering fluid, fuel, and differential gear oil. With a compact size of 13 inches in width, 2 inches in depth, and 9 inches in height, this cooler features a robust 25 row design that maximizes heat exchange while maintaining a minimal pressure drop. Constructed from furnace brazed aluminum, it ensures durability and longevity under demanding conditions.
This cooler is equipped with high flow turbulator plates that enhance fluid movement, resulting in improved cooling efficiency. The unit includes male -6AN aluminum O-ring inlet fittings for easy installation and compatibility with standard automotive systems. With a cooling capacity of 46,000 BTUs per hour, it effectively manages heat to maintain optimal fluid temperatures during operation.
The black powder coat finish not only adds to the aesthetic appeal but also provides additional protection against corrosion. The Derale Stacked Plate Fluid Cooler is an essential component for those looking to enhance the performance and reliability of their vehicle's fluid systems.
Features
- Furnace Brazed Aluminum Construction With 4 Integrated Mounting Brackets
- Most Efficient Heat Exchangers Available, Built-In High Flow Turbulators
- Designed For Engine And Transmission Cooling
- 25 Row Cooler Design
- Male -6AN Aluminum O-Ring Inlet Fittings
- 46,000 BTU's Per Hour
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 52506
- Condition: New
- Recommended Use: Engine Oil/ Transmission Fluid/ Power Steering Fluid/ Fuel/ Differential Gear Oil
- Construction: Stacked Plate
- Overall Height (IN): 9 Inch
- Overall Width (IN): 13 Inch
- Overall Depth (IN): 2 Inch
- Number Of Cooling Rows: 25
- Inlet Attachment: Female O-Ring Boss
- Inlet Size: 3/8 Inch (-6 AN)
- Outlet Attachment: Male O-Ring Boss
- Outlet Size: 3/8 Inch (-6 AN)
- Color: Black
- Material: Aluminum
- With Fan: No
- Fan Control: No Fan
- Core Height (IN): 7-5/8 Inch
- Core Width (IN): 10 Inch
- Core Depth (IN): 2 Inch
- Finish: Powder Coated
- Fan CFM Rating: No Fan
- Fan Diameter: No Fan
- Fan Amp Draw: No Fan
- With Mounting Hardware: No
