Efficient cooling with customizable aluminum shroud and dual-speed operation.

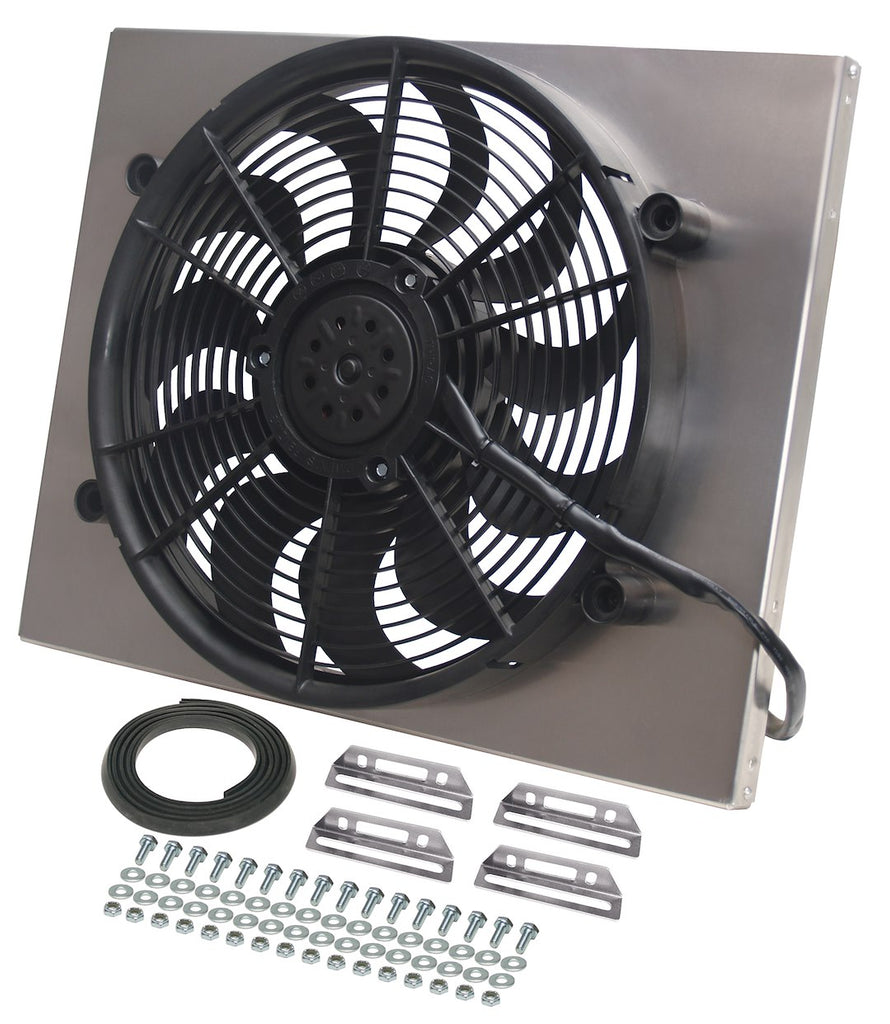

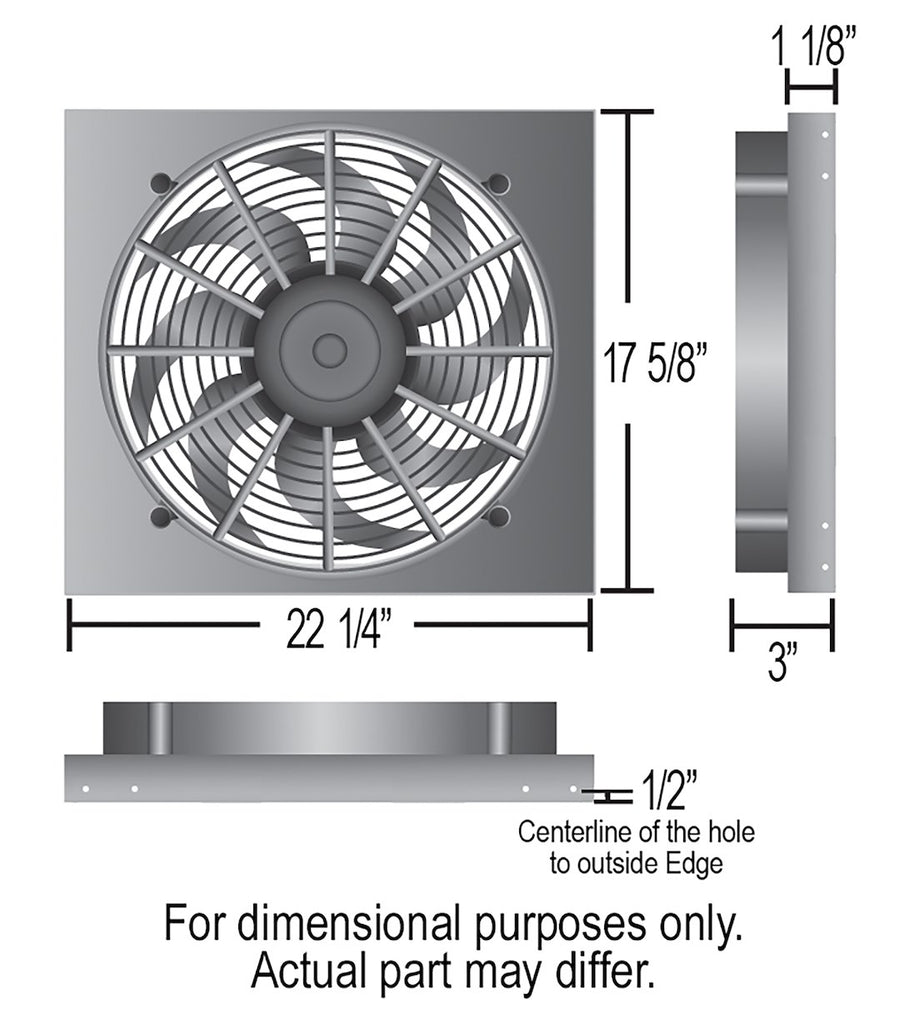

The Derale High Output Single RAD Fan Powerpack is engineered for optimal cooling performance in various applications. With a compact design measuring 22 1/4 inches wide and 17 5/8 inches tall, this fan features a 17-inch diameter that delivers an impressive airflow of 2400 cubic feet per minute at high speed. The fan operates on a powerful 265-watt motor with two-speed settings, ensuring effective cooling even under high static pressure loads.
Constructed with an aircraft quality natural satin aluminum shroud, this fan allows for customization through polishing, painting, or anodizing, providing versatility in appearance. The ultra-quiet patented skewed blade design enhances airflow while minimizing noise, making it suitable for various environments. Designed specifically for puller applications, this fan includes multiple mounting options and comes with a comprehensive installation kit for ease of setup.
The Derale fan is not only efficient but also built to last, featuring 11 durable plastic blades and a robust aluminum shroud. With a fuse rating of 30 amps and a thermostat controller, it ensures reliable operation while drawing a maximum of 23.5 amps at high speed. This fan is a practical solution for those seeking high-performance cooling without the drawbacks of traditional belt-driven fans.
Features
- Powerful Primary Cooling Fan Eliminates Fuel And Horsepower Robbing Belt Driven Fans
- High Output 265 Watt 2 Speed Motor
- Designed For Maximum Performance At High Static Pressure Loads For Effective Cooling
- Ultra Quiet Patented Skewed Blade Design
- Puller (Engine Side) Applications Only
- Aircraft Quality Natural Satin Aluminum Finish Can Be Polished, Painted Or Anodized
- Multiple Mounting Options. All Include Mounting Kit With Illustrated Installation Instructions
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 16822
- Condition: New
- Type: Electric
- Diameter: 17 Inch
- Height: 17-5/8 Inch
- Width: 22-1/4 Inch
- Depth: 3 Inch
- Maximum CFM: 2400 Cubic Feet Per Minute
- Maximum RPM: 2400 RPM
- Rotation Direction: Puller
- Fuse Rating: 30 Amp
- Controller Type: Thermostat
- Amperage Draw: 23.5 Amp/ 17.4 Amp
- Number Of Blades: 11
- Blade Color: Black
- Blade Material: Plastic
- Shroud Material: Aluminum
- Voltage: 12 Volt
