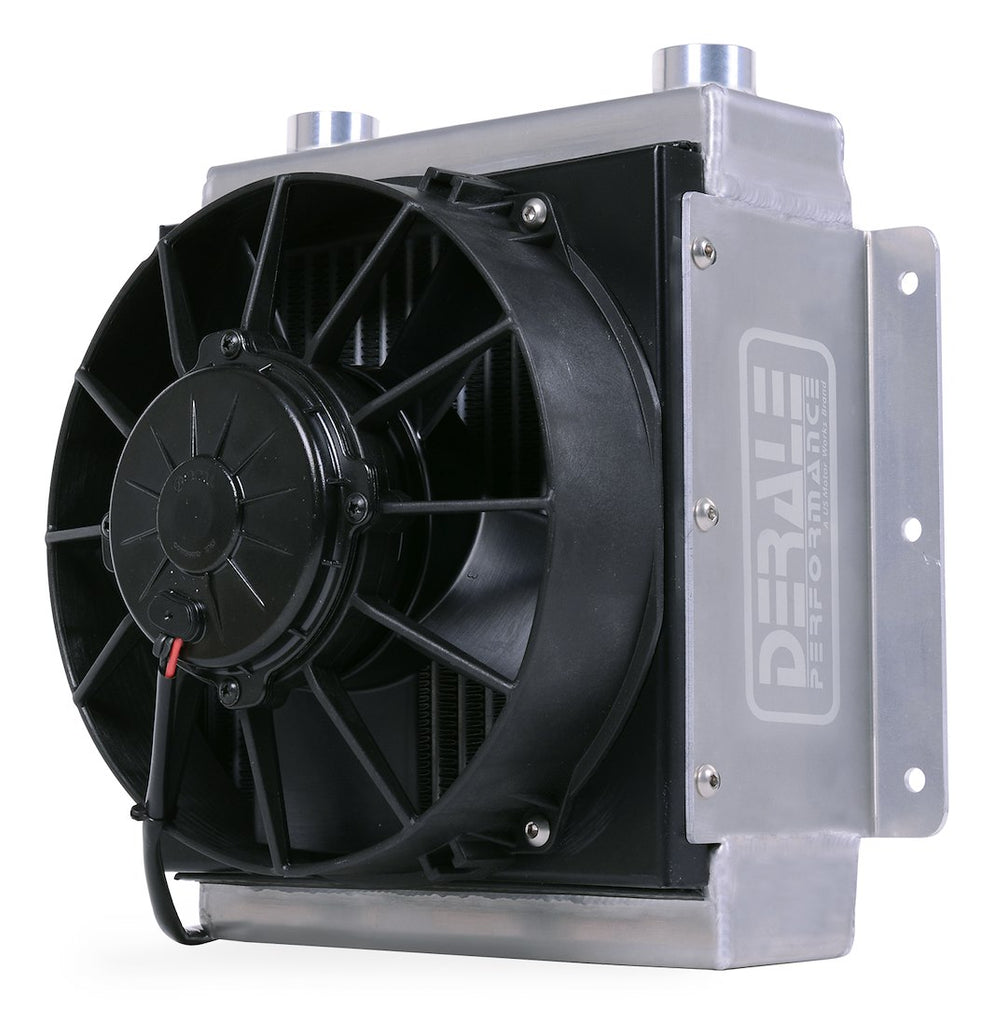

Derale Hi-Flow Racing Fluid Cooler (MPN: 65861)

High-performance remote mount cooler for engine and transmission applications.

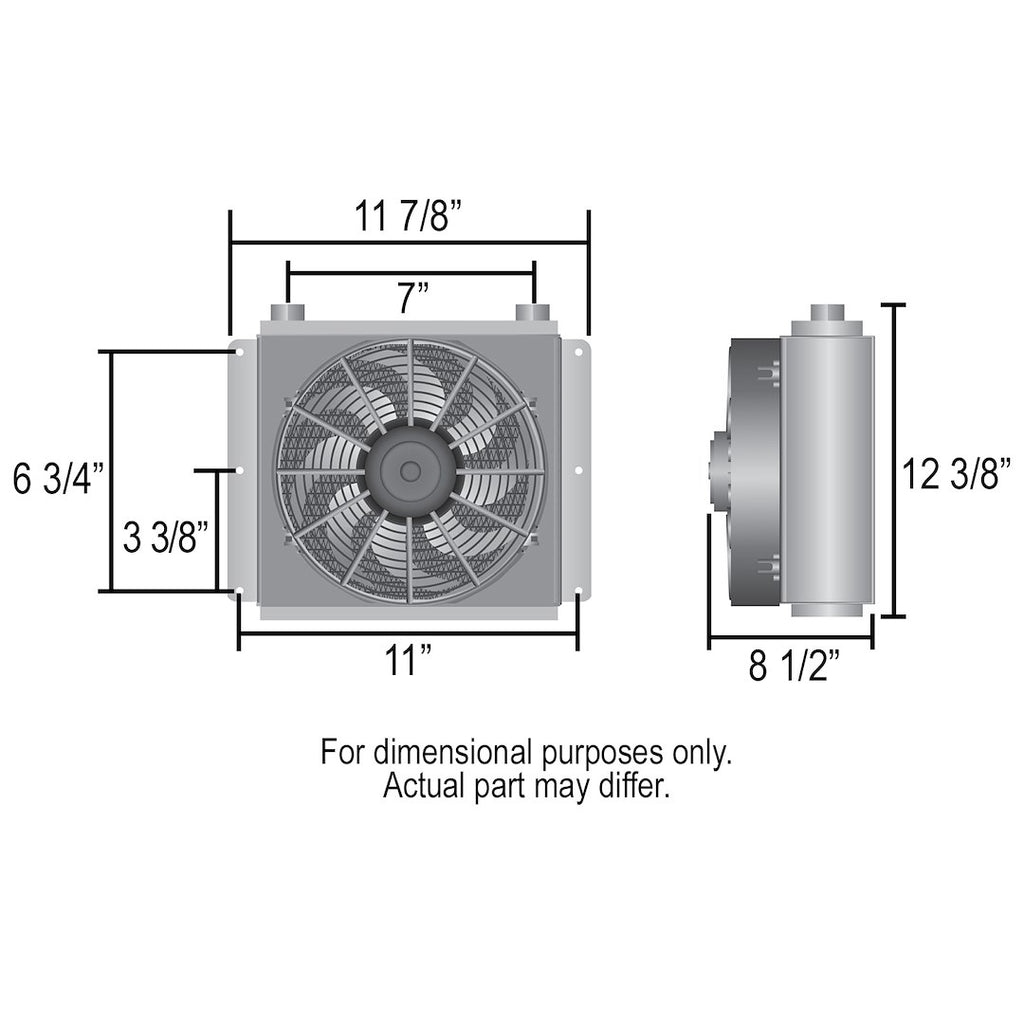

The Derale Hi-Flow Racing Fluid Cooler is engineered for high-performance applications, featuring a robust design that supports optimal cooling for engine oil and transmission fluid. With dimensions of 11-7/8 inches in width, 12-3/8 inches in height, and 8-1/2 inches in depth, this cooler is built to fit various setups while providing efficient heat dissipation. The cooler boasts an impressive flow rate of 20 gallons per minute and is capable of withstanding pressures up to 350 pounds per square inch, ensuring reliability under demanding conditions.

Constructed from aircraft-grade aluminum, the cooler features an extruded tube design with turbulators that enhance heat transfer efficiency. Each unit is precision TIG welded, ensuring durability and longevity. The included 8-inch electric fan delivers 755 cubic feet per minute of airflow, significantly extending the life of your engine or transmission by maintaining optimal operating temperatures. This cooler is designed for puller applications, making it suitable for a range of motorsport activities from drag racing to off-road driving.

With its IP68 certified fan, the Derale Hi-Flow Racing Fluid Cooler is resistant to water and dust, making it a reliable choice for harsh environments. The cooler's female O-ring inlets and outlets with a size of 7/8-14 inches ensure a secure and leak-free connection. This product is a vital component for any performance vehicle looking to enhance cooling efficiency and overall reliability.

Features

• 8 Inch Electric Fan Supplies Optimum Airflow
• Dramatically Extends Engine Or Transmission Life
• Aircraft Aluminum Grade Cooler Design
• Designed For Puller Applications
• Extruded Tube Design With Turbulators For Maximum Heat Dissipation
• Precision TIG Welding
• 20 Gallon Per Minute Flow Rate
• Supports Up To 350 Pounds Per Square Inch, With Minimal Pressure Drop

Specifications

• Manufacturer: Derale
• Manufacturer Part Number: 65861
• Condition: New
• Recommended Use: Engine Oil/ Transmission Fluid
• Construction: Tube And Fin
• Overall Height (IN): 12-3/8 Inch
• Overall Width (IN): 11-7/8 Inch
• Overall Depth (IN): 8-1/2 Inch
• Number Of Cooling Rows: 18
• Inlet Attachment: Female O-Ring
• Inlet Size: 7/8-14 Inch
• Outlet Attachment: Female O-Ring
• Outlet Size: 7/8-14 Inch
• Color: Black/ Silver
• Material: Aluminum
• With Fan: Yes
• Fan Control: Electric
• Finish: Bare
• Fan CFM Rating: 755 Cubic Feet Per Minute
• Fan Diameter: 8 Inch
• Fan Amp Draw: 8 Amp

Technical Documents

• 65861_REV_A.pdf
