High-performance remote mount cooler for engine and transmission applications.

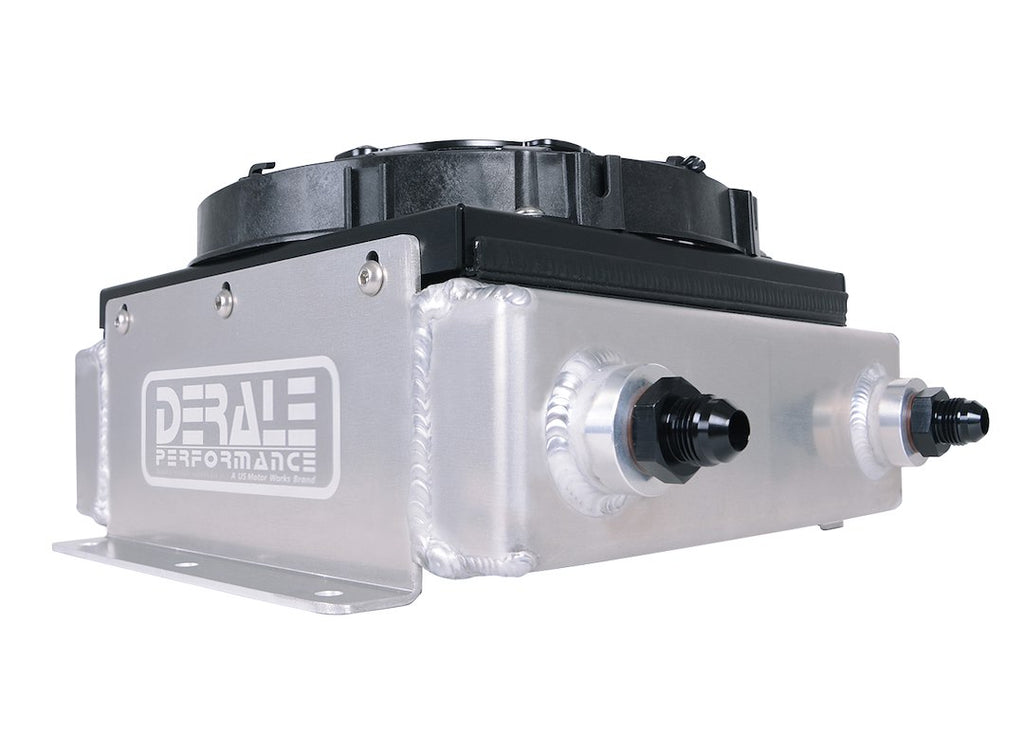

The Derale Hi-Flow Racing Fluid Cooler is engineered for high efficiency and durability, making it suitable for various automotive applications including drag racing and off-road use. With a compact design measuring 15 inches in width, 8-1/4 inches in height, and 7 inches in depth, this cooler features an 18-row configuration that maximizes heat dissipation while maintaining a minimal pressure drop. The cooler is constructed from aircraft-grade aluminum and is precision TIG welded to ensure longevity and reliability under extreme conditions.

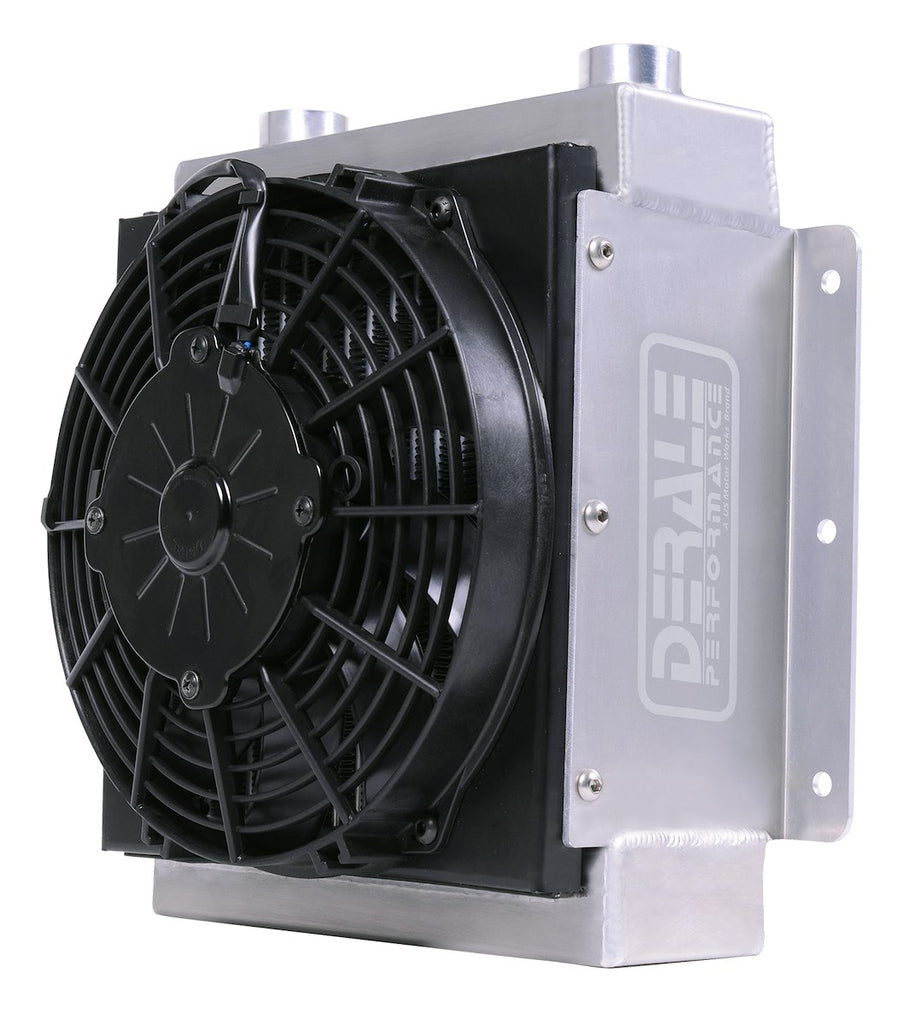

Equipped with an 8-inch electric fan, the cooler provides an impressive airflow of 625 cubic feet per minute, significantly enhancing cooling performance. The fan is IP68 certified, ensuring it is both water and dust proof, which is essential for rigorous racing environments. With a flow rate of 20 gallons per minute, this cooler is designed to support engine oil and transmission fluid applications, effectively extending the life of critical components.
The Derale Hi-Flow Racing Fluid Cooler is designed for puller applications and features an extruded tube design with turbulators that optimize heat transfer. The inlet and outlet attachments are female O-ring types, compatible with 7/8-14 inch fittings, ensuring a secure and leak-free connection. This cooler is a robust solution for those seeking to enhance their vehicle's cooling system performance.
Features
- 8 Inch Electric Fan Supplies Optimum Airflow
- Dramatically Extends Engine Or Transmission Life
- Aircraft Aluminum Grade Cooler Design
- Designed For Puller Applications
- Extruded Tube Design With Turbulators For Maximum Heat Dissipation
- Precision TIG Welding
- 20 Gallon Per Minute Flow Rate
- Supports Up To 350 Pounds Per Square Inch, With Minimal Pressure Drop
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 65860
- Condition: New
- Recommended Use: Engine Oil/ Transmission Fluid
- Construction: Tube And Fin
- Overall Height (IN): 8-1/4 Inch
- Overall Width (IN): 15 Inch
- Overall Depth (IN): 7 Inch
- Number Of Cooling Rows: 18
- Inlet Attachment: Female O-Ring
- Inlet Size: 7/8-14 Inch
- Outlet Attachment: Female O-Ring
- Outlet Size: 7/8-14 Inch
- Color: Black/ Silver
- Material: Aluminum
- With Fan: Yes
- Fan Control: Electric
- Finish: Bare
- Fan CFM Rating: 625 Cubic Feet Per Minute
- Fan Diameter: 8 Inch
- Fan Amp Draw: 6 Amp
