High-performance remote mount cooler for engine and transmission applications.

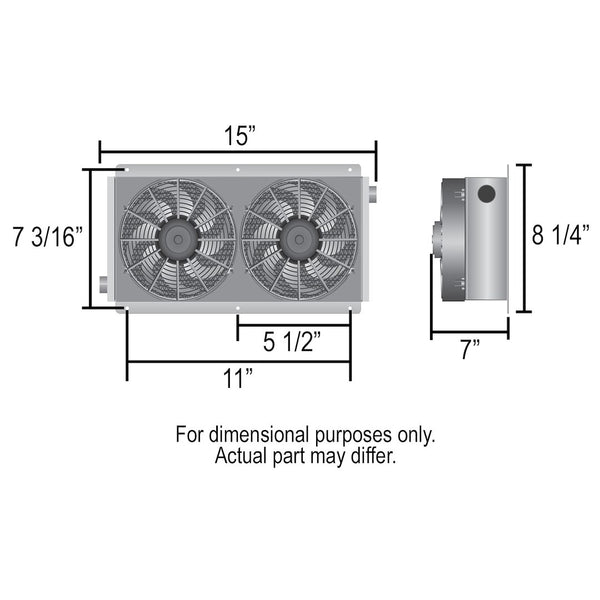

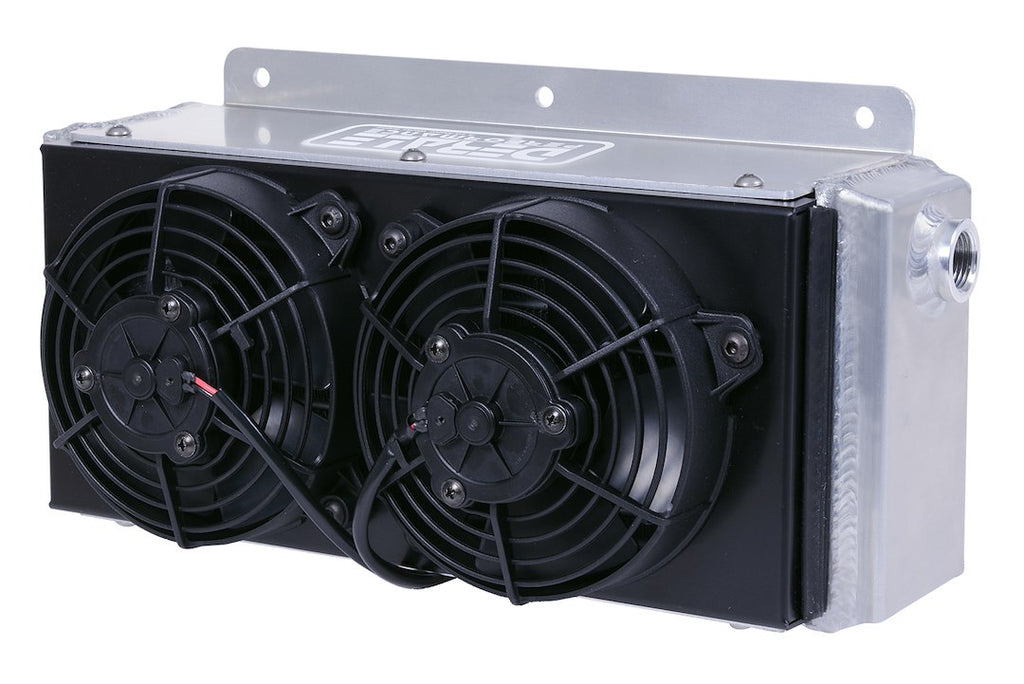

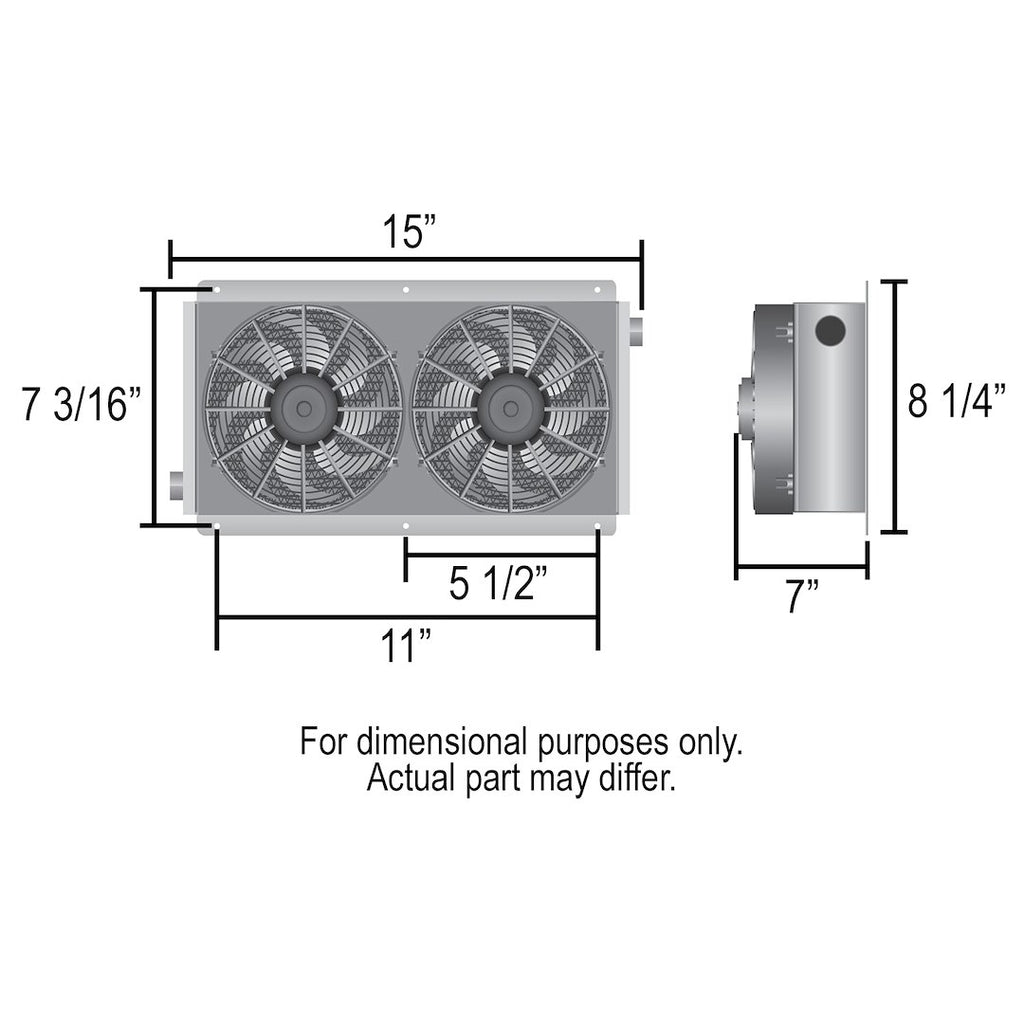

The Derale Hi-Flow Racing Fluid Cooler is engineered for high-performance applications, featuring an 11-row design that maximizes heat dissipation. With a compact size of 15 inches in width, 8-1/4 inches in height, and 7 inches in depth, this cooler is designed to fit in various setups while providing optimal cooling efficiency. The cooler supports a flow rate of 20 gallons per minute and can withstand pressures up to 350 pounds per square inch, ensuring reliable performance under demanding conditions.
Constructed from aircraft-grade aluminum, the cooler is precision TIG welded for durability and longevity. It includes two 5-inch electric fans that deliver a powerful airflow of 630 cubic feet per minute, enhancing cooling capabilities during operation. The IP68 certification of the fans ensures they are water and dust proof, making them suitable for both drag racing and off-road applications.
This fluid cooler is designed for use with engine oil and transmission fluid, making it a versatile addition to any performance vehicle. The extruded tube design with turbulators further enhances heat transfer efficiency, contributing to extended engine and transmission life. The Derale Hi-Flow Racing Fluid Cooler is a reliable choice for those seeking to improve their vehicle's cooling system.
Features
- Two 5 Inch Electric Fans Supply Optimum Airflow
- Dramatically Extends Engine Or Transmission Life
- Aircraft Aluminum Grade Cooler Design
- Designed For Puller Applications
- Extruded Tube Design With Turbulators For Maximum Heat Dissipation
- Precision TIG Welding
- 20 Gallon Per Minute Flow Rate
- Supports Up To 350 Pounds Per Square Inch, With Minimal Pressure Drop
Specifications
- Manufacturer: Derale
- Manufacturer Part Number: 65840
- Condition: New
- Recommended Use: Engine Oil/ Transmission Fluid
- Construction: Tube And Fin
- Overall Height (IN): 8-1/4 Inch
- Overall Width (IN): 15 Inch
- Overall Depth (IN): 7 Inch
- Number Of Cooling Rows: 11
- Inlet Attachment: Female Threads
- Inlet Size: 7/8 Inch
- Outlet Attachment: Female Threads
- Outlet Size: 7/8 Inch
- Color: Black/ Silver
- Material: Aluminum
- With Fan: Yes
- Fan Control: Electric
- Finish: Bare
- Fan CFM Rating: 630 Cubic Feet Per Minute
- Fan Diameter: 5 Inch
- Fan Amp Draw: 7.2 Amp
